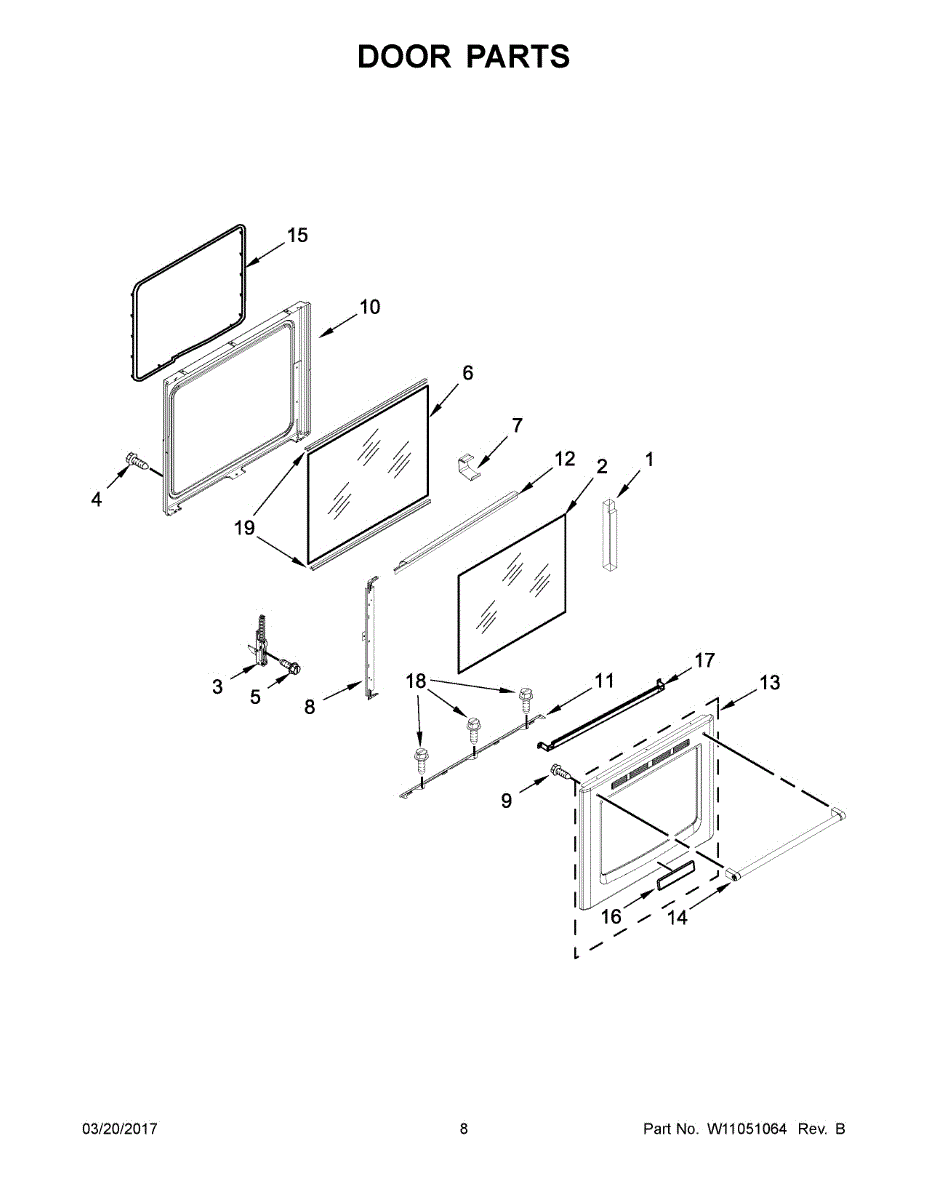

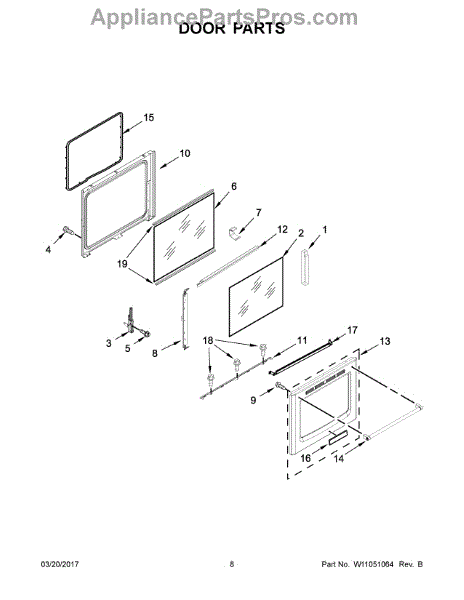

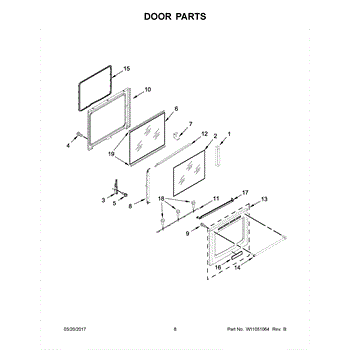

Parts for Kitchenaid KFEG500EBS1: 05 - Door Parts

The door hinge is an OEM part for Whirlpool ranges. This piece serves as the anchor for stable, smooth opening and closing of the oven door.

Causes of a bad door hinge include warping from repeated heat exposures and compromising its secure gateway function over time. Breakdowns disrupt workflows.

Symptoms involve:

• A sagging oven portal is unable to support itself when ajar
• Grating or binding movements straining the hinge mechanism
• Difficulty latching or sealing the door during baking

This OEM Whirlpool part is also compatible with some Maytag, Jenn-Air, and KitchenAid ranges.

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This factory fastener secures appliance panels, brackets, or internal components. Replacing a missing, rusted, or stripped screw restores a tight fit, reduces vibration/noise, and helps keep parts properly aligned for reliable operation.

• Fastens components to the appliance cabinet or frame
• Replaces missing, corroded, or damaged fasteners
• Helps correct loose, rattling, or misaligned panels and trim
• Supports stable, rattle-free performance when originals are worn or stripped

• Disconnect power; shut off gas or water before servicing
• Match to the original location; start threads by hand to avoid cross-threading
• Use the correct driver that fits the screw head to prevent stripping
• Snug firmly but do not overtighten; repair damaged threads if needed

This glass bracket secures the oven/microwave door glass, keeping the inner glass panel aligned and stable for safe operation. It replaces worn or damaged brackets to restore proper door fit and reduce rattling. What it does:

• Secures and supports the door's inner glass panel to maintain alignment
• Prevents glass movement that can cause vibration, noise, or improper sealing
• Helps restore proper door closing and even heat retention when functioning parts are present
• Commonly replaced when bracket is cracked, bent, or missing mounting integrity

• One glass bracket

• Disconnect power to the appliance before beginning any repair
• Handle glass carefully; wear cut-resistant gloves and eye protection
• Installation typically requires partial door disassembly and removal of retaining screws—keep track of fasteners

The Trim Vent is an OEM component specifically designed for Whirlpool ranges. Located at the rear of the unit above the oven cavity, the trim vent serves an important safety and ventilation purpose.

Constructed of heat-resistant sheet metal with a powder-coated finish, the trim vent features an internal baffle system and a rear-mounted exhaust fan. This facilitates the proper drawing of hot oven air and fumes up and out of the kitchen area.

This exhaust vent meets all codes regarding flame barrier rating and venting performance. It attaches securely to the framework at the top and back edges.

Symptoms of a bad trim-vent include:

• Excessive heat and smoke escaping during use
• Grease or residue buildup inside the vent pathway
• Misaligned vent body not flush or securely seated

This OEM part fits KitchenAid, Jenn-Air, Amana and select GE range models.

This replacement door handle restores a secure grip and smooth operation to your appliance door. It provides a direct-fit swap for worn, cracked, or broken handles so the door opens and closes reliably. What it does:

• Replaces the damaged or broken door handle so the door can be opened and closed safely
• Provides a comfortable grip and restores original door appearance
• Reduces the risk of further damage from using a compromised handle
• Helps prevent door misalignment caused by loose or missing hardware

• Verify power is off or appliance is in a safe state before starting any work
• Installation requires removing the old handle hardware and securing this handle with the original fasteners
• Keep small screws and retainers in a safe place during installation to avoid loss

The Door Gasket is an OEM part for Whirlpool ovens. This part creates a tight seal around the oven door, preventing heat from escaping during cooking. This part ensures that the oven maintains a consistent temperature, leading to more efficient cooking and energy use.

A damaged gasket might also allow hot air to escape, potentially causing heat damage to surrounding kitchen cabinetry and increasing energy consumption.

Symptoms of a bad Door Gasket include:

• The oven takes longer to preheat
• You notice heat escaping from the edges of the oven door
• Uneven cooking or baking results
• Increased energy bills due to the oven working harder to maintain temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Nameplate is an OEM part for Whirlpool appliances. It serves as an identification label, typically displaying the brand name and model number, providing a clean and professional appearance for the appliance.

You should replace this nameplate if it becomes damaged or worn out. Common causes of a bad nameplate include wear and tear from regular cleaning, exposure to moisture or heat that can cause peeling or fading, and accidental impact that can lead to cracks or detachment.

Symptoms of a bad nameplate include:

• Fading or illegible text
• Peeling or detaching from the appliance surface
• Visible cracks or damage
• The nameplatae being completely missing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This mounting bracket secures and supports appliance panels and internal components to keep assemblies aligned and stable during operation. It restores proper fit and prevents excessive vibration or movement in the affected area. What it does:

• Provides a sturdy attachment point for cabinet panels and internal parts
• Helps maintain correct alignment to reduce rattling and vibration
• Restores secure mounting after damage, wear, or during reassembly
• Commonly used when panels are loose, misaligned, or produce noise

• One mounting bracket

• Turn off and unplug the appliance before beginning any repairs
• Verify bracket orientation and fastener locations match the removed part
• Use the original screws or OEM-recommended fasteners; replace any stripped hardware

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

This glass spacer positions and cushions oven door glass to keep panels aligned and prevent direct glass-to-glass contact. Replacing a damaged spacer restores proper door fit and reduces rattling or uneven sealing. What it does

• Separates and spaces oven door glass panels to prevent rubbing and stress cracks.
• Cushions the glass to reduce vibration and noise during operation.
• Helps maintain even door alignment for a tighter closure and consistent heat containment.
• Commonly replaced when the spacer is worn, cracked, missing, or allowing glass to contact adjacent parts.

• One glass spacer

• Disconnect power to the appliance before starting any repair.
• Handle glass and the spacer with care; wear safety gloves and eye protection.
• Removal/installation typically requires partial door disassembly—retain fasteners and note orientation.
• If door glass is cracked or loose, replace damaged glass to avoid injury.
