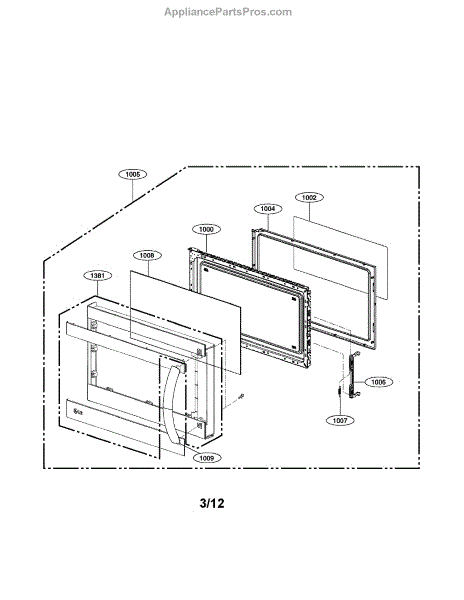

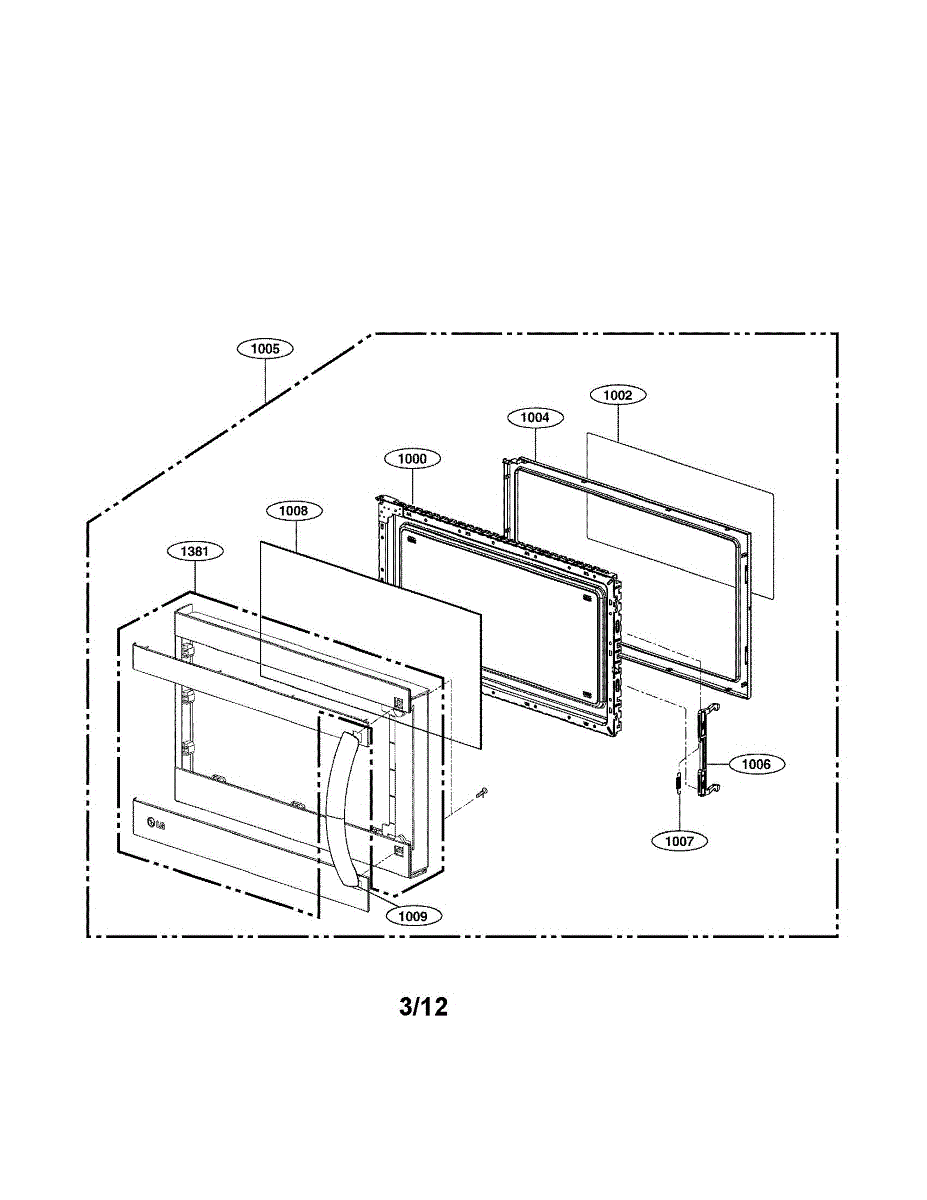

Parts for Lg LMV1683ST / 00: Door Parts

This is the inner door frame assembly for a microwave oven. It provides the structural support for the door's window, trim, handle, and latch so the door aligns and closes properly and the interlock switches engage.

• Forms the inner structure of the microwave door and supports the window/screen, trim, and latch components
• Helps maintain alignment so the door closes and latches securely
• Replace if cracked, warped, or if mounting tabs are broken
• Typical symptoms include a door that won't close or stay shut, "door" error messages, the unit not starting unless the door is pressed, or a loose/rattling door panel

• Disconnect power before servicing; if over-the-range, support or remove the microwave before working on the door
• Use gloves/eye protection and watch for sharp edges
• Photograph door stack-up; transfer existing glass, handle, choke/trim, hinges, and screws to the new frame
• After reassembly, ensure the door closes squarely and that interlock switches engage before restoring power

Inner plastic door film covers the holes in the inner door frame.

The Choke Cover is an OEM part for LG microwaves. This is a protective shield that covers the microwave’s internal components, preventing interference and ensuring the safe operation of the microwave.

Causes of a bad choke cover can include physical damage from accidental impacts, deterioration due to prolonged use, or exposure to high temperatures.

Symptoms of a bad choke cover include:

• Unusual noises during microwave operation
• Visible cracks or damage to the cover
• Microwave not heating food properly
• Sparks or arcing inside the microwave

This OEM LG part is also compatible with some Kenmore models.

This is a complete door assembly that replaces a damaged or worn outer door panel to restore appearance and proper door operation. It provides the finished exterior surface and mounting points for hinges and latch components. What it does:

• Replaces a cracked, dented, or cosmetically damaged door to restore the appliance's exterior
• Provides the structural mounting for hinges, latch, and door-seal components so the door closes securely
• Helps stop drafts, rattling, or misalignment caused by bent or broken door parts
• Restores proper sealing and helps prevent leaks or loss of heat/cold when the door closes

• One complete door assembly

• Disconnect power and, if applicable, water supply before starting work
• Remove trim and retain fasteners for reuse unless otherwise instructed by OEM
• Door assemblies can be heavy or awkward; a second person may be needed for safe handling and alignment
• Follow OEM instructions for hinge alignment and torque; verify proper latch engagement after installation

The Latch is an OEM part for LG microwaves. This component is critical for securing the microwave door, ensuring it remains closed during operation. The latch interacts with the door switch to enable the microwave to function only when the door is properly closed, maintaining safety and efficiency.

Over time, the latch can become worn or damaged due to frequent use, misalignment, or accidental impact. A faulty latch can lead to the microwave door not closing properly, resulting in the appliance not operating or shutting off unexpectedly.

Symptoms of a bad latch include:

• The microwave not starting or operating intermittently
• The door not closing securely
• The microwave running even when the door is open
• Audible clicking or unusual noises when opening or closing the door

This OEM LG part is also compatible with Sears/Kenmore models.

This window glass is the clear panel in the door, allowing you to see inside while maintaining the door's integrity. Replace cracked or shattered glass to restore safety, visibility, and the appliance's appearance.

• Forms the transparent viewing window within the door assembly
• Replaces broken, chipped, or shattered glass to restore safe operation
• Helps return proper door structure and appearance
• Common symptoms: visible cracks, rattling/loose panel, sharp edges, impaired visibility

• Disconnect power; allow the unit to cool completely before service
• Wear cut-resistant gloves and eye protection; handle glass carefully
• Support the door; many models require removing the door to access the glass
• Transfer any brackets/trim/screws from the original glass and tighten evenly—do not overtighten

This replacement door handle restores a secure, comfortable grip so the door opens and closes smoothly again. It's designed to replace a cracked, loose, or missing handle and refresh the look and function of your appliance's door.

• Provides the handhold needed to open and close the door
• Replaces cracked, broken, or missing handles
• Helps correct a loose or wobbly handle
• Can improve difficulty opening or closing caused by a damaged handle

• Disconnect power to the appliance before servicing
• Access screws from the inner side of the door; carefully remove inner trim to reach fasteners
• Support the door while working to avoid stressing hinges
• Reuse original hardware and verify proper door alignment and latching after reassembly

The Microwave Door Outer Panel is an OEM part for LG microwaves. This part forms the exterior part of the microwave door, including the frame and glass that allow you to view inside while the microwave is in operation.

Common causes for damage to the door outer panel include accidental impacts, frequent usage causing wear, and environmental factors such as excessive heat or humidity.

Symptoms of a failing Microwave Door Outer Panel include:

• Cracks or damage to the outer frame or glass
• Loose or misaligned door panel, affecting the door's ability to close properly
• Cosmetic issues such as scratches or discoloration that affect the appearance of the appliance

This OEM LG part is also compatible with some Kenmore models.

The Magnetron Thermostat is an OEM part for LG microwaves and built-in ranges. Its primary function is to monitor the temperature and ensure that it remains within a safe operating range. If the temperature exceeds the preset limit, the thermostat will interrupt the power supply to the magnetron, preventing overheating and potential damage.

Causes of a faulty magnetron thermostat can include electrical malfunctions, component failures, or physical damage. These factors can result in issues such as erratic heating, microwave not heating properly, or the appliance shutting off unexpectedly.

Symptoms of a bad magnetron thermostat may include:

• Microwave not heating food evenly or at all
• Inconsistent or weak heating performance
• Microwave shutting off or displaying error codes related to temperature issues

This OEM LG part can also be used on Kenmore/Sears appliances.
