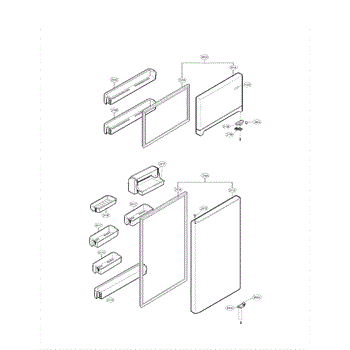

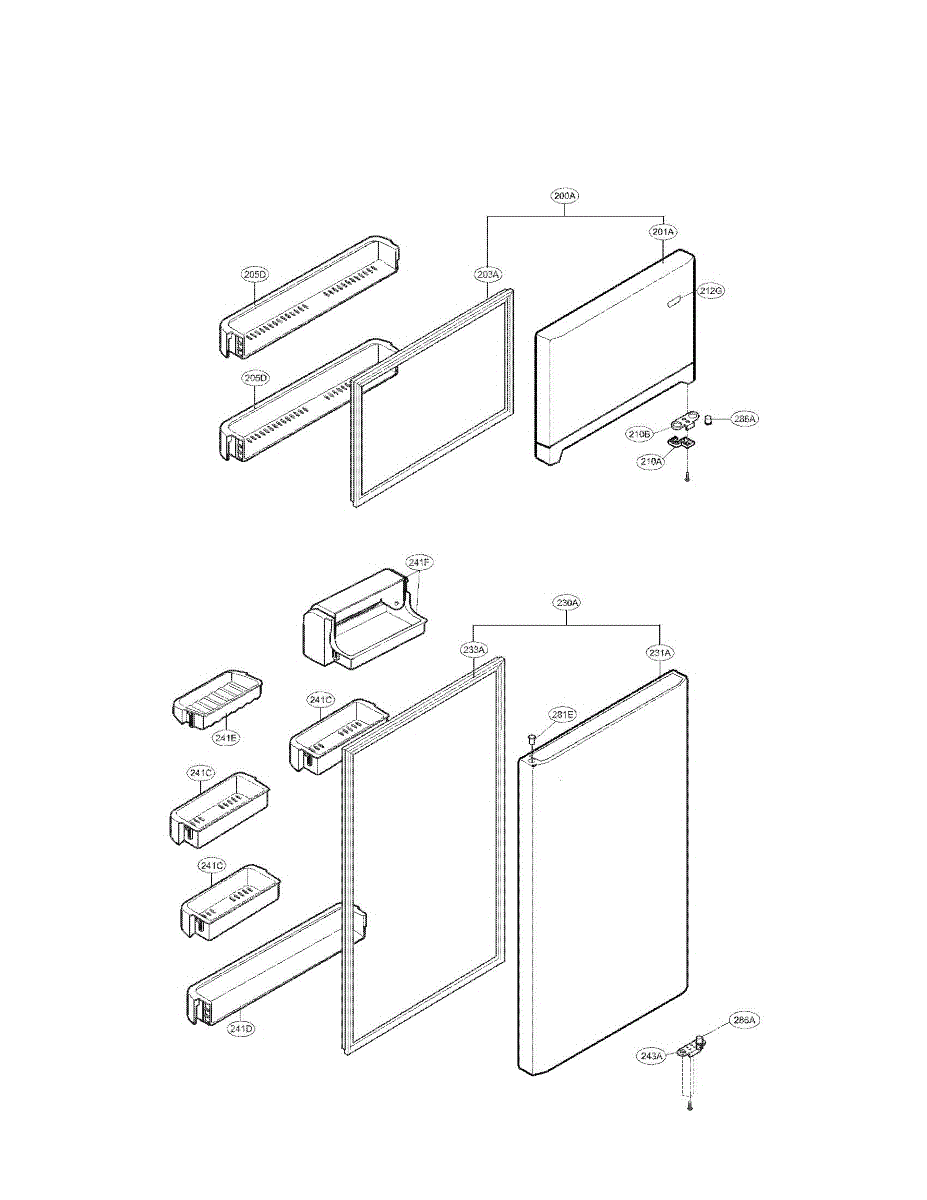

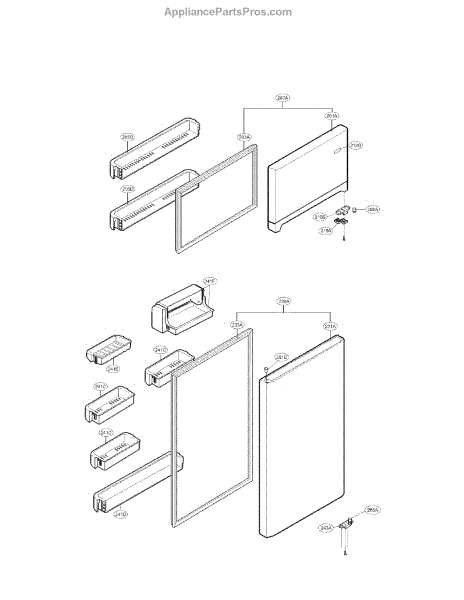

Parts for Lg LTC22350WH: Door Parts

This door gasket creates an airtight seal between the refrigerator door and cabinet to keep cold air in and humid air out. Replacing a worn gasket helps restore proper temperatures, reduce frost and condensation, and improve efficiency. What it does:

• Seals the door perimeter to prevent air leaks
• Helps maintain stable interior temperature and humidity
• Reduces frost, moisture, and icing near the door opening
• Common signs of failure: tears, cracks, warping, gasket won't stay seated, door not closing fully, condensation or frost along the gasket

• 1 door gasket

• Unplug the appliance before servicing
• Let the new gasket warm and relax (room temp or warm water) to remove folds
• Remove the old gasket from the retainer/channel; install the new one starting at the corners and working evenly around
• If your model uses retainer screws, loosen to remove/seat the gasket and retighten snugly—do not overtighten
• Use low heat (hair dryer) to gently smooth waves; verify seal all around (paper-slip test) and adjust hinges/leveling if needed

This refrigerator guide aligns and supports a mating component so it travels smoothly and stays on track. Replacing a cracked or missing guide restores proper movement and helps prevent binding, jamming, or premature wear.

• Guides and stabilizes the movement of the associated part to ensure smooth travel
• Keeps components aligned to prevent rubbing, derailment, or gaps
• Common signs of failure: sticking or binding, wobbling/misalignment, or parts coming off track
• Visible damage such as cracks, broken tabs, or missing pieces on the guide

• Disconnect power; if working near a dispenser or water path, turn off the water supply
• Remove the access panel/bin as needed and retain any screws/clips
• Seat the new guide and reuse existing hardware; verify a secure fit
• Restore power and test the component's movement for smooth operation

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

This door basket is a refrigerator door shelf that restores storage space and secures bottles, jars and small items on the door. It replaces a cracked, broken or missing door bin so items stay organized and easy to reach. What it does

• Holds bottles, condiments and other small food items on the refrigerator door
• Replaces cracked, warped or damaged door shelf that no longer secures items
• Restores usable door storage to reduce shifting or spills during normal use
• Helps maintain proper organization and access to frequently used items

• One door basket

• High-level swap: remove the old bin by lifting or unclipping, then seat the new basket into the door rails until it locks in place
• Check door rail alignment and clean mounting area before installing
• Handle with care to avoid cracking the new plastic during installation
• Disconnect power only if working near electrical components; this is a non-electrical replacement

This door basket is a replacement refrigerator door bin that restores inside-door storage for bottles, jars and small containers. It helps keep foods organized and prevents items from shifting or falling when the door opens. What it does:

• Provides a secure shelf on the interior door for bottles, condiments and other small items
• Replaces cracked, broken or missing door storage to restore usable space
• Helps reduce shifting and spillage when opening and closing the refrigerator door
• Matches OEM fit and mounting points for straightforward replacement when correct part number is used

• One replacement door basket

• Inspect mounting pegs or tracks on the door for damage before installing
• Align the basket tabs with the door slots and snap into place until fully seated
• Use only the exact replacement part number to ensure proper fit

This door stopper cushions and limits an appliance door's travel to prevent slamming and reduce wear on the hinge. It helps the door close smoothly and reduces noise for a better user experience. What it does

• Stops and cushions the door at the end of its swing to prevent hard impacts
• Reduces hinge and cabinet wear caused by repeated slamming
• Helps eliminate banging or rattling noises during door movement
• Can restore proper door feel when the original stopper is cracked, worn, or missing

• One door stopper

• Service with the appliance unplugged and/or power disconnected for safety
• Typically installed at the hinge/cabinet area using basic hand tools; may require removing a trim or access panel
• Inspect hinge screws and mounting area; replace any damaged hardware and tighten to secure the stopper

The Hinge Bushing is an OEM part for LG refrigerators. It serves as a crucial component in the door hinge mechanism, ensuring smooth and stable operation when opening and closing the refrigerator door.

You should replace this hinge bushing if it becomes worn out or damaged. Common causes of a bad hinge bushing include constant use leading to wear and tear, misalignment of the door, or physical damage due to impact.

Symptoms of a bad hinge bushing include:

• Difficulty in opening or closing the door
• The door sagging or not aligning properly
• Unusual noises like squeaking or grinding when the door is moved

This OEM LG part is also compatible with Sears/Kenmore.
