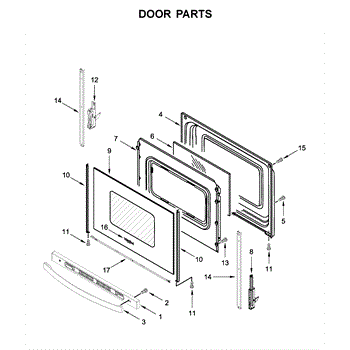

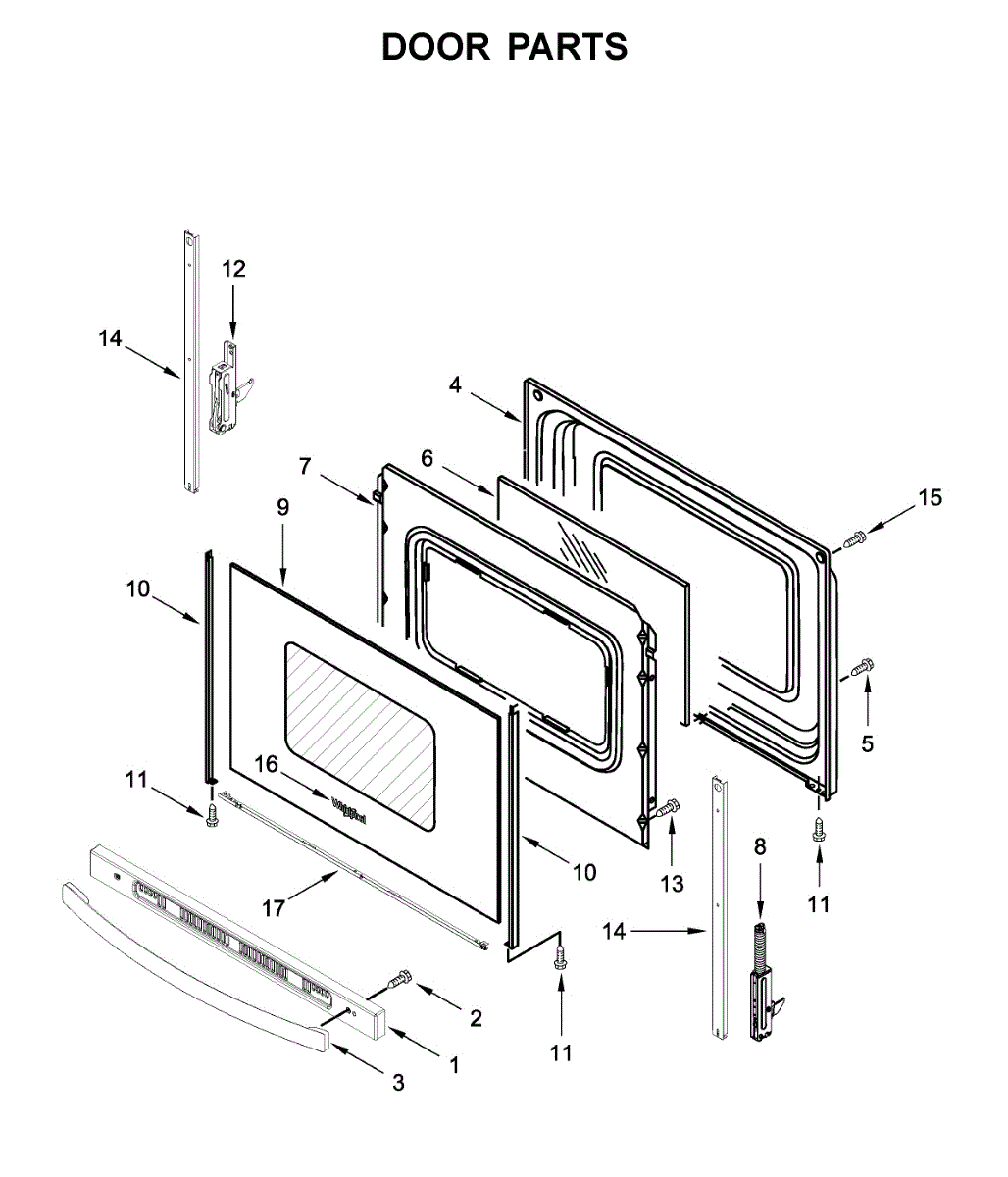

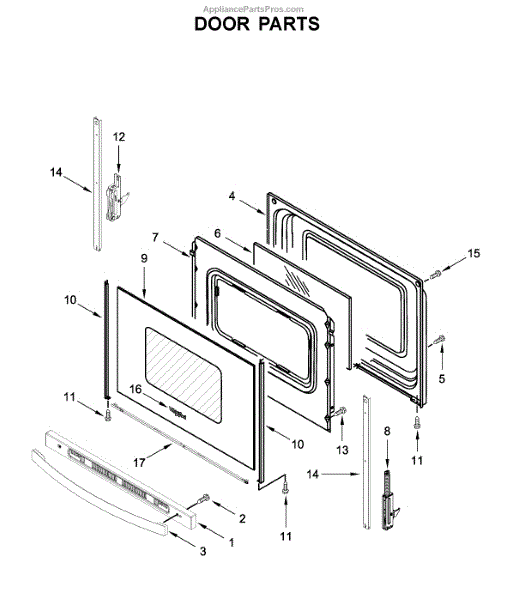

Parts for Whirlpool WFE505W0JS0: Door Parts

Color: Grey

The Vent Trim is an OEM replacement part for Whirlpool range ovens. It is responsible for providing a finished look to the oven door while also allowing proper ventilation during cooking.

A bad vent trim can occur due to accidental damage, wear and tear, or improper installation. If you notice symptoms such as loose or missing vent trim, impaired airflow, or a compromised visual appearance, it may be time to replace the vent trim.

Symptoms of a bad oven door vent trim include:

• Loose or missing vent trim
• Impaired airflow
• Compromised visual appearance

Improve the look and function of your Whirlpool range oven by replacing the damaged or worn-out oven door vent trim with this genuine OEM part.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This factory fastener secures appliance components so panels, brackets, and handles stay tight and aligned. Replace a missing or stripped screw to stop rattles and keep assemblies firmly in place.

• Fastens appliance parts such as panels, brackets, trim, or hardware
• Replaces a missing, loose, or stripped fastener
• Helps eliminate vibration noise and wobbly components
• Restores proper alignment and secure mounting

• Disconnect power; for water- or gas-connected appliances, shut off supply lines before service
• Match length/thread to the original location; start threads by hand to avoid cross-threading
• Use the correct driver bit to prevent stripping the head
• Tighten snugly; do not overtighten into plastic or thin sheet metal

The Door Handle Assembly is an OEM part for Whirlpool ovens. It is designed to provide a sturdy and comfortable grip for opening and closing the oven door.

A bad oven door handle assembly can occur due to regular use, accidental damage, or wear and tear over time. If you notice symptoms such as a loose or broken handle, difficulty in opening or closing the oven door, or a worn-out appearance, it may be time to replace this part.

Symptoms of a bad oven door handle assembly include:

• Loose or broken handle
• Difficulty in opening or closing the oven door
• Worn-out appearance

Restore your Whirlpool oven by replacing the worn or damaged oven door handle assembly with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This left inner door liner replaces a cracked, stained, or damaged inner door panel to restore the refrigerator/freezer door interior surface and support door-mounted bins and shelving. It helps maintain a clean, secure mounting surface for door accessories. What it does:

• Replaces the inner door panel to cover insulation and provide a finished interior surface
• Provides mounting points and support for door bins, shelves, and hardware
• Helps prevent cold air leaks by restoring the proper door interior assembly fit
• Addresses symptoms like visible cracks, holes, staining, or loose/misaligned door-mounted storage

• One left door liner

• High-level replacement — may require removing the door, inner trim, and any attached bins or shelves
• Keep fasteners and hardware organized; transfer existing gaskets, clips, and brackets as needed
• Disconnect power to the appliance if working near electrical components or lights

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken

The Door Glass is an OEM part for Whirlpool ranges. It forms the inner layer of the oven door, providing insulation and protection against high temperatures during cooking. The oven door inner glass ensures heat is contained within the oven cavity, allowing for efficient and even cooking. It also acts as a barrier, preventing any spills or debris from entering the space between the inner and outer glass layers.

A bad oven door inner glass can occur due to accidental impact, extreme temperature changes, or regular wear and tear. If you notice symptoms such as cracks, shattered glass, or compromised insulation, it may be time to replace this part.

Symptoms of a bad oven door inner glass include:

• Cracks or shattered glass
• Compromised insulation
• Difficulty in maintaining consistent cooking temperatures

Restore your Whirlpool range by replacing the damaged or worn oven door inner glass with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This door hinge supports and pivots the appliance door so it opens smoothly and closes securely. Replacing a worn hinge restores proper alignment and sealing to help the door latch correctly and operate as designed.

• Provides the pivot point and maintains door alignment
• Helps ensure smooth opening/closing and proper latching
• Supports a tight seal to prevent gaps, rattles, or temperature/moisture loss
• Typical failure signs: door sags, binds, squeaks, or won't stay closed/aligned

• Disconnect power before service; wear gloves to protect from sharp edges
• Support the door and control any spring tension; remove mounting hardware and the old hinge
• Install the new hinge in the same orientation; transfer any reusable hardware
• Adjust as needed

This replacement door glass is the clear window panel in the appliance's door. It restores a clear view and the door's protective barrier when the original glass is cracked, shattered, or hazed.

• Forms the transparent viewing window within the door assembly
• Supports proper door integrity and sealing when installed with existing trim/gaskets
• Replaces cracked, shattered, or scratched glass to remove sharp edges and restore appearance
• Common symptoms: spiderweb cracks, complete shatter, clouding/fogging, or a loose/rattling panel

• Disconnect power before servicing; allow it to cool completely
• Wear cut-resistant gloves and eye protection; handle glass carefully on a padded work surface
• Remove the door and separate panels; note screw locations and orientation
• Transfer any brackets, trim, or seals from the old glass and tighten fasteners evenly without over-torquing

The Door Trim is an OEM replacement part for Whirlpool ranges. It is the outer decorative coating that wraps around the edges of the oven door opening. The trim piece provides a sleek finished look while protecting internal elements from accidental contact when accessing the oven cavity. For Right-Hand use W10761014

Symptoms of a failing door trim include:

• Peeling or flaking of the outer coating
• Cracks or breaks in trim corners exposing raw edges
• Loose fitting or inability to securely mount around the opening

Causes involve normal wear over time from routine cleaning and occasional impact during use. Exposure to heat radiating from the oven door can accelerate surface deterioration as well.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Door Trim is an OEM replacement part for Whirlpool ranges. It covers the outer edge of the oven door, protecting it from wear and dust while retaining heat and improving aesthetics.

Causes of a bad door trim include normal wear and tear over time from repeated door openings and closings, exposure to heat and steam from cooking, or accidental damage. The high-temperature paint coating can peel or bubble and the rigid trim material may crack or warp.

Symptoms of a bad door trim include:

• Peeling, bubbling, or cracked paint
• Warped or misshapen trim
• Gaps appearing around the door seal
• Increased heat loss from the oven cavity
• Declining aesthetic appeal

Color: Black - Right Hand Trim. For the Left Hand use W10761018

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw-and-washer fastener is a factory-size 8-18 x 5/16 hardware piece used to secure appliance panels and components. Replace stripped, rusty, or missing hardware to restore a tight, rattle-free fit and proper alignment. What it does:

• Fastens sheet-metal panels, brackets, and small components in the appliance cabinet
• Replaces lost, stripped, or corroded screws to maintain secure mounting
• Helps reduce vibration, buzzing, or rattling from loose parts
• Useful when the original hardware is missing or no longer holds securely

• Includes 1 screw-and-washer fastener (8-18 x 5/16)

• Disconnect power; shut off gas and water supplies if applicable
• Match the fastener to the original location; sizes can vary by application
• Start threads by hand to avoid cross-threading; use an appropriately sized driver
• Tighten snugly without overtightening to prevent stripping sheet metal

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This support bracket secures an appliance cabinet component or mounting point to restore alignment and reduce movement. It replaces worn or broken supports so panels and internal parts stay properly positioned during normal operation. What it does

• Holds a cabinet panel, frame, or internal component in place to maintain proper alignment.
• Stabilizes mounting points to help reduce vibration, rubbing, or intermittent noise.
• Common replacement when you notice a loose or sagging panel, rattling, or unusual chassis movement.
• Provides a direct mechanical fix—matches the OEM bracket design and fit.

• Disconnect power (and shut off gas supply for gas appliances) before starting any repair.
• Remove necessary panels and fasteners to access the old bracket; keep track of all screws and clips.
• Compare the new bracket to the old part for orientation before installing; secure using the original fasteners—do not overtighten.

The Screw is an OEM part for Whirlpool appliances, commonly utilized in a variety of their products such as washing machines, dryers, refrigerators, and dishwashers. This screw is essential for securing different components, ensuring they are properly attached and aligned to maintain the appliance’s functionality and safety.

Over time, screws can become loose, stripped, or lost due to vibrations, regular use, or during maintenance and repairs. A damaged or missing screw can lead to unstable parts, which may affect the performance and safety of the appliance.

Symptoms of a bad or missing screw include:

• Loose or rattling components
• Misalignment of parts
• Noise during operation
• Panels or parts not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Color: Grey

Color: Black
