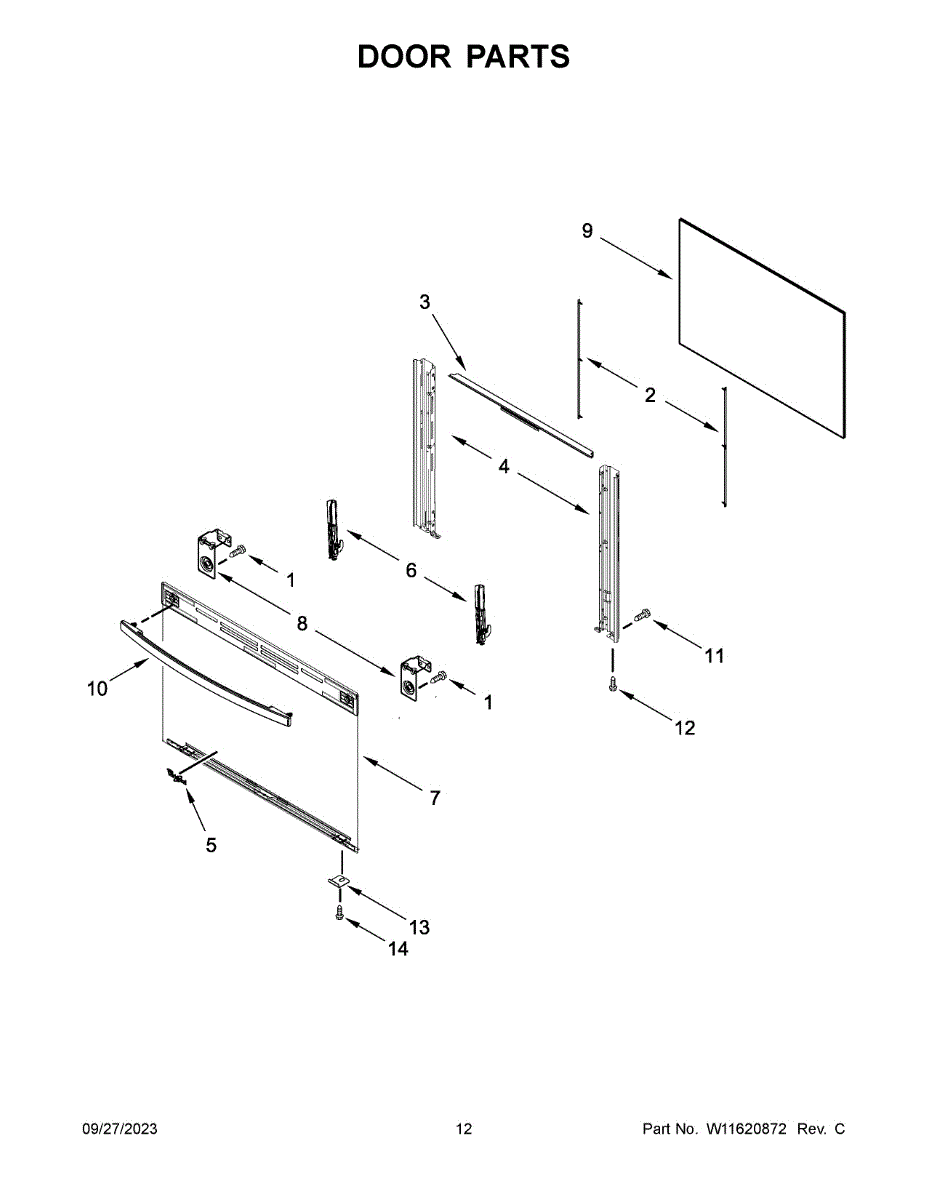

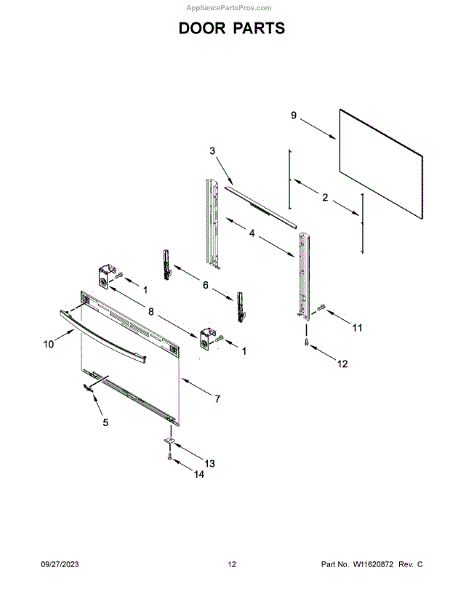

Parts for Whirlpool WFG505M0MS0: Door Parts

This window gasket fits between the appliance's window glass and the surrounding frame. It cushions the pane and helps seal gaps so the window stays secure, reduces rattles, and maintains proper performance around the viewing area. What it does:

• Seals the perimeter of the window glass to the door/frame
• Cushions the glass to reduce vibration and rattling noises
• Helps limit unwanted air/heat/steam leakage around the window area
• Common signs of wear: torn or flattened gasket, visible gaps, loose or shifting glass

• 1 window gasket

• Disconnect power and allow all surfaces to cool before starting
• Support the door and glass; wear cut-resistant gloves and eye protection
• Note the gasket's orientation; seat it evenly without stretching or twisting
• Reassemble and verify an even, continuous contact around the window

The Glass Bracket is an OEM replacement part for Whirlpool range ovens. It is designed to securely hold the inner glass panel in place, ensuring proper insulation and visibility while cooking. It helps to maintain the integrity of the oven door and prevents any potential hazards or heat loss.

A bad oven door inner glass bracket can occur due to wear and tear, accidental damage, or improper installation. If you notice symptoms such as a loose or misaligned inner glass panel, rattling sounds when opening or closing the oven door, or difficulty in maintaining the desired temperature inside the oven, it may be time to replace the bracket.

Symptoms of a bad oven door inner glass bracket include:

• Loose or misaligned inner glass panel
• Rattling sounds when opening or closing the oven door
• Difficulty in maintaining the desired temperature inside the oven

Repair your range oven by replacing the faulty or damaged oven door inner glass bracket with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Color: Grey

This door hinge supports and pivots the appliance door for smooth opening and a secure, even close. Replacing a worn hinge restores proper alignment and sealing to help prevent gaps and ensure reliable operation. What it does:

• Provides the pivot point and structural support for the door
• Maintains alignment and closing tension for a flush, even seal
• Helps ensure correct latch or switch engagement
• Common symptoms of a failing hinge: door sagging, not closing fully, uneven gaps, squeaking/grinding, or the door popping open

• Door hinge

• Disconnect power to the appliance before servicing
• Support the door while removing and installing the hinge to prevent damage
• Transfer and reuse original mounting hardware as needed
• After installation, check door alignment and closure; adjust per the service instructions

This mounting bracket secures appliance components to the cabinet, restoring proper alignment and reducing vibration. Replace a damaged or missing bracket to stabilize panels and ensure reliable operation of the assembled parts. What it does

• Provides a secure attachment point for internal or external appliance components.
• Restores alignment to loose or sagging panels and assemblies.
• Reduces vibration and rattling caused by worn or broken support brackets.
• Helps maintain proper fit and function of the surrounding parts.

• Disconnect power and water before starting any repair.
• Use original fasteners where possible; replace damaged screws or clips.
• Hand-start fasteners to avoid cross-threading, then tighten to secure—not overtighten.

Replacement screw used to secure components and panels in household appliances, restoring proper fit and effectively reducing movement or rattling from loose or missing fasteners. What it does:

• Secures panels, trim and internal components to keep parts aligned and stable.
• Helps stop rattling, vibration or noise caused by loose or missing fasteners.
• Restores proper mounting for brackets, covers and control housings.
• Useful wherever a worn or stripped screw is causing play or loose parts.

• Disconnect power and unplug the appliance before doing any work.
• Use the correct driver and size to avoid stripping the head or threads.
• Tighten snugly but avoid overtightening—replace with the exact OEM screw when specified.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This Door Glass Support Bracket holds and stabilizes the oven/microwave door glass, helping keep the glass aligned and secure for safe operation. It replaces a worn or broken support bracket to restore proper door fit. What it does:

• Secures the door glass to the door frame so the glass remains stable during use
• Prevents rattling, misalignment, or sagging of the door glass
• Restores proper door closing and sealing when a damaged bracket causes fit issues
• Fits into the door assembly where original mounting hardware attaches

• Intended for repair professionals or experienced DIYers; disconnect power and cool appliance before starting
• Inspect door glass and surrounding hardware for damage; replace any cracked glass or stripped fasteners
• Use correct OEM fasteners and torque to avoid overtightening the glass

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged
