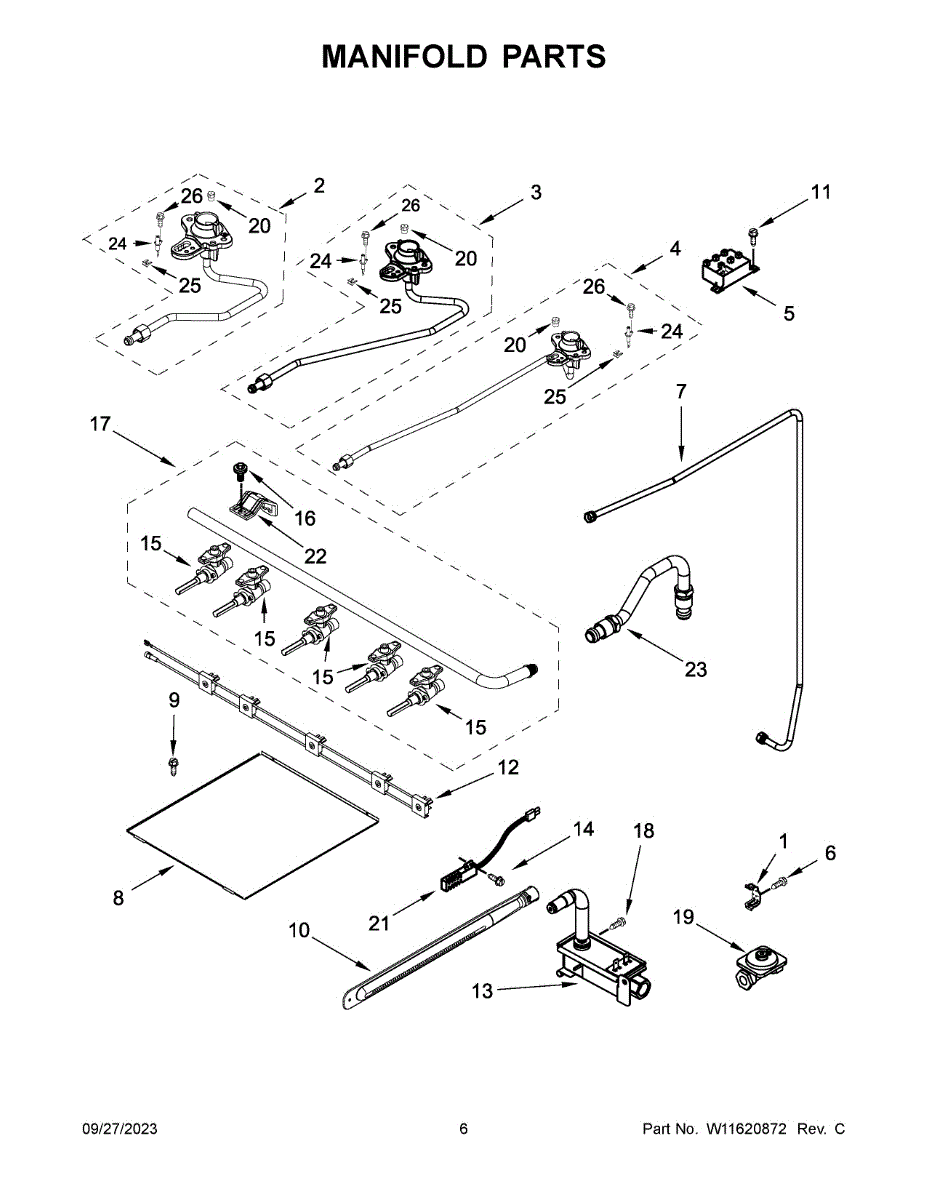

Parts for Whirlpool WFG505M0MS0: Manifold Parts

This orifice holder secures the gas orifice in a cooktop or range burner assembly, keeping the orifice properly positioned for reliable gas flow and consistent ignition. It helps restore correct flame performance and safe operation. What it does:

• Holds the burner orifice in place so gas flows through the proper opening
• Helps maintain a steady, even flame for cooking
• Supports proper ignition by keeping the orifice aligned with the burner
• Commonly used when burners have low or uneven flames or fail to light consistently

• One orifice holder

• Turn off gas supply and electrical power before servicing gas burners
• Remove burner cap and grates to access the holder; use basic hand tools
• Inspect orifice and surrounding seals for damage; replace if corroded or clogged

This genuine ground screw secures appliance grounding connections to the chassis, helping maintain electrical safety and reliable grounding. It's a direct-fit fastener used where a secure ground point is required. What it does:

• Provides a secure chassis grounding point for appliance electrical safety
• Secures ground wires or grounding straps to sheet metal or grounding posts
• Helps prevent loose ground connections that can cause intermittent faults or safety risks
• Matches OEM thread and length for correct fit and electrical contact

• Use appropriate tools; avoid stripping the head or over-tightening which can damage threads or the grounding surface
• Ensure the mating surfaces are clean and free of paint or corrosion for good electrical contact
• Disconnect power to the appliance before servicing electrical grounding connections

This gas tubing routes fuel from the appliance's gas valve to the burner or manifold. Replacing a bent, corroded, or leaking tube restores safe gas flow for reliable ignition, steady flame, and proper heating.

• Carries regulated gas from the valve to the burner/manifold
• Maintains a sealed pathway; damage can cause leaks, weak/no flame, or ignition failure
• Routed along the factory path to clear components and prevent kinks
• Replace if the tube shows cracks, corrosion, or deformation

• Shut off gas supply and electrical power; allow all surfaces to cool
• Work in a well-ventilated area; check every connection with an approved leak-detection solution after installation
• Route the tube exactly like the original—do not bend, crimp, or modify
• Tighten fittings securely; use thread sealant only where specified by the OEM (do not use tape on flare connections)

Screw for side trim.

The Burner Tube is an OEM part for Whirlpool ovens. It ensures the proper flow of gas to the burner, allowing for efficient and reliable heat distribution during the cooking process. It is responsible for delivering the necessary fuel to create the desired cooking temperatures.

A bad burner tube can occur due to wear and tear, clogs, or damage. If you notice symptoms such as uneven heating, weak flame, or a gas smell coming from the oven, it may be time to replace the burner tube.

Symptoms of a bad burner tube include:

• Uneven heating or hot spots in the oven
• Weak or irregular flame
• Gas smell coming from the oven

Repair your oven by replacing the faulty or damaged burner tube with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This is a replacement screw used to secure panels, trim, or small components on compatible Whirlpool appliances. Installing the correct fastener restores proper fit and helps stop rattles or loose trim. What it does:

• Secures trim, panels, or control components to prevent movement and rattling
• Replaces missing or damaged hardware that can cause gaps or loose parts
• Helps maintain proper alignment of panels and movement-free operation
• Used wherever a factory screw of this size and head style is specified

• Always disconnect power (and water, if applicable) before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Install by hand until threads engage, then tighten snugly—do not overtighten
• Keep removed hardware organized before final reassembly

This orifice directs a controlled flow of gas to the appliance burner, helping restore the correct flame size for reliable heating and ignition. Use when burner performance is weak or inconsistent to help return proper operation. What it does

• Restricts and meters gas flow to the burner for consistent flame characteristics
• Helps the burner ignite and maintain a steady flame when sized correctly
• Commonly replaces worn, clogged, or damaged orifices that cause low or irregular flames
• Resolves symptoms like weak heat, slow ignition, or uneven burner performance

• Turn off gas supply and electrical power before servicing; follow all safety precautions
• Inspect surrounding burner and sealing surfaces for debris or damage before installation
• Tighten securely but avoid overtightening; use proper fittings and thread sealant rated for gas if required

This replacement burner orifice controls gas flow to a cooktop/range burner to help restore a proper, steady flame and consistent cooking heat. Fits applications that use a 1.00 Type 2 orifice. What it does

• Regulates gas delivered to the burner for a stable flame and even heating.
• Helps resolve weak or inconsistent flames, slow heat-up, or uneven burner performance.
• Used when a clogged, damaged, or incorrect orifice prevents proper ignition or flame shape.
• Matches OEM fit and function for affected manifold/burner assemblies.

• Turn off the gas supply and unplug the appliance before starting any service.
• Access the burner orifice through the burner base or manifold as specified in your model's service instructions.
• Use the correct wrench and avoid overtightening; inspect fittings and recheck for gas leaks after installation.

This oven igniter lights the gas burner when the control calls for heat, restoring reliable ignition and consistent baking performance. Replace it if the oven won't light, preheats slowly, or the flame won't stay on. What it does:

• Provides the ignition source for the oven's gas burner during bake cycles
• A weak or failed igniter can cause no heat/no bake or intermittent ignition
• Can contribute to extended preheat times and burners that light then go out
• Visible cracks, burned spots, or damaged leads on the igniter are common failure signs

• One oven igniter

• Disconnect power and shut off gas before servicing
• Allow components to cool; handle the igniter's ceramic/element carefully to avoid damage
• Install in the original position; correct placement relative to the burner is critical
• After reassembly, restore utilities and test for proper ignition; leak-check any disturbed gas fittings

This gas tubing is the preformed line that carries fuel from the appliance's gas valve/manifold to a burner. Replacing a damaged or kinked tube restores safe, consistent gas flow for reliable ignition and even heating. What it does:

• Routes gas from the valve or manifold to a specific burner
• Maintains proper fuel delivery to support steady flame and correct burner performance
• Common signs it's needed: weak or uneven flame, no ignition on that burner, visible kinks/damage, hissing or gas odor (do not operate if a leak is suspected)
• Direct, shaped replacement to restore original gas routing

• 1 gas tube

• Shut off gas supply and disconnect power before servicing; ventilate the area
• Match the original routing and orientation; avoid bending or kinking the new tube
• Use two wrenches on flare/compression fittings to avoid stressing components
• After reassembly, check all connections with an approved leak-detection solution—never with an open flame

A surface ignitor that produces the spark needed to light gas burners on compatible ranges and cooktops. Replaces a worn or failed ignitor to restore reliable ignition and consistent burner lighting. What it does

• Creates the spark at the burner to ignite gas when the control is turned on.
• Commonly used when burners click but fail to light or when a specific burner never ignites.
• Works with the cooktop's ignition system to provide consistent, repeatable sparking.
• Fits into the burner assembly and connects to the appliance's existing wiring and mounting.

• One surface ignitor (quantity: 1)

• Disconnect power to the appliance and shut off the gas supply before starting any service.
• Handle the ignitor by the ceramic/insulated areas; avoid touching the tip with bare hands to prevent contamination or damage.
• Confirm correct fit and secure all wiring connections; test ignition on a safe flame setting after reinstalling.

This surface igniter is the replacement spark electrode used on gas cooktop burners to create the spark that lights the burner. It restores reliable ignition so burners light when you turn the control knob. What it does:

• Produces the spark that ignites the gas at a surface/burner element
• Replaces a cracked, worn, or non-sparking electrode
• Common fix for burners that click but won't light or that fail to spark
• Works with the existing electrode wiring and mounting location

• Disconnect power to the range and turn off the gas supply before starting
• Handle the ceramic tip gently to avoid chipping; do not touch the tip with bare hands
• Confirm correct orientation and secure mounting; match wiring to original connections

This ignitor retaining clip secures the oven or range ignitor to the burner assembly so the ignitor stays properly positioned for reliable ignition. It's a small replacement part that restores proper ignitor mounting and alignment. What it does:

• Holds the oven/range ignitor in place on the burner assembly to maintain correct positioning
• Helps ensure consistent ignition by preventing the ignitor from shifting or coming loose
• Commonly replaced when the original clip is broken, bent, or missing
• Fits directly where the factory clip secures the ignitor to the burner housing

• Turn off power and gas supply to the appliance before starting any repair
• Access typically requires removing the oven burner or inner panel; follow the manufacturer service instructions
• Use appropriate tools to remove the old clip and secure the new clip without over-bending

This replacement mounting screw secures panels and small components on compatible Whirlpool appliances, restoring proper fit and reducing rattles or loose parts for a solid, finished appearance. What it does

• Fastens control panels, trim pieces, or internal brackets to the appliance chassis
• Helps stop panel vibration, rattling, or misalignment caused by missing or worn fasteners
• Restores secure attachment after disassembly for service or part replacement
• Simple hardware replacement that maintains original fit and function

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Thread gently and stop when snug — do not overtighten to prevent damage to mating parts
• Keep removed hardware organized to ensure correct reassembly
