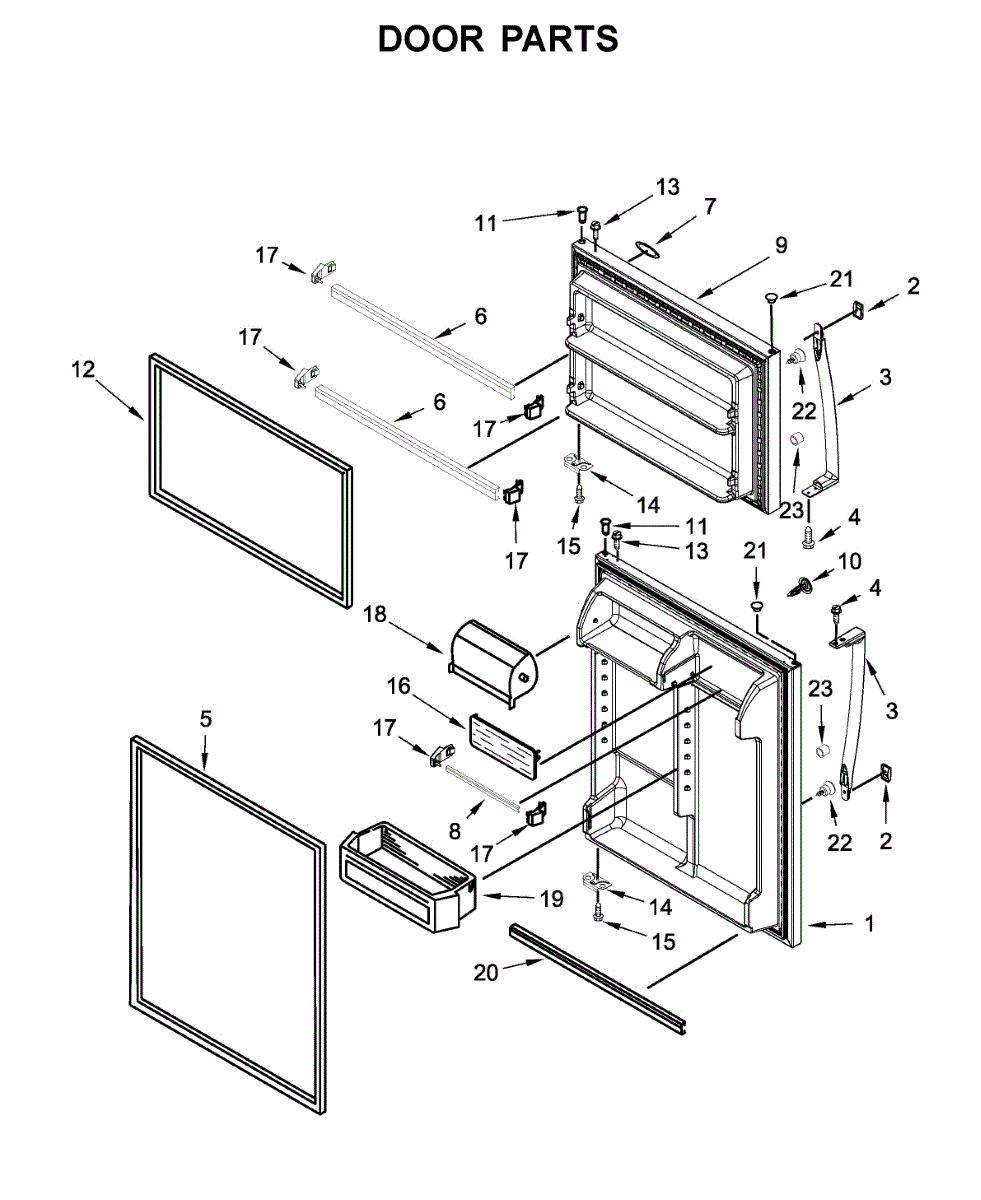

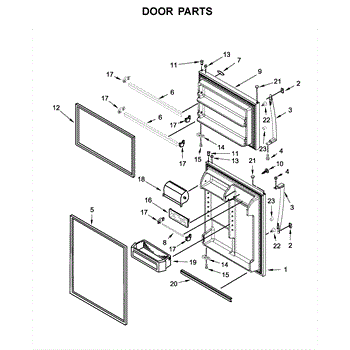

Parts for Whirlpool WRT311FZDZ01: Door Parts

Color: Grey

The Handle End Cap is an OEM part for Whirlpool refrigerators. It covers and protects the end of the refrigerator's door handle.

A bad door handle end cap can be caused by regular wear and tear, accidental damage, or exposure to harsh cleaning chemicals. If you notice cracks, discoloration, or a loose fit of the end cap on your refrigerator's door handle, it may indicate a problem with the cap itself.

Symptoms of a bad door handle end cap include:

• Cracked or damaged
• Discoloration or fading
• Loose or wobbly fit on the handle

Replace your faulty door handle end cap with this genuine OEM part to restore your refrigerator's handle.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This Handle is an OEM part designed specifically for Whirlpool brand refrigerators. It refers to the external access handle used for opening and closing the refrigerator door.

Symptoms of a faulty handle include:

• Difficulty smoothly opening or shutting the refrigerator door
• Detached, loose, or dysfunctional handle components

Potential causes are typical wear from heavy use over time. Moisture infiltration from gasket leaks can corrode internal handle mechanics as well.

Compatible models include some produced by KitchenAid, Maytag, Jenn-Air, and Kenmore.

The Screw is an OEM fastening component specifically designed for securing interior panels and assemblies of Whirlpool brand appliances.

Causes of a problematic screw include stripping, corrosion, or shearing from repeated installations and removals during service procedures.

Symptoms of faulty screws include:

• Loosened or detached interior panels rattling behind appliance exteriors
• Reduced structural integrity allowing unnecessary vibrations and noise

Compatible models include brands produced by KitchenAid, Maytag, and some Kenmore.

Color: Grey

The Fresh Food Door Gasket is an OEM part for Whirlpool refrigerators. It is a replaceable sealing strip located around the fresh food compartment door that helps maintain cool temperatures inside.

Causes of a bad gasket can include breakdowns in the adhesive over time allowing air gaps, or physical damage such as cracks or punctures compromising the seal.

Symptoms of a faulty gasket include:

• Frost or moisture condensation building up inside
• Higher energy bills from the compressor running excessively
• Warm air freely entering/exiting around the perimeter

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This white door shelf trim is the front retainer for a refrigerator door shelf. It replaces a broken or missing rail to restore a secure edge that helps keep bottles and jars from sliding out. What it does:

• Acts as the front rail that snaps into the door liner to retain items on the shelf
• Helps prevent items from falling when the door is opened or closed
• Replaces cracked, warped, loose, or missing trim/end caps
• Common symptoms: broken or missing bar, trim won't stay seated, items fall from the door shelf

• One white door shelf trim with end caps

• Disconnect power and remove items from the affected door shelf before starting
• Gently release the old trim/end caps from the liner tabs—avoid prying directly on the door liner
• Align the new trim with the slots and snap/slide firmly into place until secure
• If plastic is cold/brittle, allow it to warm to room temperature and handle carefully

Color: Grey

This door trim is the molded finishing frame for the appliance door. Replacing a cracked, warped, or missing trim restores a clean look and helps keep door components properly aligned for a secure fit.

• Finishes the door edge and conceals gaps or fasteners for a clean appearance
• Depending on model, helps retain the outer panel or glass window
• Helps maintain proper alignment and feel of the door assembly
• Common symptoms: cracked/chipped trim, loose or rattling piece, gaps or sharp edges, cosmetic damage

• Disconnect power before servicing; shut off gas/water if applicable
• Protect the door and any glass; support the door if removal is required
• Transfer any clips, seals, or screws from the old trim; match the original orientation
• Secure the trim without overtightening and verify smooth door closing/latch alignment

Color: Grey

This door handle thimble is a small spacer/bushing used on select refrigerator and freezer doors. It sets the correct stand-off for the handle hardware so the handle mounts securely, aligns properly, and feels solid in use.

• Spaces and aligns the door handle to the correct distance from the door
• Supports the handle mounting stud/screw for a secure fit
• Helps reduce handle wobble, gaps, or scuffing against the door
• Replace if the handle won't tighten evenly or the original thimble is cracked, worn, or missing

• Disconnect power before servicing the appliance
• Support the handle to protect the door finish during removal
• Loosen the handle's set screw(s) or mounting bolt, remove the old thimble, and clean the area
• Seat the new thimble fully, reinstall hardware, and tighten evenly—do not overtighten

Color: Apollo Grey

This replacement screw secures panels, brackets, or trim within your appliance. Replacing a worn, stripped, or missing screw restores a tight, rattle-free fit so components stay aligned and operate as intended. What it does:

• Fastens components at the original factory locations specified for this part
• Replaces missing, damaged, or stripped screws to restore holding power
• Helps reduce vibration and rattling from loose parts
• Maintains proper alignment of panels, covers, brackets, and trim

• Disconnect power (and gas, if applicable) before servicing
• Match to the original screw and install in the same location and orientation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver or nut-driver; transfer any washers or spacers from the original hardware if present

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Shelf is an OEM replacement part for Whirlpool refrigerators. It is responsible for providing additional storage space inside the refrigerator door. The shelf features an open design that allows smaller items like condiments and snacks to be easily accessed.

Causes of a bad door shelf can include cracks or breaks in the plastic material over time, detached or damaged mounting brackets, as well as normal wear and tear.

Symptoms of a bad door shelf include:

• Sagging or inability to securely hold contents
• Complete detachment from inside refrigerator door
• Cracks or holes that compromise the storage surface

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Endcap is an OEM part for Whirlpool refrigerators. It serves as a component for the interior shelving system, providing support and stability to the shelves that hold food and beverages.

Causes of a bad endcap can include physical damage from overloading shelves, accidental breakage, or normal wear and tear over time. These scenarios can lead to the endcap becoming cracked, broken, or otherwise unable to properly support the shelf, potentially leading to the shelf collapsing or not being able to hold items securely.

Symptoms of a bad Endcap include:

• Shelves that sag or fail to stay level
• Difficulty in sliding shelves in or out
• Visible cracks or breaks in the endcap
• Loose or unstable shelves due to poor endcap support

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a refrigerator door compartment bin. It provides organized storage on the door for condiments, jars, and small items, helping keep frequently used items within easy reach and preventing spills.

• Holds items on the refrigerator door and helps prevent tipping or sliding
• Replaces a cracked, loose, or missing door bin
• Common symptoms include items falling from the door, poor organization, or a bin that won't stay seated

• Unplug the refrigerator and remove contents from the old bin before replacement
• Lift the old bin straight up to release from the side rails; align and press the new bin into place
• Do not overload the bin; ensure a secure fit on the door rails
• Handle plastic parts carefully to avoid cracking

The Door Shelf Bin is an OEM part for Whirlpool refrigerators, designed to offer convenient storage space on the inside of the refrigerator door. This bin attaches to the door, providing an accessible place to store condiments, bottles, and other small items, maximizing the available space within your refrigerator.

Causes of damage to the door shelf bin often include overloading with heavy items, impact from items being moved in and out of the refrigerator, or degradation over time due to the accumulation of moisture and exposure to temperature fluctuations.

Symptoms of a bad Door Shelf Bin include:

• Cracks or breaks in the plastic
• Discoloration or warping, which can be caused by exposure to extreme temperatures or cleaning chemicals.
• Difficulty fitting into its designated slot on the refrigerator door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This manifold is the dishwasher's internal water feed tube that channels wash water from the pump to the upper spray levels. Replace a cracked, clogged, or leaking manifold to restore proper spray pressure and consistent cleaning performance.

• Routes wash water from the pump to mid/upper spray arms for full-rack coverage
• Helps maintain water pressure and flow to the upper spray zones
• Common symptoms of a failed manifold: weak or no spray on the upper rack, poor cleaning results, or leaks from the rear feed area

• Disconnect power and water supply before servicing
• Open the door and remove rack(s) as needed to access the rear feed tube
• Release locking tabs/clips, remove the old manifold, and fully seat the new one until it locks in place
• Run a short cycle to check for leaks

Color: Grey

The Screw (Shoulder Bolt) is an OEM part for Whirlpool refrigerators. This part secures the refrigerator handle to the door, ensuring it remains firmly attached and functions correctly. The shoulder design of the bolt allows for proper spacing and alignment of the handle, providing stability and ease of use.

Causes of a bad handle screw can include regular wear and tear, over-tightening, or accidental damage during use or maintenance.

Symptoms of a bad handle screw include:

• Loose or wobbly refrigerator handle
• Handle detaching from the door
• Difficulty opening or closing the refrigerator
• Visible damage or wear on the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This snap bushing installs in a door panel opening to protect and guide wiring or tubing that passes through. Replacing a worn or missing bushing helps prevent chafing and pinching, supporting smooth, reliable operation. What it does:

• Snaps into the door panel hole to create a smooth pass-through
• Shields wiring harness or tubing from sharp edges and vibration
• Helps prevent pinched wires, damaged insulation, or leaks due to abrasion
• Common signs include a cracked/missing bushing, chafed wiring/tubing at the door pass-through, or rubbing noises when opening/closing

• 1 snap bushing

• Disconnect power; shut off water supply if applicable
• Depress the old bushing's locking tabs and remove from the door panel opening
• Route the harness/tubing through the new bushing; align and press until it snaps fully into place
• Verify nothing is pinched and restore power/water

Color: Stainless
