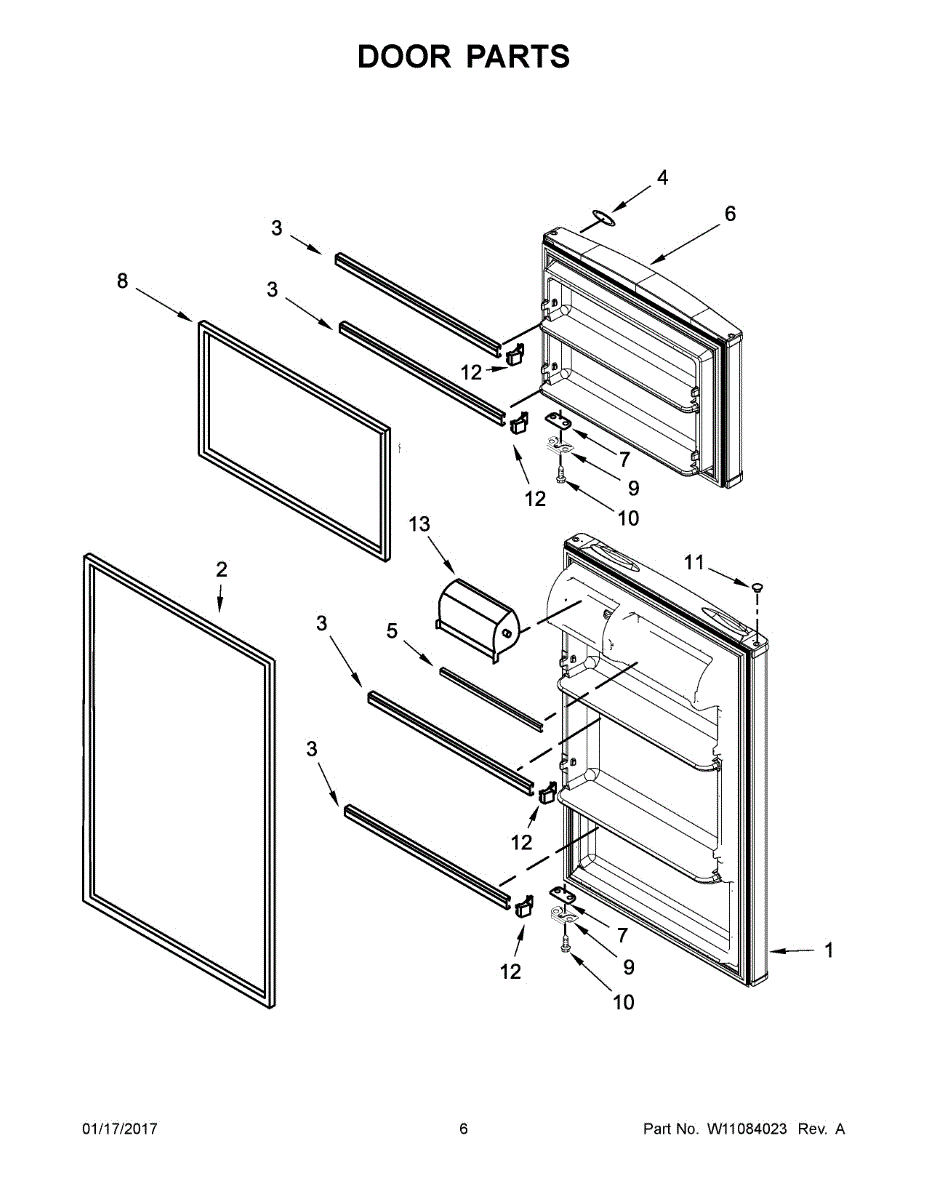

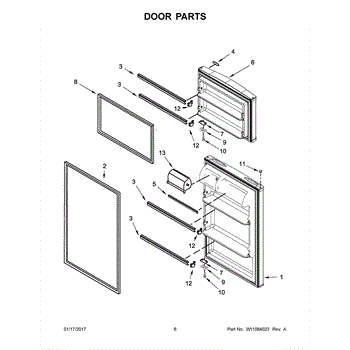

Parts for Whirlpool WRT316SFDM01: 04 - Door Parts

This replacement FIP gasket seals the appliance door to maintain proper internal temperature and help prevent air leaks that cause frost buildup or poor cooling. It restores the door seal for better efficiency and performance. What it does:

• Creates an airtight seal between the door and cabinet to reduce air exchange
• Helps prevent frost buildup, condensation, and warm spots inside the compartment
• Supports efficient cooling and reduces unnecessary energy use when working correctly
• Fits in the FIP position as specified by the manufacturer

• One replacement FIP gasket

• Disconnect power before starting work and handle the gasket carefully to avoid damage
• Clean the sealing surface and remove old gasket adhesive or debris before installing the new gasket
• Start installation at a corner, press the gasket into the channel, and work around the perimeter for an even fit

This replacement door gasket creates a tight seal around the appliance door to help maintain temperature control and reduce moisture or frost buildup. It restores proper door sealing for more consistent performance and energy efficiency. What it does:

• Seals the door opening to keep conditioned air inside and outside air out
• Helps prevent frost, ice buildup, and moisture damage in the cabinet area
• Reduces temperature fluctuations that can cause food spoilage or inefficient operation
• Common symptom: visible gaps at the door edge, warm spots, or excess condensation

• Remove the old gasket and clean the sealing surface before installing the new gasket
• Soften or warm the gasket if needed for easier fitting
• Press the gasket into the channel evenly; ensure corners and edges are fully seated

The Door Shelf Bar is an OEM part for Whirlpool refrigerators. This bar attaches to the interior of the refrigerator door, providing a secure barrier that holds items like bottles, jars, and containers in place on the door shelves. This trim measures approximately 22 inches long. Notably, this door shelf bar can be cut to fit specific dimensions.

Over time, the door shelf bar can become worn out or damaged due to regular use, heavy loads, or accidental impacts. Causes of a bad door shelf bar include cracking, breaking, or warping of the plastic material, which can lead to items falling out of the shelf or the bar not staying in place.

Symptoms of a bad door shelf bar include:

• The bar becoming loose or detaching from the door
• Items falling off the shelf when the door is opened
• Visible cracks or breaks in the bar
• Difficulty in securing the bar back into place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Grey

Color: Grey

The Door Shelf Rail is an OEM part for Whirlpool refrigerators. This part secures items on the refrigerator door shelves, preventing them from falling out when the door is opened or closed. It provides a barrier that helps keep food items organized and in place.

Causes of a bad door shelf rail can include wear and tear from regular use, damage from heavy items being placed against it, or accidental impact.

Symptoms of a bad door shelf rail include:

• Cracks or breaks in the rail
• Loose or wobbly fit on the door
• Items falling off the door shelf
• Difficulty in securing the rail properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small black door stop shim helps position and stabilize the appliance door for correct alignment and smoother closing. It replaces a worn or missing shim to reduce door gaps and rubbing against the cabinet or frame. What it does:

• Centers and supports the door stop so the door closes evenly and seals properly.
• Prevents door-to-cabinet rubbing, scraping, or uneven wear on hinges and seals.
• Helps eliminate minor misalignment that can cause noise or uneven gaps.
• Compatible where the OEM diagram lists a door stop shim in the hinge/stop assembly.

• One black door stop shim

• High-level replacement: typically installs at the door stop or hinge area; may slide or snap into place—retain original orientation.
• Always support the door during removal/installation to avoid dropping or damaging the door or hinges.
• If the repair requires removing trim or hinge fasteners, keep fasteners organized and follow the appliance diagram.
• For any work near electrical components, unplug the appliance or switch off power at the breaker first.

The door stop shim positions the stop flush and fine-tunes the door's opening limit. Replacing a worn or missing shim helps restore smooth door operation and protects nearby surfaces from over-travel or rubbing.

• Provides correct spacing behind the door stop for proper alignment
• Helps limit the door swing to the intended stop position
• Can reduce wobble, play, or clicking at the stop point
• Replaces cracked, deformed, or missing shim components

• Disconnect power and support the door as needed to prevent strain
• Remove the door stop fastener(s) and note the original shim orientation
• Place the new shim behind the stop; reinstall hardware and tighten without overtightening
• Open and close the door to confirm stop angle and clearances

Color: White

Color: Black

This is a replacement mounting bracket that secures internal components and assemblies in place to restore proper alignment and reduce vibration. It's a direct-fit part used on compatible Whirlpool refrigerators and freezers. What it does:

• Supports and secures panels, shelves or internal assemblies to prevent shifting or rattling
• Restores correct alignment when original bracket is broken, bent, or missing
• Helps eliminate noise caused by loose components
• Maintains proper spacing for associated parts to operate correctly

• Install with the factory fasteners; use matching screw size and type
• Disconnect power and empty affected area before beginning service
• Handle edges carefully and wear gloves to avoid cuts
• Replace damaged mounting hardware to ensure a secure fit

Color: Grey

Color: Black

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf Retainer End Cap is an OEM replacement part for Whirlpool refrigerators. This component is designed to secure and support the end of the door shelves, providing a clean and finished look while preventing items from falling off the edges.

Symptoms of needing to replace the door shelf retainer end cap include:

• Visible cracks, damage, or missing pieces
• Loose or wobbly door shelves
• Items falling off the ends of the door shelves

Causes of a faulty door shelf retainer end cap can include normal wear and tear over time, accidental impact or mishandling, or exposure to excessive moisture or temperature fluctuations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Dairy Door is an OEM part for Whirlpool refrigerators. It serves as a cover for the dairy compartment, helping to keep dairy products like butter and cheese fresh by providing a separate, enclosed space within the refrigerator.

Causes of a bad dairy door can include wear and tear from regular use, accidental impacts causing cracks or breaks, or the hinge mechanism wearing out over time.

Symptoms of a bad dairy door include:

• The door not closing properly or staying closed
• Cracks or visible damage on the door
• The hinge mechanism feeling loose or broken
• Dairy products not staying as fresh due to lack of proper enclosure

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
