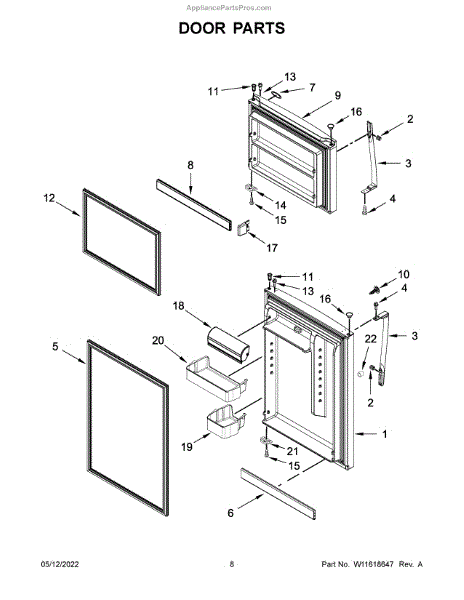

Parts for Whirlpool WRT519SZDB07: Door Parts

The Screw (Shoulder Bolt) is an OEM part for Whirlpool refrigerators. This part secures the refrigerator handle to the door, ensuring it remains firmly attached and functions correctly. The shoulder design of the bolt allows for proper spacing and alignment of the handle, providing stability and ease of use.

Causes of a bad handle screw can include regular wear and tear, over-tightening, or accidental damage during use or maintenance.

Symptoms of a bad handle screw include:

• Loose or wobbly refrigerator handle
• Handle detaching from the door
• Difficulty opening or closing the refrigerator
• Visible damage or wear on the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Handle is an OEM part for Whirlpool refrigerators. It provides the means to easily open and close refrigerator and freezer doors with an ergonomic grip.

Causes of a bad door handle can include cracks, breaks, or missing components that compromise secure closing of doors. Over time, handles can lose tension or experience wear to moving parts.

Symptoms of a failing door handle include:

• Difficulty opening or closing doors securely
• Excessive movement or wobbling of the handle
• Detached or missing handle components
• Inability to open doors fully without force

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Handle is an OEM replacement part for Whirlpool top-mount refrigerators that have the freezer on top. It provides an ergonomic grip point used for opening and closing refrigerator doors to access food storage areas.

Symptoms of a bad handle include:

• Difficulty lifting or turning the handle to open doors
• Looseness, wobbling, or complete detachment from the door
• Visible cracks, breaks, or splits in the plastic material
• Compromised insulation allowing heat transfer into fridge interior

Causes of a bad handle tend to be wear and fatigue of the plastic over many years of opening/closing cycles. Exposure to outdoor environments or harsh cleaning chemicals may degrade the material prematurely as well.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This replacement door gasket creates an airtight seal around the refrigerator door to help keep cold air in and reduce frost buildup. It restores proper sealing to improve cooling consistency and energy efficiency. What it does:

• Seals the door edge to prevent cold air loss and reduce moisture/frost inside the cabinet
• Helps the compressor run less frequently by maintaining a stable internal temperature
• Commonly used when the existing gasket is torn, stretched, flattened, or no longer seals evenly
• Reduces warm spots and food spoilage that can result from a failing door seal

• Clean the door surface and gasket mounting channel before installing to ensure a tight seal
• Align the gasket evenly around the door and press into the channel; warm the gasket with a hair dryer if needed to ease installation (low heat only)
• Check door closing and seal after installation; avoid using sharp tools that can damage the gasket

The Gasket-Door (black) is an OEM component specifically designed for Whirlpool refrigerators. This rubber gasket forms a seal around the perimeter of the refrigerator door opening. It helps maintain interior temperatures and humidity levels.

Symptoms of a bad door gasket include:

• Inability to properly chill compartments and freezing performance issues
• Excessive frost or moisture inside refrigerator sections
• Higher energy costs from inefficient temperature regulation
• Warm air infiltration indicated by higher than normal interior temps

Causes of degraded gasket performance typically include cracks, tears or compression set deterioration that compromise the sealed barrier over many years of use.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door trim is the outer decorative and protective ring that fits around the appliance door opening to restore appearance and help secure the door assembly. It replaces damaged, cracked, or worn trims to refresh the door finish. What it does:

• Covers and protects the edge of the door opening and the door glass assembly
• Restores a clean, finished look when original trim is cracked, chipped or discolored
• Helps keep the door components aligned and seated correctly
• Common symptom: visible cosmetic damage or a loose/shifted door bezel

• One door trim piece as shown

• Disconnect power and water before starting any repair
• Handle trim and any attached glass carefully to avoid damage or injury
• Removal/replacement typically requires removing the door or door panel; follow the appliance service manual

Color: Grey

This door trim replaces the outer decorative edge on a refrigerator door to restore appearance and proper sealing. It gives a clean, finished look and helps keep the door edge aligned with the cabinet. What it does:

• Replaces cracked, dented or scratched door trim to improve appearance
• Restores the trim that helps hold the door gasket edge in place
• Stops draft or uneven sealing that can occur when the trim is loose or damaged
• Prevents further chipping or moisture intrusion at the door edge

• Disconnect power to the appliance before starting any repair
• Remove the door or inner liner fasteners per manufacturer instructions to access trim
• Use basic hand tools (screwdriver, nut driver) and retain all fasteners for reassembly
• Check door alignment after reinstalling

Color: Black

Color: Grey

This dryer vent thimble provides a secure, finished opening for the dryer exhaust where the duct passes through a wall. It helps direct airflow and protects the wall opening for safer, more efficient venting. What it does:

• Creates a smooth, supported path for the dryer exhaust duct through a wall or chase
• Helps reduce air leaks and lint buildup at the wall penetration
• Restores proper vent alignment so the dryer can expel air efficiently
• Can reduce unusual airflow noise caused by a loose or damaged wall opening

• One dryer vent thimble

• Disconnect power to the dryer and move the appliance away from the wall before installation
• Measure the wall opening and duct size before securing the thimble
• Fasten the thimble to the wall framing or surrounding material per local codes; use appropriate screws or fasteners
• After installation, reconnect the duct and check for a secure, airtight fit; clean any lint from the area

Color: Black

The Freezer Door Gasket is an OEM part for Whirlpool refrigerators. It is responsible for creating a tight seal between the freezer door and the cabinet, preventing cold air from escaping and maintaining the desired temperature inside. It prevents frost buildup and condensation, keeping your freezer contents fresh and frozen.

A bad freezer door gasket can occur due to wear and tear, damage, or improper installation. If you notice symptoms such as frost accumulation around the freezer door, reduced cooling efficiency, or a loose or torn gasket, it may be time to replace the freezer door gasket.

Symptoms of a bad freezer door gasket include:

• Frost buildup around the door area
• Reduced cooling efficiency
• Loose or torn gasket

Repair your refrigerator by replacing the faulty or worn-out freezer door gasket with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black

Color: Grey

The Door Gasket is an OEM part specifically designed for Whirlpool refrigerators. It provides an airtight sealing barrier around refrigerator doors.

Causes of a bad gasket include cracks and compression loss that develop after years of opening and closing doors. Material properties may become brittle and inflexible over time.

Symptoms of a faulty door gasket include:

• Noticeable temperature loss inside fridges as cool air seeps out
• Moisture accumulation caused from inadequate insulation
• The door not sitting flush or binding due to compromised structure

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models as well.

This replacement screw secures panels, brackets, or trim within your appliance. Replacing a worn, stripped, or missing screw restores a tight, rattle-free fit so components stay aligned and operate as intended. What it does:

• Fastens components at the original factory locations specified for this part
• Replaces missing, damaged, or stripped screws to restore holding power
• Helps reduce vibration and rattling from loose parts
• Maintains proper alignment of panels, covers, brackets, and trim

• Disconnect power (and gas, if applicable) before servicing
• Match to the original screw and install in the same location and orientation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver or nut-driver; transfer any washers or spacers from the original hardware if present

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Grey

Color: Black

This replacement handle end cap secures and finishes the end of a door handle. It restores a tight, clean look when the original cap is cracked, stripped, or missing and helps keep the handle firmly attached.

• Anchors and covers the mounting point at the end of the handle
• Helps maintain handle alignment and a solid feel in daily use
• Common fix for a loose or wobbly handle, broken/missing cap, or cosmetic damage
• Resolve gaps at the end of the handle or rattling during use

• Disconnect power to the appliance before servicing
• Support the handle while loosening/removing existing fastener(s) to prevent drops or door damage
• Transfer/reuse any set screw or fastener from the original as required
• Align the new end cap and secure fasteners snugly—do not overtighten

This factory-assembled door unit replaces a damaged or hard-to-close door, restoring proper fit, alignment, and appearance. It's built to match the original, helping the appliance open and close smoothly and operate as designed.

• Forms the complete door structure for the appliance
• Aligns on the hinges for smooth, consistent opening and closing
• Helps ensure proper closure for performance and safety
• Replace if the door is cracked, dented, warped, loose, or won't close/seal correctly

• Disconnect power at the breaker before servicing
• Support the door during removal/installation; large doors can be heavy and awkward
• Transfer any model-specific hardware or trim from the original door as required
• After installation, adjust hinges if needed

This short door shelf bin mounts to the refrigerator door to hold bottles, jars, and condiments. Replace a cracked, loose, or missing bin to restore safe, organized door storage and keep items from tipping when the door opens.

• Attaches to the inner door liner to provide secure, accessible storage
• Restores door storage capacity and organization
• Replace if the bin is cracked, the locking tabs are broken, or it will not stay seated
• Common symptoms include the bin falling off, wobbling, or reduced storage due to a missing bin

• Empty the bin; lift up and pull out to remove the old bin
• Align the new bin with the door tabs/slots and press down until fully seated
• No tools typically required; ensure a snug fit and avoid overloading
• Disconnect power if working near electrical components; use caution with plastic edges

This large door bin restores sturdy, easy-access storage on your refrigerator door. Replace a cracked or missing bin to keep condiments and bottles organized, prevent tip-overs, and free up space on the main shelves.

• Holds jars, condiments, and beverages on the door to maximize shelf space
• Replaces bins that are cracked, warped, loose, or missing
• Snaps into the designated large-bin positions for your model
• Helps prevent tipping and spills when opening and closing the door

• Unplug the appliance or disconnect power; remove items from the door
• Align the bin's tabs/hooks with the slots on the door liner
• Lower/slide into place until fully seated—do not force
• The bin is locked in before loading items

This mounting bracket secures internal components to the appliance chassis, restoring stable support and alignment. It replaces a worn, bent, or damaged bracket to reduce rattling and prevent parts from shifting during operation. What it does:

• Provides a secure mounting point for internal assemblies to the appliance frame
• Restores proper alignment when a loose or bent bracket causes vibration or noise
• Prevents components from shifting, which can lead to wear or intermittent operation
• Helps eliminate rattling, clunking, or movement-related symptoms during use

• One mounting bracket

• Disconnect power and water before beginning any repair
• Use original screws or fasteners; replace any stripped or damaged hardware

This snap bushing installs in a door panel opening to protect and guide wiring or tubing that passes through. Replacing a worn or missing bushing helps prevent chafing and pinching, supporting smooth, reliable operation. What it does:

• Snaps into the door panel hole to create a smooth pass-through
• Shields wiring harness or tubing from sharp edges and vibration
• Helps prevent pinched wires, damaged insulation, or leaks due to abrasion
• Common signs include a cracked/missing bushing, chafed wiring/tubing at the door pass-through, or rubbing noises when opening/closing

• 1 snap bushing

• Disconnect power; shut off water supply if applicable
• Depress the old bushing's locking tabs and remove from the door panel opening
• Route the harness/tubing through the new bushing; align and press until it snaps fully into place
• Verify nothing is pinched and restore power/water
