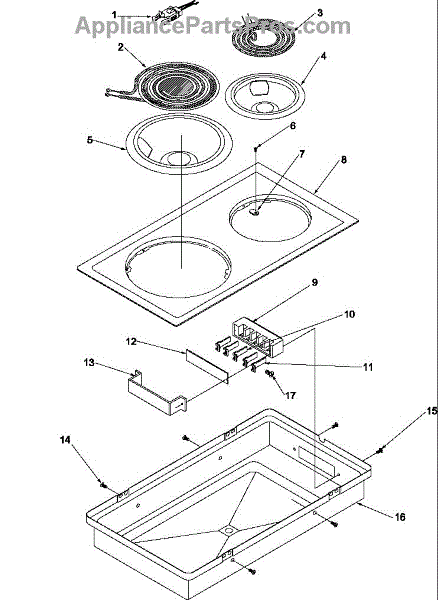

Parts for Amana ACR100E-P1133384NE: Acr110(Electric Coil, 8" / 6") (Acr110e / P1133385ne) (Acr110ss / P1133385nss) (Acr110w / P1133385nw) (Akes3060e / P1131752ne) (Akes3060e / P1131756ne) (Akes3060e / P1131758ne) (Akes3060ww / P1131752nww) (Akes3060ww / P1131756nww) (Akes3060ww / P1131758nww) Parts

2100W. Size: 8 inch. Location: Right front.

This 6-inch radiant surface element is the heating source for a small burner beneath a glass-ceramic cooktop. Replacing a failed element restores reliable, controllable heat to that cooking zone. What it does:

• Heats the 6-inch cooking zone under the glass top when the control is turned on
• Cycles to help maintain the selected temperature during cooking
• Common symptoms of failure: small burner won't heat, heats unevenly or intermittently, or shows visible burn spots/damage

• 1 six-inch radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely
• Lift the glass top or remove the cooktop to access the elements; support the glass to avoid stress or cracks
• Note wire positions and transfer connections to the new element one at a time
• Ensure the element sits flat in its mounting brackets before reassembly and testing

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking
