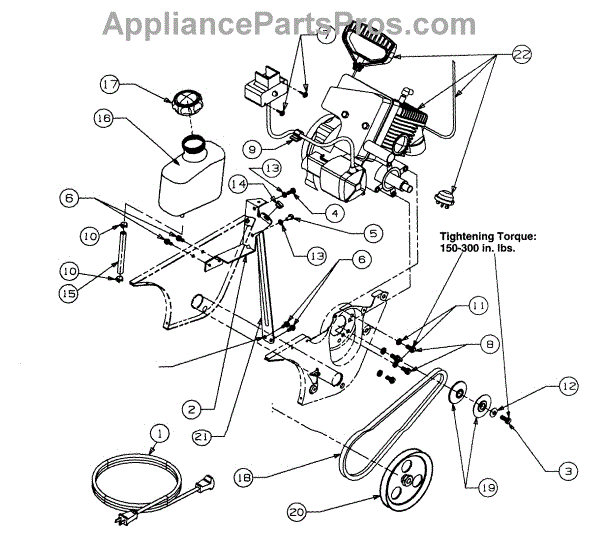

Parts for White Outdoor 316E162-190 / 1996: Engine And V-Belt Parts

This part is a hex cap screw that is used on a variety of outdoor power equipment. A hex cap screw is used to fasten components together securely. The head of the screw is shaped like a hexagon, hence the name "hex cap screw."A new hex cap screw may be needed if the current one is stripped, broken, or missing. Since screws are such a small component, it is important to place them in a safe place so that they are not lost. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This hex cap screw is a genuine Husqvarna part. It is sold individually. This particular hex cap screw is compatible with chippers, shredders, lawnmowers, lawn tractors, snowblowers, and vacuums that are manufactured by the following brands: Husqvarna, Craftsman, Bolens, Husky, Yard Machines, Yard-Man, MTD, and Troy-Bilt.

This hex washer screw is a genuine OEM replacement part for a variety of household and outdoor appliances. A hex washer screw is a self-piercing screw with an attached washer at the head of the screw. Self-piercing screws are quite sharp and feature a twin-lead thread to screw into a surface more effectively. The built-in hexagonal washer helps to balance weight and force throughout the connection and prevent breakage. Hex washer screws can become damaged over time through repeated stress or tension. Their threading can become stripped or the head can eventually snap off. Replacing a hex washer screw is simple as long as you have the right tool. The unique shape of the screw head makes it incompatible with a flathead or Phillips head screwdriver. Instead, replacing this type of screw requires a unique hex head screwdriver. This part is compatible with Yard Machines, MTD, Yard Man, Troy-Bilt, and Craftsman products and will fit lawn mowers, tractors, snowblowers, vacuums, and chippers. This is a high-quality replacement part sourced from the original manufacture and ships independently of any other hardware.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

This is a bushing made from black plastic with a cleft down the middle to provide enough flex for easy insertion. It has a flanged design, which means it won’t easily pop out after installation, even under stress from constant vibration. The bushing’s primary purpose is to protect wires and cables from damage as they pass through a channel. As such, the material is fairly durable and does not need to be replaced under ordinary circumstances. That said, there are some situations in which it can become damaged. For one thing, it’s easy to damage while repairing the wires or cables that run through the bushing. If the bushing does need to be replaced, it requires disconnecting any cables or wires that run through the bushing. Pop out the old bushing with a rubber mallet, install the new bushing the same way, reconnect the wires, and the repair is complete. This is an OEM part sourced directly from MTD, and it is sold individually. It was initially used on snowblowers but has also been used on lawnmowers and lawn tractors.

This fuel line hose is an authentic OEM replacement part for various lawn mowers, tractors, and snow blowers. The fuel line is responsible for carrying fuel from the fuel tank to the carburetor. It is made of a thick vinyl rubber material and clamps onto the exterior of the lawn appliance. Although they are usually made of durable rubber, fuel lines can tear if they are caught on something while the appliance is in use. If the fuel line rips, fuel will leak from the fuel tank and carburetor onto the appliance and the operator. This has the potential to start a fire and should be fixed as soon as possible. It is recommended that all fuel be drained from the appliance before making this repair. Using a pair of needle-nosed pliers, detach the damaged fuel line from the appliance and pull it out from the carburetor and through the fuel tank. Reassemble with the new hose using the pliers. This part is a high-quality replacement hose sourced from its original manufacturer and is compatible with Cub Cadet, Huskee, Yard Man, MTD, Troy-Bilt, and Yard Machines appliances. This part does not ship mounting clamps or any additional hardware.

This fuel cap is a genuine MTD part, sold individually. This fuel cap can be used as a replacement part in a lawn mower, snowblower, or wood chipper. This fuel cap seals the fuel tank on these types of equipment.The fuel cap in a lawn mower, snowblower, or wood chipper might need to be replaced if the component is chipped, dented, punctured, or otherwise damaged. If this damage leads to a fuel cap through which materials can pass, the fuel cap should be removed and replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This fuel cap is compatible with the following outdoor appliance brands: MTD, Cub Cadet, Craftsman, Ryobi, Troy-Bilt, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

The drive V-belt, manufactured by Craftsman, is used in one- and two-stage snow blowers as well as tillers. This is a drive belt that connects the engine to the auger of the tiller or snowblower via a pulley at either end. This turns the blades of the tiller or the auger blades of the blower to expel snow. As a flexible, hardened rubber part connecting other moving parts, a V-belt is considered “replaceable,” meaning that users should expect to have to replace this part during normal use of the equipment. Signs that a drive V-belt may be going bad are a squealing sound when the blower's auger or the tiller's blades are first engaged, or if the auger is slow to engage and loses power during use. To replace the V-belt, the equipment must be secured and the spark plug caps removed. Tilt the device to reveal the location of the belt. It must detached from the engine pulley and the transmission pulley. When replacing the V-belt, before tightening the pulley, make sure all moving parts are properly aligned. This genuine OEM part is compatible with machines sold by MTD, Yard Man, Craftsman, and Yard Machine.
