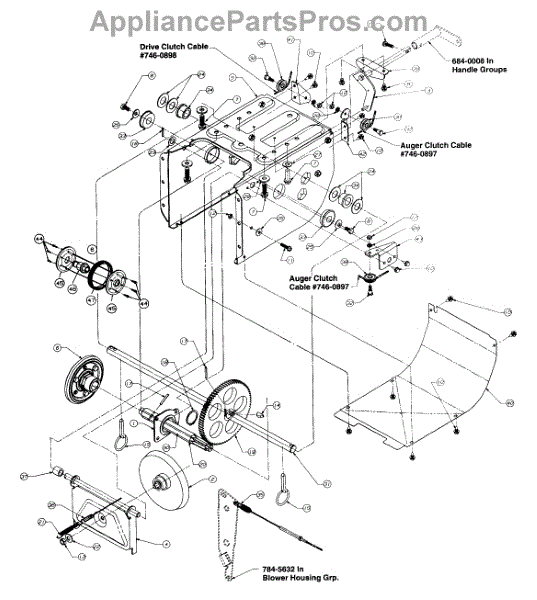

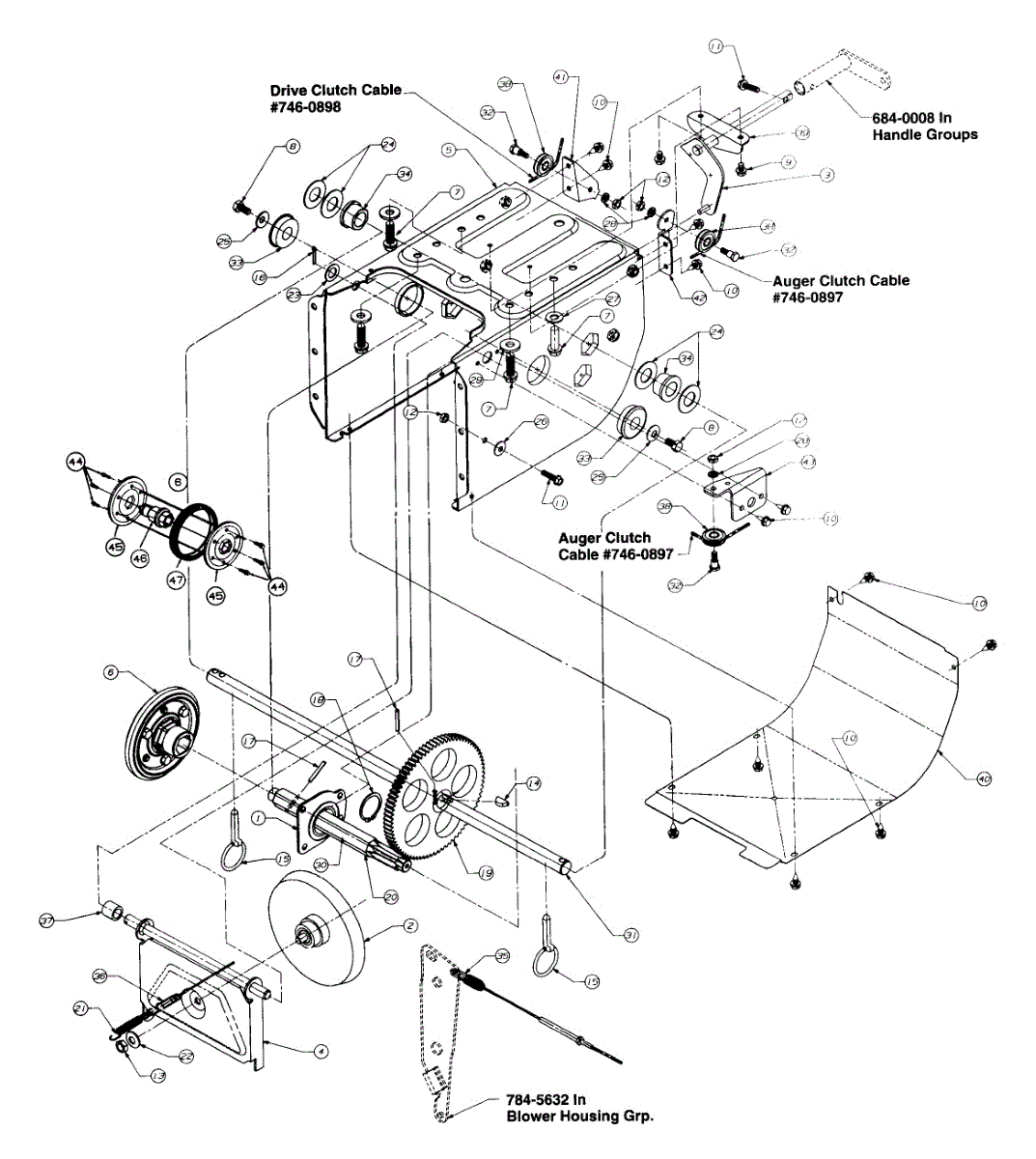

Parts for White Outdoor 316E646-190 / 1996: Frame Assembly Parts

This friction disc wheel is a genuine MTD part, sold individually. This friction disc wheel can be used as a replacement part for a snowblower or a chipper shredder. The purpose of a friction disc wheel is to propel the appliance forward when in operation.If the friction disc is damaged, it should be replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement. This is an OEM part sourced directly from the manufacturer, and it is sold individually. This friction disc wheel is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, Ryobi, Craftsman, Cub Cadet, Huskee, Montgomery Wards, Troy-Bilt, Bolens, and MasterCut.

A friction wheel assembly is a standard drive system found in a wide assortment of machines, including self-propelled snowblowers, chippers, and other lawn equipment. The device operates with two drive discs that are intersect at a right angle. The discs rotate and turn the axle, pushing the machine forward. With time and use, the friction wheels can wear out or become damaged. If either of these situations occurs, a replacement part and repair are required. Signs that the friction wheel assembly needs to be replaced include erratic, slow, or no movement from the snowblower or other machine. Wear protective gear during the replacement process. Make sure to disconnect the spark plug wire before removing the cover on the frame. Take the wheels off and remove the axle or shaft to access the friction disc. Clean everything up before replacing the friction wheel with a new part. Reassemble the machine.The friction wheel assembly is an authentic OEM part. It is sold individually. The friction wheel assembly is compatible with MTD, Ryobi, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky brands. It can be installed in a variety of machines, including chippers, shredders, and snowblowers. It is manufactured from high-quality, rugged metal.

This replacement part is a screw. It is a genuine replacement part made by MTD. Typically screws are found in many different types of machines. These parts are important in holding different pieces together so that the user is able to operate the appliance effectively. A replacement screw might be needed if some parts of the appliance are loose or missing from place. Screws can become stripped over time with normal equipment use. If this is the case it is recommended that they be replaced as soon as possible. The repair for this screw is simple and will most likely require common household tools as well as pliers if the previous part is lodged in place. This screw is made of durable metal. This part is sold individually and is sourced directly from the manufacturer to ensure proper fit. This is a genuine OEM replacement part.

This hex washer screw is a genuine OEM replacement part for a variety of household and outdoor appliances. A hex washer screw is a self-piercing screw with an attached washer at the head of the screw. Self-piercing screws are quite sharp and feature a twin-lead thread to screw into a surface more effectively. The built-in hexagonal washer helps to balance weight and force throughout the connection and prevent breakage. Hex washer screws can become damaged over time through repeated stress or tension. Their threading can become stripped or the head can eventually snap off. Replacing a hex washer screw is simple as long as you have the right tool. The unique shape of the screw head makes it incompatible with a flathead or Phillips head screwdriver. Instead, replacing this type of screw requires a unique hex head screwdriver. This part is compatible with Yard Machines, MTD, Yard Man, Troy-Bilt, and Craftsman products and will fit lawn mowers, tractors, snowblowers, vacuums, and chippers. This is a high-quality replacement part sourced from the original manufacture and ships independently of any other hardware.

The Hex Jam Nut is a genuine 4 oz. jam nut. This part is half the height of most standardized hex nuts. Typically used as a locknut, hex jam nuts are used for two general purposes. The first application is that a jam nut can be used in conjunction with a bolt to be tightened against a standard nut. By using the hex nut and the bolt together, the standard nut will lock in place and will not back off. The second application is that jam nuts are used in tight uneven places as a means to level. Further, jam nuts can be used in situations where sufficient space is lacking for a standard nut.The Hex Jam Nut is sold individually. If a hex jam nut is lost through general use, it can be replaced simply with the same OEM part sourced directly from the manufacturer. The part can be replaced and installed with a wrench and should only take a few minutes to replace. This product is suitable for use with chippers, lawnmowers, lawn tractors, log splitters, snowblowers, and vacuums. Sturdy and durable, the product is made from galvanized steel.

This klik pin is used as a fastener on various lawn equipment such as tillers and lawnmowers. It is often used as a way to hold the wheel onto the assembly so the equipment can easily move over rough terrain. If the tool is having trouble with terrain and movement, it could be related to the klik pin. It may have become bent, damaged, or broken. If those things occur, or the klik pin is missing, it will need to be replaced.Getting access to the klik pin is fairly easy. It will be securing the wheel to the axle and will need to be pulled off. A quick look at the pin will give an idea of whether it is damaged or broken. If it is, the solution is to replace the part with a new klik pin. This klik pin is a genuine OEM replacement part that is directly sourced from the manufacturer. It is sold as an individual component. The pin is made to be used in lawnmowers, edgers, snowblowers, and tillers created by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

This cotter pin is a genuine MTD replacement part in the small engines of outdoor appliances such as lawn mowers, snowblowers, leaf blowers, and wood-chippers. A cotter pin is a type of fastener that secures nuts and bolts to one another; in order to use the cotter pin, a hole must be drilled into the bolt. A cotter pin is useful for appliances that shake, rattle, and vibrate regularly, as it keeps the nuts and bolts in place, ensuring that all the internal materials are held together.A cotter pin might need to be individually replaced if, despite the extra security it provides against loosening parts, it loosens along with the nuts and bolts, thereby letting internal materials separate from one another. A cotter pin could be subject to damage from cracks, chips, piercings, or erosion over time from general use or overexposure. A replacement cotter pin should be ordered if it can no longer keep nuts and bolts in place. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This cotter pin is compatible with the following brands: MTD, Columbia, Craftsman, Huskee, and Troy-Bilt. This part sold individually.

This is a simple extension spring with an outside diameter of 0.38 and a slack length of 2.5. It is primarily used as an extension spring for snowblowers, but may be compatible with other lawn equipment. It’s designed to apply tension as the throttle is applied. The more gas there is, the more resistance will be present. Under most circumstances, replacement is easy. When the spring breaks or gets rusty, look at both points of attachment. Memorize where it’s attached, or take a picture, and remove the old spring using a pair of pliers if necessary. Install the new spring and the tool is ready to use. This is an OEM part sourced directly from MTD, and it is sold individually. It’s black in color and was initially designed for Troy-Bilt lawnmowers. However, because this is a versatile part, it has since been repurposed for a number of MTD and related machines in other brands. These include lawn tractors and snowblowers, as well as lawnmowers, in brands such as Ryobi, Yard Machines, Husky, and Cub Cadet.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

Washers are used in various locations on many types of lawn and garden equipment and can help to keep a bolt or screw in place. The washer will also help to spread the load from connection, which can help to reduce the risk of damage. One of the most common reasons to replace a washer is if the current washer is lost. If the washer is corroded or if it has been bent or otherwise damaged, it should be replaced, as well. Replacing a washer is generally easy, but this can depend on the location of the washer that needs to be replaced. The authentic OEM replacement flat washer is sold individually. Having several of these available for future needs is a good idea. The washer can be used on snowblowers, lawn mowers, tillers, edgers, log splitters, chainsaws, and wood chippers. Compatible brands include Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut.

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

This part is a replacement flat washer. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a damaged, misplaced, or defective flat washer in a variety of power equipment. Flat washers are a standard piece of hardware with many different uses. Their primary purpose is to increase the bearing surface area of a screw. This can help to prevent screws from becoming loose over time due to pressure that leads to them sinking into the surface. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this flat washer, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this flat washer is suitable for use on several different models of small engine outdoor power equipment manufactured by MTD, Murray, Craftsman, and other brands. This is a genuine part made of high-quality, durable metal and is sold individually.

This part is a replacement wheel axle. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. If the current wheel axle is defective, this part can be used as a replacement. It is intended for use with a variety of snow blower models.The wheel axle attaches the wheel to the frame of the snow blower and allows it to rotate. If the axle is broken or in any way defective, the user may have trouble maneuvering the snow blower. When working on or near an engine, always ensure that the equipment is powered off and completely cooled down before attempting to undergo any repairs. For more accurate information on how and where to install this wheel axle, the appropriate owner's manual and equipment diagrams should be referred to. This wheel axle is suitable for use on a variety of snow blower models manufactured by MTD, Craftsman, and other brands. It is a genuine OEM part and thus is made of high-quality, durable materials. Part sold individually.

A ball bearing is a rolling element bearing that uses balls to maintain the separation between the bearing races. This part is designed for use with outdoor lawn and garden power equipment such as snowblowers, chippers, shredders, and tillers. It is compatible with products by brands such as Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.The ball bearing part is crucial because its purpose is to reduce rotational friction while supporting radial and axial loads. Without functioning ball bearings, valuable outdoor equipment would fall apart and quickly stop working. That is why it is important to get any ball bearings replaced if they are worn out or malfunctioning.This ball bearing is made out of metal. The ball bearing is an original OEM part sourced directly from the manufacturer, MTD. It is sold individually.

Snowblowers are an essential bit of machinery for those who live in areas with heavy winter weather. The machines use an auger to turn and pull snow into the impeller assembly. The machines are typically self-propelled and must be put into gear to begin moving forward. This is done through a drive system that relies on a control lever and clutch cable that triggers the auger or wheels to turn. When that clutch cable is broken, the machine will not function. This replacement clutch cable is designed for snowblowers made by Craftsman, MTD, and other brands. It works with track, drive or traditional machines. This is an OEM replacement part that will require a nut driver for installation. It ships individually but includes all hardware necessary for a safe and effective installation.

The clutch cable is a vital part of the snowblower, as it connects the control lever to the clutch in the machine's drive system. The cable is what allows the user to control the clutch. If the clutch cable is bad, it means the user will not have control over the clutch. The snowblower clutch cable could become corroded, or part of it could break in some cases. Regardless of what causes problems in the cable, it will need to be replaced before the snowblower will work properly. The authentic OEM replacement clutch cable is sold individually. This cable is only for use with snowblowers. Brands compatible with the cable include Cub Cadet, Craftsman, Huskee, Montgomery Wards, Bolens, Yard-Man, Yard Machines, Troy-Bilt, Ryobi, and MTD. When choosing a replacement cable, the owner must be sure that their choice will work with their make and model of snowblower.

This spacer is a genuine MTD part, sold individually. This spacer can be used as a replacement part in lawnmowers, snowblowers, and wood chippers. This part assists in fastening two components together by creating a slight gap that reduces friction.The spacer might have to be replaced if it is lost, misplaced, or damaged from general wear and tear with long-term use. If the spacer is lost at some point within the typical operation of the appliance and its absence is noticed by the operator, the spacer should be replaced by this genuine OEM replacement part. If the spacer is damaged beyond functionality, the spacer should be immediately replaced. This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This spacer is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Huskee, Yard Machines, Montgomery Wards, Yard-Man, Turf King, and MasterCut.

The roller cable guide is designed for use with lawnmowers. It supports and guides cables to the lasher in the mower.This roller cable guide is a genuine OEM part sourced directly from the manufacturer and is sold individually. This roller cable guide is compatible with the following brands: Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, and Yard-Man.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

The friction wheel for a snowblower is sometimes also known as a friction disc or a friction ring. The friction wheel is what helps to move the snowblower forward. When the disc is in contact with the spinning drive wheel, the disc will rotate and turn the axle to propel the snowblower. Over time, the friction wheel can start to wear down or even break. If this happens, it will mean that the snowblower will move slowly, or that it might have erratic movements. Owners who find that they are having similar problems with their machine will want to check the friction wheel to see if it is damaged or broken. They will need to replace the disc before they can use the machine efficiently and safely. The genuine OEM replacement friction wheel is for use with snowblowers, and it is sold individually. Compatible brands include Cub Cadet, Craftsman, Troy-Bilt, Yard-Man, Montgomery Wards, Bolens, Huskee, MTD, Yard Machines, and Ryobi.

This replacement part is an idler arm assembly. It is a genuine replacement part made by MTD. Idler arm assemblies are meant to help the user steer and maneuver the appliance so that they can move in the desired direction. A new idler arm assembly might be needed if the current one is damaged or missing. These parts can become stripped over time and might need to be replaced. If the user is unable to steer the machine or appliance properly, the idler arm assembly might need to be replaced. Be sure to refer to the appropriate user manual for more information on how to replace this part. This part is a genuine OEM replacement part to ensure long-lasting use and proper fit. This idler arm assembly is sold individually and is sourced directly from the manufacturer.

The clutch cable is a vital part of the snowblower, as it connects the control lever to the clutch in the machine's drive system. The cable is what allows the user to control the clutch. If the clutch cable is bad, it means the user will not have control over the clutch. The snowblower clutch cable could become corroded, or part of it could break in some cases. Regardless of what causes problems in the cable, it will need to be replaced before the snowblower will work properly. The authentic OEM replacement clutch cable is sold individually. This cable is only for use with snowblowers. Brands compatible with the cable include Cub Cadet, Craftsman, Huskee, Montgomery Wards, Bolens, Yard-Man, Yard Machines, Troy-Bilt, Ryobi, and MTD. When choosing a replacement cable, the owner must be sure that their choice will work with their make and model of snowblower.

Snowblowers are an essential bit of machinery for those who live in areas with heavy winter weather. The machines use an auger to turn and pull snow into the impeller assembly. The machines are typically self-propelled and must be put into gear to begin moving forward. This is done through a drive system that relies on a control lever and clutch cable that triggers the auger or wheels to turn. When that clutch cable is broken, the machine will not function. This replacement clutch cable is designed for snowblowers made by Craftsman, MTD, and other brands. It works with track, drive or traditional machines. This is an OEM replacement part that will require a nut driver for installation. It ships individually but includes all hardware necessary for a safe and effective installation.
