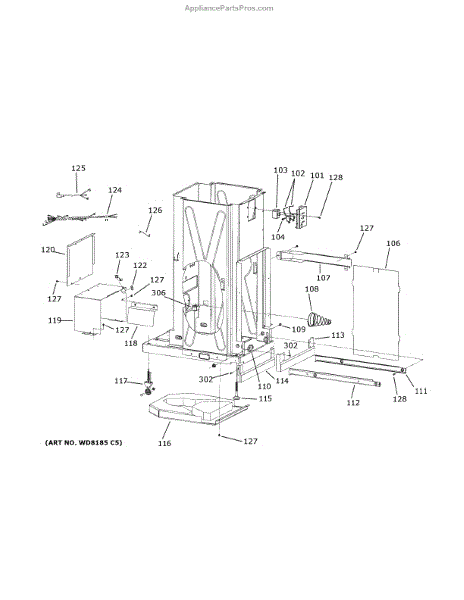

Parts for Ge UCG1500N0BB: Frame Parts

The Return Switch is an OEM part for GE trash compactors. This part ensures that the compacting ram returns to its starting position after each compaction cycle.

Causes of a malfunctioning return switch can vary from electrical issues, such as short circuits or worn-out connections, to mechanical problems, including physical damage from wear and tear or blockages preventing the switch's activation.

Symptoms of a faulty  Return Switch include:

• The compactor ram fails to return to its original position after a compaction cycle.
• The unit does not start or operate correctly, indicating issues with the cycle initiation.
• Unusual noises or behavior from the trash compactor, suggesting that the ram is not aligning or moving as expected.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This main switch is the console power control that restores on/off power to the appliance, letting the cooktop/console respond to user inputs. Replaces a failed or intermittent power switch for reliable control functions. What it does:

• Routes main electrical power to the control console so buttons, displays and burner controls work.
• Commonly replaces a switch that causes the console to be completely unresponsive or to lose power intermittently.
• Helps fix symptoms such as no-display, no-control response, or loss of power to control features.
• Works as the single replacement part when the original switch is diagnosed as faulty.

• One main switch (single unit)

• Disconnect all power at the breaker before inspecting or replacing the switch.
• Access typically requires removing the console/back panel; keep screws and fasteners organized.
• Verify wiring positions and take a photo before disconnecting connectors to ensure correct reassembly.

This hex head flange bolt secures components and assemblies in place, providing a flush, vibration-resistant fastener for appliances. Use it to replace a worn or missing mounting bolt to restore proper fit and function. What it does:

• Fastens panels, brackets, and components where a small hex flange screw is required
• Flange head helps distribute load and resists loosening from vibration
• Commonly used where a compact, low-profile bolt is needed for secure mounting
• Replacing stripped or damaged bolts can stop rattles and misalignment

• One hex head flange bolt

• Use the correct M3 driver/socket and avoid overtightening to prevent thread damage
• Disconnect power and follow all safety precautions when working on appliances
• Ensure the mating part is secure before reuse

This back panel replaces the dryer's rear housing cover to protect internal components and help keep lint and debris out of service areas. Restores the cabinet's structural finish and access for service. What it does:

• Covers and protects the dryer's internal components at the rear
• Helps prevent lint, dust, and foreign objects from entering service areas
• Restores a secure mounting surface for controls, vents, and rear-mounted components
• Supports proper cabinet alignment and finish for safe operation

• 1 back panel / rear housing

• Disconnect power (and gas, if applicable) before attempting replacement
• Use appropriate hand tools; avoid over-tightening fasteners to prevent cracking
• Keep lint and debris cleared from the area before reassembly

This frame roller assembly mounts to the appliance frame and supports a sliding drawer or rack. Replacing a worn roller restores smooth, aligned movement and helps reduce sticking or grinding noises during operation.

• Provides rolling support for the sliding drawer/rack along the frame
• Helps keep sliding components aligned to prevent binding and uneven travel
• Reduces friction for smoother, quieter operation
• Typical symptoms: hard-to-slide drawer/rack, wobbling or scraping, visible roller damage

• Disconnect power; turn off water supply before servicing
• Remove the drawer or rack to access the frame-mounted roller assembly
• Note orientation; transfer any reusable hardware and secure the new assembly in the same position
• Verify smooth, level travel before reassembly and returning to service

This slide track shield replaces a damaged or missing drawer slide cover to protect the slide mechanism and promote smooth drawer operation. It helps keep debris and grease away from the track for more reliable movement. What it does:

• Covers and protects the drawer slide track from food, grease, and crumbs that can cause sticking or wear
• Helps the drawer glide more smoothly by preventing debris from entering the track
• Prevents metal-on-metal contact and reduces rattling or scraping noises from a damaged track
• Useful when the original shield is cracked, bent, or missing and the drawer catches or binds

• One slide track shield as pictured

• Disconnect power to the appliance or ensure the drawer/oven is cool before starting
• Remove the drawer or access panel per your model's service instructions, then slide or snap the shield onto the track
• No special tools typically required; use basic hand tools if fasteners are present
• Inspect the track and rollers for damage while installing; replace other worn components as needed

This door tilt switch senses whether a door is closed or open and sends that signal to the appliance so cycles and lights operate correctly. Replaces a worn or failed door-position sensor to restore normal door-controlled operation. What it does:

• Detects door open/closed position and signals the appliance control
• Helps ensure cycles only start when the door is properly closed
• Commonly replaced when the appliance won't start or respond when the door is closed

• One door tilt switch

• Disconnect power to the appliance before starting any repair
• Handle surrounding trim or glass carefully; some disassembly of the door or control area may be required
• Test the switch with a multimeter before final reassembly
• Refer to the appliance's service manual or manufacturer instructions for exact replacement steps
