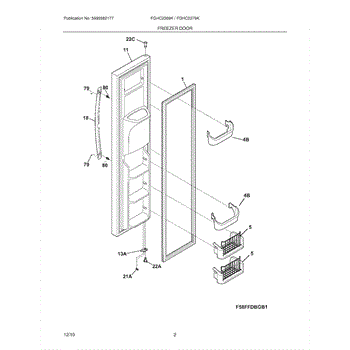

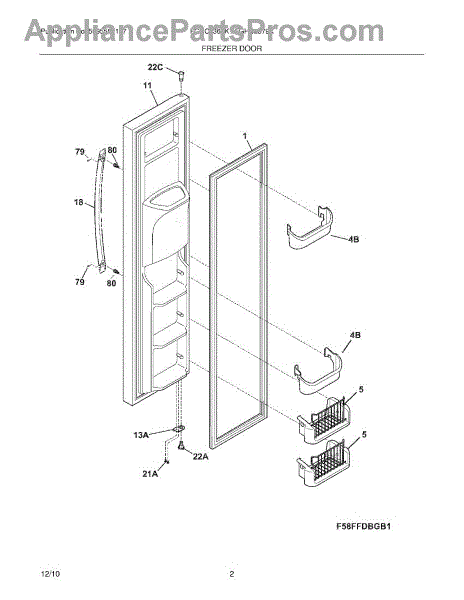

Parts for Frigidaire FGHC2379KP2: 03 - Freezer Door Parts

The Frigidaire PureAir Ultra Refrigerator Air Filter Cartridge PAULTRA is an OEM part for Frigidaire refrigerators. Positioned within the air filter housing, the cartridge utilizes advanced carbon filtration technology to remove household odors from circulating air passing through the recycling vent system. The filter measures approximate dimensions of 6-1/2" x Width: 4-7/8" and should be changed every 6 months.

Causes of reduced performance include gradual saturation of the filter material from trapped particles and molecules over time as specified by the replacement recommendation interval.

Symptoms requiring a new cartridge include:

• Return of odors to refrigerator shelves and compartments
• Development of musty smells emanating from the ventilation area
• Reduced airflow effectiveness as pores become blocked
• Filter material visible wear through handling

This OEM Frigidaire part is also compatible with some Kenmore and Maytag models using Frigidaire ventilation components.

The Water Filter is an OEM replacement part for Frigidaire refrigerators. This PureSource Ultra Ultrawf Refrigerator Water Filter is designed to provide superior filtration, ensuring that your water and ice are clean and refreshing.

With the Frigidaire Refrigerator Water Filter, you can enjoy up to six months of crystal-clear water and ice. For the filter bypass, order part number 242294402. Get the most out of your Frigidaire appliance with a new OEM water filter, and enjoy clean, refreshing water and ice every time!

Causes of a bad part:

• Overused or expired
• Clogged by excessive impurities

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This freezer door gasket forms the airtight seal between the freezer door and cabinet. Replacing a worn or damaged seal helps keep cold air in, reduce frost buildup, and restore proper temperatures and efficiency.

• Creates a tight perimeter seal to prevent warm air leaks and moisture intrusion
• Helps maintain stable freezer temperature and humidity
• Reduces frost and ice accumulation around the door area
• Common symptoms: visible gaps or tears, door not sealing fully, condensation at the door edge, heavy frost near the door

• Disconnect power before servicing
• Warm the new gasket (soak in warm water or use gentle, low heat) to relax and ease installation; do not overheat
• Remove the old gasket; seat the new gasket fully into the door channel (some models require loosening and retightening retainer screws)
• Verify an even seal all around; perform a paper/dollar-bill test and adjust corners as needed

The Door Bin is an OEM part for Frigidaire refrigerators. It provides additional storage within the refrigerator door, ideal for holding items like bottles, condiments, and other small containers. This door bin helps to maximize space and keep the refrigerator organized.

You should replace the door bin if it becomes cracked, broken, or no longer fits securely in the door. Causes of a bad door bin can include regular wear and tear, overloading, or impact damage.

Symptoms of a bad door bin include:

• Cracks or breaks in the plastic
• The bin not staying securely in place
• Difficulty fitting the bin into its designated slot
• Items falling out or instability when loaded

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement door handle restores a sturdy, comfortable grip on your refrigerator door. It replaces cracked or loose handles so you can open and close the door safely while keeping the appliance's appearance clean and finished.

• Provides the leverage and grip needed to open and close the door
• Restores appearance when the original handle is worn, discolored, or broken
• Helps prevent stress on the door gasket by giving a proper grab point
• Common signs of failure: handle is cracked, loose, wobbly, or missing

• Disconnect power before servicing; turn off water supply if working near a dispenser line
• Open the door and remove any decorative end caps to access the mounting screws
• Support the handle, remove screws, position the new handle, and reinstall using existing hardware; do not overtighten
• The handle is secure and the door opens and closes smoothly

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

Replace the worn bearing that supports your refrigerator's ice-dispenser auger. This bearing helps the auger spin smoothly so cubes travel to the chute, restoring steady ice dispensing and reducing grinding or jamming.

• Supports the auger shaft within the ice bin/dispenser assembly
• Enables smooth rotation to move ice toward the chute
• Wear can cause slow or failed dispensing and squealing/grinding noises
• Fixes issues with a cracked, worn, or seized auger support

• Disconnect power and remove the ice bin before servicing
• Separate the bin front/cover and auger assembly; note the bearing's orientation
• Transfer the new bearing and reuse existing screws/retainer if present
• After reassembly, confirm the auger turns freely by hand before restoring power

This hinge bearing supports the freezer door on the hinge pin so it swings smoothly and stays aligned. Replacing a worn bearing can stop scraping or sagging and help restore proper door movement and sealing.

• Provides a low-friction surface between the hinge pin and door
• Helps maintain correct door height and alignment for a reliable seal
• Wear symptoms include squeaking/scraping, door drop or wobble, and difficulty closing
• Replace if the original bearing is cracked, flattened, or missing

• Disconnect power and remove items from the freezer door before starting
• Support the door; remove hinge cover and fasteners, then lift the door off the hinge pin
• Slide the old bearing off the hinge pin and install the new bearing in the same orientation
• Reassemble, then check door alignment and gasket contact; adjust as needed

This part number contains one (1) screw.

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This genuine replacement screw secures appliance components and restores proper fit and stability. Use it to replace a missing or damaged fastener and stop panels, trim, or parts from shifting or rattling during normal use. What it does:

• Fastens and holds panels, brackets, or small components in place
• Restores secure attachment when an original screw is missing, damaged, or stripped
• Helps eliminate vibration, rattling, or loose-fitting parts
• Matches the OEM fit and function for reliable reassembly

• Use correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and remove food or contents from appliance areas as needed before servicing
• If fastener threads are damaged, replace with the exact OEM screw rather than forcing installation

This wiring harness is the appliance's pre-wired connector assembly that routes power and signals between the control and components, restoring proper electrical connections for reliable operation. What it does

• Connects control board, motors, sensors and switches so components receive power and communicate.
• Replaces damaged or frayed wiring that can cause intermittent operation or component failure.
• Stops symptoms like no power to a component, intermittent cycles, blown fuses or visible arcing at connectors.
• Ensures secure plug-to-plug connections and correct wire routing when installed correctly.

• Disconnect power to the appliance before attempting any repair to avoid shock.
• Compare the harness and connector shapes to the original before installing; route wires away from heat and moving parts.
• Secure connectors fully until they click; do not force mismatched plugs.
• If terminals are corroded or connectors are damaged at either end, replace harness or repair terminals per OEM instructions.

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
