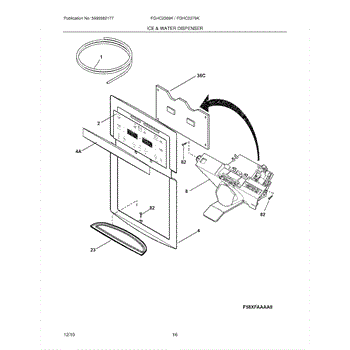

Parts for Frigidaire FGHC2379KP2: 15 - Ice & Water Dispenser Parts

The Frigidaire PureAir Ultra Refrigerator Air Filter Cartridge PAULTRA is an OEM part for Frigidaire refrigerators. Positioned within the air filter housing, the cartridge utilizes advanced carbon filtration technology to remove household odors from circulating air passing through the recycling vent system. The filter measures approximate dimensions of 6-1/2" x Width: 4-7/8" and should be changed every 6 months.

Causes of reduced performance include gradual saturation of the filter material from trapped particles and molecules over time as specified by the replacement recommendation interval.

Symptoms requiring a new cartridge include:

• Return of odors to refrigerator shelves and compartments
• Development of musty smells emanating from the ventilation area
• Reduced airflow effectiveness as pores become blocked
• Filter material visible wear through handling

This OEM Frigidaire part is also compatible with some Kenmore and Maytag models using Frigidaire ventilation components.

The Water Filter is an OEM replacement part for Frigidaire refrigerators. This PureSource Ultra Ultrawf Refrigerator Water Filter is designed to provide superior filtration, ensuring that your water and ice are clean and refreshing.

With the Frigidaire Refrigerator Water Filter, you can enjoy up to six months of crystal-clear water and ice. For the filter bypass, order part number 242294402. Get the most out of your Frigidaire appliance with a new OEM water filter, and enjoy clean, refreshing water and ice every time!

Causes of a bad part:

• Overused or expired
• Clogged by excessive impurities

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This water inlet tube routes incoming water from the supply to the refrigerator's internal water system, restoring proper flow for the dispenser and icemaker. Replace a damaged tube to stop leaks and regain reliable water delivery. What it does

• Channels water from the household supply to the fridge's water valve, dispenser, and icemaker
• Helps prevent leaks caused by cracked, pinched, or deteriorated tubing
• Can restore water flow when internal tubing is blocked or split
• Works with the appliance's existing fittings and seals when installed correctly

• One water inlet tube

• Disconnect power and shut off the water supply before beginning work
• Inspect and reuse only original fittings and seals if undamaged; replace seals if leaking
• Avoid sharp bends or kinks when routing the tube; secure with existing clips or brackets

This control module manages key refrigerator functions to keep the appliance operating correctly. Replacing a failed module can restore normal cooling performance and dispenser/lighting responses, helping prevent temperature swings and inconsistent operation.

• Regulates electronic functions commanded by the refrigerator's controls
• May resolve symptoms like intermittent cooling, unresponsive dispenser or lights, or random beeping/errors
• Helps restore stable temperatures and normal control responsiveness
• Designed to fit specific Frigidaire/Electrolux-built refrigerators

• Unplug refrigerator before service; wear ESD protection when handling electronics
• Access location varies by model; take photos of wiring/connectors for reference
• Transfer any mounting hardware from the original part if reused
• After installation, restore power and allow 24 hours for temperatures to stabilize

This dispenser drip tray fits beneath the refrigerator's water/ice dispenser to catch minor drips and spills, helping keep the freezer door area clean and dry.

• Collects drips from the dispenser to prevent puddles and staining on the door
• Helps reduce moisture that can lead to odors or mineral buildup
• Common signs it's needed: cracked or missing tray, water collecting on the door, tray no longer seating securely
• Color: black

• Unplug the refrigerator and remove the existing tray by lifting straight out
• Clean the recess before installing the new tray
• Align and press the new tray into place until fully seated
• Check fit and ensure it's level so water drains into the tray

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This replacement refrigerator water tube routes water or condensate between components and maintains a sealed path. Replacing cracked, kinked, or brittle tubing helps stop leaks and restore proper water movement through the system.

• Provides a sealed path to carry water within the refrigerator assembly
• Maintains proper routing to help prevent kinks and restrictions
• Typical failure signs: water leaking inside or underneath, pooling water, visible cracks/brittleness, restricted flow
• Replacing damaged tubing helps prevent water damage to surrounding parts

• Disconnect power and shut off the water supply before servicing
• Note the original routing and connection points; match the length and path during installation
• Fully seat tube ends into existing fittings; transfer any clips/ferrules from the original as required and avoid sharp bends
• Restore water and power, then run and inspect all connections for leaks

This refrigerator seal restores a tight barrier between internal components. Replacing a worn or damaged seal helps prevent air leaks and moisture intrusion, supporting proper airflow, stable temperatures, and reduced frost or condensation around the joint.

• Creates an air-tight barrier between mating surfaces
• Helps maintain correct airflow and temperature balance between compartments
• Reduces frost, condensation, and warm/cold spots near the sealed area
• Common signs of failure: visible gaps, loose/crumbled seal, rattling panel, moisture or frost at the joint

• Disconnect power before servicing
• Remove the related cover or housing to access the old seal
• Clean contact surfaces; install the new seal in the same orientation without stretching or pinching
• Reassemble and verify an even seal and normal airflow before returning to service

The Ice Maker Fill Tube Assembly is an OEM replacement part for Frigidaire refrigerators. As a component of the automatic icemaker, this fill tube assembly transports water from the water supply line into the ice molding chamber.

Causes of a bad fill tube assembly can include cracks, leaks, or blockages developing over time due to mineral buildup or mold growth inside the plastic tubing. Constant bending during ice production also leads to tubing fatigue.

Symptoms of a bad fill tube assembly include:

• Icemaker not filling with water or producing ice
• Water leaks in the freezer compartment
• Mineral residue or mold observed inside the tubing

This OEM Frigidaire part is compatible with models including Electrolux, Gibson, Kelvinator, and some Kenmore units.
