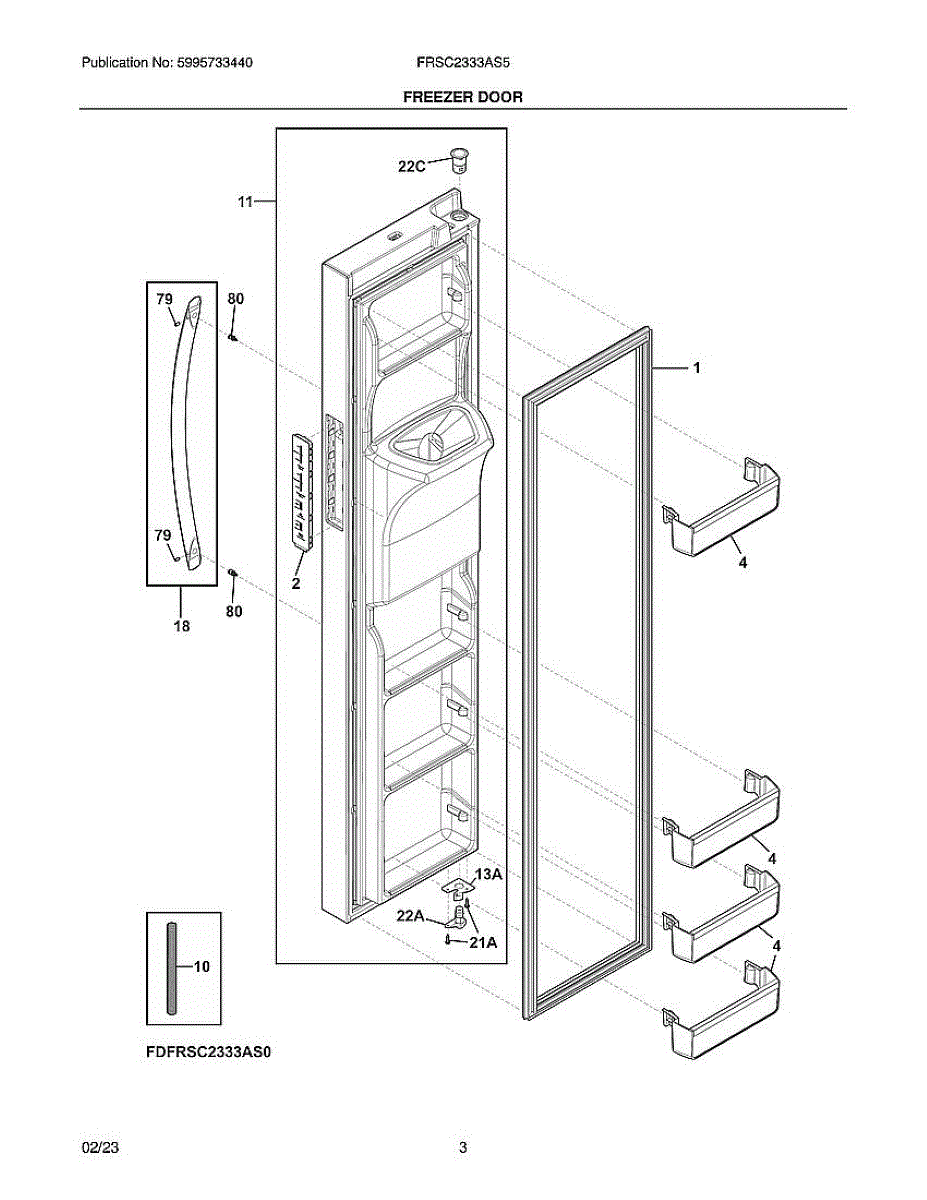

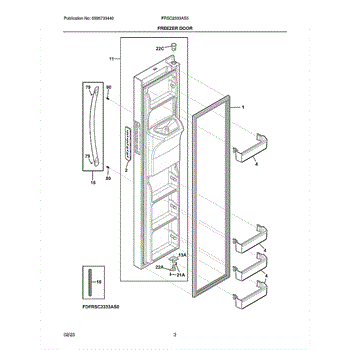

Parts for Frigidaire FRSC2333AS5: Freezer Door Parts

This gray, magnetic freezer door gasket seals the perimeter of the door to keep cold air in and moisture out, helping maintain proper temperatures and reduce frost buildup for dependable food preservation.

• Forms an airtight magnetic seal between the freezer door and cabinet
• Helps stabilize internal temperature and humidity to limit frost and ice
• Common signs of failure: cracks or warping; condensation around the door; frost near the gasket; door not closing flush
• Restores sealing performance when the original gasket hardens or shrinks

• Unplug the refrigerator before servicing; use caution around sharp edges
• Warm the new gasket (warm water or low heat) to make it pliable
• Seat corners into the door retainer first, then work along the sides for an even fit
• Verify an even seal all around (dollar-bill test) and adjust gasket or door alignment as needed

This electronic control board is the appliance's central "brain." It governs power to components, interprets inputs, and coordinates timing so selected functions run reliably and status is shown correctly.

• Coordinates signals from sensors and the user interface to execute programmed cycles
• Switches power to components through onboard relays
• Regulates timing and, where applicable, temperature or cycle parameters
• Typical failure symptoms: dead or erratic display, unresponsive buttons, failure to start, or recurring error codes

• Disconnect power at the breaker or unplug the unit before servicing
• Use ESD protection and handle the board by the edges
• Photograph wiring and move connectors one at a time to the same positions on the new board
• Mount securely and follow your model's tech sheet for wiring verification and post-install checks

This bin assembly is the replaceable freezer drawer that holds and organizes frozen foods, restoring storage capacity and a secure sliding drawer function. Fits the factory mounting and slides into the freezer compartment for everyday use. What it does:

• Replaces a cracked, broken, or warped freezer drawer to prevent items from spilling or becoming disorganized
• Restores smooth sliding action so the drawer opens and closes properly
• Helps maintain proper airflow and organization in the freezer compartment
• Visible storage surface that keeps frozen items contained and accessible

• One bin assembly (freezer drawer) as shown

• Remove power to the appliance before servicing to avoid injury
• Typically slides in/out of tracks for removal; inspect tracks and rollers for damage during replacement
• Handle gently to avoid cracking plastic; correct orientation before seating the bin
• If mounting hardware is present in your model, reuse existing clips/fasteners; replace any damaged hardware

This tension spring provides the restoring force needed for a moving appliance component, helping the part return to its normal position and restoring proper balance for smooth operation. What it does

• Provides tension to assist a hinged or moving component in returning to position
• Restores balance so doors, lids or levers open and close smoothly
• Helps prevent slamming or drooping of the attached component
• Common symptom: component won't stay open, won't return, or moves unevenly

• One tension spring

• Replace with the exact OEM spring number to ensure fit and safe operation
• Use proper tools and keep hands and fingers clear of stored energy when removing/ installing springs
• Disconnect power before working on electrical or moving parts

This genuine replacement stop helps control and limit door movement so the appliance door opens and closes smoothly and stays in position. Fits the factory mounting location to restore proper door stopping action. What it does:

• Acts as the door's stopping point to prevent overtravel and protect hinges and seals
• Helps keep the door open at its intended position for loading or unloading
• Reduces banging or abrupt door movement that can cause noise or wear
• Resolves symptoms like a door that swings too far, won't hold open, or slams shut

• One stop

• Disconnect power (or unplug) before accessing door hardware to avoid injury
• Remove any trim or panels to reach the mount location
• Typical installation requires basic hand tools; tighten fasteners to secure the stop without over-torquing
• If door alignment or hinge damage is present, additional parts or adjustments may be needed

The Handle is an OEM component specifically designed for Frigidaire refrigerators. This door handle is located on the exterior front of the fridge, providing an ergonomic grip for easy opening and closing of the refrigerator door.

Symptoms of a bad handle can include loose mounting, difficulty grasping or turning the handle, or physical damage rendering it unusable.

Causes of a bad handle include wear and tear over time, damage from impact or harsh cleaning chemicals, or loose fasteners allowing the handle to wobble.

Symptoms of a bad handle include:

• Loose, unstable grip that cannot support door weight
• Difficulty opening and closing the refrigerator door
• Damage to the handle mechanism, mounting bracket, or appearance

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models. Replace yours today before replacing becomes necessary.


This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

The Screw is an OEM replacement part for Frigidaire refrigerators. This small but essential component is used to secure various parts of the appliance, such as panels, brackets, or internal fixtures, ensuring the refrigerator's structural integrity and proper operation.

Over time, screws may become loose, stripped, or corroded due to regular use, environmental factors, or maintenance work. A damaged or missing screw can lead to misaligned parts or reduced stability of the appliance.

Symptoms of a bad or missing screw include:

• Loose or wobbly components within the refrigerator
• Panels or fixtures coming apart or misaligned
• Difficulty securing parts during maintenance or repair
• Rattling or unusual noises during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replace the worn bearing that supports your refrigerator's ice-dispenser auger. This bearing helps the auger spin smoothly so cubes travel to the chute, restoring steady ice dispensing and reducing grinding or jamming.

• Supports the auger shaft within the ice bin/dispenser assembly
• Enables smooth rotation to move ice toward the chute
• Wear can cause slow or failed dispensing and squealing/grinding noises
• Fixes issues with a cracked, worn, or seized auger support

• Disconnect power and remove the ice bin before servicing
• Separate the bin front/cover and auger assembly; note the bearing's orientation
• Transfer the new bearing and reuse existing screws/retainer if present
• After reassembly, confirm the auger turns freely by hand before restoring power

This door bushing kit replaces worn hinge bushings that keep refrigerator/freezer doors aligned for smooth, stable operation. Restores proper door rotation to reduce sagging, rubbing, and noisy or stiff hinges. What it does:

• Provides replacement hinge bushings that support the door on its hinge pin for correct alignment
• Helps stop door sag, scraping, and uneven gaps that let cold air escape
• Reduces hinge noise, sticking, and rough door movement
• Fits into the door hinge assembly to restore smooth pivoting action

• Always unplug the appliance or disconnect power before starting repairs
• Support the door while removing hinge pins to prevent dropping or damage
• Remove old bushings from the hinge housing and press or snap new bushings into place; reassemble hinge and confirm alignment

This factory screw fastens refrigerator components and panels. It replaces missing or damaged hardware so parts stay aligned and secure, reducing looseness and rattles caused by vibration. What it does:

• Secures panels, brackets, and trim per your model's design
• Helps maintain alignment and reduce vibration-related loosening or noise
• Replaces missing, stripped, or corroded hardware
• Restores a snug fit when threads or heads are worn

• One screw

• Disconnect power; turn off the water supply if working near ice or dispenser systems
• Use the correct driver; start threading by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking adjacent plastic
• Refer to your model's diagram to confirm location and quantity used

This part number contains one (1) screw.

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This genuine replacement screw secures appliance components and restores proper fit and stability. Use it to replace a missing or damaged fastener and stop panels, trim, or parts from shifting or rattling during normal use. What it does:

• Fastens and holds panels, brackets, or small components in place
• Restores secure attachment when an original screw is missing, damaged, or stripped
• Helps eliminate vibration, rattling, or loose-fitting parts
• Matches the OEM fit and function for reliable reassembly

• Use correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and remove food or contents from appliance areas as needed before servicing
• If fastener threads are damaged, replace with the exact OEM screw rather than forcing installation

This grille clip is a small plastic retainer that secures a refrigerator grille or trim piece to the cabinet, keeping the front panels aligned and preventing rattles or gaps for a tidy appearance. What it does:

• Secures the lower/front grille or trim to the appliance cabinet to hold it in place
• Prevents grille movement, rattling, or sagging that can occur with worn clips
• Helps maintain a tight fit between trim and cabinet for a finished look
• Simple replacement part when existing clip is cracked, broken, or missing

• One grille clip

• Typically snaps into place; inspect mating slot and clip orientation before installing
• Replace any damaged adjacent clips for even support and fit
• Work carefully to avoid damaging the grille or surrounding trim

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle

This refrigerator water tube carries water between internal components such as the inlet valve, filter/reservoir, dispenser, or ice maker. Replacing a brittle, kinked, or leaking tube helps restore proper water flow and prevents messy leaks. What it does:

• Routes water within the refrigerator's water and ice system
• Helps deliver water to the dispenser and/or ice maker
• Common symptoms of a bad tube: leaks, poor dispenser flow, no ice production, visible cracks/kinks, or dripping at connections
• Restores dependable water delivery when tubing is damaged

• 1 water tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the tube's routing and connection points; take photos for reference
• Cut tubing ends squarely if trimming and fully seat into existing fittings
• Turn water back on and check all connections for leaks; flush the system to clear air
