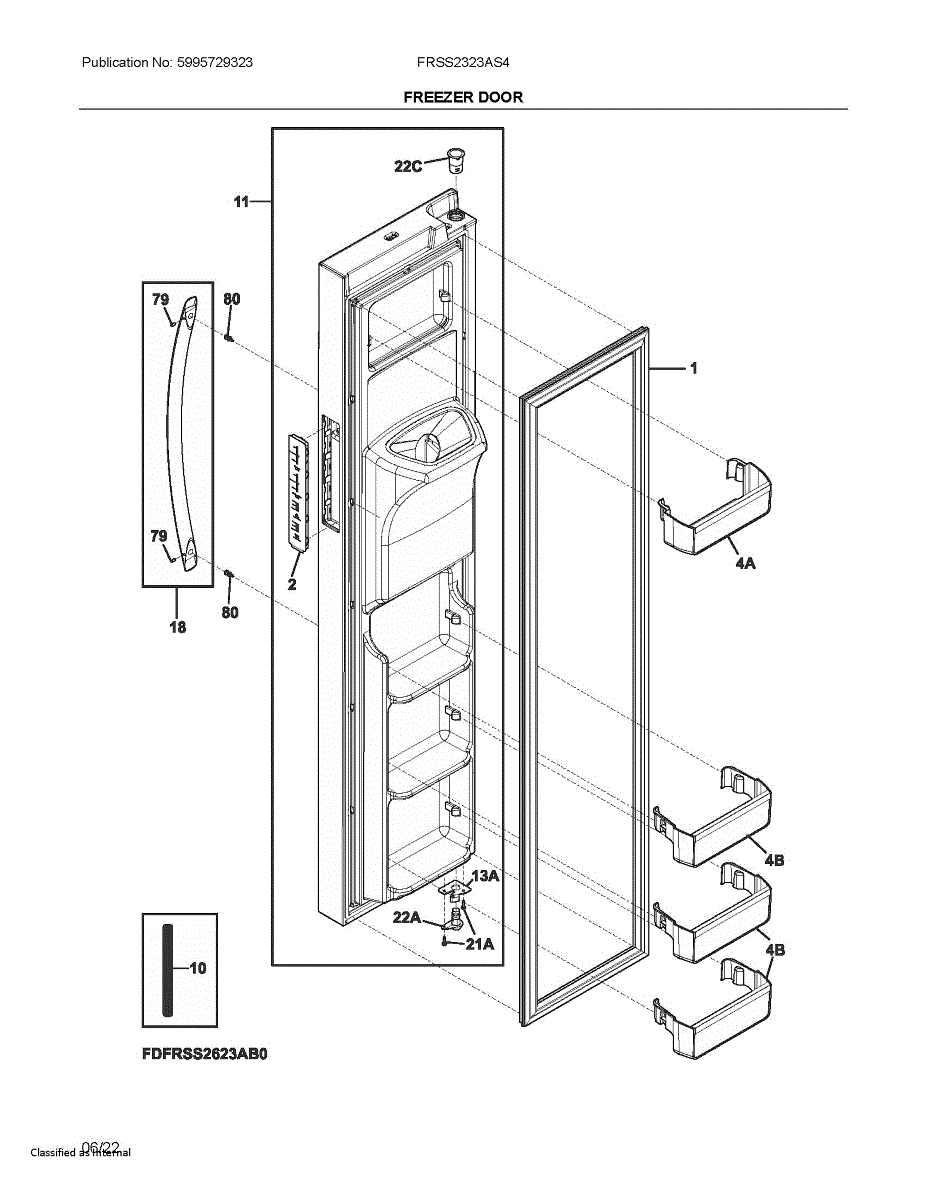

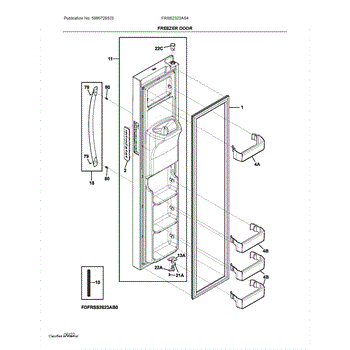

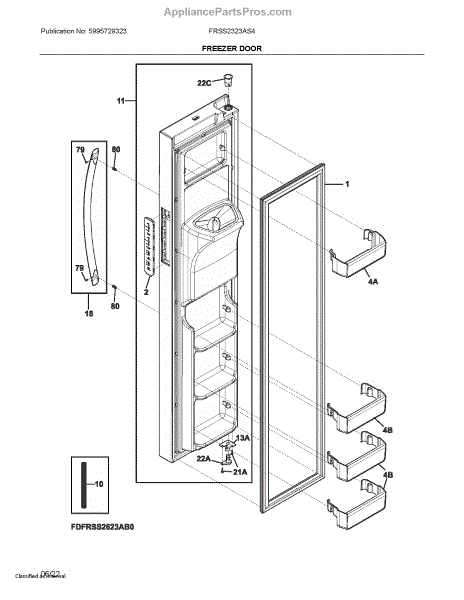

Parts for Frigidaire FRSS2323AS4: Freezer Door Parts

This refrigerator door gasket forms an airtight seal between the door and cabinet to keep cold air in and moisture out. Replacing a worn gasket restores proper temperatures, reduces frost and condensation, and helps the unit run more efficiently. The part has been updated by the manufacture, the color has been changed from black to white or light grey.

• Creates a tight perimeter seal to prevent air leaks
• Helps maintain consistent internal temperatures
• Reduces moisture and frost buildup around the door
• Common symptoms of failure: tears or warping, visible gaps, door not sealing fully, temperature fluctuations, excess run time, or condensation at the door edge

What's included: 1 door gasket. Installation notes:

• Disconnect power before service.
• Warm the new gasket in hot water or with low heat to relax kinks; avoid overheating.
• Remove the old gasket; install the new one by seating corners first, then work evenly around. For screw-retained styles, loosen and retighten fasteners evenly.
• Verify an even seal all around; adjust door alignment/leveling if needed and use a paper-slip test to check sealing.

This electronic control board is the appliance's central "brain." It governs power to components, interprets inputs, and coordinates timing so selected functions run reliably and status is shown correctly.

• Coordinates signals from sensors and the user interface to execute programmed cycles
• Switches power to components through onboard relays
• Regulates timing and, where applicable, temperature or cycle parameters
• Typical failure symptoms: dead or erratic display, unresponsive buttons, failure to start, or recurring error codes

• Disconnect power at the breaker or unplug the unit before servicing
• Use ESD protection and handle the board by the edges
• Photograph wiring and move connectors one at a time to the same positions on the new board
• Mount securely and follow your model's tech sheet for wiring verification and post-install checks

This replacement door bin assembly restores secure, organized storage on your refrigerator or freezer door so bottles, jars, and condiments stay in place and easy to reach. What it does:

• Attaches to the door to hold and organize items
• Replaces a cracked, warped, or missing bin to restore capacity
• Helps keep contents upright during door opening/closing
• Common symptoms: broken tabs, bin won't seat, falls off, or visible damage

• 1 door bin assembly

• Empty the bin and remove the old one by lifting up and out
• Align the new bin's tabs/hooks with the door slots, then press down until it locks
• Handle plastic carefully; do not force into place
• Do not overload the bin; distribute weight evenly

This bin assembly restores secure storage space in your refrigerator, replacing a cracked or missing bin so items stay organized and easy to access. Designed to fit the original mounts and profile for a clean, factory look. What it does:

• Provides a dedicated compartment to hold and organize food items
• Replaces bins that are cracked, chipped, warped, or won't stay seated on their mounts
• Helps keep items from tipping or spilling during normal use
• Restores lost capacity when the original bin is missing or damaged

• One bin assembly

• Unplug the refrigerator before servicing and remove items from the old bin
• Lift the old bin straight up/off its mounting points; align and press the new bin down until fully seated
• Verify secure engagement before loading items; avoid overloading
• Allow cold plastic to warm slightly to room temperature to reduce risk of stress cracks during installation

This tension spring provides the restoring force needed for a moving appliance component, helping the part return to its normal position and restoring proper balance for smooth operation. What it does

• Provides tension to assist a hinged or moving component in returning to position
• Restores balance so doors, lids or levers open and close smoothly
• Helps prevent slamming or drooping of the attached component
• Common symptom: component won't stay open, won't return, or moves unevenly

• One tension spring

• Replace with the exact OEM spring number to ensure fit and safe operation
• Use proper tools and keep hands and fingers clear of stored energy when removing/ installing springs
• Disconnect power before working on electrical or moving parts

This genuine replacement stop helps control and limit door movement so the appliance door opens and closes smoothly and stays in position. Fits the factory mounting location to restore proper door stopping action. What it does:

• Acts as the door's stopping point to prevent overtravel and protect hinges and seals
• Helps keep the door open at its intended position for loading or unloading
• Reduces banging or abrupt door movement that can cause noise or wear
• Resolves symptoms like a door that swings too far, won't hold open, or slams shut

• One stop

• Disconnect power (or unplug) before accessing door hardware to avoid injury
• Remove any trim or panels to reach the mount location
• Typical installation requires basic hand tools; tighten fasteners to secure the stop without over-torquing
• If door alignment or hinge damage is present, additional parts or adjustments may be needed

The Handle is an OEM component specifically designed for Frigidaire refrigerators. This door handle is located on the exterior front of the fridge, providing an ergonomic grip for easy opening and closing of the refrigerator door.

Symptoms of a bad handle can include loose mounting, difficulty grasping or turning the handle, or physical damage rendering it unusable.

Causes of a bad handle include wear and tear over time, damage from impact or harsh cleaning chemicals, or loose fasteners allowing the handle to wobble.

Symptoms of a bad handle include:

• Loose, unstable grip that cannot support door weight
• Difficulty opening and closing the refrigerator door
• Damage to the handle mechanism, mounting bracket, or appearance

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models. Replace yours today before replacing becomes necessary.


This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

The Screw is an OEM replacement part for Frigidaire refrigerators. This small but essential component is used to secure various parts of the appliance, such as panels, brackets, or internal fixtures, ensuring the refrigerator's structural integrity and proper operation.

Over time, screws may become loose, stripped, or corroded due to regular use, environmental factors, or maintenance work. A damaged or missing screw can lead to misaligned parts or reduced stability of the appliance.

Symptoms of a bad or missing screw include:

• Loose or wobbly components within the refrigerator
• Panels or fixtures coming apart or misaligned
• Difficulty securing parts during maintenance or repair
• Rattling or unusual noises during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replace the worn bearing that supports your refrigerator's ice-dispenser auger. This bearing helps the auger spin smoothly so cubes travel to the chute, restoring steady ice dispensing and reducing grinding or jamming.

• Supports the auger shaft within the ice bin/dispenser assembly
• Enables smooth rotation to move ice toward the chute
• Wear can cause slow or failed dispensing and squealing/grinding noises
• Fixes issues with a cracked, worn, or seized auger support

• Disconnect power and remove the ice bin before servicing
• Separate the bin front/cover and auger assembly; note the bearing's orientation
• Transfer the new bearing and reuse existing screws/retainer if present
• After reassembly, confirm the auger turns freely by hand before restoring power

This door bushing kit replaces worn hinge bushings that keep refrigerator/freezer doors aligned for smooth, stable operation. Restores proper door rotation to reduce sagging, rubbing, and noisy or stiff hinges. What it does:

• Provides replacement hinge bushings that support the door on its hinge pin for correct alignment
• Helps stop door sag, scraping, and uneven gaps that let cold air escape
• Reduces hinge noise, sticking, and rough door movement
• Fits into the door hinge assembly to restore smooth pivoting action

• Always unplug the appliance or disconnect power before starting repairs
• Support the door while removing hinge pins to prevent dropping or damage
• Remove old bushings from the hinge housing and press or snap new bushings into place; reassemble hinge and confirm alignment

A single replacement screw used to fasten appliance panels and components securely. This genuine-style fastener restores proper fit and helps eliminate rattles or loose parts after service or repairs. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Restores tight, stable mounting to stop rattling or vibration
• Replaces missing or stripped hardware so parts align correctly
• Works where the original appliance screw was used

• Use matching driver and apply moderate torque to avoid stripping the head or threads
• Disconnect power or unplug the appliance when accessing internal areas
• If screw threads are damaged, replace with an identical part rather than forcing

Specs: 10-16 X 0.500

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This factory screw fastens refrigerator components and panels. It replaces missing or damaged hardware so parts stay aligned and secure, reducing looseness and rattles caused by vibration. What it does:

• Secures panels, brackets, and trim per your model's design
• Helps maintain alignment and reduce vibration-related loosening or noise
• Replaces missing, stripped, or corroded hardware
• Restores a snug fit when threads or heads are worn

• One screw

• Disconnect power; turn off the water supply if working near ice or dispenser systems
• Use the correct driver; start threading by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking adjacent plastic
• Refer to your model's diagram to confirm location and quantity used

This part number contains one (1) screw.

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This grille clip is a small plastic retainer that secures a refrigerator grille or trim piece to the cabinet, keeping the front panels aligned and preventing rattles or gaps for a tidy appearance. What it does:

• Secures the lower/front grille or trim to the appliance cabinet to hold it in place
• Prevents grille movement, rattling, or sagging that can occur with worn clips
• Helps maintain a tight fit between trim and cabinet for a finished look
• Simple replacement part when existing clip is cracked, broken, or missing

• One grille clip

• Typically snaps into place; inspect mating slot and clip orientation before installing
• Replace any damaged adjacent clips for even support and fit
• Work carefully to avoid damaging the grille or surrounding trim

This water inlet tube routes potable water from the refrigerator's inlet/valve to the dispenser and ice-making components, helping restore normal water delivery and prevent leaks when damaged. What it does

• Channels water from the inlet valve to the dispenser/ice maker assembly.
• Replaces cracked, kinked, or clogged tubing that can cause leaks or reduced flow.
• Helps stop visible dripping, puddling, or intermittent water flow at the dispenser.
• Works as a direct-fit plumbing replacement when the original tube is damaged.

• One water inlet tube

• Turn off refrigerator power and shut off the water supply before starting.
• Inspect fittings and seals; replace any damaged ferrules or gaskets for a watertight connection.
• Use basic hand tools; avoid sharp bends or kinks when routing the tube.
• After installation, restore water and power, then check all connections for leaks.

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle

This refrigerator water tube carries water between internal components such as the inlet valve, filter/reservoir, dispenser, or ice maker. Replacing a brittle, kinked, or leaking tube helps restore proper water flow and prevents messy leaks. What it does:

• Routes water within the refrigerator's water and ice system
• Helps deliver water to the dispenser and/or ice maker
• Common symptoms of a bad tube: leaks, poor dispenser flow, no ice production, visible cracks/kinks, or dripping at connections
• Restores dependable water delivery when tubing is damaged

• 1 water tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the tube's routing and connection points; take photos for reference
• Cut tubing ends squarely if trimming and fully seat into existing fittings
• Turn water back on and check all connections for leaks; flush the system to clear air
