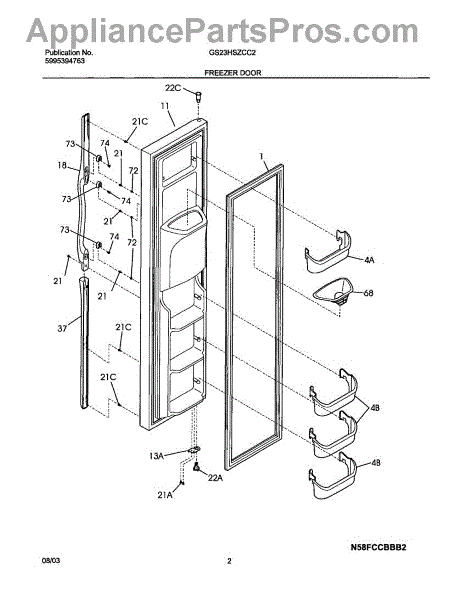

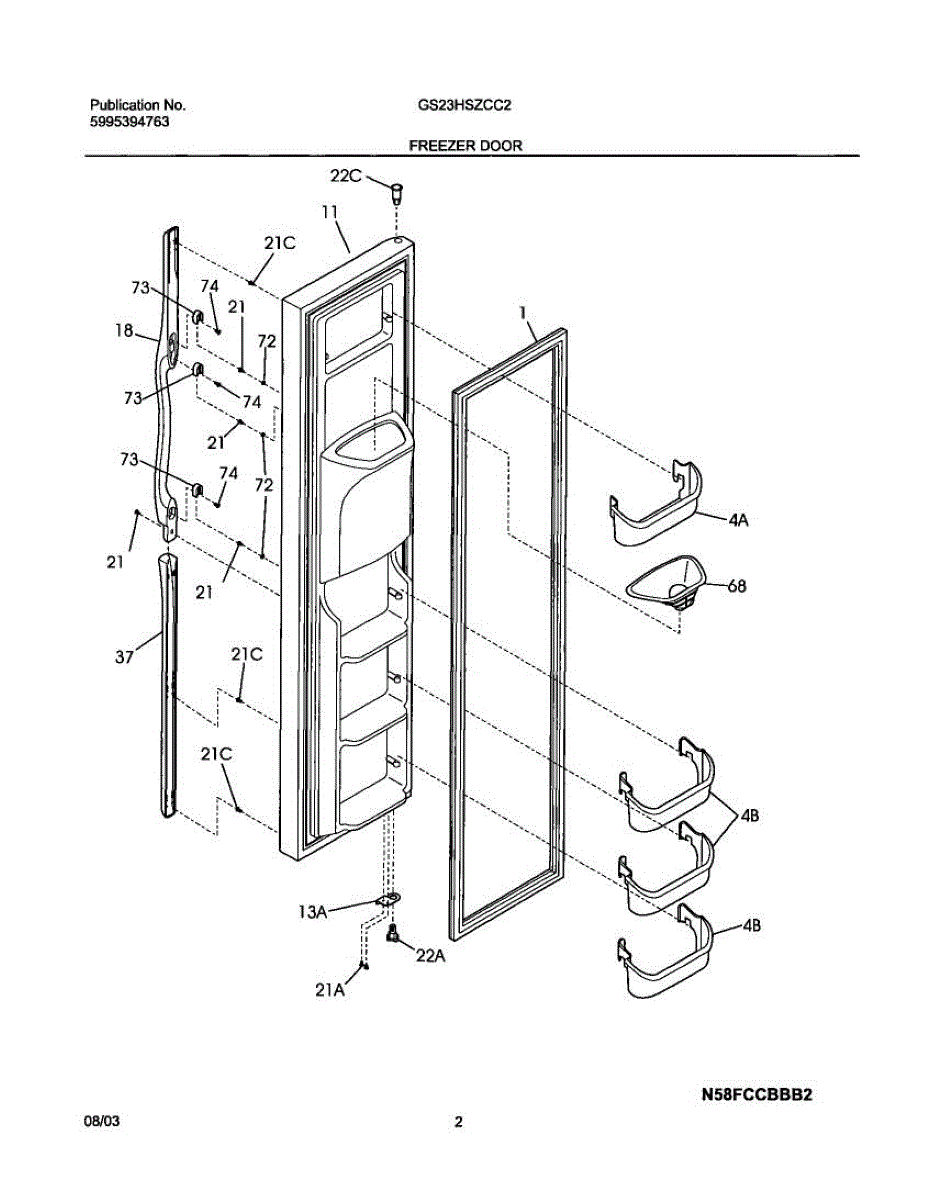

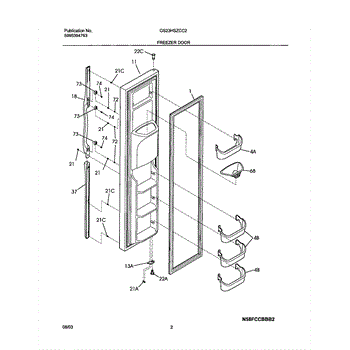

Parts for Frigidaire GS23HSZCC2: 03 - Freezer Door Parts

This Frigidaire Refrigerator Water Filter is an OEM replacement part for select Frigidaire brand refrigerators with a slide-out cartridge in the front compartment. Your refrigerator water filter reduces the chorine taste and odor from your water. It also effectively helps filter out sediment, including dirt, sand, and rust,

The filter is easy to install without the need for special tools and should be changed every 6 months. With an operating temperature range of 33-100°F and a pressure range of 30-100 PSI, this OEM part offers reliable performance. The filter measures approximately 6-3/4" x 5-1/4" x 2-1/4" and features a high-grade coconut carbon filter media.

For filter bypass order 242227702.

This refrigerator door gasket forms an airtight seal between the door and cabinet to keep cold air in and moisture out. Replacing a worn gasket restores proper temperatures, reduces frost and condensation, and helps the unit run more efficiently. The part has been updated by the manufacture, the color has been changed from black to white or light grey.

• Creates a tight perimeter seal to prevent air leaks
• Helps maintain consistent internal temperatures
• Reduces moisture and frost buildup around the door
• Common symptoms of failure: tears or warping, visible gaps, door not sealing fully, temperature fluctuations, excess run time, or condensation at the door edge

What's included: 1 door gasket. Installation notes:

• Disconnect power before service.
• Warm the new gasket in hot water or with low heat to relax kinks; avoid overheating.
• Remove the old gasket; install the new one by seating corners first, then work evenly around. For screw-retained styles, loosen and retighten fasteners evenly.
• Verify an even seal all around; adjust door alignment/leveling if needed and use a paper-slip test to check sealing.

This upper freezer door bin replaces the molded storage bin that holds small frozen items on the freezer door, restoring secure storage and organization. Durable plastic construction matches the original fit and mounting points. What it does:

• Replaces cracked, broken, or missing upper freezer door storage bin
• Restores proper storage so items no longer fall out when opening the door
• Provides the molded pocket for cans, frozen foods, and small containers
• Matches original mounting locations for a stable fit

• Remove all items from the door and open the freezer door fully before installing
• Align the bin with the door tracks or mounting tabs and press until it snaps into place
• Handle carefully to avoid sharp edges and wear gloves if necessary

Replacement bin door that covers and secures an interior refrigerator storage bin, restoring organized storage and helping the drawer close properly. Ideal when the original door is cracked, broken, or no longer latches. What it does:

• Replaces a damaged interior bin door so the drawer can close and hold contents securely
• Helps keep stored food contained and prevents items from falling out of the bin
• Stops rattling or catching caused by a cracked or warped door
• Restores smooth drawer operation when the original door or hinge is compromised

• Always unplug the appliance or disconnect power before beginning repairs
• Remove bin contents and slide the drawer out to access the door and mounting area
• Align the door with the bin and snap or press into place; some models use simple clips, others may require a small screwdriver to remove/install hinge screws
• Inspect mounting tabs and hinge components for damage and replace if needed

Black

This handle set replaces worn or broken refrigerator door handles to restore a secure grip and normal door operation. It provides a straightforward cosmetic and functional refresh for damaged or loose door pulls. What it does:

• Replaces broken, cracked, or loose refrigerator door handles
• Restores proper gripping surface for opening and closing the door
• Helps ensure door opens and closes smoothly without catching
• Reduces risk of further damage from using a compromised handle

• Fits by attaching to existing door mounting points; refer to appliance service manual for exact steps
• Use proper tools and protect finished surfaces to avoid scratches
• Disconnect power if required by your appliance before starting any work
• If mounting hardware is missing or damaged, obtain the correct screws/clips before installation

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.

This factory screw fastens refrigerator components and panels. It replaces missing or damaged hardware so parts stay aligned and secure, reducing looseness and rattles caused by vibration. What it does:

• Secures panels, brackets, and trim per your model's design
• Helps maintain alignment and reduce vibration-related loosening or noise
• Replaces missing, stripped, or corroded hardware
• Restores a snug fit when threads or heads are worn

• One screw

• Disconnect power; turn off the water supply if working near ice or dispenser systems
• Use the correct driver; start threading by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking adjacent plastic
• Refer to your model's diagram to confirm location and quantity used

This door hinge bearing fits the refrigerator door hinge and provides a smooth, low-friction pivot point. Replacing a worn bearing restores smoother door movement and helps maintain proper alignment and a reliable gasket seal. What it does:

• Provides a low-friction surface between the hinge pin and door
• Helps keep the door aligned for consistent gasket contact
• Reduces squeaks, scraping, or binding during opening and closing
• Helps with symptoms like door sagging, not closing fully, or uneven sealing

• 1 hinge bearing

• Disconnect power and remove items from the door before servicing
• Support the door; remove hinge cover and fasteners, then lift the door off the hinge pin
• Replace the bearing in the same orientation; reassemble hardware securely
• Reinstall the door and ensure smooth swing and full gasket contact around the perimeter

The Upper Hinge Bearing is an OEM replacement part for Frigidaire refrigerators. It facilitates the smooth and quiet opening and closing. By reducing friction at the hinge point, it ensures the door operates seamlessly and is less prone to wear over time.

Causes of a faulty upper hinge bearing include repetitive stress and wear from continuous door opening and closing over time. Exposure to moisture may accelerate bearing degradation.

Symptoms of a bad upper hinge bearing include:

• Squeaking or grinding noises emitted from the hinge area
• Difficult door operation requiring increased lifting force
• Potential misalignment compromising door seal integrity

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The Handle Mounting Block is an OEM part for Frigidaire refrigerators. This component anchors the refrigerator door handle assembly while also reinforcing the door structure.

Causes of a bad mounting block can include cracks developing from repeated opening/closing stresses, broken fasteners loosening its installation, or residual damage during door replacement or repair attempts.

Symptoms of a bad handle mounting block include:

• Loose, sagging or misaligned door handles
• Doors difficult to open or not staying securely closed/latched
• Noisy rattling coming from the door handle area
• Cracks or breaks visible in the mounting plastic

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Specs: 10-16 X 0.500

The Wiring Harness is an OEM part for Frigidaire refrigerators. It connects various electrical parts within the refrigerator, ensuring proper communication and voltage.

A bad wiring harness can be caused by wear and tear, damage, or electrical issues. Signs of a faulty wire harness include malfunctioning or non-functional parts, intermittent electrical problems, or loose connections.

Symptoms of a bad wiring harness can include:

• Intermittent electrical issues or power loss
• Burnt or melted wires
• Visible damage or wear on the wire harness

Replace your worn or damaged wiring harness with this genuine OEM part to restore your refrigerator. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This is a push on John Guess design elbow used to connect two 5/16" plastic lines together.
