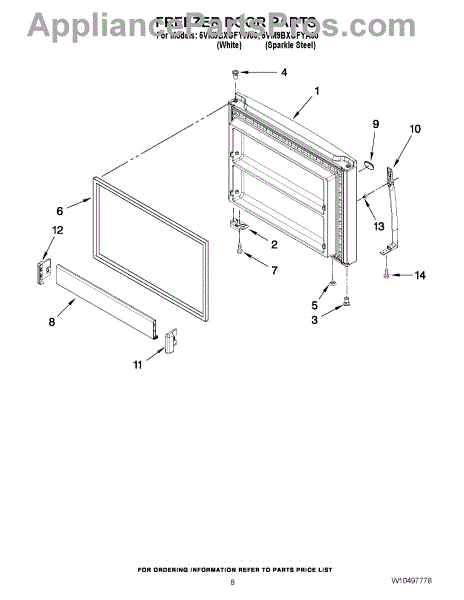

Parts for Maytag 5VM9BXGFYA00: 05 - Freezer Door Parts

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Grey

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This freezer door gasket creates a tight seal around the door opening to keep cold air in and humidity out. Replacing a worn gasket restores proper door closure, helps prevent frost buildup, and supports consistent freezer temperatures.

• Forms an air-tight perimeter seal to minimize air leaks and moisture intrusion
• Helps resolve frost/ice buildup and sweating/condensation around the door
• Can improve temperature stability and reduce excessive run times caused by air leaks
• Common fix for doors that won't seal or when the old gasket is cracked, torn, or shrunken

• Disconnect power and clear items from the door before starting
• Warm and relax the new gasket (lay flat or soak in warm water) for easier installation
• Fit the corners first, then work evenly along the sides for a uniform seal
• If your model uses a retainer or screws, loosen and re-tighten evenly; check door alignment and perform a "dollar-bill" test

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This genuine replacement refrigerator door handle restores a secure grip for opening and closing the fridge, improving safety and usability while replacing a cracked, broken, or loose handle. What it does:

• Replaces a damaged or worn refrigerator door handle so the door can be opened and closed normally
• Provides a solid grip and mounting point for the refrigerator door
• Addresses symptoms like cracks, breaks, loose or wobbly handle, or mounting hardware failure
• Matches OEM fit and mounting locations for proper alignment when installed

• Use basic hand tools; avoid overtightening screws to prevent cracking the handle or door
• Support the door while removing or installing the handle to prevent dropping or damage
• If the handle mounts behind an inner liner, follow manufacturer instructions for accessing mounting screws
• Wear gloves and eye protection; disconnect power only if required by your model's service instructions

This replacement screw fastens appliance panels, brackets, and internal components so everything stays aligned and rattle-free. Use it to replace stripped, corroded, or missing hardware and restore a solid, secure fit during repairs.

• Secures panels, brackets, covers, and assemblies in place
• Replaces damaged or missing hardware to maintain a firm hold
• Helps reduce vibration and rattling from loose fasteners
• Supports proper fit and alignment after service

• Disconnect power and shut off water/gas (as applicable) before servicing
• Match to the original fastener and replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; do not overtighten, especially into plastic
• Repair threads or use the manufacturer-specified hardware for that location

The Screw is an OEM fastening component specifically designed for securing interior panels and assemblies of Whirlpool brand appliances.

Causes of a problematic screw include stripping, corrosion, or shearing from repeated installations and removals during service procedures.

Symptoms of faulty screws include:

• Loosened or detached interior panels rattling behind appliance exteriors
• Reduced structural integrity allowing unnecessary vibrations and noise

Compatible models include brands produced by KitchenAid, Maytag, and some Kenmore.
