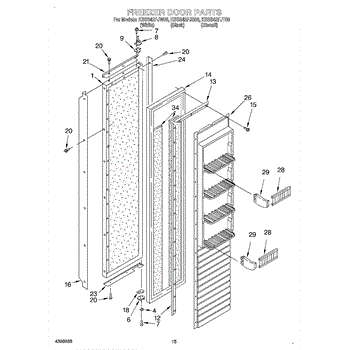

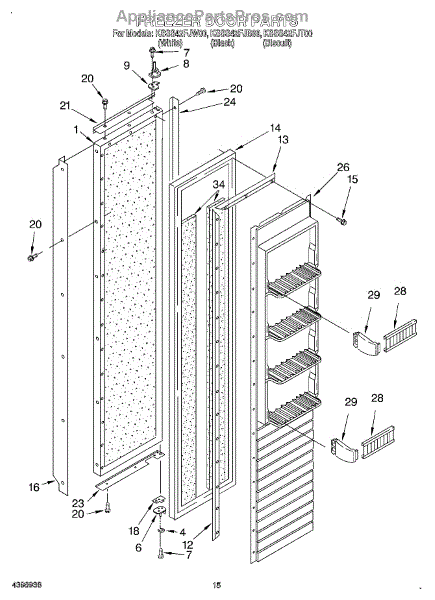

Parts for Kitchenaid KSSS42FJB00: 11 - Freezer Door Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

The Screw is an OEM part for Whirlpool refrigerators. This screw plays a small but important structural role, securely fastening the refrigerator door hinges in place.

Causes of a bad screw include normal wear and tear, repeated door opening/closing stress, or accidental damage during cleaning or servicing of the hinge area.

Symptoms of a bad hinge screw include:

• Loose or sagging door that does not close or seal properly
• Increased vibration or noise from the hinge area
• Difficulty opening/closing the door smoothly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement refrigerator door gasket restores a tight seal between the door and cabinet to help maintain proper temperature and reduce frost and moisture. Use it when the existing seal is torn, warped, or not sealing evenly.

• Creates an airtight barrier around the door to limit warm air infiltration and cold air loss
• Helps minimize frost/ice buildup and condensation at the door opening
• Replaces cracked, shrunken, or deformed gaskets that leave gaps or air leaks
• Common symptoms include visible tears, moisture on or around the seal, temperature fluctuations, or a door that won't seal fully

• Unplug the refrigerator; allow the new gasket to warm to room temperature. Gentle warming (hot water bath or low heat) can help relax kinks.
• Clean the door's sealing surface. Remove the old gasket carefully to avoid damaging any retaining channel.
• Fit corners first, then work along the sides for an even, uniform seal. Design and attachment method vary by model.
• Close the door and check for even contact (dollar-bill test). Readjust gasket seating or door alignment as needed.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Color: Black

Color: Black
