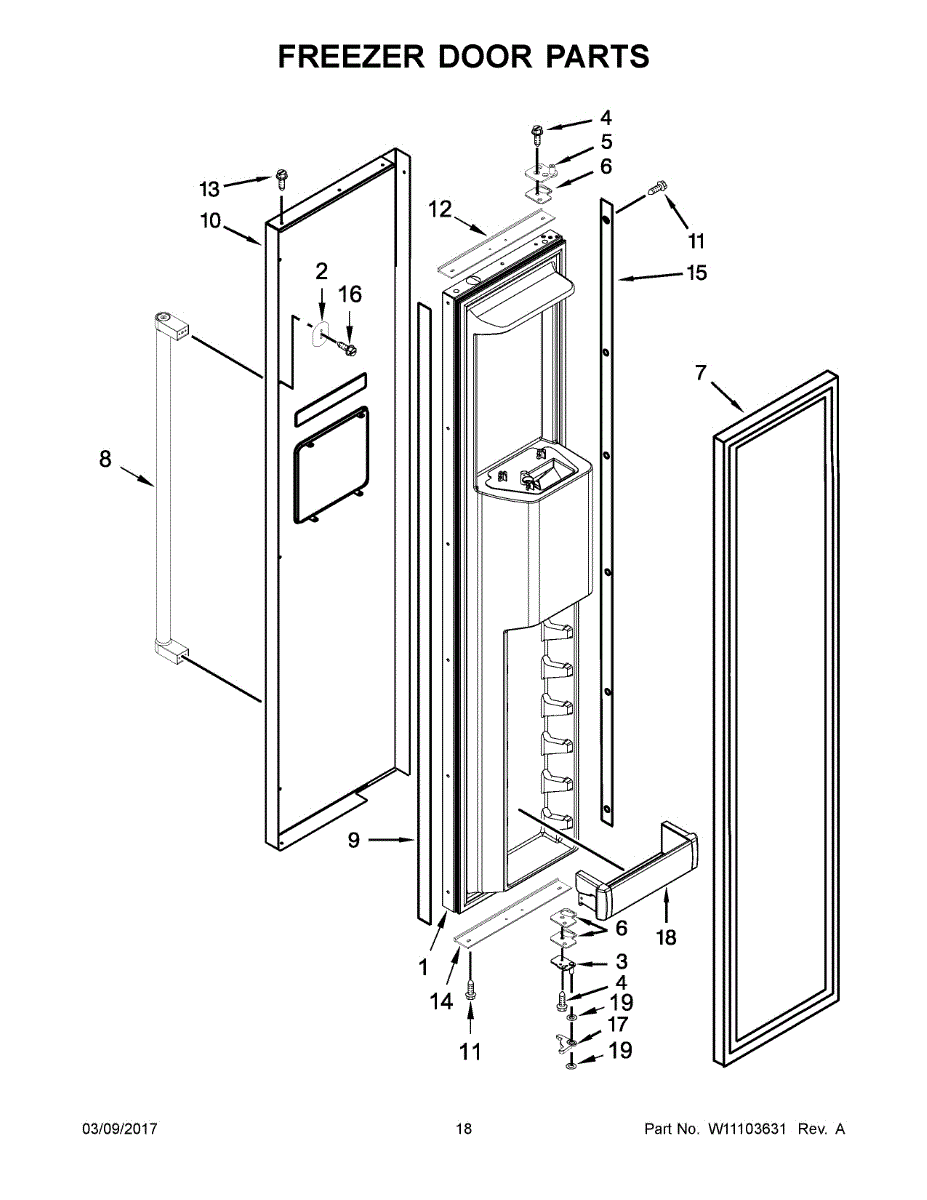

Parts for Kitchenaid KBSD602ESS01: 10 - Freezer Door Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This door hinge secures and guides a refrigerator door so it opens and closes smoothly, restoring proper door alignment and a tight seal. It's a direct-fit replacement when a worn or damaged hinge causes sagging or misalignment. What it does:

• Supports the refrigerator door and provides a pivot point for smooth opening and closing
• Restores proper door alignment and helps maintain an even door seal
• Reduces sagging, rubbing, or uneven gaps that prevent full closure
• Stops squeaks and sticking caused by worn hinge surfaces

• One door hinge

• Always unplug the appliance or shut off power to the unit before starting any repair
• Remove food and secure the door; have a helper support the door during removal and installation
• Use common hand tools; keep screws and mounting hardware organized for reassembly
• Check door alignment and adjust as needed after installation; replace any worn mounting hardware if present

The Screw is an OEM part for Whirlpool refrigerators. This screw plays a small but important structural role, securely fastening the refrigerator door hinges in place.

Causes of a bad screw include normal wear and tear, repeated door opening/closing stress, or accidental damage during cleaning or servicing of the hinge area.

Symptoms of a bad hinge screw include:

• Loose or sagging door that does not close or seal properly
• Increased vibration or noise from the hinge area
• Difficulty opening/closing the door smoothly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This door hinge restores smooth, aligned door operation. Replacing a worn hinge ensures the door opens and closes properly, supports the door's weight, and helps the gasket seal evenly to reduce air or heat loss.

• Provides the pivot point that lets the door open and close smoothly
• Maintains door alignment so the seal sits flush against the cabinet
• Helps prevent sagging, rubbing, or binding at the door edge
• Common symptoms: door drops or won't close flush, squeaks/pops, visible play or hinge damage

• Disconnect power; turn off water supply if applicable
• Support the door before removing hinge fasteners to prevent strain or damage
• Transfer any spacers/bushings from the old hinge to the new hinge if present
• Reinstall and verify door alignment and seal contact; adjust as needed

This door hinge restores smooth, aligned door operation. Replacing a worn hinge ensures the door opens and closes properly, supports the door's weight, and helps the gasket seal evenly to reduce air or heat loss.

• Provides the pivot point that lets the door open and close smoothly
• Maintains door alignment so the seal sits flush against the cabinet
• Helps prevent sagging, rubbing, or binding at the door edge
• Common symptoms: door drops or won't close flush, squeaks/pops, visible play or hinge damage

• Disconnect power; turn off water supply if applicable
• Support the door before removing hinge fasteners to prevent strain or damage
• Transfer any spacers/bushings from the old hinge to the new hinge if present
• Reinstall and verify door alignment and seal contact; adjust as needed

The Screw is an OEM part compatible with Whirlpool dryers. This screw connects the back panel to the side panel, ensuring the dryer cabinet is securely assembled. It plays an integral role in maintaining the structural integrity of the dryer housing.

Symptoms of a bad screw can include loosening, corrosion, or breakage over time and use. This can compromise the bond between panels and weaken the overall dryer frame.

Causes of a bad screw include:

• Repeated expansion and contraction from heat cycles
• Vibrations loosening the connection point
• Stress or cracks developing at the screw head or threads

These issues can lead to:

• Gaps appearing between panels
• Components like controls detaching from the housing
• Cabinet unable to withstand pressure changes

This OEM Whirlpool replacement screw is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a fastener screw used to secure appliance panels and components where a 10-24 thread is required. It provides a reliable hold for reattaching parts during repairs and maintenance. What it does:

• Fastens panels, brackets, or components with a 10-24 threaded hole
• Restores original attachment points that have missing or damaged screws
• Helps reduce vibration and rattling when properly tightened
• Works with metal or reinforced plastic mating components designed for 10-24 hardware

• One screw (quantity: 1)

• Use the matching 10-24 driver/socket and turn until snug; avoid over-tightening
• Verify mating threads and alignment before driving to prevent cross-threading
• Disconnect power and follow appliance safety procedures before servicing
• Check for proper washer or spacer if originally present

The GAP-HINGE is an OEM component for Whirlpool brand refrigerators. It is designed to fill the space between the refrigerator door and cabinetry, creating a flush fit. The hinge allows the door to open and close smoothly while preventing air and moisture leaks around the door frame.

Symptoms of a bad gap hinge include:

• Gaps around the refrigerator door letting hot or humid air enter the refrigerator interior
• Increased energy costs from lack of insulation due to air gaps
• Buildup of moisture on internal surfaces from improper sealing
• Difficulty opening or closing the refrigerator door smoothly

Causes can include normal wear over time, or damage from repeated opening and closing of the door putting stress on the hinge.

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore brands.

Bin control lever that secures the refrigerator door shelf bin to the door, allowing the bin to lock in place and release for removal. Replacing a broken lever restores proper bin retention and prevents the bin from falling or shifting. What it does:

• Secures the door shelf bin so it stays seated during normal use.
• Releases the bin for easy removal when you need to clean or reconfigure shelves.
• Common symptoms: bin won't stay in place, bin drops when door is opened, visible broken or cracked lever.
• Works with the door bin latch mechanism to maintain stable storage on the door.

• High-level replacement: typically snaps or clips into the existing door bin bracket; inspect for any broken clips or additional damage.
• Remove contents and empty the door bin before replacing to avoid spills or injury.
• Use basic hand tools only if screws are present; follow the OEM diagram for exact steps.

This door bearing fits the washer door assembly to restore smooth opening and closing and reduce noise, wobble, or binding. Replacing a worn bearing helps maintain proper door alignment for reliable operation. What it does:

• Supports the door hinge so the door pivots smoothly without sagging or sticking
• Reduces squeaks, grinding, or rough movement when opening or closing the door
• Helps keep the door aligned to reduce stress on the latch and door seal
• Addresses symptoms like door wobble, uneven closing, or noisy operation

• Disconnect power (and water if accessing near waterlines) before starting any repair
• Removing the door panel or inner door trim may be required; retain all fasteners and document their locations
• Inspect surrounding parts (hinge, seal, latch) and replace if damaged; improper alignment can cause premature wear
