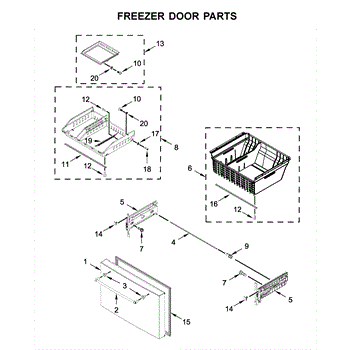

Parts for Kitchenaid KRFC604FSS02: Freezer Door Parts

This replacement screw fastens appliance panels and components securely. Replace a missing, stripped, or corroded original to restore a tight fit and help prevent rattling, vibration, and gradual loosening of assemblies.

• Secures panels, brackets, and internal assemblies to the frame
• Replaces damaged or missing hardware to maintain proper fit
• Helps reduce vibration, noise, and movement caused by loose parts
• Supports correct alignment at the original mounting points

• Disconnect power and shut off water or gas before service.
• Match the original screw's location and length; replace one at a time if needed.
• Use the correct driver/bit and avoid overtightening to prevent stripping plastic or metal.
• Reuse any washers or clips only if in good condition.

This replacement shaft is the mechanical link that transmits rotation and keeps aligned parts moving together inside your appliance. Replacing a worn or stripped shaft restores smooth, reliable operation of the connected mechanism. What it does:

• Transfers motor or gear torque to the mated component
• Maintains alignment and support within the assembly
• Helps ensure smooth engagement of gears, levers, or augers
• Common symptoms of a failed shaft: connected part won't turn or slips, intermittent operation, grinding/clicking noises, or visible wobble/play at the interface

• 1 shaft

• Disconnect power before servicing; shut off water supply if applicable
• Note the original orientation and take photos to aid reassembly
• Inspect mating gears/bushings for wear and replace if needed to prevent rapid re-failure
• Align any flats/splines and seat the shaft without forcing; tighten fasteners to manufacturer guidance

This is a replacement mounting/support bracket that secures internal components to the appliance cabinet, restoring proper alignment and reducing vibration. Fits select Whirlpool appliances and returns rigid support where the original bracket is bent, cracked or missing. What it does:

• Provides structural support for panels, assemblies or internal components
• Keeps parts aligned to prevent rubbing, noise and premature wear
• Stops rattling or shifting that can occur when a bracket is damaged
• Restores factory fit so connected parts operate smoothly

• Disconnect power (and gas, if applicable) before starting any repair
• Inspect surrounding fasteners and mounting points; replace any stripped screws
• Use basic hand tools; tighten fasteners to secure bracket without over-torquing

The Freezer Drawer Gear Clip is an OEM part for Whirlpool refrigerators. It is designed to secure the gear mechanism that allows the freezer drawer to slide in and out smoothly. This clip ensures that the drawer operates efficiently, providing easy access to the freezer compartment.

Causes of a bad gear clip can include wear and tear from regular use, damage due to overloading the drawer, or breakage from accidental impact. A faulty gear clip can impair the drawer’s movement and make it difficult to open or close properly.

Symptoms of a bad refrigerator freezer drawer gear clip include:

• The freezer drawer not sliding smoothly
• Difficulty in opening or closing the drawer
• The drawer coming off its track
•  Unusual noises during the drawer’s operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Single

A threaded screw used to secure appliance components where an 8-16 thread is specified. Provides a straightforward replacement fastener to restore original fit and keep panels, brackets, and internal parts held securely. What it does:

• Fastens panels, brackets, trim, and small assemblies that use an 8-16 threaded fastener.
• Replaces missing, corroded, stripped, or damaged screws to stop rattling, gaps, or loose parts.
• Restores reliable mechanical connection after service or part replacement.
• Compatible where the OEM specifies an 8-16 screw for mounting or securing components.

• Use the correct driver to avoid stripping the head; start threads by hand to prevent cross-threading.
• Tighten until secure but avoid over-tightening to prevent damage to mounting holes or plastic parts.
• If working near electrical components, disconnect power and follow all safety precautions.
• Inspect mating threads and replace if damaged before installing this screw.

A right-hand stop pan that secures and positions the assembly to prevent over-travel and maintain proper alignment. Restores correct movement and helps reduce noise or binding caused by a damaged or missing stop pan. What it does:

• Holds the component in the correct position to limit travel and prevent contact with adjacent parts
• Helps maintain proper alignment for smooth operation
• Can reduce rubbing, binding, or abnormal noises when worn or broken
• Supports reliable function of the surrounding assembly

• Disconnect power (and water if applicable) before starting any repair
• Access may require removing exterior panels or trim; keep track of fasteners
• Inspect surrounding mounts and hardware; replace any damaged clips or screws

This left-side stop pan is a replacement mounting/support piece that helps hold and align the appliance's lower assembly while directing any incidental moisture away from internal components. It restores fit and quiet operation after damage or wear. What it does:

• Replaces a damaged or missing left-side stop pan that can allow panels to rub or sit unevenly
• Helps maintain proper alignment of the lower/front assembly and related trim
• Reduces rattling or vibration caused by loose or broken support parts
• Helps channel incidental drips away from sensitive components

• Disconnect power (and water, if applicable) before beginning any repair
• Removal of the front or lower access panel is commonly required; keep fasteners for reuse unless damaged
• Inspect adjacent clips and mounting tabs; replace if worn to ensure a secure fit

This door gasket is a direct-fit sealing part that restores a tight seal around the appliance door to reduce airflow and heat loss, helping the unit run more efficiently and quietly. Designed for straightforward replacement where the original seal is worn or torn. What it does:

• Forms a continuous seal around the door to help keep heat, air, and moisture inside the appliance.
• Helps address symptoms such as visible gaps, ripped or flattened seal material, reduced temperature retention, or increased run times.
• Prevents drafts and minimizes energy loss from leaks around the door edge.
• Restores proper door closure and helps reduce noise caused by an improperly sealed door.

• One door gasket

• Always disconnect power (and gas if applicable) and allow the appliance to cool before starting work.
• Inspect the door frame and mounting surfaces; clean debris and old adhesive before installing the new gasket.
• Use common hand tools for removal and installation; avoid stretching the gasket excessively to prevent damage.

The Drawer Roller Axle is an OEM component specifically designed for Whirlpool refrigerators. It facilitates smooth opening and closing of sliding shelves and bins.

Causes of a faulty roller axle can include normal wear from long-term use that compromises bearings. Corrosion may build after exposure to food debris or moisture.

Symptoms of a bad drawer roller axle include:

• Sliding parts failing to glide effortlessly or becoming stuck
• Drawers unable to support intended weight loads
• Premature friction causing difficulty accessing bins

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models as well.
