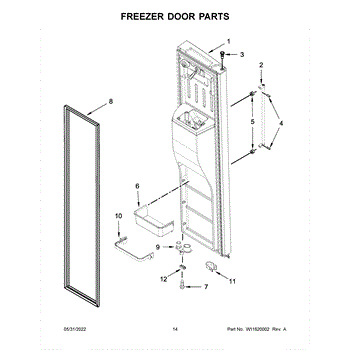

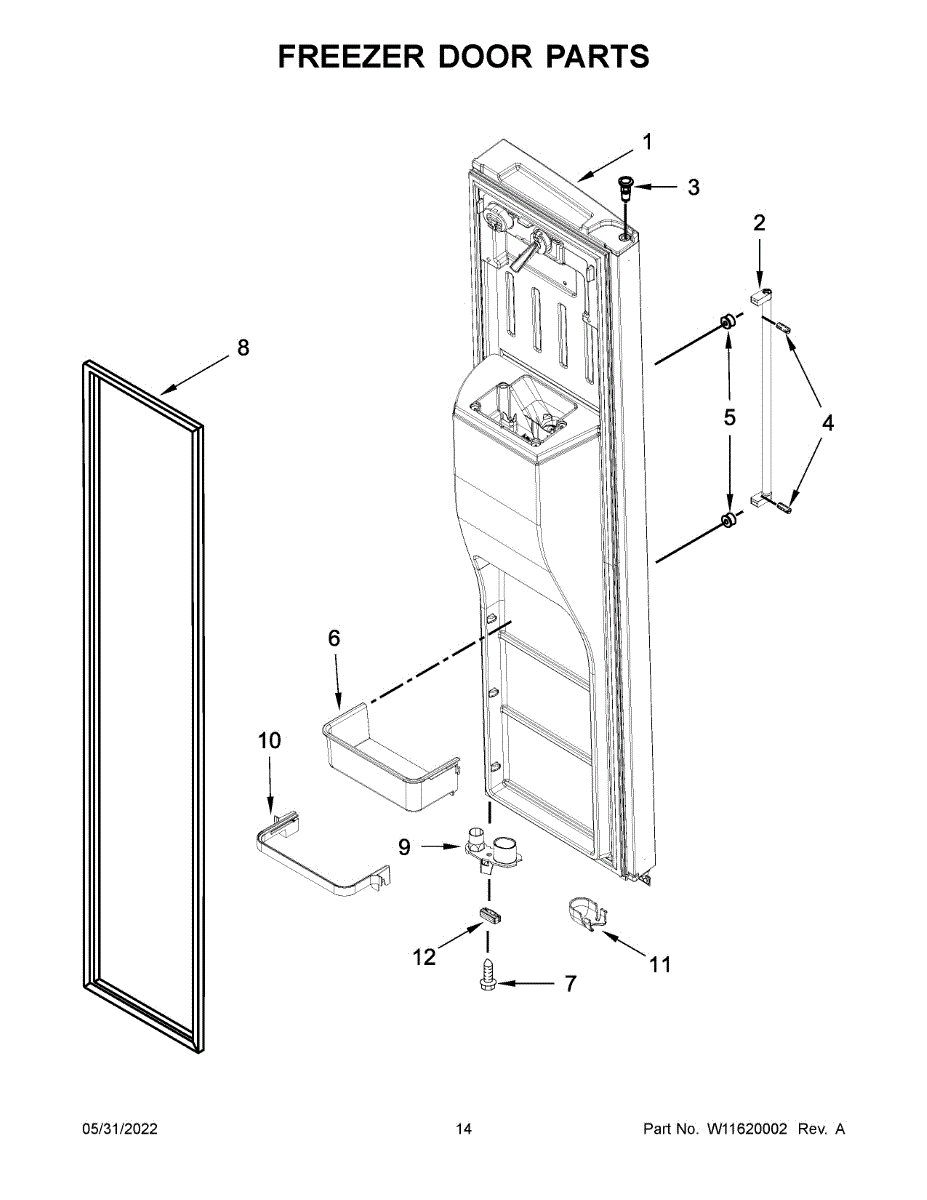

Parts for Kitchenaid KRSC703HPS04: Freezer Door Parts

The Door Handle is an OEM part for Whirlpool refrigerators. This sturdy handle serves as a convenient way to open and close the doors of your appliance. The handle offers a comfortable grip and provides  an easy way to access your refrigerator and freezer compartments.

A bad door handle can occur due to excessive force, accidental impacts, or simply regular use over time. If you notice symptoms such as a loose or wobbly handle, difficulty in opening or closing the doors, or visible cracks or damage, it may be time to replace this part.

Symptoms of a bad door handle include:

• Loose or wobbly handle
• Difficulty in opening or closing the doors
• Visible cracks or damage

Restore your Whirlpool refrigerator by replacing the worn or damaged door handle with this genuine OEM part.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Handle Set Screw is an OEM part for Whirlpool refrigerators. As an internal component, the set screw is used to securely hold refrigerator door handles in place for easy opening and closing of access doors.

Symptoms of a bad handle set screw include:

• Handles that spin loose and no longer open doors properly
• Loss of attachment causing handles to fall off doors
• Potential for handles to fall on feet presenting a safety hazard
• Opening issues, like hands slipping off spinning handles

Causes involve wear from repeated use or accidental tightening damage stripping threads and allowing handle loosening, affecting usability.

This OEM Whirlpool part is also compatible with some Kenmore and KitchenAid models.

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replacement door bin that restores secure storage inside the refrigerator door for bottles, condiments and small items. Ideal when the original bin is cracked, broken, loose or missing and items slide or fall out. What it does:

• Holds and organizes bottles, condiments and small containers to prevent shifting in the door.
• Replaces a cracked, broken or missing door bin that causes items to fall or roll out.
• Snaps into existing door shelf supports to restore stable storage and organization.
• Conservatively restores normal door storage without replacing the entire door assembly.

• Most installs require no tools: remove contents, lift the damaged bin out and snap the replacement into the door shelf supports.
• Remove food and bottles before replacing to avoid spills.
• Wear gloves when handling broken plastic to avoid cuts.

This factory fastener secures appliance components and panels. Replacing worn, stripped, or missing screws restores a tight, rattle-free fit and keeps parts properly aligned for dependable performance.

• Fastens brackets, panels, and internal parts in the specified location
• Helps maintain alignment and reduces vibration or rattling
• Direct replacement for a missing, damaged, or stripped screw
• Symptoms include loose or shifting parts, gaps, or buzzing/rattle noises

• Disconnect power; turn off water or gas supply if applicable
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten until snug—do not overtighten
• Inspect/repair stripped threads or damaged mating hardware before installation

Color: Black

Color: Grey

This cam-door is the small plastic cam that helps the appliance door latch and move smoothly. Replacing a worn cam restores reliable door engagement and reduces slamming or misalignment. What it does:

• Guides and secures the door latch mechanism for proper opening and closing
• Helps align the door to prevent gaps or uneven sealing
• Reduces noisy or rough door movement caused by a worn cam
• Common symptom: door won't stay closed, feels loose, or binds when opening/closing

• One cam-door as shown

• Disconnect power (or unplug) before starting any repairs
• Access may require removing the outer door panel or trim—keep fasteners organized
• Handle small plastic parts carefully to avoid cracking; replace any damaged clips or screws

Thimble cam that secures and guides the dryer door latch assembly, helping the door close and stay latched so the appliance can run safely and reliably. Replaces worn or damaged door cam components. What it does:

• Engages the door latch/strike to keep the door closed during cycles.
• Helps maintain proper door alignment so the lid/door seals and latches correctly.
• A worn or broken cam can cause the door to hang, fail to latch, or prevent the dryer from starting.
• Works as the mechanical interface between the door and latch assembly.

• Disconnect power (and shut off gas supply on gas models) before servicing.
• Access typically requires removing the dryer door trim or access panel.
• Inspect the latch, strike, and mounting hardware; replace any worn or damaged fasteners when installing the new cam.

This bin frame is the structural support that holds a refrigerator storage bin or drawer in place, restoring proper alignment and smooth operation. It prevents sagging and keeps the drawer securely seated for reliable everyday use. What it does:

• Supports and stabilizes the storage bin/drawer to prevent drooping or falling out
• Keeps the drawer aligned for smooth sliding and proper sealing
• Reduces rattling or noisy operation caused by a broken or bent frame
• Helps prevent caught or jammed drawers that won't open or close fully

• Disconnect power to the appliance before beginning work to reduce shock risk
• Remove food and the drawer/bin before replacing the frame
• Use basic hand tools; avoid forcing parts to prevent damage
• Inspect adjacent clips or slides and replace if worn for best fit

This door bumper cushions and stabilizes the appliance door to reduce noise and wear from slamming. It helps the door close smoothly and maintain proper alignment for reliable operation. What it does:

• Absorbs impact to prevent metal-on-metal contact and reduce slamming noise
• Helps the door sit evenly to improve latch engagement and sealing
• Reduces vibration and rattling during operation
• Simple replacement that restores proper door feel and alignment

• Disconnect power to the appliance before starting any repair
• Access the bumper by opening the door; some models may require removing the door or inner panel
• Press or snap the bumper into the locating hole or slot until secure; replace any retaining clips if present

This door bumper cushions the door against the frame to prevent metal-to-metal contact. Replacing a worn or missing bumper restores smooth, quieter closing and helps protect surfaces from chips, scuffs, and vibration.

• Absorbs impact where the door meets the cabinet/frame
• Reduces slamming noise and vibration during closing
• Helps protect paint, glass, and trim from wear
• Typical symptoms: missing/cracked bumper, loud clunk when closing, marks on frame, rattling

• Disconnect power and, if applicable, shut off gas/water; allow hot surfaces to cool
• Open the door to access the bumper location
• Remove the worn bumper and clean the contact area for proper seating
• Install the new bumper fully seated and aligned; test door operation
