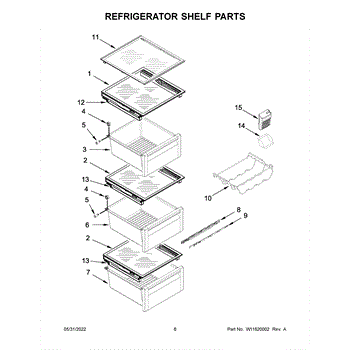

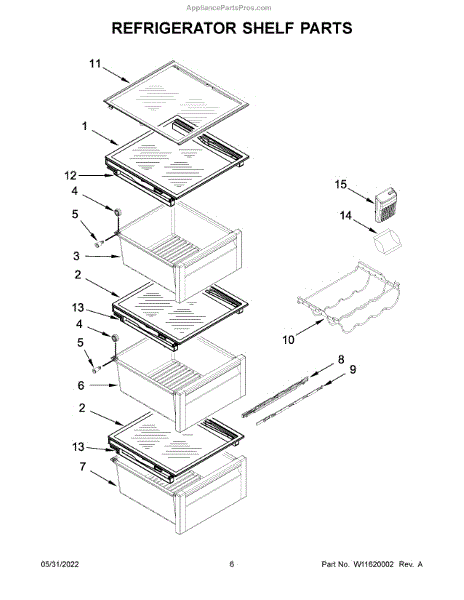

Parts for Kitchenaid KRSC703HPS04: Refrigerator Shelf Parts

This cover assembly fits over the appliance pan to protect internal components and help contain water. It replaces a cracked or warped pan cover to restore proper protection and reduce the risk of moisture-related damage. What it does:

• Shields the pan area and internal components from debris and splashes
• Helps contain minor leaks and directs moisture away from sensitive parts
• Prevents rubbing or contact between moving parts and the pan
• Restores proper fit and appearance when the original cover is damaged

• Disconnect power to the appliance before starting any repair
• Use basic hand tools; follow OEM service manual steps for removal and reinstallation
• Inspect adjacent seals and fasteners and replace if worn to ensure a proper fit
• Do not overtighten fasteners; verify the cover sits flush and does not interfere with moving parts

This is the refrigerator pan cover assembly that sits above a storage drawer. It forms the shelf surface over the drawer and replaces a cracked or warped cover to restore proper support and dependable daily use. What it does

• Creates the shelf/cover above a refrigerator storage drawer
• Supports items placed on the shelf area
• Helps the drawer beneath seat and operate correctly
• Common failure signs include cracks, broken tabs, sagging, or shattered shelf glass

• One pan cover assembly

• Disconnect power to the refrigerator before servicing
• Remove food items; take out the drawer and any separate glass if present
• Lift out the damaged cover; transfer any reusable parts from the original
• Set the new cover level, then reinstall the drawer and contents

The Snack Pan is an OEM part for Whirlpool refrigerators. It is designed as a storage compartment that slides into the fridge, providing a convenient space to store snacks, deli items, or small food packages.

Causes of a bad Snack Pan can include cracking, warping due to overloading, or damage from impacts, which compromise the pan's functionality and aesthetic appeal.

Symptoms of a bad Snack Pan include:

• Difficulty sliding the pan in or out due to misalignment
• Cracks or breaks that can lead to spills or leaks in the refrigerator
• Warping that prevents the pan from sealing properly and maintaining temperature

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drawer Roller is an OEM part for Whirlpool refrigerators, specifically designed to facilitate the smooth and effortless sliding of drawers within the appliance. This small but crucial component ensures that the refrigerator's drawers open and close with ease, allowing for convenient access to fruits, vegetables, meats, and other items stored inside.

Causes of a bad Drawer Roller can stem from wear and tear over time, accumulation of debris or food particles in the roller mechanism, or damage from overloading the drawer beyond its capacity.

Symptoms of a bad Drawer Roller include:

• Drawers sticking or jamming when you try to open or close them
• A grinding or squeaking noise during drawer movement
• The drawer sagging or not aligning properly within the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Axle is an OEM part for Whirlpool refrigerators. It is the mechanism that supports and enables smooth extension of shelves and drawers on sliding tracks.

Causes of a bad slide axle can include normal wear to plastic bushings from constant shelf movement, or damage from sharp or heavy items that cause stress and premature failure.

Symptoms of a faulty slide axle include:

• Shelves or drawers that do not fully extend or retract
• Resistance felt while pulling shelves out
• Squeaking or grinding noises coming from sliding areas
• Shelves that do not stay securely in place once extended

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is the crisper drawer pan for the refrigerator compartment. It provides a dedicated space to store produce at optimal humidity, helping keep fruits and vegetables organized and fresh.

• Holds produce in the crisper area and slides in/out on existing rails
• A damaged, cracked, or missing pan can cause poor produce storage, sticking drawer movement, or items falling through
• Restores proper fit and function of the crisper section

• Unplug the refrigerator before service
• Open the refrigerator door fully; remove contents and the old drawer
• Inspect and clean the shelf rails before sliding the new pan into place
• Do not force; align with tracks to avoid damage

This refrigerator meat pan is the clear deli drawer that slides inside the fresh food compartment to organize and contain meats, cheeses, and snacks. Replace a cracked, warped, or missing bin to restore smooth sliding and reliable storage capacity.

• Provides a dedicated storage bin in the refrigerator compartment for deli items
• Slides on existing rails for easy access and organization
• Helps contain small spills and prevents items from falling off the shelf
• Replaces a cracked, warped, or missing drawer that binds, falls, or won't stay on track

• Fully extend and lift the old drawer off the rails; remove the shelf above if needed.
• Transfer any reusable trim from the original pan if required.
• Align the new pan with the tracks and slide straight back until seated.
• Handle glass shelves carefully; avoid forcing the rails or overloading the bin.

This body control is the electronic control board that manages the appliance's main functions and user interface so cycles and features run as commanded. It replaces a failed control board to restore normal control operation. What it does

• Receives input from buttons/knobs and directs cycle start/stop, timers, and feature selection
• Controls power distribution to motors, valves, heaters, and other subsystems through relays and signals
• Helps prevent or indicate errors when the control senses faults or unsafe conditions
• Faulty boards may cause the unit to not respond, fail to start cycles, show unresponsive buttons, or display error codes

• One body control electronic board

• Disconnect all power before accessing or replacing the control to avoid shock or damage
• Handle the board by its edges and avoid static discharge; use an ESD strap if available
• Verify connector orientation and secure all wiring harnesses before restoring power

This replacement slide restores smooth movement and stable support for a drawer or rack guide. It replaces a worn or damaged slide so the rack or drawer tracks properly and reduces sticking or noise during use. What it does:

• Guides and supports a rack or drawer so it moves in and out smoothly
• Helps prevent the rack or drawer from binding, catching, or sagging
• Reduces grinding or scraping noises caused by damaged or worn slides
• Restores proper alignment for secure loading and unloading

• One replacement slide

• Disconnect power to the appliance before beginning work; shut off water supply if the repair affects water connections
• Remove the affected rack/drawer per your model instructions to access the slide
• Compare the old slide to the new part to ensure correct orientation before installing
• Use appropriate hand tools; avoid forcing parts and wear gloves and eye protection

The Wine Rack is an OEM part for Whirlpool refrigerators. It provides specialized storage for wine bottles inside the refrigerator. This wine rack is designed with precisely spaced grooves and slots to securely hold wine bottles in place both vertically and horizontally.

Causes of a bad wine rack can include wear and tear over time, damage from excessive weight or unbalanced loads that strain the rack, or accidental impacts inside the refrigerator.

Symptoms of a bad wine rack are:

• Broken or loose mounting clips that no longer secure it inside the refrigerator
• Warped or cracked plastic that causes bottles to fall out of place
• Missing pieces that compromise the rack's stability and functionality

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Glass Shelf is an OEM part for Whirlpool refrigerators. These durable shelves provide versatile storage and organization within the refrigerator and freezer compartments. The tempered glass shelves are resistant to chipping and cracking even under the weight of heavy items.

Causes of a bad shelf can include broken glass from heavy impacts, long-term wear and tear from repeated loading/unloading of items, or damage from accidental dropping of objects onto the shelf.

Symptoms of a bad shelf include:

• Visible cracks, chips, or holes in the glass surface
• Warping or bending of the frame/rails over time
• Inability to securely hold stored items without collapsing

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This track pan replaces the damaged or worn snack/deli drawer pan so food stays contained and organized inside the refrigerator. It restores proper sliding and helps prevent spills and food contamination. What it does:

• Provides a shallow sliding pan for deli, snack or small-item storage
• Supports smooth in-and-out sliding of the drawer and helps keep contents contained
• Replaces cracked, warped, or broken pans that cause sticking or spills
• Helps maintain an organized refrigerator interior and makes cleaning easier

• One track pan

• Disconnect power to the appliance before beginning any work
• Empty and remove the existing drawer and pan before installing the replacement
• Slide the new pan into the same track position until it seats; verify smooth operation
• If the track or mounting hardware is damaged, replace those parts as well.

This rail is a replacement support and guide that helps racks or drawers slide smoothly and stay aligned in place. It restores proper movement for worn or damaged sliding assemblies to improve fit and function. What it does

• Provides a stable sliding surface and alignment for a rack or drawer
• Reduces scraping, sticking, or uneven movement when opening or closing
• Helps prevent sagging or misalignment from worn tracks or rollers
• Restores secure engagement so the drawer or rack stays on its path

• One replacement rail

• Disconnect power (or unplug) and follow the appliance owner's manual before starting
• Remove the affected drawer/rack assembly to access fasteners and mounting points
• Use basic hand tools; avoid forcing parts—inspect adjacent rollers and clips for wear
• Reinstall carefully, test sliding action, and replace any damaged mounting hardware if needed

This refrigerator crisper drawer slide rail supports and guides the pan on the right side of the fresh food compartment. Replace a cracked or warped rail to restore smooth drawer movement and proper alignment.

• Supports the crisper/deli pan and mounts to the refrigerator liner or shelf frame
• Provides a smooth track for opening and closing the drawer
• Helps keep the drawer level and properly aligned
• Common signs it's needed: drawer sticks, sags, falls off the track, or the rail has cracks/missing tabs

• Disconnect power and clear the drawer area for safe access
• Remove the drawer and any glass/shelf panel to reach the rail
• Release locking tabs or screws, transfer any reusable hardware, and secure the new rail fully seated
• Reinstall components and test for smooth drawer travel before restoring power

This left-side pan track supports and guides a refrigerator-compartment storage pan/drawer, helping it slide smoothly and stay level for easy opening and closing.

• Guides and supports the left side of a refrigerator pan/drawer as it slides
• Helps keep the drawer aligned and level to prevent binding or rubbing
• Replaces cracked, warped, or worn tracks that cause poor drawer movement
• Common symptoms: drawer wobbles, tilts, binds, or falls off the track

• Disconnect power, remove the pan/drawer and any shelf components as needed
• Remove retaining screws or clips and note the track's orientation
• Position the new track and reuse original fasteners
• Reinstall the pan and test for smooth travel

The Whirlpool freshflow produce preserver is an OEM refill replacement part that extends the freshness of your fruits and vegetables. This part is typically located within the refrigerator's crisper drawer or produce storage area. It absorbs ethylene gas, which is a natural gas emitted by certain fruits and vegetables as they ripen. Ethylene gas accelerates the ripening process of other nearby produce, causing them to spoil more quickly. The FreshFlow pouches contain activated carbon, which effectively absorbs and neutralizes ethylene gas, slowing down the ripening of produce items. Contains 2 pouches.

This part fixes the following symptoms

• Rapid spoilage and wilting of fruits and vegetables in the crisper drawer
• An unpleasant odor or taste in your stored produce
• Visible signs of premature rotting or mold growth on fruits and vegetables

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
