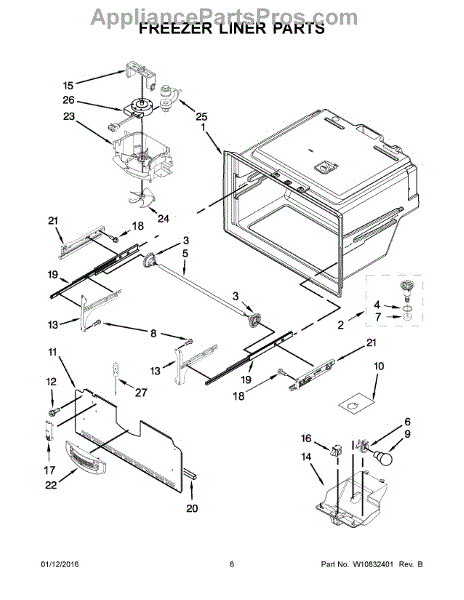

Parts for Kitchenaid KRFC400EBL01: 04 - Freezer Liner Parts

A molded defrost drain funnel that routes condensation and melted frost into the refrigerator's drain to help prevent pooling and interior leaks. Replaces cracked or clogged funnels to restore proper water flow in the drain path. What it does

• Guides defrost and condensation water from the evaporator area into the fridge drain system.
• Helps prevent water pooling inside the fresh-food or freezer compartments.
• Worn, cracked or clogged funnels can cause dripping, pooling or frost build-up near the evaporator.
• Restores a secure, directed path for meltwater to reach the drain tube and pan.

• Disconnect power to the appliance before accessing internal components to reduce shock risk.
• Remove food and any removable shelving to access the evaporator/drain area; handle plastic trim carefully to avoid breakage.
• Inspect surrounding drain area for ice, debris or clogs and clear before reinstalling the funnel.
• If clips or screws secure the funnel, retain hardware and reinstall securely; test a small amount of water to ensure proper drainage.

The Drawer Gear Kit is an OEM part for Whirlpool refrigerators. This kit is designed to repair or replace the gear system that operates the sliding or rolling mechanism of a refrigerator drawer. It includes all necessary gears and components to ensure smooth operation of the drawer, allowing for easy access to fruits, vegetables, meats, or other items stored inside.

Causes for replacement can vary, including wear and tear from regular use, damage from overloading the drawer, or accidental breakage. Over time, the gears can wear down, lose teeth, or become misaligned, leading to poor drawer performance.

Symptoms of a bad Drawer Gear Kit include:

• The drawer is difficult to open or close
• A grinding or clicking noise when the drawer is moved
• The drawer sticks or jams during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This O-ring seal provides a watertight seal for the appliance's water path, helping prevent leaks and maintain proper operation. Use this exact replacement when the original ring is cracked, flattened, or worn. What it does:

• Creates a pressure-tight seal at a water connection to stop drips and leaks
• Keeps water contained inside hoses, valves or pump fittings
• Restores proper sealing when the original O-ring becomes brittle or deformed
• Helps prevent water damage to cabinetry and flooring from appliance leaks

• One O-ring seal

• Turn off power and water supply before beginning any repair
• Remove the old O-ring and clean mating surfaces of debris and buildup
• Inspect the groove or fitting for damage; replace the part if the mating surface is scored
• If needed, use a small amount of manufacturer-recommended lubricant to ease installation and protect the O-ring

The Shaft is an OEM part for Whirlpool refrigerators. This component serves as the axle for the refrigerator's wheels, allowing for smooth movement when repositioning or cleaning the appliance. It is designed to fit securely and ensure stability during use. The shaft's approximate length is 26 inches.

Common causes of a bad wheel shaft include excessive weight, rough handling during relocation, or wear and tear over time.

Symptoms of a bad wheel shaft include:

• Difficulty moving the refrigerator
• Unstable or wobbly positioning
• Visible bending or damage to the shaft
• Unusual noises when moving the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drain tube gasket seals the connection between the drain tube and its mating port to prevent leaks. A tight seal helps keep water where it belongs and protects surrounding components from moisture damage.

• Creates a watertight seal at the drain tube connection point
• Can help address water leaks around the drain area
• Deterioration, cracking, or hardening of the old gasket may cause seepage
• Replacing a worn gasket can restore proper leak prevention

• Unplug the appliance and shut off water supply before service
• Place a towel or pan to catch residual water when disconnecting the tube
• Inspect the tube and mating surfaces; clean before installing the new gasket
• Do not overtighten fittings; verify a snug, even seal and check for leaks on first run

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

The Bulb-Light is an OEM part for Whirlpool refrigerators. This bulb is designed to illuminate the interior of your refrigerator, making it easier to see and organize the contents.

Symptoms of a failing refrigerator light bulb include:

• Dimming or flickering of the light
• Light not turning on when the refrigerator door is opened
• Inconsistent performance, with the light turning on and off intermittently

Causes of light bulb failure in refrigerators generally involve the bulb reaching the end of its useful life, loose connections in the light socket, or issues with the refrigerator’s door switch that controls the light.

This OEM part is also compatible with other Whirlpool brand appliances, such as Maytag, KitchenAid, Jenn-Air, Amana, and others.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Housing is an OEM part for Whirlpool refrigerators. The housing provides a secure enclosure for the door switch and light bulb. The door switch is responsible for detecting when the refrigerator door is opened or closed, allowing the light bulb to turn on and off accordingly. The light bulb illuminates the refrigerator's interior, making it easy to locate and retrieve items.

A bad housing can occur due to wear and tear, electrical malfunctions, or physical damage. If you notice symptoms such as the light not turning on when the door is opened, difficulty in replacing the light bulb, or a faulty door switch, it may be time to replace this part.

Symptoms of a bad housing include:

• Light not turning on when the door is opened
• Difficulty in replacing the light bulb
• Cracks or damage to the housing

Restore your Whirlpool refrigerator by replacing the worn or damaged housing with this genuine OEM part.

This OEM part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Door Switch is an OEM part for Whirlpool refrigerators. It is responsible for detecting when the refrigerator door is open or closed.

Causes of a bad Door Switch can include mechanical wear from frequent use, electrical issues such as short circuits or burnt contacts, and physical damage from impacts or improper handling of the refrigerator door.

Symptoms of a bad Door Switch include:

• The refrigerator light not turning on or off properly
• The refrigerator not cooling efficiently when the door is closed
• The light staying on even when the door is closed, leading to excess heat and reduced cooling efficiency
• No response from the light or cooling system when the door is opened or closed

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement cover shields and secures the freezer temperature sensor, keeping it correctly positioned for accurate temperature feedback. An intact cover helps protect the sensor and maintain proper placement for consistent cooling performance.

• Holds the freezer thermistor in the correct location and orientation
• Protects the sensor from accidental damage or dislodging
• Supports stable temperature readings to the control system
• Replace if the cover is cracked, missing, or its tabs are broken; if the sensor is loose/exposed; or after visible damage

• Disconnect power to the refrigerator before servicing
• Remove shelves/obstructions to access the thermistor area; release or unfasten the old cover
• Seat the thermistor properly, align the new cover, and secure using existing fastener or tabs
• Restore power and verify normal cooling operation

Size: 8 x 1-1/4 inch.

*** Note: Sold individually ***

This refrigerator door gasket creates a tight seal between the door and cabinet to keep cold air in and moisture out. Replacing a worn or torn gasket restores consistent cooling performance and helps prevent frost and condensation from air leaks.

• Forms an airtight seal around the door perimeter to contain cold air
• Helps maintain proper temperatures and humidity inside the refrigerator
• Reduces frost, condensation, and warm spots caused by leaking seals
• Typical signs of failure: tears, gaps, hardened/warped corners, or doors not sealing firmly

• Unplug the appliance before servicing
• Let the new gasket warm to room temperature; use warm water or a hair dryer on low to relax bends
• Press the gasket fully into the door channel and seat the corners evenly
• Close the door and check for uniform contact all around; allow time for the gasket to conform

Replacement mounting bracket that secures panels or assemblies and restores proper alignment and support. Installs where a loose panel, door, or internal component needs a dedicated metal mounting point to stop shifting or rattling. What it does:

• Secures and positions panels, trim, or internal assemblies to the appliance frame.
• Restores alignment for loose or sagging panels and doors.
• Reduces rattling, vibration, or movement during operation.
• Provides a durable anchor point for fasteners and hardware.

• Disconnect power (and water, if applicable) before starting any repair.
• Use basic hand tools; handle sharp metal edges with gloves and eye protection.
• Refer to your appliance's service manual or parts diagram for exact location and fastener details.

Replacement mounting bracket that secures a panel or internal assembly to the appliance so parts stay aligned and stable. Installs in minutes to stop rattling, reduce movement and restore a proper fit. What it does:

• Provides a secure mounting point for a panel, trim or internal component
• Keeps assemblies aligned to prevent gaps, rubbing or binding
• Stops rattling and vibration caused by a loose or damaged bracket
• Replaces bent, cracked or corroded brackets that no longer hold parts firmly

• Disconnect power (and water if applicable) before beginning any repair
• Retain original fasteners; replace damaged screws or clips as needed
• Hand-tighten fasteners first, then torque to manufacturer specs if available

This evaporator fan blade mounts on the freezer fan motor to move air across the evaporator coils and circulate cold air through the cabinet, helping maintain proper temperatures when the original blade is cracked, warped, or missing.

• Circulates air over the evaporator coils for efficient heat removal and even cooling
• Helps restore airflow between freezer and fresh food sections
• Addresses symptoms such as weak/no airflow from vents, rising temperatures, or rattling/scraping noises from the freezer area
• Replaces a damaged blade that wobbles or rubs the shroud

• Disconnect power; remove freezer shelves/bins and the rear panel to access the fan assembly
• Pull the old blade straight off the motor shaft; avoid prying on or bending the shaft
• Match the orientation of the original and press the new blade onto the shaft until fully seated with clearance to the shroud
• Spin by hand to ensure free movement; reassemble panels and restore power

This rubber grommet cushions and seals a wiring, hose, or shaft opening to help prevent abrasion, reduce vibration, and maintain a snug fit for quieter, safer appliance operation. What it does:

• Protects wiring, hoses, or moving shafts from chafing and wear
• Helps seal openings to limit water, air, or lint intrusion
• Dampens vibration and reduces noise where panels or components meet
• Worn or damaged grommets can cause rubbing sounds, visible wear, loose hoses, or leaks

• Disconnect power (and water if applicable) before beginning any repair
• Push-fit replacement in most applications; a small screwdriver or needle-nose pliers can help with removal or alignment
• Inspect surrounding seals, hoses, and mounting surfaces and replace damaged parts as needed

Replacement evaporator fan motor designed for the freezer evaporator assembly to restore airflow and help maintain consistent cold temperatures. Use this motor when the original stops running, hums without spinning, or makes unusual noise. What it does:

• Circulates cold air over the evaporator coil so the freezer and refrigerator sections cool evenly.
• Helps prevent frost buildup that can occur when airflow is reduced or stops.
• Common symptoms: freezer warming, reduced cooling, loud humming/clicking, or a motor that won't spin.
• Operates as the airflow source for the evaporator compartment in many Whirlpool refrigerators.

• Unplug the appliance before starting and discharge any stored energy if present.
• Keep fasteners and wiring orientation labeled for correct reassembly; verify connector fit and routing.
• Expect to remove interior panels or the evaporator cover to access the motor; watch for sharp edges.
• After installation, restore power and confirm the motor runs and airflow is restored.
