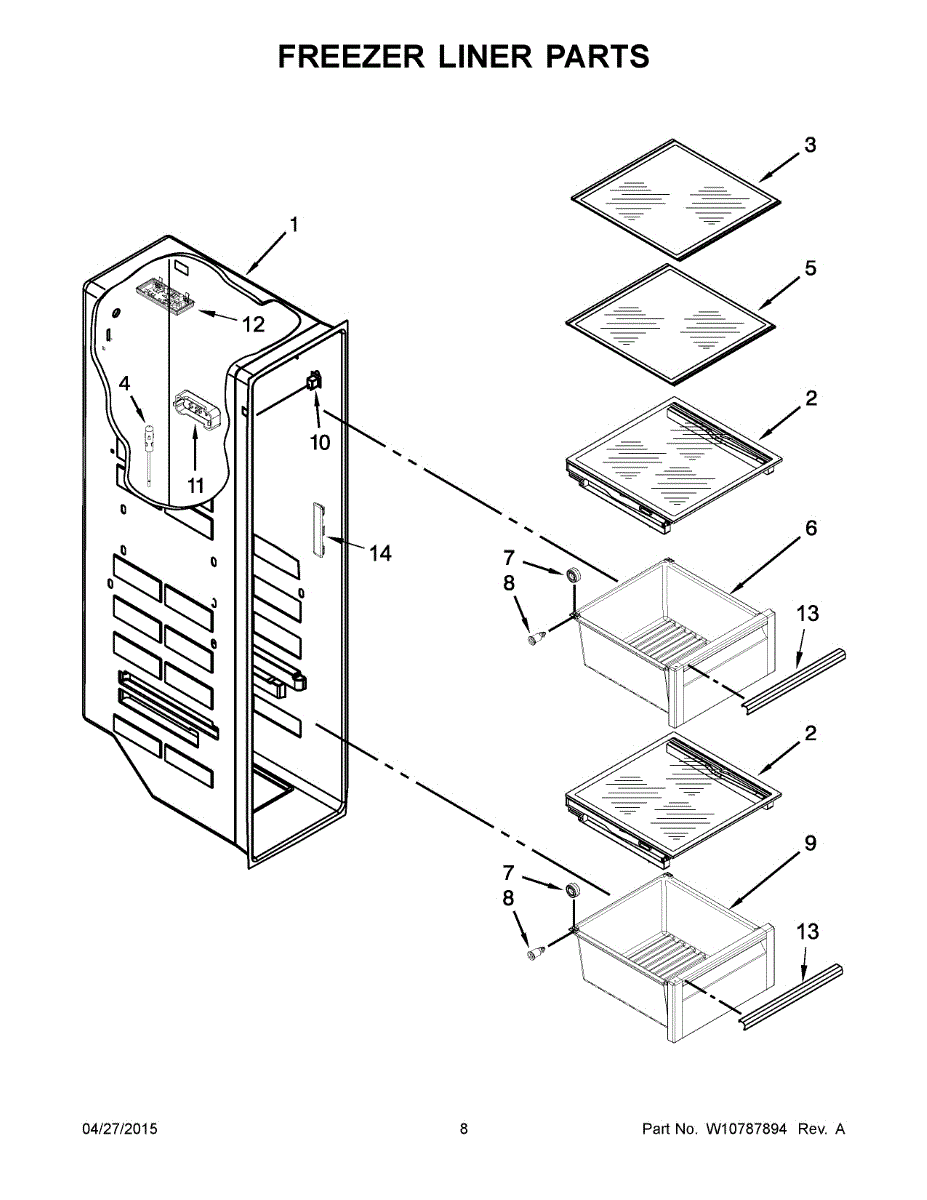

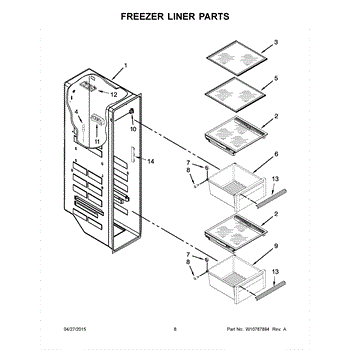

Parts for Kitchenaid KRSC500ESS00: 05 - Freezer Liner Parts

This replacement freezer bin is the plastic storage drawer that organizes and contains frozen foods in the freezer compartment. It restores lost storage space and keeps items accessible and tidy. What it does:

• Provides a dedicated drawer for frozen goods to prevent loose items from shifting
• Helps contain spills and makes cleaning the freezer easier
• Slides into the freezer compartment to improve organization and access
• Replaces cracked, broken, or missing freezer drawers that no longer hold items

• Remove all food from the drawer before replacing; handle on a flat, stable surface
• Slide the bin onto the freezer rails/guides until it seats; ensure it moves smoothly
• Inspect mounting rails or stops for damage; replace separately if worn or broken
• Use gloves to avoid cuts on sharp edges when removing interior panels or rails

The Drawer Roller is an OEM part for Whirlpool refrigerators, specifically designed to facilitate the smooth and effortless sliding of drawers within the appliance. This small but crucial component ensures that the refrigerator's drawers open and close with ease, allowing for convenient access to fruits, vegetables, meats, and other items stored inside.

Causes of a bad Drawer Roller can stem from wear and tear over time, accumulation of debris or food particles in the roller mechanism, or damage from overloading the drawer beyond its capacity.

Symptoms of a bad Drawer Roller include:

• Drawers sticking or jamming when you try to open or close them
• A grinding or squeaking noise during drawer movement
• The drawer sagging or not aligning properly within the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This pan roller axle fits refrigerator drawers. It's the small support pin that anchors the roller so the crisper or pantry pan glides smoothly. Replacing a damaged axle restores proper glide and keeps the drawer tracking correctly.

• Secures the drawer's roller to the bin or rail so the pan slides smoothly
• Helps keep the crisper/pantry drawer level and properly aligned
• Common symptoms: drawer hard to open/close, sags on one side, scraping/clicking sounds
• Visible damage or a missing axle/roller at the drawer corner

• Unplug the refrigerator, remove contents, and take out the affected drawer
• Locate the broken axle and gently pry/pull it out
• Seat the new axle fully in the mounting hole; ensure the roller spins freely
• Reinstall the drawer and check for smooth operation

This replacement freezer bin restores interior storage space and organization in the freezer compartment. It provides a sturdy, easy-to-clean shelf for frozen foods so items stay contained and accessible. What it does:

• Replaces a cracked, broken, or missing freezer storage bin to restore holding capacity
• Keeps frozen items organized and prevents smaller items from falling into lower areas
• Slides into existing door/rack channels for stable support during normal use
• Clear design makes it easy to see contents without removing the bin

• Remove all items from the affected area before installing the bin
• Typically installs by sliding or snapping into existing rails—no special tools required
• If binding or misaligned, inspect mounting rails for damage before forcing into place
• Disconnect power and empty nearby shelves if working in tight spaces to avoid injury

The Door Switch is an OEM part for Whirlpool refrigerators. It is designed to detect when the refrigerator or freezer door is open or closed. This switch controls the interior light and ensures that the cooling system operates efficiently.

Causes of a bad Door Switch can include mechanical wear from frequent use, electrical faults such as short circuits or burnt contacts, and physical damage from impact or mishandling of the refrigerator door.

Symptoms of a bad Door Switch include:

• The interior light not turning on when the door is opened or not turning off when the door is closed
• The refrigerator or freezer not cooling properly
• The light staying on continuously
• The cooling system running continuously or not running at all due to incorrect signals from the switch

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This thermistor cover shields and positions the refrigerator's temperature sensor so it reads cabinet air accurately. Replacing a cracked or missing cover helps restore stable temperatures and normal cooling performance.

• Holds the thermistor in place and shields it from direct airflow for accurate temperature sensing
• Helps prevent erratic temperatures, overcooling/undercooling, or long run times caused by an exposed sensor
• Commonly replaced when the original cover is cracked, loose, or missing
• Supports consistent temperature control by ensuring proper sensor placement

• Disconnect power before servicing
• Remove shelves/bins as needed to access the sensor location
• Align the thermistor and seat the cover fully; engage tabs or reuse existing hardware per model
• Avoid pinching the sensor or wiring and verify the cover is snug

The LED Light Module is an OEM part for Whirlpool refrigerators. It provides illumination inside the refrigerator, ensuring clear visibility of the stored items. The module includes energy-efficient LED lights designed to last longer than traditional bulbs.

Over time, the LED light module can fail due to electrical issues, wear and tear, or damage from power surges. Exposure to moisture or accidental impact can also contribute to its malfunction.

Symptoms of a bad LED Light Module include:

• Dim or flickering light
• Light not turning on at all
• Intermittent lighting issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Light is an OEM component specifically designed for Whirlpool refrigerators. It illuminates the refrigerator interior to easily view contents.

Causes of bad light include natural bulb burnout, damage to connectors or housing, or failure from moisture exposure.

Symptoms of a bad light include:

• Dim or no light when the door is opened
• Flickering or intermittent illumination
• Broken or detached lighting assembly

This light replacement is also compatible with select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.
