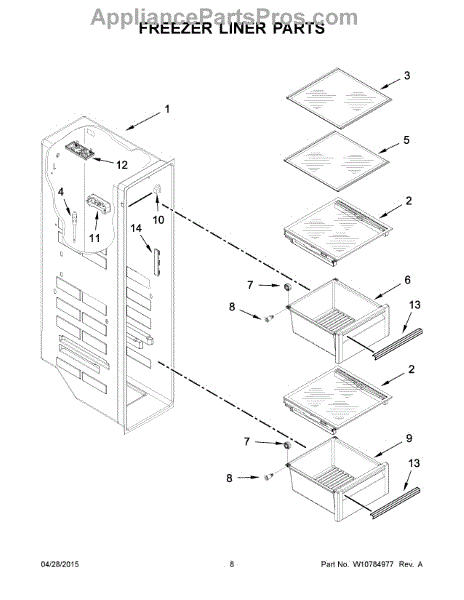

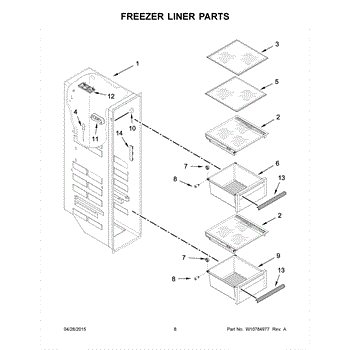

Parts for Kitchenaid KRSF505EBL00: 05 - Freezer Liner Parts

This cover is an OEM replacement access panel that restores the appliance's exterior protection and helps keep internal components free from debris. It fits where the original cover was removed or damaged. What it does:

• Protects internal components from dust, lint and incidental contact
• Restores a secure exterior surface and maintains proper airflow paths
• Helps prevent accidental contact with moving or electrical parts behind the panel
• Reinstates the appliance's original appearance where the cover was missing or damaged

• One replacement cover

• Disconnect power (and gas, where applicable) before starting any work
• Remove fasteners holding the old cover and retain hardware if reusing; compare new part to old for orientation before installing
• Use basic hand tools; avoid forcing clips or tabs to prevent breakage

This freezer glass shelf assembly replaces a cracked or missing shelf in the freezer compartment, restoring a stable, easy-to-clean surface for food storage and helping keep bins and items properly supported and organized.

• Provides a level, durable surface for placing frozen items
• Helps position and support baskets/bins along the side rails
• Restores designed storage capacity when a shelf is missing
• Common symptoms: cracked or shattered glass, broken frame, sagging, or the shelf not sitting securely in its slots

• Disconnect power before servicing and wear cut-resistant gloves when handling glass
• If frosted, let the shelf warm to room temperature before removal to prevent sticking or thermal shock
• Empty the area; release any retaining tabs and slide the old shelf straight out
• Align the new shelf with side rails/slots and seat fully; ensure it's level and secure before loading

This freezer bin restores secure, organized storage in the freezer compartment. Replace a cracked or missing bin to keep items contained and easy to access, helping prevent spills and messes during everyday use.

• Provides dedicated storage space for frozen items
• Replace if the original bin is cracked, broken, warped, or missing
• Helps keep containers from sliding or falling
• Installs by aligning the bin with its supports and seating it securely

• Remove any contents from the old bin before starting
• Lift the old bin up and out (or slide it off its supports), as designed
• Align the new bin with the supports/slots and press or slide into place until secure
• Avoid forcing cold plastic; allow parts to warm to room temperature to reduce the chance of cracking

The Drawer Roller is an OEM part for Whirlpool refrigerators, specifically designed to facilitate the smooth and effortless sliding of drawers within the appliance. This small but crucial component ensures that the refrigerator's drawers open and close with ease, allowing for convenient access to fruits, vegetables, meats, and other items stored inside.

Causes of a bad Drawer Roller can stem from wear and tear over time, accumulation of debris or food particles in the roller mechanism, or damage from overloading the drawer beyond its capacity.

Symptoms of a bad Drawer Roller include:

• Drawers sticking or jamming when you try to open or close them
• A grinding or squeaking noise during drawer movement
• The drawer sagging or not aligning properly within the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This pan roller axle fits refrigerator drawers. It's the small support pin that anchors the roller so the crisper or pantry pan glides smoothly. Replacing a damaged axle restores proper glide and keeps the drawer tracking correctly.

• Secures the drawer's roller to the bin or rail so the pan slides smoothly
• Helps keep the crisper/pantry drawer level and properly aligned
• Common symptoms: drawer hard to open/close, sags on one side, scraping/clicking sounds
• Visible damage or a missing axle/roller at the drawer corner

• Unplug the refrigerator, remove contents, and take out the affected drawer
• Locate the broken axle and gently pry/pull it out
• Seat the new axle fully in the mounting hole; ensure the roller spins freely
• Reinstall the drawer and check for smooth operation

This clear plastic freezer bin replaces a cracked, broken or missing drawer to restore frozen food storage and organization. It provides a full-width compartment that slides into the freezer cavity for easy access and visibility. What it does:

• Holds and organizes frozen foods in the freezer compartment
• Replaces bins that are cracked, split, or no longer secure on the tracks
• Restores proper drawer sealing and prevents items from falling into lower compartments
• Improves visibility of stored items with a transparent design

• One clear plastic freezer bin/drawer

• Slides into the factory tracks—remove any obstructions before installing
• Inspect mounting rails and stops for damage; replace if worn to ensure proper fit
• Wear work gloves to avoid cuts from sharp edges during removal/installation
• Unplug the appliance or shut off power before working in confined areas for general safety

The Door Switch is an OEM part for Whirlpool refrigerators. It is designed to detect when the refrigerator or freezer door is open or closed. This switch controls the interior light and ensures that the cooling system operates efficiently.

Causes of a bad Door Switch can include mechanical wear from frequent use, electrical faults such as short circuits or burnt contacts, and physical damage from impact or mishandling of the refrigerator door.

Symptoms of a bad Door Switch include:

• The interior light not turning on when the door is opened or not turning off when the door is closed
• The refrigerator or freezer not cooling properly
• The light staying on continuously
• The cooling system running continuously or not running at all due to incorrect signals from the switch

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This thermistor cover shields and positions the refrigerator's temperature sensor so it reads cabinet air accurately. Replacing a cracked or missing cover helps restore stable temperatures and normal cooling performance.

• Holds the thermistor in place and shields it from direct airflow for accurate temperature sensing
• Helps prevent erratic temperatures, overcooling/undercooling, or long run times caused by an exposed sensor
• Commonly replaced when the original cover is cracked, loose, or missing
• Supports consistent temperature control by ensuring proper sensor placement

• Disconnect power before servicing
• Remove shelves/bins as needed to access the sensor location
• Align the thermistor and seat the cover fully; engage tabs or reuse existing hardware per model
• Avoid pinching the sensor or wiring and verify the cover is snug

The LED Light Module is an OEM part for Whirlpool refrigerators. It provides illumination inside the refrigerator, ensuring clear visibility of the stored items. The module includes energy-efficient LED lights designed to last longer than traditional bulbs.

Over time, the LED light module can fail due to electrical issues, wear and tear, or damage from power surges. Exposure to moisture or accidental impact can also contribute to its malfunction.

Symptoms of a bad LED Light Module include:

• Dim or flickering light
• Light not turning on at all
• Intermittent lighting issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Light is an OEM component specifically designed for Whirlpool refrigerators. It illuminates the refrigerator interior to easily view contents.

Causes of bad light include natural bulb burnout, damage to connectors or housing, or failure from moisture exposure.

Symptoms of a bad light include:

• Dim or no light when the door is opened
• Flickering or intermittent illumination
• Broken or detached lighting assembly

This light replacement is also compatible with select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.
