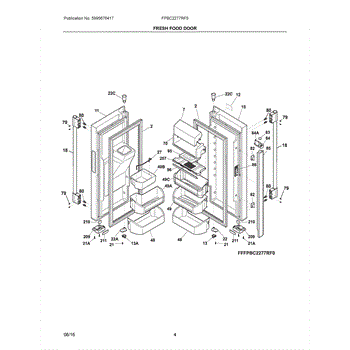

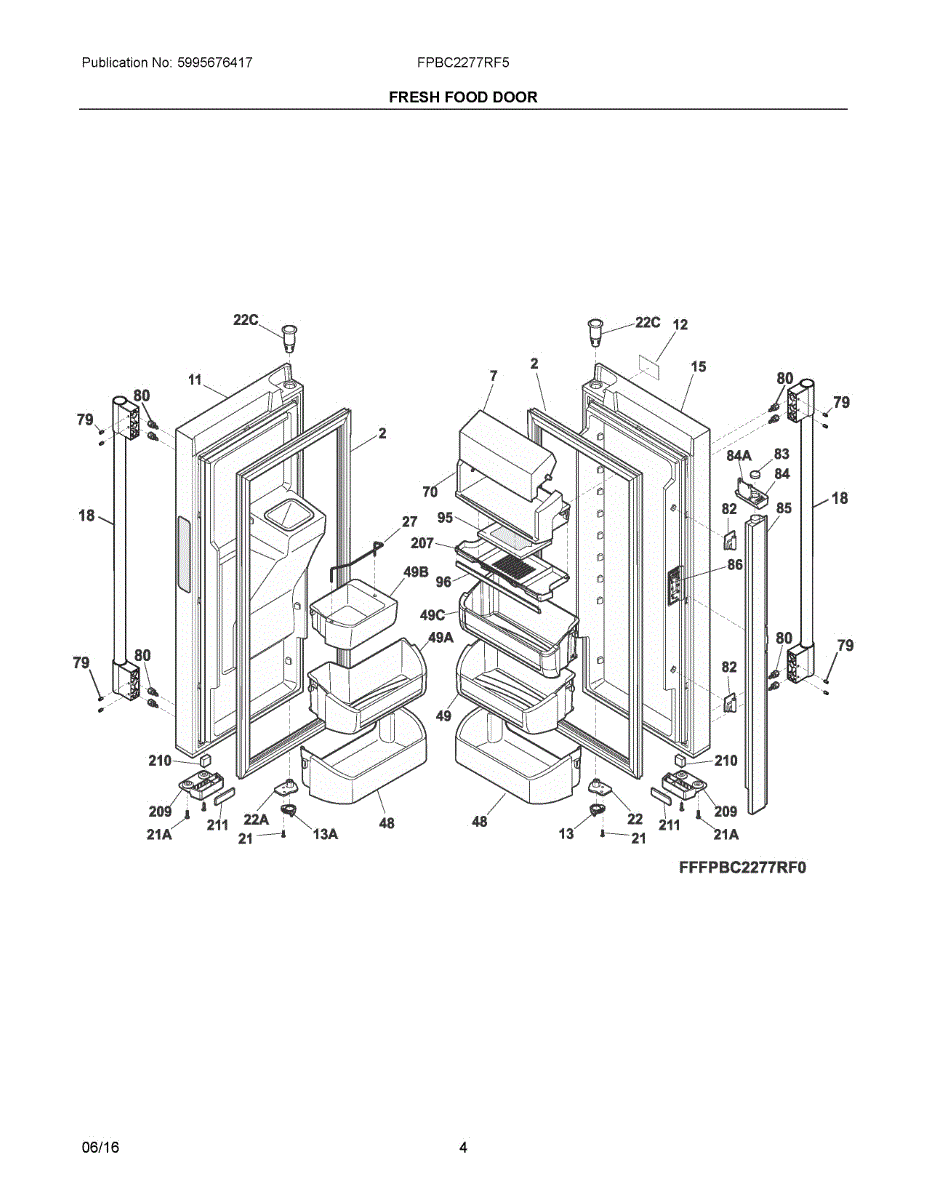

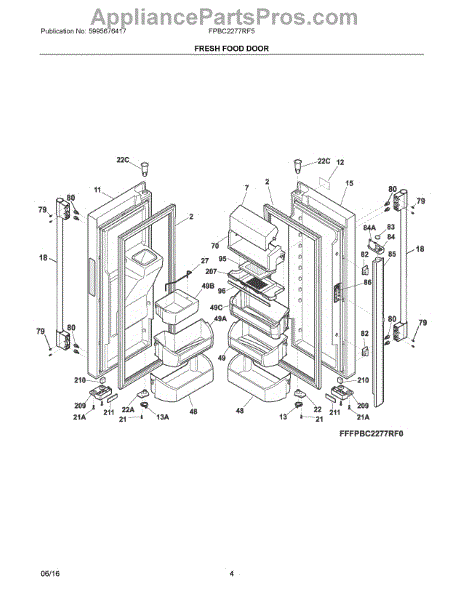

Parts for Frigidaire FPBC2277RF5: 03 - Fresh Food Door Parts

The Fresh Food Door Gasket is an OEM replacement part for Frigidaire refrigerators. It creates a seal around the refrigerator door to maintain a consistent temperature by keeping cold air in and warm air out. This helps ensure proper refrigerator conditions and prevents energy loss.

Over time, gaskets can degrade due to wear, exposure to extreme temperatures, or cleaning with harsh chemicals. A damaged or worn gasket may fail to seal properly, affecting the freezer's efficiency and potentially leading to increased energy consumption.

Symptoms of a bad gasket include:

• Frost or ice buildup inside the refrigerator
• Difficulty keeping the refrigerator door fully closed
• Warm air entering the refrigerator, causing temperature fluctuations
• Increased energy bills due to inefficient operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

NOTE: GASKET NOW GRAY, NOT WHITE

This piece replaces the flip-up cover for the cheese/butter compartment on your refrigerator door. It restores a tidy, enclosed spot for butter and small dairy items, helping keep contents contained and easy to access.

• Covers the dairy bin on the fresh food door; flips up for quick access
• Helps contain and protect butter/cheese items to reduce spills and mess
• Replace when cracked, warped, missing, or no longer stays attached/closed
• Designed to fit the designated hinge points for the dairy compartment on applicable models

• Disconnect power before servicing
• Allow plastic parts to warm to room temperature to reduce risk of cracking
• Align door tabs with the hinge posts on the compartment and press until fully seated
• Open and close the door to ensure smooth operation

The Nameplate is an OEM for Frigidaire appliances. It affixes to the exterior and clearly identifies the brand.

Causes of a damaged nameplate can include normal wear and tear over time outdoors, exposure to cleaning chemicals that breakdown adhesive integrity or accidental damage from impact.

Symptoms of a bad nameplate include:

• Nameplate lifted, peeling or completely removed from surface
• Faded or worn lettering obscuring model identification
• Dirty, stained appearance detracting from product aesthetics

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This stop is a small mounting hardware component that positions and limits movement of a nearby part, helping keep doors and panels aligned and preventing overtravel. It's a simple replacement that restores correct stopping action. What it does:

• Provides a fixed contact point to stop or limit movement of a door, panel or linkage
• Keeps parts aligned and prevents banging or overtravel
• Worn or broken stops can cause rubbing, misalignment, or noisy operation
• Restoring the stop often eliminates play and improves fit and function

• Disconnect power or unplug the appliance before starting any repair
• Remove any panels or trim needed to access the mounting location
• Replace the stop using the original fastener(s); hand-tighten then secure as needed

This door handle assembly provides a ready-to-install replacement to restore a secure, easy-grip opening for your refrigerator door. Durable construction replaces a worn or broken handle for reliable daily use. What it does:

• Replaces a cracked, loose, or broken refrigerator door handle to restore safe operation and appearance
• Provides a solid grip for opening and closing the door smoothly
• Matches factory mounting points for proper fit and alignment
• Helps prevent door damage and keeps the seal functioning by ensuring correct door movement

• Disconnect power to the appliance before beginning any repair to avoid injury
• Remove any trim or access panels as needed to access mounting screws; retain fasteners for reassembly
• Hand-tighten screws, then snug—do not overtighten to avoid cracking the handle or trim

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

Replacement shaft bushing that supports and reduces wear on a rotating shaft or pivot, helping restore smooth, quiet movement and reduce wobble where the original bushing has worn or failed. What it does

• Provides a low-friction bearing surface for a rotating shaft or pivot to prevent metal-on-metal wear.
• Restores proper alignment and reduces shaft wobble that can cause noise or uneven operation.
• Helps stop squeaks, grinding, or rough movement caused by a worn or damaged bushing.
• Protects housing and shaft from accelerated wear by keeping components centered.

• Disconnect power or unplug the appliance before beginning any repair.
• Remove access panels and any fasteners needed to reach the worn bushing; support the shaft while removing the old bushing.
• Inspect the shaft and mating surfaces for wear or damage and clean before installing the new bushing.
• Press the new bushing into place gently and evenly; avoid excessive force. Reassemble and test operation before returning the appliance to service.

This bushing provides a durable, low-friction bearing surface between moving parts in your appliance. It helps components pivot or rotate smoothly, reducing noise and wear so doors, drawers, and mechanisms operate as intended.

• Provides a sleeve/bearing surface between a pin or shaft and its housing
• Maintains alignment to prevent wobble and binding
• Reduces friction, squeaks, scraping, and premature wear
• When worn or missing, movement may feel rough, loose, or noisy

• Disconnect power before servicing
• Support the assembly being serviced before removing fasteners
• Note the orientation of the original bushing; seat the new bushing fully without forcing
• Reassemble and check for smooth, rub-free movement before restoring power

Replace the worn bearing that supports your refrigerator's ice-dispenser auger. This bearing helps the auger spin smoothly so cubes travel to the chute, restoring steady ice dispensing and reducing grinding or jamming.

• Supports the auger shaft within the ice bin/dispenser assembly
• Enables smooth rotation to move ice toward the chute
• Wear can cause slow or failed dispensing and squealing/grinding noises
• Fixes issues with a cracked, worn, or seized auger support

• Disconnect power and remove the ice bin before servicing
• Separate the bin front/cover and auger assembly; note the bearing's orientation
• Transfer the new bearing and reuse existing screws/retainer if present
• After reassembly, confirm the auger turns freely by hand before restoring power

The Door bin is an OEM replacement part for Frigidaire refrigerators. It is a built-in storage compartment designed to hold commonly used items like eggs, butter, or condiments. The door bin provides convenient access to the refrigerator door.

Causes of a bad door bin can include cracked or broken plastic, damaged sliding tracks that prevent smooth opening and closing, or broken mounting tabs that cause it to become loose or detached from the refrigerator door.

Symptoms of a bad door bin include:

• Items falling out of the bin easily
• The bin not closing or securing properly
• Difficulty opening and closing the bin
• Noise or vibration from a loose or damaged bin

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

Replacement bin door that restores a secure closure for your refrigerator drawer, keeping contents contained and helping maintain organized storage. Designed to match the original for proper fit and function. What it does:

• Replaces a cracked, broken or warped drawer door so the drawer closes properly
• Keeps food and items contained to prevent spills and shifting when opening the fridge
• Restores the drawer's original appearance and storage usability
• Reduces rattling or loose movement caused by a damaged door

• Disconnect power to the appliance or ensure door seals are not energized before starting work
• Remove the drawer per your model's instructions, align the replacement door on the hinge posts, then press/snap into place without forcing
• Check alignment and smooth operation before returning the drawer to service

The Bin is an OEM part for Frigidaire refrigerators. Located inside the refrigerator door, the bin provides a dedicated storage space for smaller items like eggs, condiments, and snack packs. Its adjustable wire shelf configuration allows for versatile organization within the constrained space.

Symptoms of a bad bin include:

• Cracks or breaks in the plastic construction
• Detached or damaged shelf supports
• Difficulty removing or replacing the bin

Causes can involve excessive weight overloading the shelves, impact damage from rough handling of contents, or stresses from repeated insertion/removal over time weakening the plastic. Failure compromises the storage capacity of the refrigerator door.

This OEM replacement is compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This door bin replaces a broken or missing refrigerator door shelf, restoring secure, organized storage for jars and bottles. It snaps into the door's molded slots to keep items stable and easy to reach. What it does:

• Creates a storage shelf on the fresh food door for condiments, jars, and small bottles
• Helps keep items upright and contained to reduce spills when the door opens/closes
• Also referred to as a door shelf or door rack in some manuals
• Replace if cracked, warped, discolored, loose, or missing end tabs
• Common symptoms: bin falls off, won't seat correctly, or reduced door storage

• 1 door bin

• Remove the old bin by lifting up and out; transfer contents before removal
• Align the new bin with the correct door slots and press down until it locks in place
• Handle plastic carefully; allow part to reach room temperature to prevent cracking
• Unplug the appliance if removing additional door components or as directed by your model's instructions

The Bin is an OEM part for Frigidaire refrigerators. This bin is designed to fit inside the refrigerator door, providing a convenient storage space for items such as beverages, condiments, and smaller food items.

Causes of a bad bin can include cracks or breaks due to heavy use, accidental dropping, or overloading with heavy items. Over time, plastic bins can also become brittle and prone to damage.

Symptoms of a bad bin include:

• Cracks or fractures in the bin
• Difficulty in fitting the bin securely in its designated place
• The bin not holding items properly or sagging under weight
• Visible wear or warping of the plastic

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This piece replaces the flip-up cover for the cheese/butter compartment on your refrigerator door. It restores a tidy, enclosed spot for butter and small dairy items, helping keep contents contained and easy to access.

• Covers the dairy bin on the fresh food door; flips up for quick access
• Helps contain and protect butter/cheese items to reduce spills and mess
• Replace when cracked, warped, missing, or no longer stays attached/closed
• Designed to fit the designated hinge points for the dairy compartment on applicable models

• Disconnect power before servicing
• Allow plastic parts to warm to room temperature to reduce risk of cracking
• Align door tabs with the hinge posts on the compartment and press until fully seated
• Open and close the door to ensure smooth operation

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Door Hinge Pin is an OEM part for Frigidaire refrigerators. It is responsible for supporting the mullion or flapper, which is the vertical strip that divides the refrigerator doors. It provides smooth movement and proper alignment of the mullion, allowing it to pivot easily for access to both compartments while maintaining an airtight seal when closed.

Causes of a bad hinge pin can include wear and tear over time, accidental damage, or improper handling. A damaged or worn-out hinge pin may result in difficulties in opening or closing the mullion.

Symptoms of a bad Hinge Pin include:

• Difficulty in opening or closing the doors
• Excessive play or wobbling of the mullion
• Failure to maintain a proper seal between door
• Unusual noises during use

This OEM Frigidaire part can also be used on select Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore models.

This replacement magnet is used in select refrigerator assemblies. It provides the magnetic hold or sensor trigger required so doors, flaps, or rails stay closed and so the controls can accurately detect when components are in position.

• Supplies magnetic retention in the specified assembly to keep parts closed and aligned
• Activates magnetic reed sensors in models that use them for door/position detection
• Weak or missing magnets can lead to door-ajar alerts, air leaks, or components not staying shut
• Visible damage or incorrect orientation can cause intermittent operation or improper sealing

• Disconnect power before servicing; turn off water if working near the dispenser
• Use your model's parts diagram to locate the magnet and note its orientation/polarity
• Press-fit into its holder carefully; do not chip or crack the magnet
• Verify proper closure/sensing operation before returning the appliance to service

This mullion guide secures and aligns the refrigerator's vertical door trim so doors close evenly and seals engage properly. Replacing a worn or broken guide helps restore door alignment and reduce drafts at the center seam. What it does:

• Holds the mullion/vertical trim in place and keeps the trim flush with the cabinet
• Guides the doors during closing to maintain even gaps and seal contact
• Prevents the mullion from shifting, rattling, or catching when doors open or close
• Common symptom: loose, misaligned, or damaged center trim causing wind, noise, or uneven door gaps

• Disconnect power before starting service and work on a stable surface
• Remove the mullion/trim and any surrounding gaskets or screws as needed to access the guide
• Use appropriate trim/removal tools to avoid damaging adjacent plastic or gasket material
• Reinstall hardware securely and verify doors close and seals engage properly after installation

This replacement guide aligns and supports a moving component so it travels on its intended path without binding. Replacing a worn or broken guide restores smooth operation and helps prevent scraping, jamming, or premature wear of connected parts.

• Keeps the associated rack, drawer, or panel centered and properly aligned during movement
• Provides a track/stop for the mating part to follow
• Reduces friction and noise for smoother sliding
• Typical failure signs: sticking, uneven travel, scraping noises, or visible cracks/broken tabs

• Disconnect power; also shut off water or gas
• Remove the associated assembly to access the guide and note its orientation
• Reuse original screws/clips and tighten securely without overtightening
• Test movement after installation; replace worn mating rails or rollers if needed

This is the vertical flipper mullion assembly that mounts to one fresh-food door and pivots closed to seal the center gap when both refrigerator doors are shut, helping maintain proper temperature and energy efficiency.

• Creates the center seal between French-door refrigerator doors
• Helps prevent warm air infiltration and moisture/condensation in the fresh-food section
• Common failure signs include a loose or broken hinge, mullion not staying aligned, condensation at the door center, or doors not sealing properly
• May also be noted if doors pop open or temperature fluctuates in the refrigerator compartment

• Unplug the refrigerator before servicing
• Remove door bins to access mounting screws/clips
• Transfer any original covers or hardware if not part of the new assembly
• Verify proper hinge engagement so the mullion flips and seals smoothly before restoring power

The Flapper Door Center Hinge is an OEM part for Frigidaire refrigerators. This hinge is essential for the proper operation of the flapper door, which helps seal the gap between the refrigerator doors when they are closed, ensuring efficient cooling and energy use.

Over time, the center hinge can wear out or become damaged due to regular opening and closing of the refrigerator doors. Accumulation of dirt, dust, or debris, as well as physical impact, can also contribute to hinge failure.

Symptoms of a bad flapper door center hinge include:

• The flapper door not closing properly
• Gaps between the refrigerator doors
• Increased energy consumption due to cold air escaping
• The refrigerator doors not aligning correctly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement trim piece secures and finishes the refrigerator air filter door, restoring a clean appearance and proper fit. It helps keep the filter covered and aligned for normal airflow and appearance. What it does:

• Replaces cracked, chipped or missing trim that prevents the air filter door from seating properly
• Helps hold the air filter door in position so the filter stays covered
• Restores a finished look to the refrigerator interior where the filter door sits
• Reduces gaps that can allow the filter to move or look misaligned

• One air filter door trim piece

• Generally snaps or screws into place—inspect existing fasteners and alignment before removing old trim
• Use basic hand tools as needed; keep small parts and fasteners for reassembly
• Handle gently to avoid damaging the surrounding plastic or filter housing

The air filter housing covers and protects the air filter.

This housing is the replacement cabinet housing that provides structural support and protects internal components, restoring proper fit and appearance. It helps stabilize assemblies and keeps wiring and parts shielded from damage. What it does:

• Replaces a cracked, broken, or dented cabinet housing to restore structural integrity
• Protects internal components and wiring from debris and accidental contact
• Helps reduce rattling or movement caused by damaged housing
• Restores the appliance's proper fit and alignment for panels and doors

• One housing

• Disconnect power to the appliance before starting any repair
• Use appropriate hand tools; support adjacent panels to avoid stress on clips or fasteners
• Watch for sharp edges; wear gloves and eye protection

This small permanent magnet is used in supported refrigerator assemblies to actuate a mating reed switch or metal keeper. It helps the appliance recognize a closed position or hold a light cover/door closed for proper operation. What it does:

• Works with a reed switch or ferrous keeper to provide position sensing or magnetic latching
• Helps ensure features dependent on closed position operate correctly
• Can resolve issues where a small cover or door won't stay closed
• Address erratic "door ajar" indications tied to magnetic sensing

• Disconnect power and water before servicing
• Note the original magnet's location and orientation; polarity matters for proper operation
• Seat the magnet fully in its pocket or holder and align with the mating switch/keeper
• Test the related function before reassembling panels and trim

This small rubber bumper cushions the refrigerator/freezer door to reduce noise and prevent metal-on-metal contact. It helps doors close quietly and protects cabinet finish from repeated impacts. What it does:

• Acts as a soft stop between the door and cabinet/frame to absorb impact
• Reduces rattling and slamming for quieter operation
• Prevents wear and chipping where the door contacts the cabinet
• Restores proper door alignment when missing or worn

• One replacement bumper

• Push the bumper into the existing hole or slot on the door/frame until fully seated
• Inspect surrounding area for damage; replace mounting clips or retainers if required
• Wear gloves to protect hands from sharp edges during installation
• No special tools usually required; for detailed instructions

A replacement inner cabinet liner that restores the smooth, sealed interior surface of the refrigerator compartment for proper food storage and easy cleaning. Replaces cracked, stained or warped liners to reduce leaks and odors. What it does:

• Provides the finished interior surface that holds shelves, bins and drawers in place
• Restores a watertight, easy-to-clean surface to prevent pooling and mold growth
• Stops drafts and insulation exposure caused by cracks or delamination
• Helps maintain proper airflow and temperature distribution inside the cabinet

• Disconnect power and remove all food, shelves and drawers before starting.
• Handle carefully to avoid cracking the new liner during installation.
• Follow OEM instructions.

This genuine replacement screw secures appliance components and restores proper fit and stability. Use it to replace a missing or damaged fastener and stop panels, trim, or parts from shifting or rattling during normal use. What it does:

• Fastens and holds panels, brackets, or small components in place
• Restores secure attachment when an original screw is missing, damaged, or stripped
• Helps eliminate vibration, rattling, or loose-fitting parts
• Matches the OEM fit and function for reliable reassembly

• Use correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and remove food or contents from appliance areas as needed before servicing
• If fastener threads are damaged, replace with the exact OEM screw rather than forcing installation

This is a service wrench used to loosen and tighten appliance fasteners for maintenance and repairs, making access and part replacement easier for technicians and DIYers. Durable tool designed for specific appliance fastener sizes. What it does:

• Provides the correct fit and leverage for removing or installing designated appliance nuts, bolts, and fittings
• Helps safely access internal components during service and part replacement
• Reduces risk of rounding fasteners compared with improvised tools
• Useful for routine maintenance tasks and repair procedures that require a dedicated wrench

• One wrench

• Use the wrench only for its intended appliance fasteners; avoid excessive force
• Disconnect power and water to the appliance before beginning service
• Wear safety gloves and eye protection when working on appliances

This Mullion harness routes electrical connections through the refrigerator door mullion so lights, sensors and control/LED assemblies communicate with the main cabinet wiring. It restores reliable power and signal routing in the door center strip. What it does:

• Carries power and signal between the door/mullion components and the main harness
• Restores non-functioning mullion lights, LEDs or control communication caused by a damaged harness
• Prevents intermittent connections from frayed or broken mullion wiring
• Used when visible wire damage or connector failure is found in the mullion area

• One (1) mullion harness as pictured

• Disconnect power to the appliance before starting work to avoid shock or injury
• Remove the mullion/door trim and any gaskets per service instructions to access the harness
• Inspect connectors and wire routing; replace any clips or retainers to prevent pinching

This refrigerator door bin mounts on the inner door to hold bottles and condiments securely. Replace a cracked or missing bin to restore storage capacity and keep items from tipping or falling when you open the door.

• Provides on-door storage for bottles, jars, and small items
• Attaches to molded tabs on the door liner to stay in place
• Common symptoms: cracked or broken plastic, bin falls off or won't seat, missing bin
• Restores original door storage capacity and organization

• Remove contents and lift the old bin straight up and out of the door liner slots
• Align the new bin in the same location; hook rear edges first, then press down until fully seated
• If plastic is cold, let it warm to room temperature before installation to reduce the chance of cracking
• Verify placement matches your model's diagram; do not force or overload

This refrigerator door shelf bin mounts to the inner door liner to hold bottles, jars, and condiments. Replace a cracked or missing bin to restore organized on-door storage and keep frequently used items within easy reach. What it does:

• Provides on-door storage for beverages, condiments, and small containers
• Helps keep items upright and accessible
• Restores capacity when the original bin is cracked or missing
• Common symptoms: broken or warped plastic, broken mounting tabs, bin won't stay seated or falls off

• 1 door bin

• Empty the old bin and lift up to release it from the door liner tabs
• Align the new bin with the same tabs and press down until fully seated
• Do not force; confirm you're using the correct location/style for your model
• No tools typically required; handle plastic edges carefully

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
