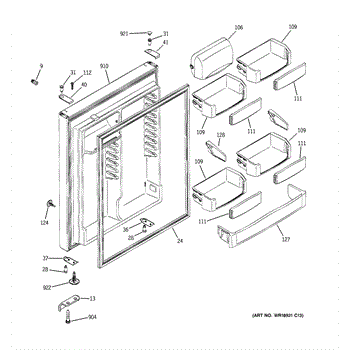

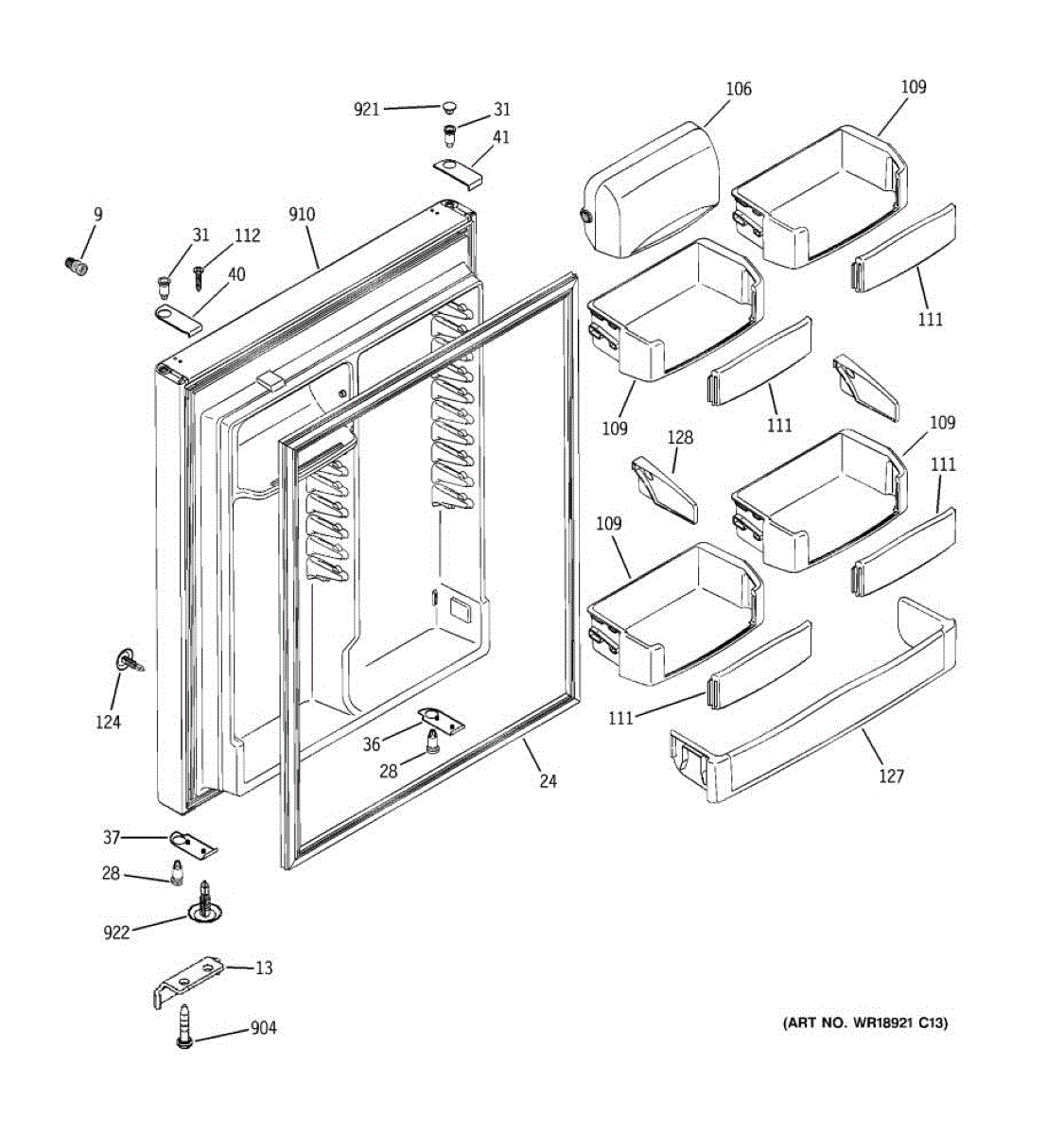

Parts for Ge PTS22SHSCRSS: 02 - Fresh Food Door Parts

The GE refrigerator water filter is an OEM replacement part responsible for ensuring the quality of the water dispensed on GE Profile top and bottom freezer refrigerators. It is responsible for purifying the water before it reaches your glass or ice maker, providing you with clean and safe drinking water directly from your refrigerator. To maintain optimal water quality and ensure the filter's effectiveness, it is recommended to replace the filter every 6 months or when the rated capacity of 750 gallons is reached.

Over time, the water filter can become clogged with sediment, reducing its effectiveness. Regular use and the accumulation of minerals and contaminants can lead to the need for replacement.

Symptoms of a bad water filter include:

• Reduced water flow from the dispenser
• Ice cubes with an unusual taste or odor
• The filter indicator light staying on
• Visible particles in the water or ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. For the best performance, it is recommended to replace the water filter every six months or as indicated by the filter change light on your refrigerator.

A stainless-steel handle fastener that secures the refrigerator door handle to the door assembly for a solid, wobble-free grip. Use to restore a loose, stripped, or missing handle attachment point. What it does:

• Secures the door handle to the door/handle mounting point so the handle stays tight and aligned.
• Stops handle movement, wobbling, or rattling caused by a worn or missing fastener.
• Replaces a corroded or damaged fastener to restore a secure connection.
• Stainless finish resists corrosion at the handle mounting point.

• Disconnect power to the appliance before starting work whenever access to internal parts is required.
• Use the correct screwdriver or bit; turn carefully and avoid sideways force on the handle.
• Do not overtighten—over-torquing can strip threads or crack surrounding trim.
• Keep removed hardware and any trim pieces for reassembly; inspect handle and threaded inserts for damage.

This fresh food door gasket creates an airtight seal around the refrigerator compartment door to prevent air leaks. Replacing a worn seal helps maintain stable temperatures, reduce moisture at the door, and restore proper closing and sealing.

• Creates a tight seal around the fresh food door to prevent air infiltration
• Helps maintain consistent temperatures and minimize condensation at the door
• Wear indicators include cracks, tears, warping, or visible gaps in the seal
• Common symptoms: door not sealing well, warm spots in the fridge, or longer run times

• Disconnect power before servicing
• Remove the old gasket and clean the door's gasket channel/retainer
• Warm the new gasket in clean warm water to relax folds; start at corners and press the lip fully into the channel without stretching
• Close the door and check for uniform contact; adjust hinges/strike if needed and allow up to 24 hours for the gasket to fully conform

This replacement module shelf insert restores the shelf support that holds the refrigerator control module area and helps keep the shelf level and components secure. Fits into the module shelf to replace broken or missing inserts. What it does:

• Secures the control/module area so the module and wiring stay in place and out of direct contact with stored items
• Restores proper shelf alignment to prevent sagging or uneven loading
• Reduces rattling or noise caused by a loose or damaged shelf insert
• Helps protect the module area from minor impacts or shifting contents

• Disconnect power to the appliance before servicing to avoid electric shock.
• Remove the shelf or access panel per your owner's manual for clear access to the module shelf area.
• Snap or press the new insert into the designated slot until it seats firmly; verify fit and alignment.

A replacement reversible plug door that covers and protects the appliance power inlet while letting the cord exit left or right for tidy cord routing. Restores a clean back panel appearance and helps keep the power connection protected from debris. What it does:

• Covers the power inlet opening to protect the plug and inlet from dust and debris.
• Reversible design lets you route the power cord to either side to fit against the wall.
• Helps keep the cord tucked close to the appliance so the unit can sit flush with cabinetry or walls.
• Replace when the door is cracked, broken, missing, or no longer holds the plug securely.

• Always unplug the appliance before starting any repair or inspection.
• May require access to the rear panel; check your owner's manual for disassembly steps.
• Check orientation before finalizing installation to ensure correct left/right cord routing.

This fixed module shelf holds and secures the refrigerator control module or electronic components in place, restoring proper support and alignment. It's a direct-replacement shelf designed to fit the original mounting points. What it does:

• Provides a stable mounting surface for the control module or electronic assembly
• Prevents module movement that can cause loose connections or intermittent operation
• Helps maintain proper spacing and airflow around the module for reliable performance
• Addresses symptoms such as rattling or a loose control module behind the interior panel

• Installation requires removing the interior panel or cover to access the module area; follow your model's service manual
• Handle electronic components carefully and disconnect power before starting work to avoid shock or damage
• Use original mounting screws or hardware; only tighten to secure without over-torquing

This module snugger is a small retaining piece used in the refrigerator to hold its associated module or component securely in place. Replacing a cracked or missing snugger restores a tight fit, reduces vibration and noise, and supports correct operation.

• Secures the related module or assembly to prevent shifting
• Helps maintain proper alignment for reliable performance
• Reduces rattles and wear from vibration or movement
• Typical signs it's needed: part is broken or missing, components feel loose, or you hear rattling

• Disconnect power to the refrigerator before servicing
• Note the original orientation and location; take a photo for reference
• Reuse existing fasteners or clips if applicable; avoid overtightening
• After installation, confirm the part holds the assembly firmly and that movement is smooth where intended

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly
