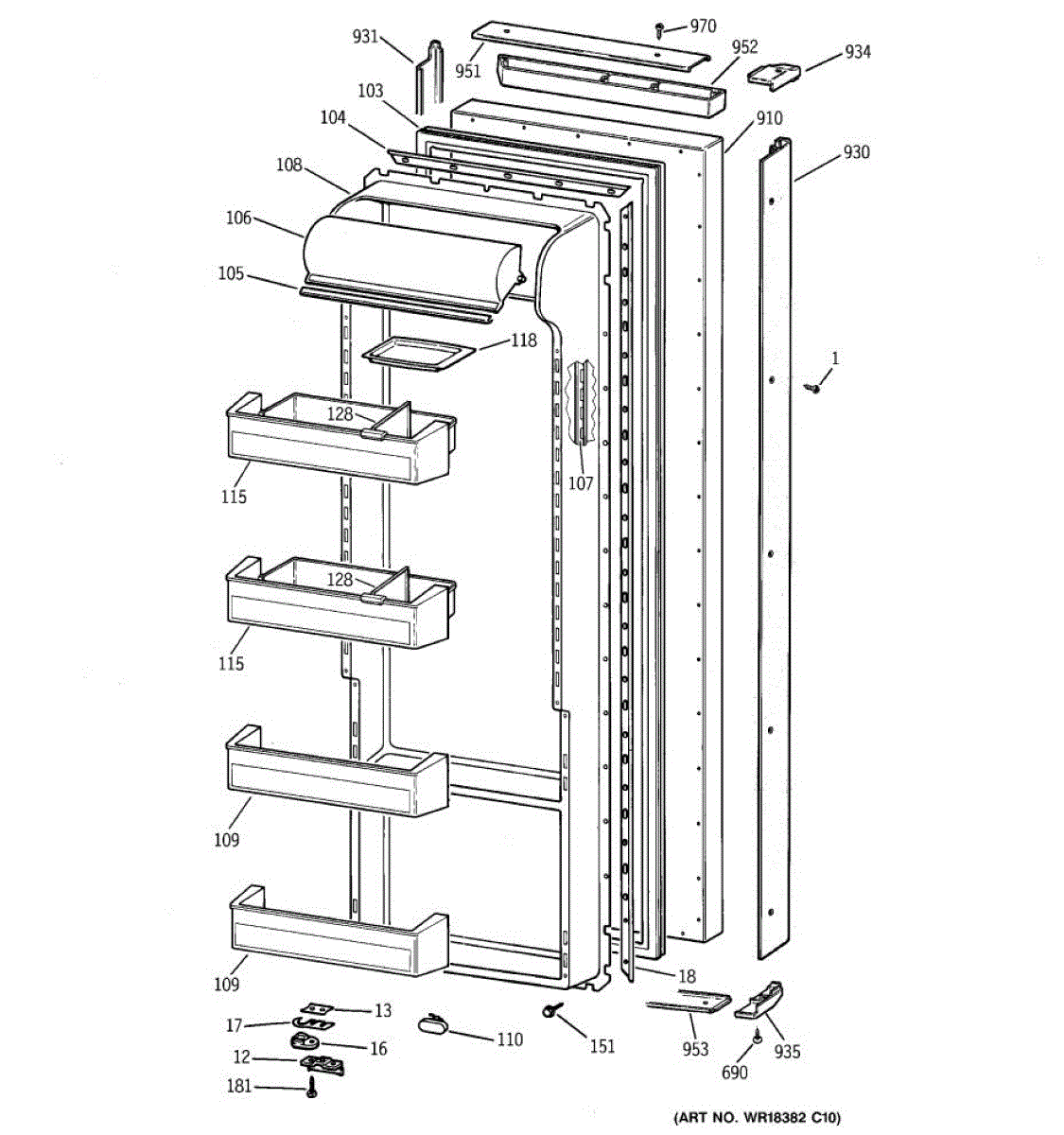

Parts for Ge TPG21KRDAWS: 02 - Fresh Food Door Parts

Restore smooth, reliable door movement. This hinge cam riser fits at the lower door hinge to provide the lift and ramp action that helps the refrigerator door open/close smoothly and seal properly—reducing sag, noise, and poor sealing. What it does:

• Interfaces with the lower hinge pin to lift and guide the door during opening and closing
• Helps maintain door alignment and gasket contact for a proper seal
• Can reduce door sag, scraping, wobble, and clicking/popping noises
• Common signs it's worn: door drops or binds, won't stay closed or self-close, or shows an uneven gap

• 1 hinge cam riser

• Disconnect power and remove items from the door before servicing
• Support the door; remove the top hinge cover and screws, then lift the door off the lower hinge
• Remove the old riser at the lower hinge and install the new riser in the same orientation
• Reinstall hinges; verify gasket contact and door alignment, adjusting leveling if needed

The Riser Cam Shim is an OEM part for GE refrigerators. This part helps in aligning and leveling the refrigerator door, ensuring it opens and closes smoothly.

Causes of a bad riser cam shim can include regular wear and tear, damage from repeated door openings and closings, or deformation from improper installation.

Symptoms of a bad riser cam shim include:

• The refrigerator door not closing properly
• Difficulty in opening or closing the door
• The door appearing misaligned
• Reduced cooling efficiency due to an improper seal

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: clear. Measures about 16 inches wide by 7 inches high.

This inner door track guides and supports the refrigerator door for smooth opening and closing, restoring proper alignment and preventing binding. It's a simple replacement that helps the door operate quietly and seal correctly. What it does:

• Provides a stable channel for the door roller/hinge to run on, ensuring consistent door movement
• Restores proper door alignment to reduce rubbing, sticking, or uneven gaps
• Helps maintain an effective door seal to protect internal temperature and efficiency
• Reduces noise or scraping caused by a worn or damaged track

• 1 inner door track

• Disconnect power to the appliance and remove food from the door area as needed
• Replace using basic hand tools; support the door while removing/installing to prevent damage
• Replace damaged fasteners or clips to ensure secure fitment

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

Size: 8-32 t. Includes 12 screws.

This is a specialty trim screw used to secure exterior trim and small appliance components. It provides a low-profile, secure fastening that helps keep panels and trims aligned and stable. What it does:

• Secures trim pieces, bezels or small panels to the appliance chassis
• Helps prevent rattles or loose panels that can occur with worn or missing fasteners
• Restores correct fit and finish after repairs or panel replacement
• Works where a shorter, specialty head screw is required for clearance

• Remove power to the appliance before beginning any repair that requires panel removal
• Use the correct screwdriver bit to avoid stripping the head
• Replace only the exact screw(s) specified for the location to ensure proper fit
• Replace all matching screws for uniform fit
