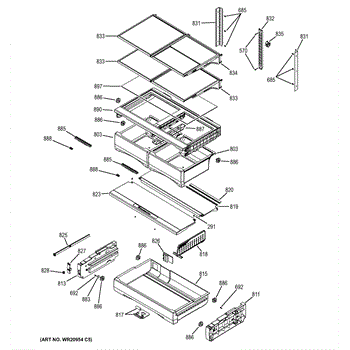

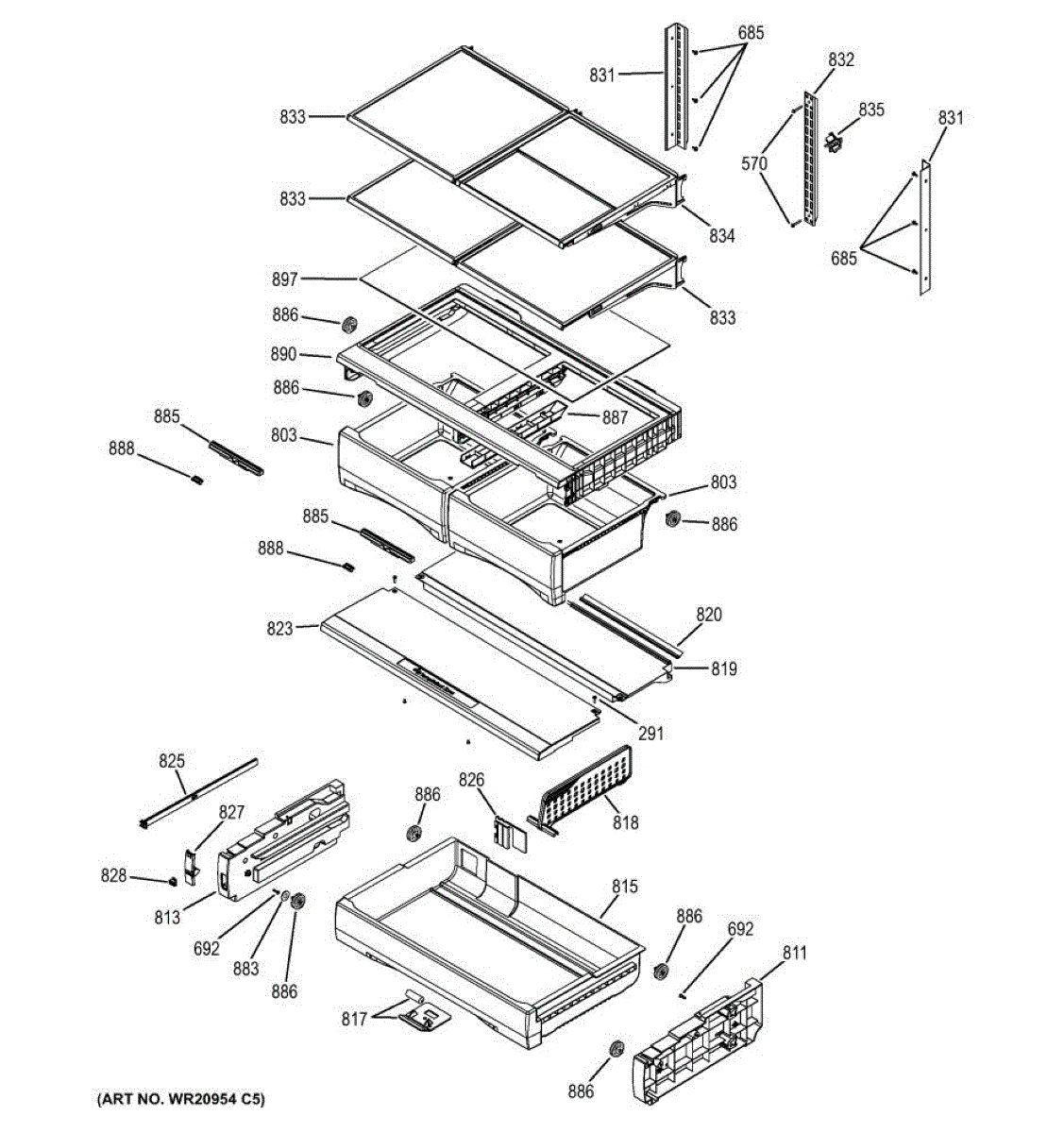

Parts for Ge PFE27KSDASS: 09 - Fresh Food Shelves Parts

This SCR is a solid-state switching module that controls on/off power flow in select appliance circuits. Replacing a failed SCR helps stop intermittent operation and restores reliable switching for affected motors or heating elements. What it does:

• Regulates electrical switching in the control circuit to turn motors or heaters on and off.
• Used where a solid-state switch is required for smooth, repeatable control.
• Symptoms of a failing SCR: appliance won't start, runs intermittently, hums without operating, or a controlled circuit does not respond.
• Restores proper switching when the original SCR is shorted, open, or erratic.

• Disconnect power to the appliance before beginning service; follow lockout/tagout procedures.
• Handle as an electronic component—avoid static discharge and protect the spade terminals from bending or contamination.
• Ensure correct orientation and secure mounting; reconnect wiring exactly as shown on the appliance wiring diagram.

8-18 CA HX 1/2 S

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

This replacement meat pan divider fits inside the deli/meat pan drawer to help separate foods and keep the drawer organized. It restores the original partition function for proper food separation. What it does:

• Replaces a cracked, warped or missing divider to restore separation between deli items
• Keeps meats and cheeses organized and helps reduce contact between different foods
• Helps maintain intended drawer layout so items sit securely and don't shift
• Fits into the factory meat/deli pan track for a stable partition

• Remove food and the deli/meat pan before installing to avoid spills
• Slide the divider into the existing pan grooves until it seats; no special tools required
• Inspect pan tracks for damage before installing; replace any broken components
• Handle carefully to avoid sharp edges and follow refrigerator power-off and food-safety guidance when doing repairs
