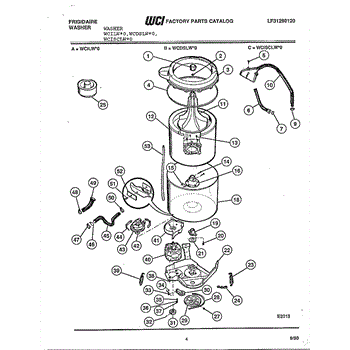

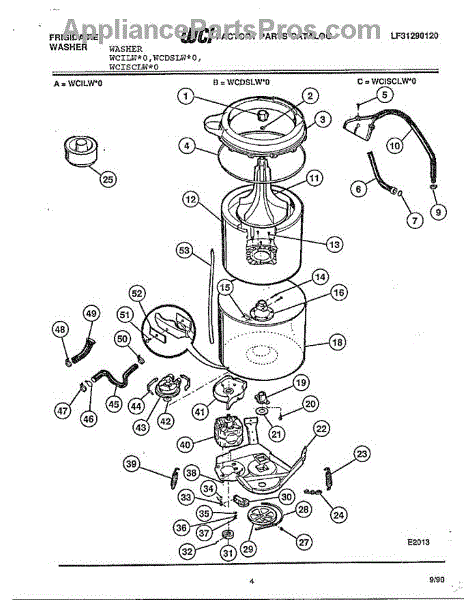

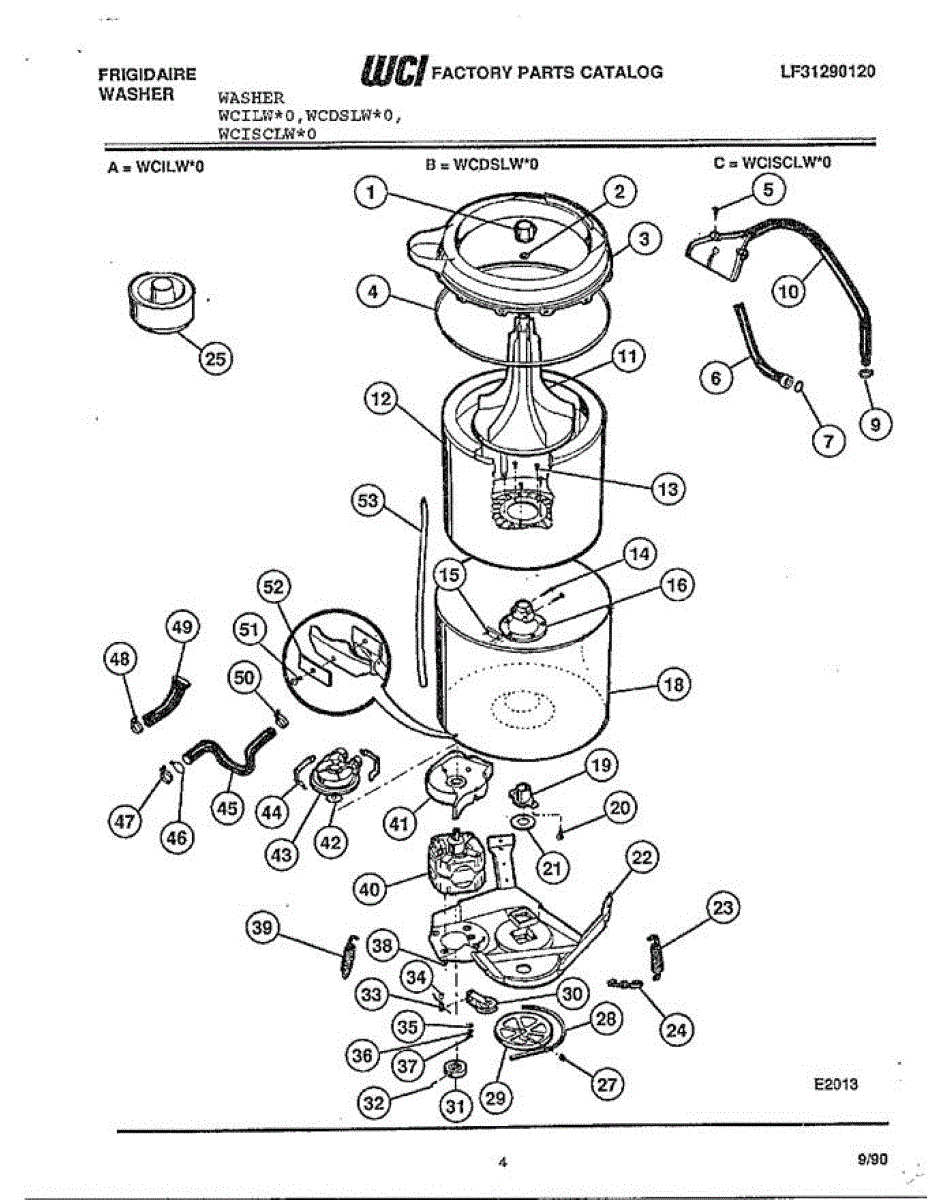

Parts for Frigidaire WCDSLW*O: Frigidaire Washer Page 3 Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This tub cover seal fits between the outer tub and the tub cover/splash guard on compatible washers. It keeps wash water and suds contained, helping prevent leaks from the top of the cabinet during agitation and spin.

• Forms a watertight barrier between the outer tub and the tub cover/splash guard
• Helps prevent splash-over and top-rim leaks during wash and spin
• Maintains proper containment of water and suds inside the tub assembly
• Common failure signs: water leaking from the top area, wet streaks down the outer tub, visible cracks, hardening, or flattening of the seal

• Disconnect power and shut off water supply before servicing; wear gloves and eye protection.
• Access the tub cover per service instructions; release the retainer ring/clips to remove the cover and old seal.
• Clean and dry all mating surfaces; remove residue so the new seal seats evenly.
• Lightly moisten the new seal, install uniformly around the rim, reinstall the cover/retainer, and run a short test with water to check for leaks.

This inlet hose connects the household water supply to the refrigerator's water system so ice makers and dispensers receive a steady water feed. Durable, flexible tubing replaces worn or leaking supply lines to restore proper water flow. What it does:

• Channels incoming water from the home supply to the refrigerator's water valve and ice maker
• Replaces cracked, split, or leaking supply tubing that can cause reduced water flow or puddling
• Helps prevent leaks that can lead to water damage when original tubing fails
• Works with the fridge's internal water system to support ice and dispenser functions

• One inlet hose (single water supply line)

• Turn off the home water supply and unplug the appliance before servicing
• Inspect fittings for signs of corrosion; use the proper connector tools to avoid damage
• Tighten connections to a leak-free fit but avoid over-tightening plastic fittings

One per package.

Includes ATC

This agitator is a genuine Frigidaire part, sold individually. This agitator can be used as a replacement part for a washing machine or a washer/dryer combination appliance. This part rotates within the tub of the washing machine so that clothes and other items are tumbled around and fully cleaned.If an agitator has been subject to damage at some point in the standard lifespan of a washing machine, symptoms of damage will manifest in the form of a washing machine that will not agitate in a normal laundry cycle. If this is occurring, the agitator should be inspected for visible signs of damage, including punctures, scrapes, tears, and erosion to the material that could preclude it from serving its function. If the agitator seems damaged upon assessment, it should be removed and replaced with this genuine OEM replacement part before using the washing machine again.This is an OEM part sourced directly from the manufacturer. It is sold individually. This agitator is compatible with the following appliance brands: Frigidaire, Kenmore, Gibson, and Kelvinator.

This replacement bolt secures internal components in your appliance. A stripped, rusted, or missing bolt can let parts loosen and vibrate; installing a new bolt restores a tight, stable connection for reliable operation.

• Provides a secure, threaded fastener for brackets, weights, or assemblies
• Helps maintain alignment and reduce movement during operation
• Typical issues: missing hardware, stripped threads, or visible corrosion
• Helps address rattling or excessive vibration caused by loose hardware

• Safety first: Disconnect power; for water- or gas-connected units, shut off supplies
• Support the component being secured before removing the old fastener
• Start threads by hand to avoid cross-threading; tighten evenly to manufacturer guidance—do not overtighten
• Reuse original washers/spacers and thread locker only if they were originally present

This trunnion plate secures the washer's inner basket to the drive hub/trunnion, keeping the tub centered and stable during spin. Replace it if the basket feels loose, wobbles, or makes scraping/knocking noises from the hub area. What it does:

• Couples the inner basket to the trunnion/drive hub so the basket spins true
• Helps maintain alignment to reduce vibration and tub-to-basket contact
• Wear can allow play or slippage at the hub connection
• Common symptoms: wobble, scraping/grinding, excessive vibration, poor spin results

• One trunnion plate

• Disconnect power and wear cut-resistant gloves before servicing
• Access typically requires removing the agitator/wash plate and lifting out the inner basket
• Clean and inspect mating surfaces; align the plate correctly and tighten fasteners evenly
• Check related parts for wear and replace if needed

This trunnion support fits the appliance's rotating assembly to stabilize and guide the drum or door hinge, restoring proper alignment and smooth operation. Durable replacement designed to match the original mounting points. What it does

• Supports and locates the drum or hinged assembly to prevent wobble and misalignment
• Reduces rubbing, scraping, or grinding noises caused by a worn support
• Helps keep the door/drum tracking true so the appliance opens/closes and spins correctly
• Common symptom: visible sagging, uneven rotation, or unusual noise during operation

• One (1) support (trunnion) as shown

• Disconnect power (and gas if applicable) before servicing; follow all safety precautions
• Remove panels or drum/door per service manual to access the trunnion; retain mounting hardware if reuse is intended
• Inspect adjacent bearings, seals, and mounting tabs for wear and replace as needed
• Test appliance on a short cycle after installation to ensure proper alignment and quiet operation

The Spin Bearing is an OEM part for Frigidaire washing machines, specifically designed to facilitate the smooth and efficient rotation of the washer drum. This bearing plays a pivotal role in the operation of your washing machine, allowing the drum to spin freely with minimal friction and noise.

Causes for replacement may include wear and tear from regular use, water damage leading to rust or corrosion, or physical damage from excessive load sizes.

Symptoms of a bad Spin Bearing include:

• Loud noises during the spin cycle, often described as grinding or rumbling
• The drum struggling to spin or not spinning as smoothly as it should
• A noticeable decrease in washing performance due to the drum's impaired movement

This genuine Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore gas ranges.

This screw is a direct-replacement fastener used to secure appliance panels and components. It provides a simple, reliable fix when a missing or damaged screw lets parts sit loose or vibrate. What it does:

• Secures service panels, trim pieces, brackets, or small components
• Restores proper fit and alignment to reduce rattling or movement
• Replaces stripped, missing, or corroded screws to maintain safe assembly
• Works wherever the OEM screw specification is required for reliable fastening

• Use the correct driver bit and turn gently to avoid stripping the head
• Ensure mating threads are clean and aligned before tightening
• Tighten until snug; do not over-torque to prevent damage to threads or parts
• Disconnect power before working near electrical components or controls

The Spin Bearing Washer is an OEM part for Frigidaire washing machines. Situated inside the transmission housing, this thin metal washer acts as a subsurface support for the belt pulley bearing. The spin-bearing washer facilitates smooth, balanced rotation essential for agitated and spun wash cycles.

Causes of a bad spin-bearing washer include wear and fatigue from years of successive rotations, potentially allowing excessive movement between housing components.

Symptoms of a bad spin-bearing washer involve:

• Vibration or shaking noises coming from inside the washer cabinet
• Belt slippage wasting energy by inefficiently spinning loads
• Increased friction resulting in longer cycle times for spins
• Failure of belts or other components from unsupported bearing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This spring restores tension to the door lock mechanism so the latch returns to its proper position after operation. A worn or missing spring can cause a loose latch, difficulty locking, or a door that won't stay secured during a cycle.

• Returns the door lock latch to its resting position
• Helps ensure the door locks securely during operation
• Symptoms can include a floppy/loose latch, intermittent lock errors, or door not staying latched
• Also helps resolve issues where the door won't unlock smoothly

• Disconnect power before servicing
• Access the door lock assembly per your model's service procedure
• Note spring orientation during removal; install the new spring in the same positions
• Latch operation by gently opening/closing the door before reassembling

The Washer Drive Belt is an OEM part for Frigidaire washing machines. This belt connects the motor to the drum, enabling the drum to rotate during the wash and spin cycles. It ensures the proper transfer of power from the motor to the drum, allowing the washer to agitate and spin effectively.

Common causes of a bad drive belt include normal wear and tear, overloading the washer, or a misaligned drum that puts extra strain on the belt.

Symptoms of a bad washer drive belt include:

• The washer drum not spinning or agitating
• A burning smell during operation
• Unusual noises such as squealing or grinding
• The washer stopping mid-cycle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Idler Pulley is an OEM part for Frigidaire dryers. It helps guide and maintain tension on the dryer drum belt, ensuring the drum rotates smoothly during the drying cycle.

Over time, the idler pulley can wear out due to friction and regular use, or it may become damaged from excessive strain or misalignment. If the idler pulley fails, the dryer drum may not rotate properly, leading to inefficient drying or a complete inability to dry clothes.

Symptoms of a bad Idler Pulley include:

• Squeaking or squealing noises during operation
• The drum not rotating or rotating unevenly
• The belt appearing loose or slipping off the drum

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

A coiled roll pin used to secure shafts, rollers, or linked components in place, helping maintain proper alignment and smooth operation. Ideal when a worn or damaged pin allows movement or causes noisy parts. What it does:

• Secures shafts, rollers, or pivots by fitting into a mating hole to prevent axial movement
• Keeps rollers and linked components aligned for smooth rotation and operation
• Common symptom: loose or wobbling roller/shaft or parts that shift during use
• Common symptom: unusual noise or intermittent binding where a pin retains a component

• Disconnect power to the appliance before beginning any work
• Removal/installation may require a punch and hammer or pliers; protect surrounding surfaces
• Replace with the exact part number to ensure correct fit and retention
• Keep small parts away from children and pets

This retaining ring secures a shaft or component in-place to prevent axial movement and wear, restoring proper alignment and reducing noise or wobble. It's a small, durable replacement part for assemblies that use a snap-style ring. What it does:

• Holds shafts, bearings or components axially in their mating grooves to prevent shifting.
• Stops rattling, grinding, or excessive play caused by a worn or missing ring.
• Keeps assemblies aligned to reduce premature wear on surrounding parts.
• Provides a simple replacement solution when the original ring is bent, broken, or lost.

• Disconnect power and/or water and remove any panels needed before starting work.
• Use snap-ring pliers or the manufacturer-recommended tool to safely remove and install the ring.
• Inspect grooves and mating surfaces for damage or debris and clean before installing the new ring.
• Wear eye protection and keep fingers clear—snap rings can spring out during removal or installation.

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

This genuine replacement spring restores proper tension and smooth movement in the affected mechanism, helping your appliance operate reliably. Replacing a weakened or broken spring can reduce noise and correct misalignment caused by lost tension.

• Maintains tension and provides return force for connected levers, brackets, or linkages
• Helps keep components in position and minimizes excess play or rattling
• A weakened, stretched, or broken spring can cause poor engagement or inconsistent operation
• Common signs include parts not returning to rest, excess slack, or new noises from the area

• Disconnect power; also shut off water supply
• Note the spring's hook orientation and routing; take a reference photo before removal
• Control the spring with pliers and wear gloves/eye protection to avoid snap-back injuries
• Inspect related brackets/retainers and replace any worn components to ensure proper tension

This part has been discontinued and is no longer available.

By Frigidaire. Fits above motor.

Tub to pressure switch hose.
