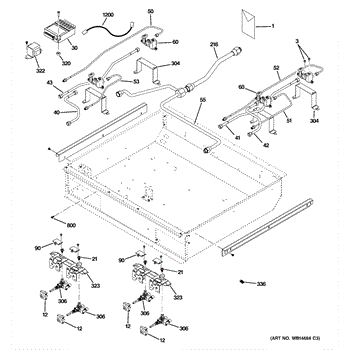

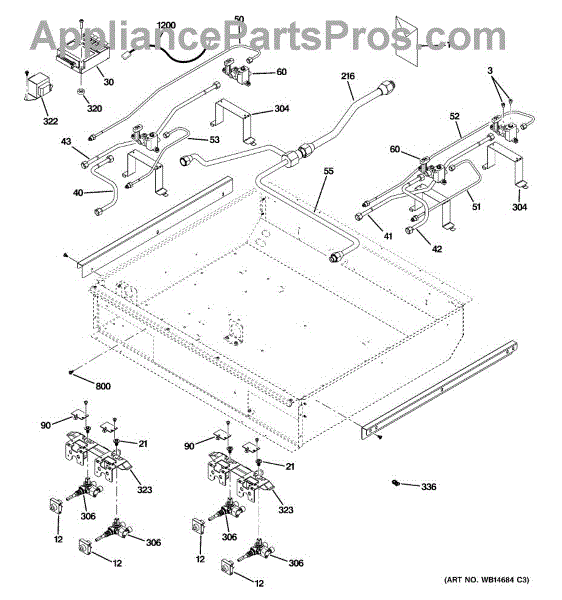

Parts for Ge ZDP304LP5SS: 01 - Gas & Burner Parts

This lubricant/cleaner is used during service of cooking appliances to dissolve residue and provide light lubrication on small moving parts. It helps restore smoother operation of control shafts and valves when burner knobs feel stiff or sticky. What it does:

• Cleans deposits and old grease from control shafts and valve components
• Provides light lubrication to reduce friction and sticking
• Helps address symptoms such as hard-to-turn burner knobs or rough valve rotation
• Supports preventative maintenance during range/cooktop service

• Lubricant/cleaner

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Work in a well-ventilated area and keep away from open flames or ignition sources
• Apply sparingly per service instructions; avoid contact with igniters, electrical components, and flame ports
• Replace any worn or leaking valve—do not rely on lubricant/cleaner to correct a leak

Natural gas. High altitude. Main burner.

Liquid propane. Main burner

Natural gas. Main burner.

Natural gas. Simmer burner

Liquid propane. Main burner.

Liquid propane. Simmer burner

This wiring harness assembly routes power and signals to a gas range's burner box, restoring reliable ignition and control. It replaces a damaged or burned harness to help burners and oven components receive proper electrical connections. What it does

• Delivers power and ignition signals from the main control to burner valves and igniters
• Replaces frayed or heat-damaged wiring that can cause intermittent ignition or burner failure
• Helps correct symptoms such as burners not sparking, weak ignition, or oven not heating
• Maintains factory routing and connector fit for safe, reliable operation

• One harness, burner box assembly

• Disconnect electrical power and shut off the gas supply before starting work
• Handle wiring and connectors carefully; match connector shapes and routing to the original harness
• Secure wiring away from high-heat surfaces and moving parts during reassembly

This 1/4-20 screw secures panels, brackets, and other assemblies in your appliance. It restores a tight, reliable hold when an original fastener is missing, stripped, or corroded.

• Fastens components that require a 1/4-20 threaded screw
• Helps keep panels and assemblies aligned and rattle-free
• Direct replacement for worn, rusted, or lost hardware
• Common symptoms: loose or vibrating parts, misaligned brackets, missing fastener

• Disconnect power; turn off gas supply before servicing
• Allow the appliance to cool; wear gloves and eye protection
• Start threads by hand to avoid cross-threading; use the correct driver/tool
• Tighten snugly—do not overtighten to prevent stripping or damage

This Tee Swaged Assembly is a water-line tee that splits and routes water inside the refrigerator, restoring proper supply to the dispenser and icemaker. It provides a secure, swaged connection where factory tubing meets the valve or lines. What it does:

• Joins and redirects the refrigerator's internal water tubing to supply the dispenser and/or icemaker.
• Restores proper water flow when the original tee is cracked, corroded, or leaking.
• Prevents leaks at a failed or damaged tubing junction when installed correctly.
• Works with the existing inlet tubing and fittings to maintain a sealed water path.

• One tee swaged assembly.

• Turn off and disconnect the refrigerator's water supply before starting; drain residual water from lines.
• Disconnect power to the appliance if working near electrical components.
• Replace only with the exact part and use proper fittings; ensure tubing is fully seated into the swaged connection.
• After installation, restore water and power, then check all connections closely for leaks before returning the appliance to service.

18K

This LED light assembly replaces a failed or damaged interior refrigerator light to restore bright, energy-efficient illumination inside the fresh-food compartment. It mounts in the light housing and connects to the factory wiring harness. What it does:

• Replaces burned-out or broken interior LED lighting
• Restores consistent, flicker-free illumination when the door is opened
• Helps you see foods and settings clearly on shelves and door bins
• Works with the factory light housing and wiring for a direct replacement

• Disconnect power to the appliance before beginning any work to avoid electric shock.
• Handle the LED assembly and connectors carefully; avoid touching LED surfaces or exposing contacts to moisture.
• Some installations require removing the light housing or interior trim; keep fasteners organized for reassembly.
• If mounting screws, brackets, or clips are not obvious, refer to the appliance's parts diagram or service manual to identify the correct removal order.

This handle grommet cushions and secures a range or oven door handle, preventing vibration and wear while keeping the handle snug. It's a small replaceable part that restores proper fit and reduces rattling. What it does

• Provides a soft mounting surface between the handle and door to prevent metal-to-metal contact
• Keeps the handle tight and aligned to stop looseness or movement
• Dampens vibration and reduces rattling during operation
• Helps protect the door finish where the handle mounts

• One handle grommet

• High-level push-fit part; remove the handle or access the mounting area per your model's service instructions
• Disconnect power to the appliance before beginning service when accessing electrical or heated components
• Use a plastic trim tool or small screwdriver to pry out the old grommet carefully to avoid scratching the door
• If the handle or mounting hardware is damaged, inspect and replace as needed for a lasting repair

This replacement transformer converts household line voltage to the correct level for the appliance's control circuits. It restores stable power to the display and relays so the unit can start and run consistently.

• Converts incoming AC power to the proper voltage for electronic controls and relays
• Failure can leave the display blank and controls unresponsive even though power is supplied
• Intermittent resets or loss of functions can indicate a weakening transformer
• Replace if windings test open/shorted or the part shows overheating damage

• Disconnect power at the breaker before servicing; this part connects to line voltage
• Photograph and label wires; transfer connections one at a time to the new part
• Mount securely and route wiring away from sharp edges and hot components
• Restore power and verify the controls power up normally

This pipe manifold assembly supplies and distributes gas to a range's burners so the cooktop lights and heats consistently. It replaces a damaged or leaking manifold to restore safe fuel delivery to each burner. What it does:

• Channels gas from the main valve to individual burner ports for even ignition
• Stops operation or causes gas odor when cracked, corroded, or loose
• Prevents burners from lighting properly if blocked or leaking
• Works with the cooktop's valves and orifice connections to control flow

• One pipe manifold assembly

• Turn off the appliance and shut off the household gas supply before servicing
• Inspect and replace related gaskets, fittings, or mounting hardware as needed
• After installation, check all connections with an approved gas leak detector and verify proper burner operation

This high-voltage harness routes power to the microwave's high-voltage components, restoring reliable high-voltage connectivity for heating. Use this harness to replace a damaged or burned HV lead to help the microwave heat consistently. What it does:

• Transfers high-voltage power from the transformer to the magnetron and other HV components
• Replaces cracked, burnt, melted, or corroded wiring that can cause intermittent heating or arcing
• Helps stop visible arcing, burning smells, or sparking inside the microwave cavity when HV wiring is compromised
• Restores secure, insulated connections for safe high-voltage operation

• One high-voltage harness/lead as pictured

• High-voltage components retain lethal charge; unplug appliance and discharge the capacitor before servicing
• Match all connectors and routing to the original harness to maintain insulation clearance and component spacing
• Inspect adjacent components (capacitor, diode, magnetron) for damage; replace any visibly damaged parts
