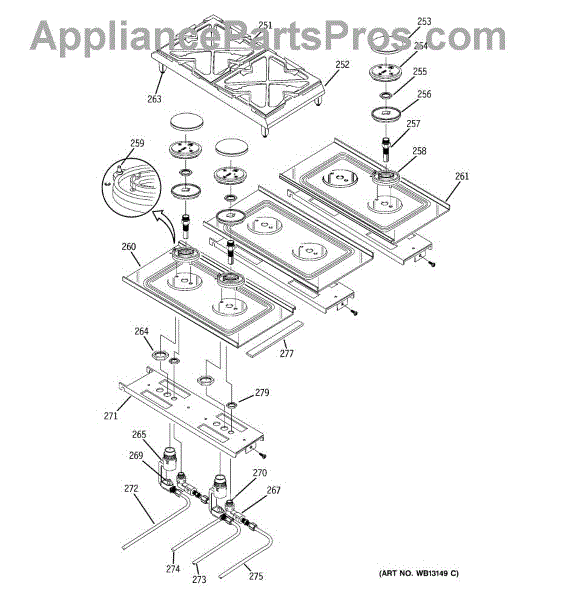

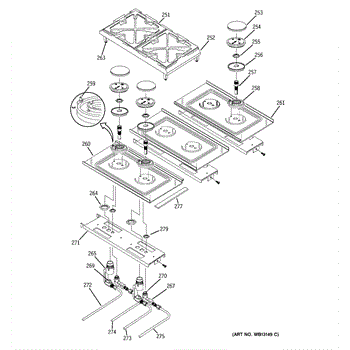

Parts for Ge ZDP36L4RH2SS: 01 - Gas & Burner Parts

This grate support is the cooktop bracket that holds and stabilizes a single burner grate so cookware sits level while you cook. It restores proper support and reduces grate wobble for safer, more even cooking. What it does:

• Supports and secures a cooktop burner grate in its correct position
• Prevents grate rocking or shifting while placing or moving cookware
• Helps maintain even heat contact by keeping grates properly aligned
• Commonly used when a support is cracked, worn, or broken

• Inspect surrounding cooktop area for damage before installing; replace any additional worn supports
• Disconnect power to the appliance (or shut off gas and ensure burners are cool) before working on the cooktop
• Install with original fasteners or OEM replacements; tighten securely but avoid overtightening

A replacement D port trim ring that restores the finished opening and secures a vent/port on the appliance. Replaces a cracked, broken or missing trim piece to stop drafts and eliminate rattling. What it does:

• Provides a finished, stable edge around a D-shaped port or vent opening
• Helps hold a hose or duct in position and reduces movement
• Reduces air leaks and vibration-related noise when damaged or loose
• Commonly replaced when the trim is cracked, warped or missing

• Disconnect power and follow the appliance manufacturer's safety instructions before starting
• Small screws or clips may secure the ring; keep hardware organized for reassembly
• Expect simple, moderate-level access; removing a panel may be required
• Wear gloves to protect against sharp sheet-metal edges

This D simmer ring fits the cooktop burner to help control and focus the gas flame for low-heat cooking and simmering. It restores proper burner alignment and helps prevent uneven heating on compatible gas ranges. What it does:

• Centers and supports the burner cap so the flame burns evenly
• Narrows the flame for low-heat/simmer settings and gentler cooking
• Helps reduce hot spots and improves stove-to-pot heat transfer
• Resolves uneven or wandering flames when the original ring is warped or damaged

• Turn off all controls and ensure the range is completely cool before servicing
• Remove grate and burner cap, seat the simmer ring over the burner base, then replace cap and grate
• Inspect for cracks, warping, or heavy corrosion; replace if damaged
• If you smell gas or the flame remains abnormal after installation, stop use.

This chamfered nut is a genuine fastener used to secure mating parts inside your appliance. It replaces stripped, rusted, or missing hardware to restore a tight, rattle-free fit and proper alignment.

• Provides threaded clamping force to fasten components
• Helps maintain alignment and resist loosening from vibration and heat cycles
• Replaces rounded, stripped, corroded, or missing nut
• Typical symptoms: loose panels/brackets, rattling noises, or parts shifting out of place

• Disconnect electrical power; turn off gas supply before servicing
• Allow the appliance to cool completely; wear gloves and eye protection
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Match orientation/position to the original

This igniter assembly creates the spark that lights a gas burner, helping restore quick, reliable ignition. Replacing a damaged or shorted igniter can address burners that won't light, intermittent ignition, or repeated clicking without flame.

• Generates a high-voltage spark at the burner to ignite gas
• Ceramic-insulated electrode focuses the spark for consistent lighting
• Failure can cause no spark at a specific burner, delayed ignition, or constant clicking
• Visible cracks, carbon tracking, or damaged lead are common replacement indicators

• Disconnect power and shut off gas before servicing
• Allow the appliance to cool; handle the ceramic insulator carefully to avoid breakage
• Route the lead away from heat and moisture; secure connections firmly
• Align the electrode tip correctly with the burner for reliable ignition

A left-side double burner pan that supports two cooktop burners and helps contain spills and drips for easier cleanup. Durable replacement to restore proper burner support and alignment on compatible gas ranges. What it does

• Holds and centers two adjacent burners so pots and pans sit flat and stable.
• Helps catch food, grease and liquids to prevent spills from reaching the cooktop cavity.
• Fits into the left-side pan location and works with the cooktop's burner assembly.

• Allow the cooktop to cool and shut off power/gas to the appliance before starting.
• Remove grates and existing pans carefully; align the replacement pan to the burner openings and set into place.
• Use non-abrasive cleaners to avoid damaging the finish; avoid bending or flexing the pan during install.

Ranges and ovens have grate feet installed on the underside of their cooktop grates. This rubber piece keeps the stovetop from getting scratched by the grate when there is pressure applied. With use, misplacement, or other damages, there is a requirement for one more replacement grate foot pieces.A stovetop with scratches on the surface indicates a missing grate foot. There are four grate foot parts on each grate. The replacement of a grate foot is a simple process. Remove the grate covering the area where a visual inspection has determined there is a missing foot grate. Clean the area thoroughly. Apply the new foot grate. Reposition the grate on the stovetop. Wear gloves for safety. It's recommended to unplug the appliance while doing the replacement to prevent accidental activation of the cooktop.This grate foot is an authentic OEM replacement part. It is sold as an individual unit. It is made of high-quality, durable rubber. The piece is sourced directly from the manufacturer. It is compatible with several models of ranges and cooktops. The grate foot fits in appliances produced by General Electric, RCA, and Hotpoint.

This formed gas tube routes fuel to the front surface-burner section on select gas ranges and cooktops. Replacing a damaged or clogged tube restores proper gas flow and reliable ignition to the front burners.

• Distributes gas from the supply/manifold to the front row of surface burners
• Helps address front burners not lighting, weak/uneven flame, or gas odor when the original tube is damaged or obstructed
• Maintains factory routing and clearances under the cooktop
• Direct-fit shape to match the original path and connections

• Shut off gas supply and power; allow the appliance to cool before servicing.
• Access tubing under the cooktop/rangetop; note routing and orientation before removal.
• Support fittings with two wrenches; avoid kinking or over-bending the new tube.
• After installation, perform a thorough leak check with an approved leak-detection solution before restoring gas and power.
