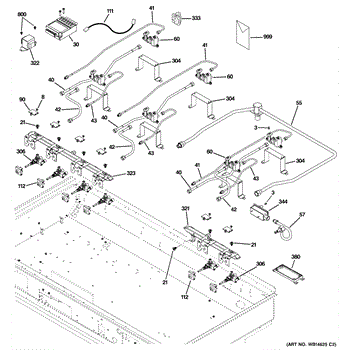

Parts for Ge ZGU486LDP5SS: 01 - Gas & Burner Parts

Natural gas. Main burner.

Natural gas. Simmer burner

Liquid propane. Main burner.

Liquid propane. Simmer burner

Size: 8 - 32 inch.

This 1/4-20 screw secures panels, brackets, and other assemblies in your appliance. It restores a tight, reliable hold when an original fastener is missing, stripped, or corroded.

• Fastens components that require a 1/4-20 threaded screw
• Helps keep panels and assemblies aligned and rattle-free
• Direct replacement for worn, rusted, or lost hardware
• Common symptoms: loose or vibrating parts, misaligned brackets, missing fastener

• Disconnect power; turn off gas supply before servicing
• Allow the appliance to cool; wear gloves and eye protection
• Start threads by hand to avoid cross-threading; use the correct driver/tool
• Tighten snugly—do not overtighten to prevent stripping or damage

This six-point spark ignition module for gas cooktops/ranges converts line voltage into high-voltage pulses that fire the burner igniters. It restores consistent, reliable lighting across multiple burners when you turn a knob.

• Distributes high-voltage pulses to up to six surface-burner igniters when a burner switch is turned on
• Helps resolve no spark/click on all burners, no spark on some burners, intermittent ignition, or continuous clicking
• Replaces a module that produces weak, erratic, or no spark
• Ignition control only; it does not regulate gas flow or flame size

• Disconnect power and shut off gas before servicing
• Photograph and label all wires; transfer them one at a time to the matching terminals (six HV outputs plus power/ground)
• Mount securely in the original location and keep connections dry; after installation, ensure burner caps are seated and igniters are clean

18K

This LED light assembly replaces a failed or damaged interior refrigerator light to restore bright, energy-efficient illumination inside the fresh-food compartment. It mounts in the light housing and connects to the factory wiring harness. What it does:

• Replaces burned-out or broken interior LED lighting
• Restores consistent, flicker-free illumination when the door is opened
• Helps you see foods and settings clearly on shelves and door bins
• Works with the factory light housing and wiring for a direct replacement

• Disconnect power to the appliance before beginning any work to avoid electric shock.
• Handle the LED assembly and connectors carefully; avoid touching LED surfaces or exposing contacts to moisture.
• Some installations require removing the light housing or interior trim; keep fasteners organized for reassembly.
• If mounting screws, brackets, or clips are not obvious, refer to the appliance's parts diagram or service manual to identify the correct removal order.

This replacement transformer converts household line voltage to the correct level for the appliance's control circuits. It restores stable power to the display and relays so the unit can start and run consistently.

• Converts incoming AC power to the proper voltage for electronic controls and relays
• Failure can leave the display blank and controls unresponsive even though power is supplied
• Intermittent resets or loss of functions can indicate a weakening transformer
• Replace if windings test open/shorted or the part shows overheating damage

• Disconnect power at the breaker before servicing; this part connects to line voltage
• Photograph and label wires; transfer connections one at a time to the new part
• Mount securely and route wiring away from sharp edges and hot components
• Restore power and verify the controls power up normally

This oven gas pressure regulator controls and stabilizes gas flow to the oven burner so the appliance heats reliably and maintains consistent cooking temperatures. Replaces a worn or failed regulator to restore normal burner operation. What it does:

• Regulates gas pressure delivered to the oven burner for steady flame and temperature control.
• Helps prevent low or uneven heat that can cause undercooked food or extended cook times.
• Works as part of the oven's gas supply system and interacts with the thermostat and safety valves.

• Turn off gas supply and electrical power before servicing; test for leaks after installation.
• Replacement may require basic appliance service skills and the correct fittings.
• Do not modify the part; use only as specified by the manufacturer.

This mounting bracket secures the range/oven power supply assembly to the appliance frame, keeping the supply stable and properly positioned for reliable operation and safe electrical connections. What it does:

• Holds the power supply assembly in place to prevent movement and vibration
• Helps maintain correct alignment of electrical connections to avoid intermittent power
• Reduces strain on wiring and components that can cause arcing or connection issues
• Supports safe operation by keeping the supply mounted away from heat and other parts

• Turn off and disconnect power at the breaker before servicing to avoid electrical shock
• Handle sharp sheet-metal edges with care and wear gloves
• Verify proper orientation and secure all fasteners; confirm wiring is routed clear of moving parts and heat sources
