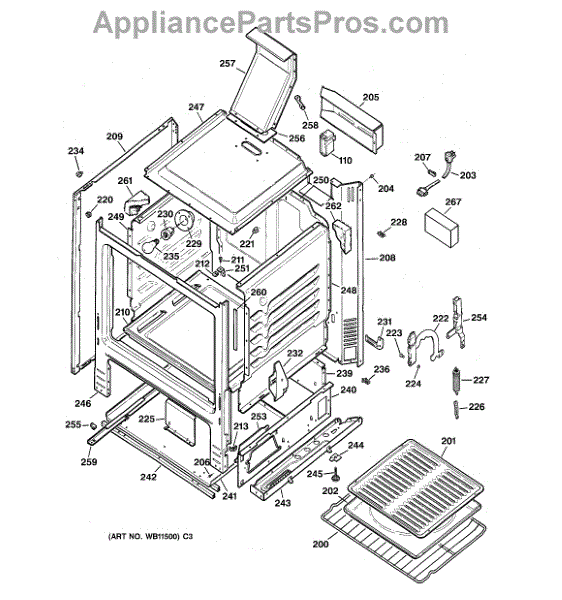

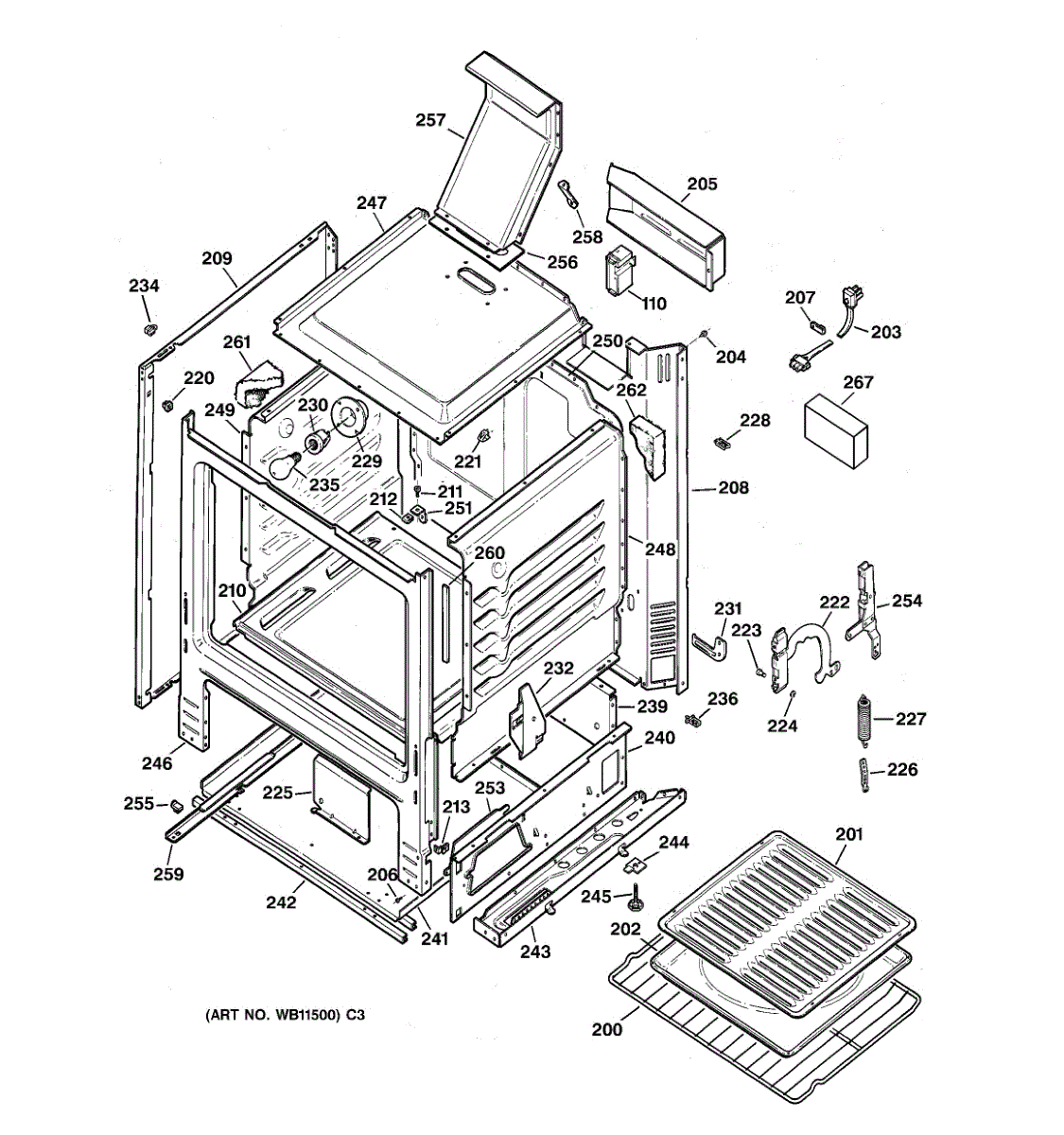

Parts for Ge ZDP486LDP6SS: 01 - Gas & Burner Parts

Stainless steel cleaner for gas ranges and cooktops. Restores shine and removes fingerprints, smudges, and streaks from exterior surfaces.

Lubricant cleaner for range and oven control shafts, burner valves, and rack paddles. Dissolves residue and restores smooth operation when parts feel stiff.

Grill burner orifice spud for gas ranges. Controls gas flow to the grill burner. Replace if damaged, corroded, or missing to restore proper burner function.

Natural gas burner orifice spud for gas ranges and cooktops. Replace when converting from propane to natural gas, or if orifice is worn or damaged.

Gas orifice spud for range burners. Needed when converting between natural gas and propane, or replacing worn or damaged spuds that affect flame size.

Burner orifice spud for gas ranges and cooktops. Installs in the burner assembly to regulate gas flow. Replace if cracked, worn, or missing.

Burner orifice spud for gas ranges and cooktops. Installs in the burner assembly to control gas flow. Replace if plugged, damaged, or missing.

Connects the control board to individual burner boxes beneath each cooktop burner. Replace if wiring is worn, cracked, damaged, or connection terminals are loose.

1/4-20 threaded screw secures panels, brackets, and internal assemblies in ranges, ovens, and cooktops. Replace missing, stripped, or corroded fasteners.

Fix burners that won't ignite or spark continuously. This 6-point spark module restores reliable ignition across all burners. DIY repair, 30 min.

Gas range tube and nut assembly connects gas supply lines. Replace if damaged, cracked, or leaking to restore proper gas line connections in your range.

Tube and nut assembly for gas ranges. Connects gas supply lines within your range. Replace if damaged, cracked, or leaking to restore proper gas flow.

Burner tube and nut assembly for gas ranges. Connects gas valve to burner head. Replace if cracked, damaged, or missing to restore proper installation.

Tube and nut assembly for gas ranges. Connects gas supply lines inside your range. Replace if cracked, corroded, or leaking to restore safe operation.

Replacement burner tube and nut assembly for gas ranges. Connects burner to gas supply line. Replace if cracked, corroded, or leaking at connections.

Gas supply tube and nut assembly for gas ranges. Connects gas line to burner valves. Replace if tube is cracked, fittings are stripped, or leaking occurs.

Burner orifice injector for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, clogged, or missing for proper flame control.

Replace your gas range indicator light lens when cracked, discolored, or missing. Restores clear visibility of burner status lights. Verify fit with your model number before ordering.

Oven not heating to the right temperature? This thermostat switch regulates oven heat. Common fix for temperature control issues on gas ranges.

Fixes inaccurate oven temperatures or failure to heat properly. This range oven thermostat regulates cooking temperature. DIY-friendly repair part.

Cushions and secures your range or oven door handle to the door surface. Replace if cracked, worn, or missing to eliminate handle rattling and restore snug fit.

This pipe manifold assembly routes gas from the supply to the cooktop burners so the range's burners get a steady, metered fuel feed for normal flame operation. It replaces a damaged or leaking manifold to restore safe gas delivery. What it does

• Distributes incoming gas to the individual burner valves for proper burner operation
• Helps maintain consistent burner flames and reliable ignition
• Stops gas leaks when a cracked or corroded manifold is replaced
• Addresses symptoms such as a persistent gas smell near the cooktop, burners that won't light, or uneven flame at one or more burners

• One pipe manifold assembly

• Turn off gas supply and electrical power to the appliance before beginning work
• Recommended for experienced DIYers comfortable with gas fittings
• Use proper gaskets/seals and tighten fittings per manufacturer torque guidance; always perform a leak test after installation
• Inspect adjacent valves, lines, and connections for damage while replacing the manifold

Fixes cooktop display issues and control failures caused by power supply problems. This transformer converts household voltage for stable operation.

High voltage wire harness that connects the spark module to burner igniter electrodes on gas ranges and cooktops. Replace if cracked, damaged, or missing.

A single 6-32 keps nut that secures panels and components by combining a hex nut with a captive lock washer for vibration-resistant fastening. Fits standard 6-32 machine screws to restore proper fastener function and fit. What it does:

• Provides a secure threaded connection for 6-32 screws where a built-in lock washer prevents loosening.
• Commonly used to fasten panels, brackets, and small components prone to vibration.
• Replaces missing, stripped, or damaged nuts causing loose panels, rattling, or misaligned parts.
• Works with standard 6-32 threaded hardware in appliance assemblies.

• One keps nut (6-32).

• Unplug or disconnect power before working on the appliance.
• Hand-start the nut on the screw to avoid cross-threading, then tighten with the appropriate wrench or socket.
• Do not overtighten; stop when snug and the captive washer seats against the surface.
• If threads are damaged, replace the mating screw or repair the threads before installing.

A replacement 8-32 x 7/8 inch truss-head screw that secures appliance panels and components. Replaces a lost or damaged fastener to restore proper fit and prevent loose or rattling parts. What it does:

• Secures control panels, brackets, trim pieces or internal components in place
• Restores proper alignment and prevents vibration or rattling caused by missing or stripped screws
• Provides the correct thread and length for reliable fastening where specified
• Used when original screw is missing, corroded, or damaged

• One 8-32 x 7/8 in. truss-head screw

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Install by hand first, then tighten securely—do not overtighten to avoid damaging threads or components
• Replace with the exact OEM part number if the original fit or material finish is required
