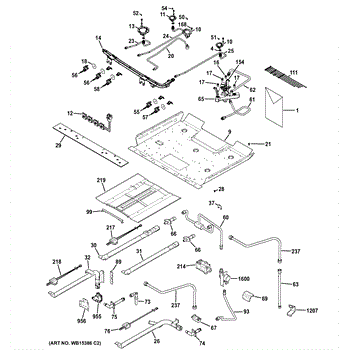

Parts for Ge PGB950DEF2BB: Gas & Burner Parts

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

This bracket secures the cooktop/main top to the appliance chassis to keep the surface stable and properly aligned. Replacing a bent or missing bracket can eliminate looseness, rattles, and visible gaps so the top seats correctly.

• Anchors the cooktop/main top to the frame
• Maintains proper spacing and alignment of the top
• Helps prevent vibration and movement during use and cleaning
• A damaged or missing bracket can cause a loose, uneven, or rattling cooktop

• Disconnect power and, for gas units, shut off the gas supply before servicing
• Access the bracket location per your model's service procedure (top may need to be lifted or removed)
• Transfer and reuse mounting screws/clips from the original bracket if required
• Install in the same orientation, check alignment, and tighten fasteners securely before restoring service

LP orifice spud that meters propane to a single burner for correct flame size and efficient combustion after converting a cooktop or oven to LP. Restores proper burner performance and safer operation. What it does:

• Meters propane flow to one burner to establish the correct flame for LP fuel.
• Used when converting a range or oven from natural gas to propane (LP).
• Helps correct flames that are too large, yellow, uneven, or won't stay lit.
• Replaces a worn, damaged, or incorrect LP orifice spud for improved burner control.

• Shut off the gas supply at the appliance and service valve before servicing.
• Follow OEM conversion instructions.
• After installation, check all gas connections for leaks with an approved method; do not operate the appliance if you detect a gas leak.
• Use only the exact orifice specified for LP conversion—do not substitute unverified parts.

This LP orifice spud meters propane to a burner on compatible gas ranges/cooktops. Replacing a clogged, damaged, or incorrect spud helps restore proper flame size and consistent burner performance after conversion or service. What it does:

• Threads into the gas system to control LP gas flow to the burner
• Corrects flame characteristics after LP conversion when the proper size is used
• Common symptoms of a wrong/failed spud: yellow-tipped flames, flames too high/low, uneven heating, poor simmering
• Helps maintain stable blue flames for efficient combustion on LP

• 1 LP orifice spud

• For LP (propane) use only; do not use with natural gas
• Turn off gas supply and power before servicing; allow the appliance to cool
• Match each burner position to the specified orifice per your model's conversion chart; tighten snugly without overtightening
• After installation, leak-check with a soap solution and verify flame characteristics per the manual

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

This orifice holder secures the burner orifice at the left-rear cooktop burner to ensure correct gas flow for stable ignition and consistent flame. It replaces a worn or damaged holder to restore burner operation and flame control. What it does:

• Holds the burner orifice in the correct position for proper gas delivery to the left-rear burner
• Helps maintain a steady, even flame and reliable ignition
• Can resolve symptoms like weak or uneven flame or a burner that fails to light reliably
• Works with the corresponding burner assembly to keep gas flow aligned and secured

• One orifice holder

• Turn off gas supply and power to the appliance before servicing
• Tighten and position the holder per the appliance's service instructions; use correct orifice size and orientation
• Check for gas leaks and proper burner operation after installation

This orifice holder secures the burner orifice for the right-rear cooktop burner, keeping the gas orifice aligned for consistent ignition and flame. It helps restore proper burner performance when the holder is damaged or missing. What it does:

• Holds and positions the gas orifice for the right-rear burner so fuel flows through the correct opening
• Helps maintain a steady, even flame and reliable ignition at the right-rear burner
• Commonly replaced when the burner won't light, has weak or uneven flames, or when the holder is cracked or corroded
• Designed to mate with the burner tube and orifice for proper gas flow

• Turn off gas supply and power to the appliance before beginning any service
• Remove burner cap and assembly to access the orifice holder; use appropriate hand tools and avoid overtightening
• Inspect the orifice and any sealing gaskets for damage; replace damaged orifices or gaskets as needed

This bake burner is the oven's heat source for baking cycles, replacing a worn or damaged burner to restore consistent bake performance and even cooking results. Designed to match OEM fit and function. What it does:

• Provides the main heat for the oven's bake mode so food cooks through and browns properly
• Helps maintain even temperature distribution across the oven cavity
• Common replacement for symptoms like weak or no bake heat, uneven baking, or burner that won't ignite reliably
• Works with the oven's ignition and gas supply to deliver steady flame when functioning correctly

• Turn off power and shut off the gas supply before starting any repair
• Follow OEM service instructions; verify correct burner alignment and secure mounting before restoring gas and power
• Use caution handling sharp edges and hot surfaces; allow the appliance to fully cool before servicing

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This broil burner assembly replaces the oven's broil burner to restore high-heat broiling performance for crisping and browning foods. It installs in the oven cavity and connects to the oven's gas and ignition system for reliable broil heating. What it does:

• Provides the primary broil heat source for gas ovens to brown and crisp food surfaces
• Ignites and maintains a consistent broil flame when the broil control is selected
• Commonly used when broil element is weak, uneven, or fails to light
• Helps restore proper broiling performance after burner damage or corrosion

• One broil burner assembly

• Shut off gas supply and power to the appliance before beginning service
• Follow the oven manufacturer's service instructions and replace only with the correct part number
• Basic hand tools are typically required; confirm gas connections are secure and leak-free after installation

This broil burner assembly supplies the upper-oven broil flame so your oven can brown and crisp foods. It replaces a damaged or failed broil burner to restore proper broiling performance and even top-heat. What it does

• Produces the broil flame used for broiling and top-side browning in the oven.
• Replaces a cracked, warped, or clogged broil burner that causes weak or no broil heat.
• Helps restore even browning when the oven top heat is uneven.
• Works with the oven's gas supply and igniter to light and maintain the broil flame.

• One broil burner assembly.

• Turn off electrical power and shut off the gas supply before starting any service.
• Handle parts carefully to avoid damage; verify proper seating and alignment during installation.
• Check all gas connections for leaks after installation and before use.

This bake burner is the oven's gas burner assembly that produces the controlled flame for baking and roasting. It restores proper oven heat so food cooks evenly and the oven reaches set temperatures. What it does:

• Provides the primary gas flame for the oven bake function
• Enables even heat distribution across the oven cavity for consistent baking
• Works with the oven burner tube and igniter to light and maintain a steady flame
• Commonly replaced when the oven won't heat, has weak flame, or bakes unevenly

• Disconnect power to the appliance and shut off the gas supply before servicing
• Inspect and replace any damaged gaskets or mounting hardware; follow OEM alignment for proper ignition
• After installation, check for proper ignition and stable flame; perform a leak test on gas fittings

This igniter cover is a replacement protective shield that helps protect the oven igniter from food spills and debris, extending the igniter's service life and helping the burner ignite reliably. What it does:

• Shields the oven igniter from direct contact with spills, drips and falling debris
• Helps prevent premature igniter damage that can lead to ignition problems
• Can reduce the chance of shorting or erratic ignition caused by contamination
• Matches original shape to ensure proper fit and clearance around the igniter

• Disconnect power to the appliance (and shut off gas if applicable) before servicing
• Allow the oven to cool completely and wear gloves to avoid cuts from sheet metal
• Handle the igniter and cover carefully; avoid touching the igniter surface directly
• Test appliance operation after reinstall

Medium LP orifice

This orifice spud meters gas to a burner in your range or cooktop. Replacing a clogged or damaged spud helps restore correct flame size and reliable ignition for consistent cooking performance.

• Regulates gas flow from the valve to the burner head for proper combustion
• Helps restore consistent flame height and even heating on the burner
• Sized for the burner rating and fuel type specified by your model; always match the correct part

• Disconnect power and shut off gas supply; allow the appliance to cool completely before servicing.
• Access the burner orifice and replace with the correct, model-specified spud using an appropriate wrench; do not overtighten.
• Restore gas and check all connections for leaks with a soap-and-water solution.
• Use only the spud specified for your fuel type (NG or LP); do not attempt conversion without the approved kit and instructions.

This LP orifice spud meters gas to a range burner when using liquid propane. Replacing a worn or incorrect jet helps restore proper flame size and clean combustion during LP setup or conversion.

• Meters LP gas to the burner for correct flame height and color
• Helps resolve large yellow flames, soot, and poor simmering caused by an incorrect/blocked spud
• Supports safe operation when converting from natural gas to LP per the manufacturer's instructions
• Can improve ignition and flame stability when the original jet is damaged or clogged

• Disconnect power and shut off the gas supply; allow the appliance to cool before servicing
• Remove the existing spud with the correct wrench and install the replacement snugly—do not overtighten
• Perform any required air-shutter/burner adjustments per the service instructions
• After installation, leak-check with a soapy water solution; LP conversions should comply with local codes

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Valve Assembly 270 is an OEM part for GE gas ranges. It controls gas flow to individual burners to deliver precise heating levels.

Causes of a bad burner valve assembly include worn rubber diaphragms, debris inside valve channels, or damage from repeated heating cycles.

Symptoms are:

• Uneven cooking temperatures across burners
• Inability to ignite or adjust certain burners
• Fluctuations in flame height/cooking output

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

The Valve Burner is an OEM component for GE gas ranges. Located below the grates atop each cooktop burner, it precisely mixes gas and air to provide controllable flames. A valve adjusts gas flow while perforated metal distributes the flame evenly.

Symptoms of a faulty valve burner include:

• Difficulty obtaining or maintaining set flame levels
• Unstable or intermittent burner operation
• Yellow fire or flame that produces excessive soot
• No ignition or fire when the knob is turned

Causes can be wear of internal valve components, debris, or clogs in gas ports restricting flow over time. Damage from spills or dropped objects may also crack the burner.

This OEM GE burner is also compatible with models from Hotpoint and RCA.

The Burner Valve Assembly 3R 310 is an OEM part for GE gas ranges. It controls gas flow to individual burners to deliver precise heating levels.

Causes of a bad burner valve assembly include worn rubber diaphragms, debris inside valve channels, or damage from repeated heating cycles.

Symptoms are:

• Uneven cooking temperatures across burners
• Inability to ignite or adjust certain burners
• Fluctuations in flame height/cooking output

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

The Burner Valve Assembly 270 is an OEM part for GE gas ranges. It controls gas flow to individual burners to deliver precise heating levels.

Causes of a bad burner valve assembly include worn rubber diaphragms, debris inside valve channels, or damage from repeated heating cycles.

Symptoms are:

• Uneven cooking temperatures across burners
• Inability to ignite or adjust certain burners
• Fluctuations in flame height/cooking output

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

The Safety Valve is an OEM part for GE gas ranges. It automatically shuts off the gas supply if excess pressure is detected, serving as an essential safety component.

Causes of failure could be debris lodged in the valve opening, worn sealing edges from repeated exposure to extreme temperatures, or damage from impact over time.

Symptoms of a bad safety valve are:

• Inability to ignite or light the oven burners
• Continuous gas leaks even when oven is off
• Responsiveness issues when adjusting knob valves

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

A 90° elbow assembly that redirects a fluid or discharge line at a right angle to restore proper routing and a secure connection. Simple replacement for worn, cracked, or damaged elbow fittings. What it does

• Redirects flow between two hoses or fittings at a 90° angle to enable correct line routing
• Provides a sealed connection to help prevent leaks where a straight connection won't fit
• Restores proper flow path to eliminate kinks or pressure loss caused by a damaged elbow
• Common symptom: visible leak, moisture or pooling near the elbow fitting
• Common symptom: poor or restricted flow where the line changes direction

• One 90° elbow assembly

• Turn off power and shut off the appliance water supply before starting any repair
• Inspect mating hoses and seals; replace worn clamps or gaskets for a reliable seal
• Hand-tighten then snug fittings; avoid over-tightening plastic fittings to prevent cracking
• After installation, restore water/power and check thoroughly for leaks during a test run

This 90° elbow assembly redirects airflow or fluid between two hose or duct sections, restoring proper routing and fit. It's a direct-fit replacement designed to snap or seal into existing appliance connections for reliable operation. What it does:

• Provides a secure 90° turn to route air or liquid through a hose or duct without kinking
• Restores proper ventilation or drainage where a damaged or cracked elbow causes leaks or poor flow
• Helps eliminate symptoms like reduced airflow, visible leaks, or loose hose connections
• Matches OEM form to maintain fit and alignment with adjoining components

• Verify the elbow matches the original part before installing; check orientation and connection type
• Clean mating surfaces and inspect hose/clamps for wear; replace clamps if they no longer secure
• Hand-start fasteners or clips, then tighten securely; avoid over-tightening plastic fittings
• Disconnect power and/or water and follow appliance safety instructions before working on the unit

This glow bar igniter lights the gas in your oven so it can heat properly. Replace it if your oven won't ignite or takes too long to reach the set temperature.

• Heats and glows to ignite the oven burner
• Common symptoms: no bake/broil heat, very long preheat, or igniter glows but the burner never lights
• Used for bake or broil on many models

• Disconnect power and shut off gas before servicing
• Handle by the ceramic base; avoid touching the igniter element with bare hands
• Transfer any mounting bracket or shield from the original part if your model uses them; route wires away from heat
• After installation, observe the first ignition to confirm proper operation

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dual Safety Valve is an OEM part for GE gas ranges. As a critical safety component, it works to automatically shut off the flow of gas in the event of a flame outage, leak, or backdraft.

Symptoms of a bad safety valve include:

• Inability to ignite or light one or more gas burners
• Gas smells detected but all control knobs are off
• Repeated unwanted shutting off of burners
• Difficulty achieving or maintaining desired heat levels

Causes can be jammed or stuck valve components due to dirt or corrosion, cracks in valve material from repeated heating cycles, or loose internal mechanisms. This OEM replacement ensures your appliance operates safely by properly regulating gas flow.

This GE part is also compatible with Hotpoint, RCA, and Kenmore gas rangers. Replace yours today to restore performance and protect your home and family from gas leaks or other hazards.


The Igniter Glow Bar is an OEM part for GE gas ovens and ranges. It is responsible for igniting the gas by heating up to a high temperature, which then lights the gas burner to start the cooking process.

You should replace the igniter glow bar if it becomes faulty or fails to ignite the gas. Common causes of a bad igniter glow bar include wear and tear from frequent use, electrical issues, or physical damage to the igniter element.

Symptoms of a bad igniter glow bar include:

• The oven not heating up
• The gas burners not igniting
• A clicking sound without ignition
• Visible cracks or damage to the igniter

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Igniter Glowbar is an OEM part for GE ovens. It is responsible for igniting the gas to start the burner, ensuring efficient and safe operation of the oven. This component heats up to a high temperature to ignite the gas, enabling the oven to reach and maintain the desired cooking temperature.

Over time, the igniter glowbar can wear out or fail due to repeated heating and cooling cycles, exposure to food spills, or electrical issues. Causes of a bad igniter glowbar include filament breakage, electrical component failure, or contamination from debris.

Symptoms of a bad igniter glowbar include:

• The oven not heating up
• The burner not igniting
• A noticeable delay in ignition
• The igniter not glowing when the oven is turned on

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
