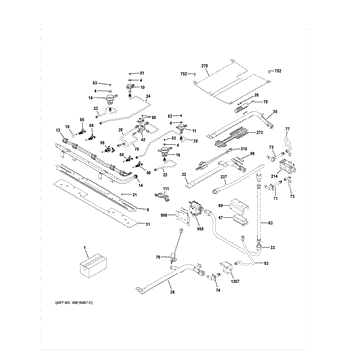

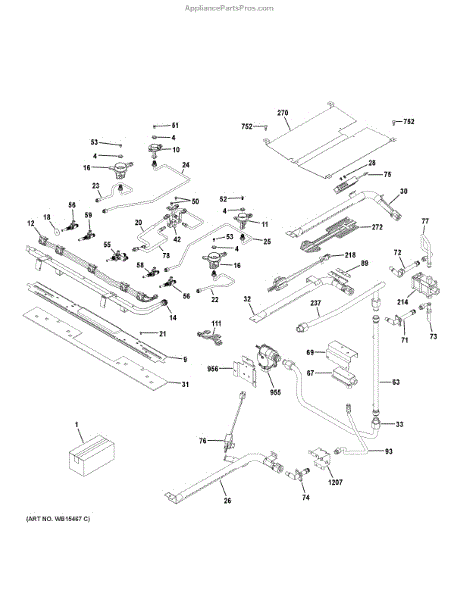

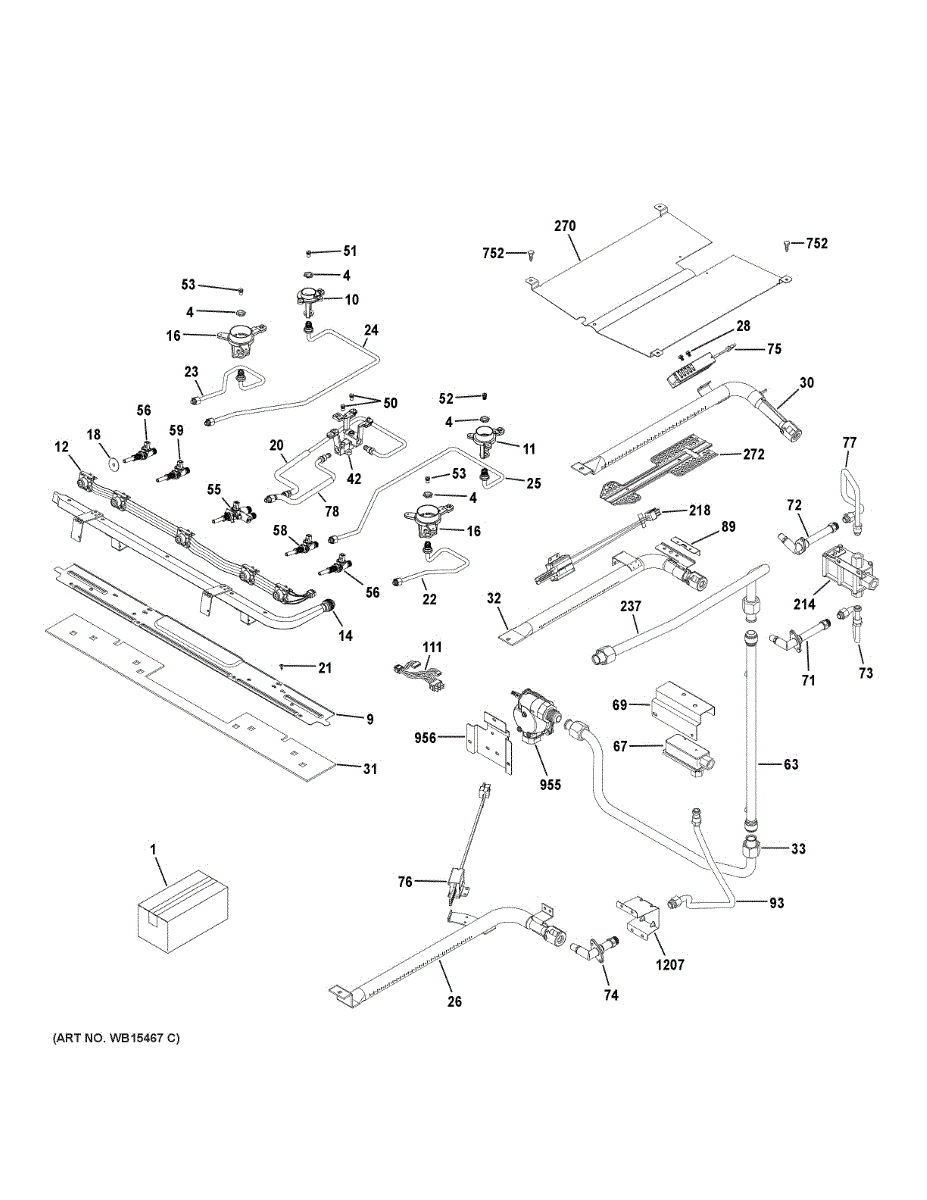

Parts for Ge PGB960BEJ1TS: Gas & Burner Parts

This natural gas conversion kit lets a compatible gas range be configured to run on natural gas instead of the alternate fuel type. It provides the necessary orifice and components to match burner fuel flow for safe operation. What it does:

• Replaces orifice/assembly parts to set burner fuel flow for natural gas
• Ensures burners operate with the correct flame size and combustion for natural gas
• Used when an appliance is being converted from the alternate gas type to natural gas
• Helps resolve issues related to improper fuel type, such as weak or uneven flames

• One conversion assembly kit

• Always shut off gas supply and power before installing; follow the manufacturer's instructions
• After installation, check all fittings and connections for leaks with a gas-safe test method
• Do not attempt installation if you are unfamiliar with gas appliance servicing

This LP high-altitude conversion kit adapts select gas cooking appliances for liquid propane use at elevation. It properly meters gas flow so burners light easily and produce clean, stable flames in thin-air conditions.

• Configures the appliance for LP operation in high-altitude installations
• Calibrates fuel delivery to maintain proper flame size and combustion
• Helps address yellow/sooty flames, flame lift, or hard-to-control simmer after conversion
• Promotes reliable ignition and even heat across burners

• Conversion affects gas type and pressure; must be performed per the manufacturer's instructions and local codes
• Shut off gas and power before service; work in a well-ventilated area away from open flames or sparks
• After conversion, leak-test all connections and adjust air shutters per model guidance if applicable
• Intended for LP high-altitude applications only; use the model-specific kit specified by the manufacturer

The Range NG High Altitude Kit is an OEM part for GE gas ranges. This high-altitude conversion kit allows the range to operate properly at elevations above 2000 feet.

Causes related to needing this kit are using the range at a high elevation without proper adjustment for decreased air pressure and oxygen levels.

Symptoms of needing this high-altitude kit include:

• Unstable or inconsistent flame during operation
• Excessive cooking times
• Incomplete combustion of gas resulting in carbon monoxide issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

This small V2 inlet jet directs water flow to the dispenser/ice-making area so the appliance fills and forms properly. It restores correct water routing for consistent filling and helps reduce weak or misshapen ice or slow dispensing. What it does:

• Channels water to the ice maker/dispenser so the correct amount reaches the fill area.
• Helps ensure uniform ice formation and consistent dispenser flow.
• Can resolve symptoms like weak/slow dispensing, underfilled ice trays, or uneven ice cubes.
• Works as the small replacement nozzle where the original inlet jet is worn or blocked.

• One small V2 inlet jet

• Disconnect power and shut off the water supply before beginning work.
• Access may require removing inner panels or the ice maker/dispenser housing; follow your model's service instructions.
• Inspect the seat and surrounding fittings for debris or damage before installing; replace other damaged components as needed.

The Medium surface burner base is an OEM part for GE ranges. It serves as the base for the surface burners, covering and protecting the burner cavities.

Causes of a bad surface burner base include warping or deformation from high heat over time, cracks or breaks from impact damage, or corrosion from liquid spills or grease accumulation.

Symptoms of a bad surface burner base include:

• Burners no longer sitting flush or securely on the cooktop surface
• Excessive air gaps around the burners allowing gas/flames to escape
• Difficulty cleaning due to liquid leaks into the burner cavities
• Visible cracks, breaks, or deformities in the material

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This genuine OEM GE replacement is compatible with additional Hotpoint, RCA and Kenmore gas range models.

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

This orifice holder secures the gas orifice in the burner tube to ensure stable fuel delivery for consistent burner flames. It replaces a worn or damaged holder to restore correct orifice alignment and flame performance. What it does

• Holds the gas orifice in proper position inside the burner tube for accurate fuel flow
• Helps maintain consistent, even burner flames and reliable ignition
• Common replacement when burners show weak, uneven, or inconsistent flames
• Works with the stove's burner assembly to prevent orifice dislodgement during use

• One orifice holder

• Turn off the range's gas supply and unplug the appliance before starting work
• Remove burner grates and caps, then detach the burner tube to access the holder
• Inspect the orifice and surrounding components; replace the orifice if damaged

The Orifice Holder is an OEM part for GE gas ranges. It secures the orifice spud in place, maintaining proper alignment of gas ports to burner tubes.

The orifice holder prevents any movement or misalignment of gas passages, ensuring uninterrupted and precise fuel delivery. Correct positioning is critical for safe, efficient combustion and optimal heat levels.

Causes of a faulty holder can include wear and tear, damage from impact or heat exposure, or loose fasteners allowing misalignment over time.

Symptoms of a bad orifice holder include:

• Unstable or uneven burner flames
• Inability to adjust oven temperature as needed
• Gas leaks near burner area
• Abnormal burner combustion noises

Replacing with this genuine OEM GE part restores secure orifice placement and optimized gas flow. It is also compatible with Hotpoint, KitchenAid, and select Kenmore gas range models.


The Oven Orifice Spud LP is an OEM part for GE gas ovens. This part controls the flow of liquid propane (LP) gas into the oven burner box. The oven orifice spud plays a role in gas combustion, adjusting flow to match the needs of a liquid propane system. It connects directly to the gas supply, so an improperly sized or damaged spud can lead to gas leaks or incomplete burning.

Causes of a bad oven orifice spud include normal wear over time from constant heating cycles, exposure to cleaning chemicals, or damage during part replacement.

Symptoms of needing a replacement include:

• Uneven or inconsistent oven heating
• Extended cooking times or inability to reach desired temperatures
• Gas smell coming from the oven area
• Visible damage or cracks on the spud itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This orifice holder secures the burner orifice to a gas range or cooktop, positioning the orifice for a consistent gas flow and reliable ignition. Replaces a worn or damaged holder to restore correct burner alignment and flame performance. What it does:

• Holds the burner orifice in the correct position so gas flows properly to the burner
• Helps maintain an even, steady flame for consistent cooking performance
• Can resolve burner issues like weak or uneven flames or burners that fail to light
• Prevents orifice movement that can cause inefficient combustion or ignition problems

• One orifice holder

• Turn off the appliance and shut off the gas supply before starting; disconnect power if applicable
• Replace only with the correct OEM part for your model to ensure proper fit and orifice alignment
• Hand-start threads and tighten securely; avoid over-tightening which can damage the holder
• After installation, restore gas and power, then test burners and check for leaks (use a soapy water solution, never an open flame)

This bake burner is the oven's heat source for baking cycles, replacing a worn or damaged burner to restore consistent bake performance and even cooking results. Designed to match OEM fit and function. What it does:

• Provides the main heat for the oven's bake mode so food cooks through and browns properly
• Helps maintain even temperature distribution across the oven cavity
• Common replacement for symptoms like weak or no bake heat, uneven baking, or burner that won't ignite reliably
• Works with the oven's ignition and gas supply to deliver steady flame when functioning correctly

• Turn off power and shut off the gas supply before starting any repair
• Follow OEM service instructions; verify correct burner alignment and secure mounting before restoring gas and power
• Use caution handling sharp edges and hot surfaces; allow the appliance to fully cool before servicing

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bake burner is the oven's gas burner assembly that produces the controlled flame for baking and roasting. It restores proper oven heat so food cooks evenly and the oven reaches set temperatures. What it does:

• Provides the primary gas flame for the oven bake function
• Enables even heat distribution across the oven cavity for consistent baking
• Works with the oven burner tube and igniter to light and maintain a steady flame
• Commonly replaced when the oven won't heat, has weak flame, or bakes unevenly

• Disconnect power to the appliance and shut off the gas supply before servicing
• Inspect and replace any damaged gaskets or mounting hardware; follow OEM alignment for proper ignition
• After installation, check for proper ignition and stable flame; perform a leak test on gas fittings

This orifice spud meters gas to a burner in your range or cooktop. Replacing a clogged or damaged spud helps restore correct flame size and reliable ignition for consistent cooking performance.

• Regulates gas flow from the valve to the burner head for proper combustion
• Helps restore consistent flame height and even heating on the burner
• Sized for the burner rating and fuel type specified by your model; always match the correct part

• Disconnect power and shut off gas supply; allow the appliance to cool completely before servicing.
• Access the burner orifice and replace with the correct, model-specified spud using an appropriate wrench; do not overtighten.
• Restore gas and check all connections for leaks with a soap-and-water solution.
• Use only the spud specified for your fuel type (NG or LP); do not attempt conversion without the approved kit and instructions.

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This orifice spud secures and positions the gas orifice for a range or cooktop burner, helping deliver a consistent gas flow for proper ignition and flame control. It's a direct-fit replacement designed for safe, reliable burner operation. What it does:

• Holds and centers the gas orifice at the burner inlet for correct flame pattern and heat output
• Ensures a sealed connection between the burner tube and orifice to prevent leaks
• Helps restore normal ignition and steady flames when a damaged or missing spud causes weak or uneven burners
• Compatible with common range/cooktop gas burner assemblies

• One orifice spud

• Turn off gas supply and electrical power before attempting service
• Only install with the exact OEM part number; hand-start the thread, then tighten to secure—do not overtighten
• After installation, check all connections for leaks with a leak-detection solution or soapy water; never use an open flame to test
• If you smell gas, shut off supply immediately.

The BURNER VALVE is an OEM part for GE gas ranges. It regulates gas flow to individual cooktop burners, controlling flame size and heat output based on valve position.

Symptoms of a bad burner valve include:

• Inability to adjust or maintain desired flame levels
• Gas odor or clicking/hissing noises from the burner area
• Burners that remain constantly on without response to controls

Gas valves can weaken or crack over many heating/cooling cycles. Mineral buildup may also restrict precise flow regulation. Replacing the faulty valve with this genuine GE part restores the burners' heat-adjustable functionality for custom cooking power.

This OEM GE replacement burner valve is also compatible with some Kenmore and RCA gas range models. Reliable control over burners maximizes versatility and safety.


The Valve Burner is an OEM component for GE gas ranges. Located below the grates atop each cooktop burner, it precisely mixes gas and air to provide controllable flames. A valve adjusts gas flow while perforated metal distributes the flame evenly.

Symptoms of a faulty valve burner include:

• Difficulty obtaining or maintaining set flame levels
• Unstable or intermittent burner operation
• Yellow fire or flame that produces excessive soot
• No ignition or fire when the knob is turned

Causes can be wear of internal valve components, debris, or clogs in gas ports restricting flow over time. Damage from spills or dropped objects may also crack the burner.

This OEM GE burner is also compatible with models from Hotpoint and RCA.

The Valve and Burner Assembly is an OEM part for GE gas ranges. As the primary mechanism for fuel ignition and burner operation, it works to deliver gas to each burner safely and control flame intensity precisely.

Symptoms of a bad valve and burner assembly include:

• Inability to light one or more burners
• Unstable, excessively large or small flames
• Burners that will not maintain the desired heat setting
• Gas leaks around the burner area

Causes can be normal damage over time from heat exposure, cracks developing in valve components, blockages in gas ports, or loose connections. Installing this OEM replacement ensures your range's burners operate efficiently.

This GE part is also compatible with some Hotpoint, RCA, and Kenmore ranges and restores reliable stove-top cooking performance. Replace yours today before minor problems worsen.


The Safety Valve is an OEM part for GE gas ranges. It automatically shuts off the gas supply if excess pressure is detected, serving as an essential safety component.

Causes of failure could be debris lodged in the valve opening, worn sealing edges from repeated exposure to extreme temperatures, or damage from impact over time.

Symptoms of a bad safety valve are:

• Inability to ignite or light the oven burners
• Continuous gas leaks even when oven is off
• Responsiveness issues when adjusting knob valves

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

This 90° elbow assembly redirects airflow or fluid between two hose or duct sections, restoring proper routing and fit. It's a direct-fit replacement designed to snap or seal into existing appliance connections for reliable operation. What it does:

• Provides a secure 90° turn to route air or liquid through a hose or duct without kinking
• Restores proper ventilation or drainage where a damaged or cracked elbow causes leaks or poor flow
• Helps eliminate symptoms like reduced airflow, visible leaks, or loose hose connections
• Matches OEM form to maintain fit and alignment with adjoining components

• Verify the elbow matches the original part before installing; check orientation and connection type
• Clean mating surfaces and inspect hose/clamps for wear; replace clamps if they no longer secure
• Hand-start fasteners or clips, then tighten securely; avoid over-tightening plastic fittings
• Disconnect power and/or water and follow appliance safety instructions before working on the unit

A 90° elbow assembly that redirects a fluid or discharge line at a right angle to restore proper routing and a secure connection. Simple replacement for worn, cracked, or damaged elbow fittings. What it does

• Redirects flow between two hoses or fittings at a 90° angle to enable correct line routing
• Provides a sealed connection to help prevent leaks where a straight connection won't fit
• Restores proper flow path to eliminate kinks or pressure loss caused by a damaged elbow
• Common symptom: visible leak, moisture or pooling near the elbow fitting
• Common symptom: poor or restricted flow where the line changes direction

• One 90° elbow assembly

• Turn off power and shut off the appliance water supply before starting any repair
• Inspect mating hoses and seals; replace worn clamps or gaskets for a reliable seal
• Hand-tighten then snug fittings; avoid over-tightening plastic fittings to prevent cracking
• After installation, restore water/power and check thoroughly for leaks during a test run

The Igniter Glowbar is an OEM component specifically designed for GE gas ranges. It is responsible for heating up to generate the high temperatures required to ignite the gas burners.

Symptoms of a bad igniter glow bar include:

• Inconsistent or intermittent burner ignition
• Burners failing to light or staying lit
• Dim or weak glow when attempting to ignite burners

Causes of a bad igniter glowbar can include deterioration of heating elements after heavy use over time, cracks or damage due to mishandling or impact, or premature failure of electronic components.

This OEM GE replacement is compatible with Hotpoint, RCA, and Kenmore ranges.

The Igniter Glowbar is an OEM replacement part for GE ovens and ranges. This glowbar generates the pilot flame and ignites the main burner while cooking.

Causes of a bad glowbar can be prolonged or heavy use over time leading to degradation of the element, or damage from impact or mishandling during cleaning.

Symptoms of a bad glowbar include:

• Inability to ignite or light the oven burners
• Pilot light that repeatedly goes out
• Errors codes related to ignition issues
• Burned smell coming from the oven cavity

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This ignition electrode and harness assembly routes high-voltage spark to the gas burner/igniter so burners and the oven ignite reliably. Replaces a damaged or worn electrode harness to restore spark delivery for safe ignition. What it does:

• Delivers spark from the igniter control to the burner/oven igniter electrodes
• Replaces cracked, corroded, or damaged electrode wires that cause weak or no spark
• Helps stop continuous clicking with no ignition and inconsistent burner lighting
• Restores proper spark routing when loose or broken harness connections prevent ignition

• One electrodes and harness H.V. ignition assembly

• Disconnect power and shut off gas supply before starting work
• Handle ceramic electrodes and wiring carefully to avoid cracking or bending
• Verify correct routing and secure connections; ensure wires are not pinched by panels

The Dual Safety Valve is an OEM part for GE gas ranges. As a critical safety component, it works to automatically shut off the flow of gas in the event of a flame outage, leak, or backdraft.

Symptoms of a bad safety valve include:

• Inability to ignite or light one or more gas burners
• Gas smells detected but all control knobs are off
• Repeated unwanted shutting off of burners
• Difficulty achieving or maintaining desired heat levels

Causes can be jammed or stuck valve components due to dirt or corrosion, cracks in valve material from repeated heating cycles, or loose internal mechanisms. This OEM replacement ensures your appliance operates safely by properly regulating gas flow.

This GE part is also compatible with Hotpoint, RCA, and Kenmore gas rangers. Replace yours today to restore performance and protect your home and family from gas leaks or other hazards.


The Igniter Glowbar is an OEM part for GE gas cooktops and ranges. Located within each gas burner well, this component is responsible for reliably igniting the gas flow and lighting each burner. The glowbar contains a heating coil that glows hot enough to ignite the gas when the control knob is turned on.

Causes of a bad igniter glowbar can include deterioration of heating coils over many ignition cycles, accumulation of food or liquid debris, or physical damage.

Symptoms of a bad igniter glow bar include:

• Burners failing to light or only lighting intermittently
• Low flame heights after ignition
• Burners making clicking/popping sounds on startup

This genuine OEM GE replacement is also compatible with select Kenmore and RCA gas ranges using these GE ignition systems.

This deflector is a molded air/heat shield that directs airflow and protects internal components from heat and debris, helping the appliance maintain consistent performance and reduce localized overheating. What it does:

• Directs airflow or heat away from sensitive components to help maintain even temperatures
• Shields wiring and electronics from heat, sparks, or debris
• Helps prevent hotspots that can cause uneven cooking or appliance wear
• Commonly replaced when cracked, warped, or missing and causing poor airflow or noise

• Disconnect power to the appliance before starting any service
• Inspect mounting tabs and surrounding panels; replace any damaged fasteners
• Reinstall panels and secure fasteners to restore proper airflow and shielding

This broil shield protects the oven interior above the broiler, helping direct heat and shielding the oven cavity from intense broiling temperatures for safer, more consistent broiling results. Durable metal construction resists warping. What it does:

• Shields the oven top and components from direct broiler heat to prevent damage and discoloration
• Helps maintain more even broiling by directing heat where food is placed
• Reduces the risk of flare-ups reaching wiring or insulation behind the oven liner
• Restores proper clearance between the burner and oven liner for safe operation

• One broil shield

• Disconnect power (and gas, if applicable) and allow the oven to cool completely before starting
• Remove oven racks and access the broiler area to unfasten and replace the shield using basic hand tools
• Inspect mounting tabs and surrounding liner; replace any damaged clips or screws as needed

Package of 12
