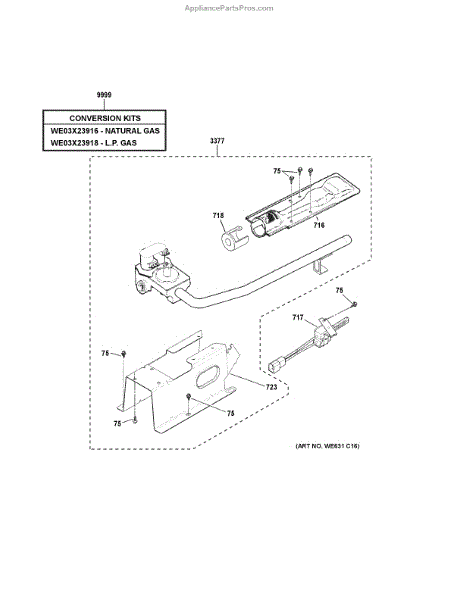

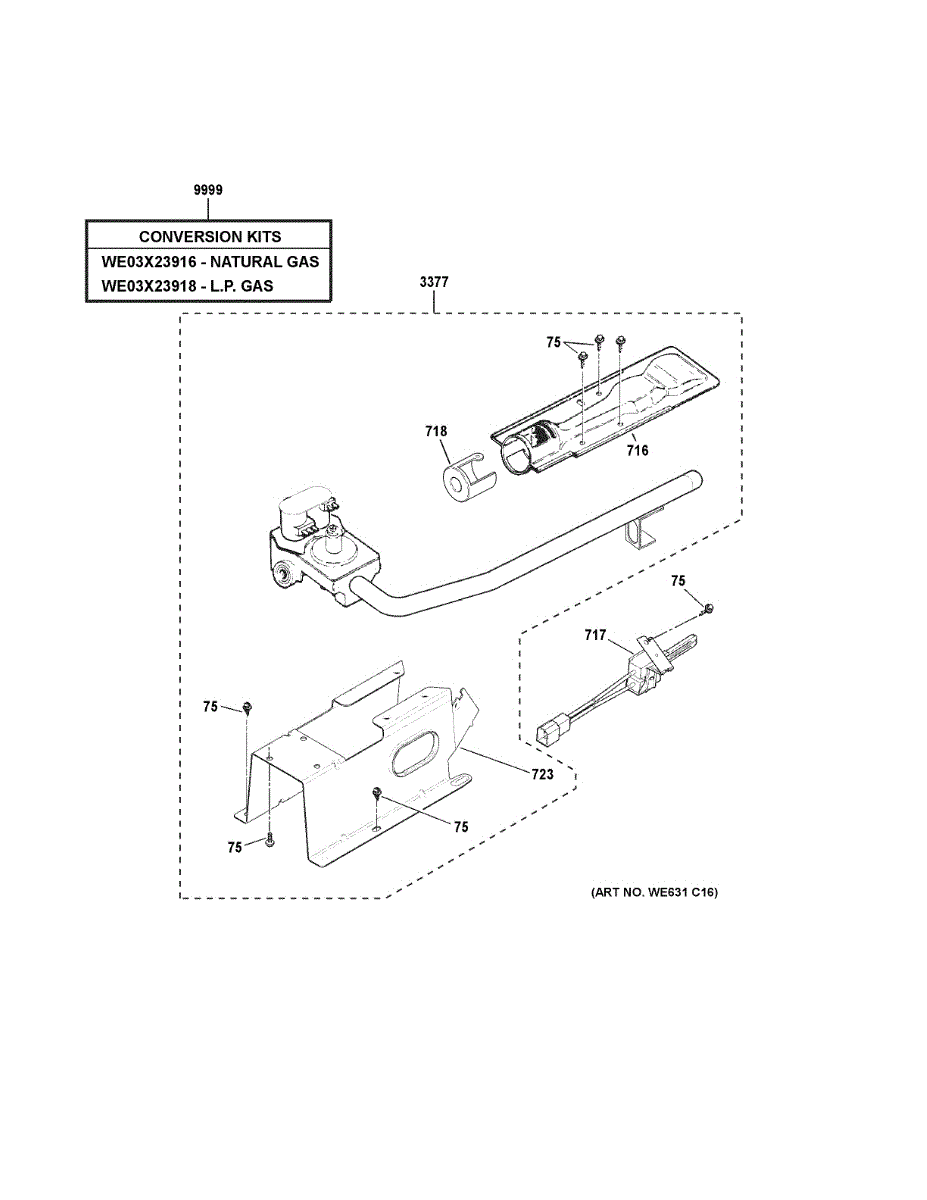

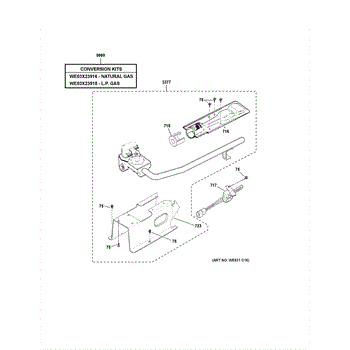

Parts for Ge GTD84GCSN0WS: Gas Valve & Burner Assembly Parts

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

The Igniter is an OEM part for GE dryers. It is designed to ignite the gas burner to produce heat, which is essential for drying clothes. The igniter ensures that the gas is lit efficiently and safely, enabling the dryer to reach and maintain the proper temperature for effective drying.

You should replace the igniter if it becomes faulty. Causes of a bad igniter can include electrical failures, cracks or breaks in the igniter material, or wear and tear from regular use. These issues can prevent the igniter from generating the necessary heat to ignite the gas.

Symptoms of a bad igniter include:

• The dryer not heating up
• Extended drying times
• The igniter glowing but failing to light the gas burner
•  A lack of flame in gas dryers

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement gas valve bracket secures the oven/range gas valve to the chassis, keeping the valve aligned and stable for reliable gas flow. Fits where the valve mounts to the appliance frame to restore proper positioning and reduce vibration. What it does:

• Holds the gas valve firmly in place to prevent movement or misalignment
• Maintains correct spacing between the valve and burner assembly for safe operation
• Helps eliminate rattling or vibration caused by a loose or damaged bracket
• Supports consistent valve operation that can reduce ignition or heating issues related to a loose mount

• One gas valve mounting bracket

• Shut off gas supply and unplug the appliance before starting any work
• Only install on the mount specified by the OEM; use correct fasteners and torque to avoid stripping or deformation
• After installation, check all gas fittings and connections for leaks using a gas leak detector or soapy-water test

This valve and burner assembly controls gas flow to a cooktop/oven burner so your appliance ignites and holds a steady flame. Replaces a worn or failed valve/burner to restore safe, consistent heating. What it does:

• Regulates gas flow to the burner for ignition and steady flame control.
• Commonly used when a burner won't light, has no flame, or flame is weak/uneven.
• Replaces a cracked, leaking, or malfunctioning valve or damaged burner component.
• Works as a direct replacement part where this assembly is specified.

• Shut off the gas supply and unplug the appliance before servicing.
• Installation may require removing the cooktop/oven top and disconnecting gas and electrical connections.
• After installation, check all gas connections for leaks and verify proper operation before regular use.

This valve and pipe assembly regulates and routes water for the dryer's steam feature. A new assembly restores proper water flow, helping resolve no-steam operation, weak spray, or leaks at the rear water connection.

• Opens and closes to supply water to the steam system when commanded
• Directs water from the household supply through the attached tube to the steam outlet
• Prevents water from entering the dryer when the steam feature is off
• Typical symptoms: steam option won't spray, weak or intermittent mist, dripping into the drum, leaks at the rear inlet, or valve buzzing with no water flow

• Disconnect power and shut off the water supply before servicing
• Pull the dryer forward to access the rear and place a towel to catch residual water
• Note hose orientation; transfer any fittings or clamps from the old part as needed
• Restore water and power, check for leaks, and run a brief steam cycle to verify operation

This valve and pipe assembly regulates and routes fuel through the dryer's system so the burner can ignite and maintain heat. Replacing a failing assembly restores reliable heating performance and consistent drying results. What it does

• Opens and closes to control fuel flow to the burner when heat is called for
• Directs fuel from the inlet to the burner orifice through a rigid manifold/pipe
• Helps maintain safe shutoff when the dryer is idle
• Common symptoms of a failing assembly: no heat, intermittent heat, or burner failing to ignite

• One valve-and-pipe assembly

• Disconnect power and shut off the gas supply before servicing
• Use only gas-rated fittings/sealant as specified by the manufacturer; do not overtighten connections
• After installation, check all joints for leaks with a soap-and-water solution
• Restore power and gas, then verify proper burner ignition and stable heating
