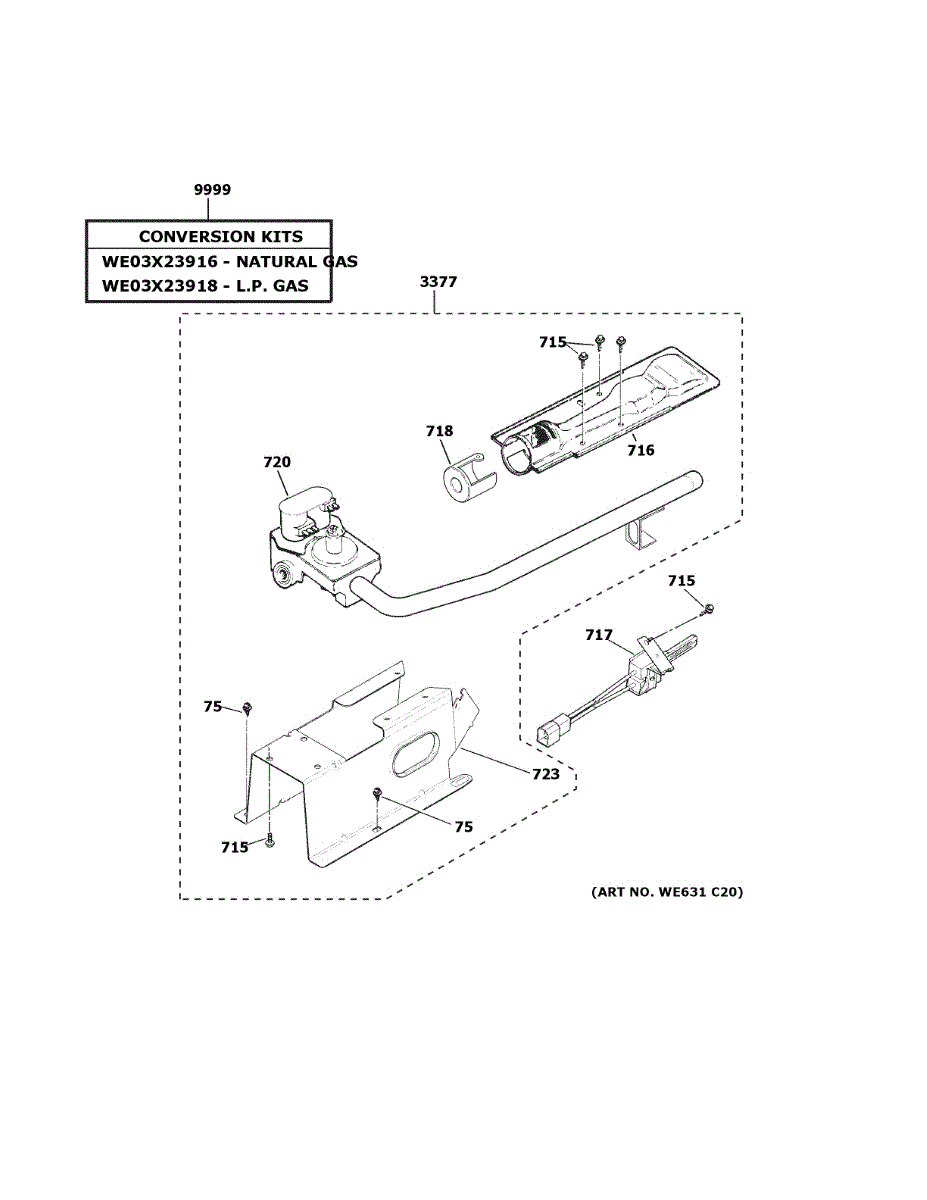

Parts for Ge GTX52GASP0WB: Gas Valve & Burner Assembly Parts

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

This gas valve regulates and safely delivers fuel to your dryer's burner. When operating correctly, it opens for ignition and closes when heat is satisfied, providing consistent, reliable heating for effective drying.

• Opens to allow gas into the burner when the ignition system calls for heat
• Closes to stop gas flow during cycling or if ignition fails
• Possible symptoms: dryer runs but no heat; igniter glows yet no flame; intermittent heat or long dry times
• Helps restore proper burner ignition and stable flame

• Disconnect power and shut off the gas supply before servicing
• Work in a well-ventilated area; check all connections for leaks with a non-corrosive leak-detection solution after installation
• Transfer any brackets, fittings, or orifices from the original valve as required; secure connections
• Confirm gas type (natural/LP) and regulator/orifice settings per the service manual before restoring service

This replacement gas valve bracket secures the oven/range gas valve to the chassis, keeping the valve aligned and stable for reliable gas flow. Fits where the valve mounts to the appliance frame to restore proper positioning and reduce vibration. What it does:

• Holds the gas valve firmly in place to prevent movement or misalignment
• Maintains correct spacing between the valve and burner assembly for safe operation
• Helps eliminate rattling or vibration caused by a loose or damaged bracket
• Supports consistent valve operation that can reduce ignition or heating issues related to a loose mount

• One gas valve mounting bracket

• Shut off gas supply and unplug the appliance before starting any work
• Only install on the mount specified by the OEM; use correct fasteners and torque to avoid stripping or deformation
• After installation, check all gas fittings and connections for leaks using a gas leak detector or soapy-water test

This Valve & Burner Assembly is an OEM part for GE dryers. Responsible for controlling the flow of gas to the burner where it is ignited to produce heat. This assembly ensures that the dryer heats up efficiently and safely, playing a vital role in the overall performance and reliability of the appliance.

The need for replacement can stem from wear and tear, functional degradation, or issues with gas flow regulation.

Symptoms of a faulty Valve & Burner Assembly include:

• Insufficient or no heat production in the dryer.
• Unusual noises or smells indicating gas leakage or improper combustion.
• The dryer takes longer to dry clothes, indicating inefficient heating.
• The dryer failed to start the heating cycle.
• Visible signs of wear or damage to the assembly components.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This valve and pipe assembly regulates and routes water for the dryer's steam feature. A new assembly restores proper water flow, helping resolve no-steam operation, weak spray, or leaks at the rear water connection.

• Opens and closes to supply water to the steam system when commanded
• Directs water from the household supply through the attached tube to the steam outlet
• Prevents water from entering the dryer when the steam feature is off
• Typical symptoms: steam option won't spray, weak or intermittent mist, dripping into the drum, leaks at the rear inlet, or valve buzzing with no water flow

• Disconnect power and shut off the water supply before servicing
• Pull the dryer forward to access the rear and place a towel to catch residual water
• Note hose orientation; transfer any fittings or clamps from the old part as needed
• Restore water and power, check for leaks, and run a brief steam cycle to verify operation

This valve and pipe assembly regulates and routes fuel through the dryer's system so the burner can ignite and maintain heat. Replacing a failing assembly restores reliable heating performance and consistent drying results. What it does

• Opens and closes to control fuel flow to the burner when heat is called for
• Directs fuel from the inlet to the burner orifice through a rigid manifold/pipe
• Helps maintain safe shutoff when the dryer is idle
• Common symptoms of a failing assembly: no heat, intermittent heat, or burner failing to ignite

• One valve-and-pipe assembly

• Disconnect power and shut off the gas supply before servicing
• Use only gas-rated fittings/sealant as specified by the manufacturer; do not overtighten connections
• After installation, check all joints for leaks with a soap-and-water solution
• Restore power and gas, then verify proper burner ignition and stable heating
