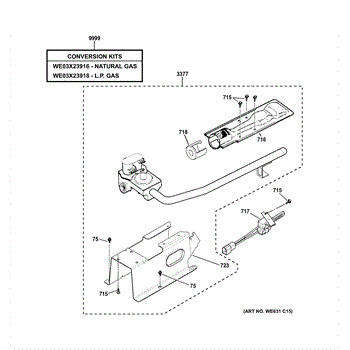

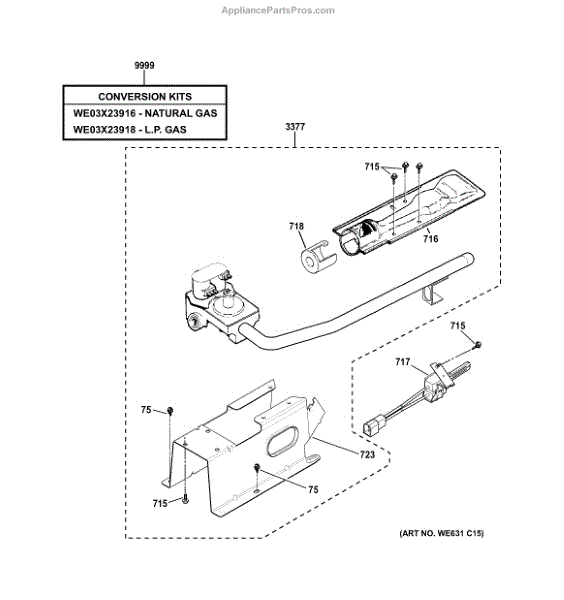

Parts for Hot Point HTX24GASK0WW: Gas Valve & Burner Assembly Parts

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

This burner assembly is the combustion head for GE gas dryers. It mixes gas and air and directs a stable flame into the heater housing, restoring consistent heat when the original burner is corroded, warped, or clogged.

• Directs the gas flame into the heat chamber for proper drying temperatures
• Works with the igniter, flame sensor, and gas valve to produce heat
• Typical failure symptoms: no heat or intermittent heat, long dry times, burner lights then goes out, unstable/yellow flame
• Physical issues can include rust, warping, or blocked burner ports

• Disconnect power and shut off the gas supply; allow the dryer to cool completely
• Note position of the igniter and flame sensor relative to the burner port; realign during reassembly
• Transfer any reusable fittings from the original burner as needed and verify orifice/fuel type match your installation
• After reconnecting gas, perform a leak check with a non-corrosive soapy water solution before restoring power

The Igniter is an OEM part for GE dryers. It is designed to ignite the gas burner to produce heat, which is essential for drying clothes. The igniter ensures that the gas is lit efficiently and safely, enabling the dryer to reach and maintain the proper temperature for effective drying.

You should replace the igniter if it becomes faulty. Causes of a bad igniter can include electrical failures, cracks or breaks in the igniter material, or wear and tear from regular use. These issues can prevent the igniter from generating the necessary heat to ignite the gas.

Symptoms of a bad igniter include:

• The dryer not heating up
• Extended drying times
• The igniter glowing but failing to light the gas burner
•  A lack of flame in gas dryers

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement gas valve bracket secures the oven/range gas valve to the chassis, keeping the valve aligned and stable for reliable gas flow. Fits where the valve mounts to the appliance frame to restore proper positioning and reduce vibration. What it does:

• Holds the gas valve firmly in place to prevent movement or misalignment
• Maintains correct spacing between the valve and burner assembly for safe operation
• Helps eliminate rattling or vibration caused by a loose or damaged bracket
• Supports consistent valve operation that can reduce ignition or heating issues related to a loose mount

• One gas valve mounting bracket

• Shut off gas supply and unplug the appliance before starting any work
• Only install on the mount specified by the OEM; use correct fasteners and torque to avoid stripping or deformation
• After installation, check all gas fittings and connections for leaks using a gas leak detector or soapy-water test

This Valve & Burner Assembly is an OEM part for GE dryers. Responsible for controlling the flow of gas to the burner where it is ignited to produce heat. This assembly ensures that the dryer heats up efficiently and safely, playing a vital role in the overall performance and reliability of the appliance.

The need for replacement can stem from wear and tear, functional degradation, or issues with gas flow regulation.

Symptoms of a faulty Valve & Burner Assembly include:

• Insufficient or no heat production in the dryer.
• Unusual noises or smells indicating gas leakage or improper combustion.
• The dryer takes longer to dry clothes, indicating inefficient heating.
• The dryer failed to start the heating cycle.
• Visible signs of wear or damage to the assembly components.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This valve and pipe assembly regulates and routes water for the dryer's steam feature. A new assembly restores proper water flow, helping resolve no-steam operation, weak spray, or leaks at the rear water connection.

• Opens and closes to supply water to the steam system when commanded
• Directs water from the household supply through the attached tube to the steam outlet
• Prevents water from entering the dryer when the steam feature is off
• Typical symptoms: steam option won't spray, weak or intermittent mist, dripping into the drum, leaks at the rear inlet, or valve buzzing with no water flow

• Disconnect power and shut off the water supply before servicing
• Pull the dryer forward to access the rear and place a towel to catch residual water
• Note hose orientation; transfer any fittings or clamps from the old part as needed
• Restore water and power, check for leaks, and run a brief steam cycle to verify operation

This valve and pipe assembly regulates and routes fuel through the dryer's system so the burner can ignite and maintain heat. Replacing a failing assembly restores reliable heating performance and consistent drying results. What it does

• Opens and closes to control fuel flow to the burner when heat is called for
• Directs fuel from the inlet to the burner orifice through a rigid manifold/pipe
• Helps maintain safe shutoff when the dryer is idle
• Common symptoms of a failing assembly: no heat, intermittent heat, or burner failing to ignite

• One valve-and-pipe assembly

• Disconnect power and shut off the gas supply before servicing
• Use only gas-rated fittings/sealant as specified by the manufacturer; do not overtighten connections
• After installation, check all joints for leaks with a soap-and-water solution
• Restore power and gas, then verify proper burner ignition and stable heating

The Shoe Drying Rack is an OEM accessory component specifically designed for select GE dryers. As an added feature, this rack provides a convenient way to dry shoes along with regular laundry items. It allows wet shoes to be tumbled gently while being fully ventilated to dry effectively.

Symptoms of a bad shoe drying rack include:

• Broken or cracked rack supports that collapse the structure
• Missing hooks or attachment points to secure the rack in place
• Rust, corrosion, or other damage that compromises its functionality

Causes of a bad shoe drying rack can include normal wear and tear over extended use, exposure to excessive heat levels, or damage from overloading or improper handling.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
