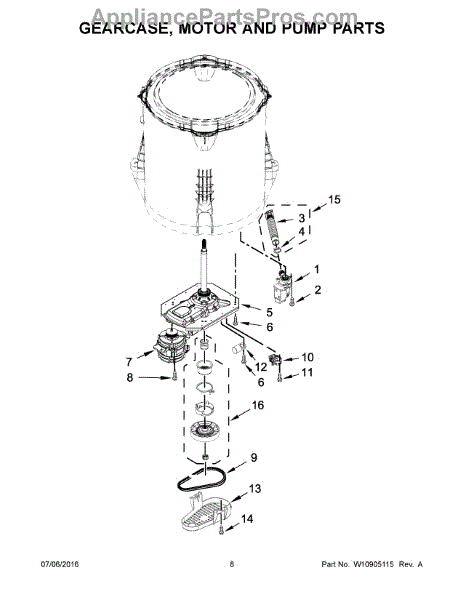

Parts for Whirlpool 2DWTW4845EW1: 05 - Gearcase, Motor And Pump Parts

This factory fastener secures appliance panels and components for a tight, rattle-free fit. Replace a missing, stripped, or corroded screw to keep assemblies aligned and performing as intended.

• Fastens panels, brackets, or assemblies in place
• Helps reduce vibration and rattling caused by loose hardware
• Maintains proper alignment of parts to prevent premature wear
• Common signs you need it: missing screw, loose panel, vibration/buzzing noises, or hardware that won't tighten

• Disconnect power; for gas or water-connected appliances, shut off supply lines before service
• Match the screw to the original; verify size, length, and thread before installation
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug only—do not overtighten, especially into plastic or thin sheet metal

The Internal Drain Hose is an OEM replacement part for Whirlpool washing machines. It routes used wash water from the tub to an external drain source.

Causes of a faulty internal drain hose can include cracks developing from constant use or obstructions blocking effective drainage.

Symptoms of a bad internal drain hose include:

• Water leaks inside or around the base of the washer
• Incomplete drainage of water at the end of cycles
• Accumulation of dirty water inside the machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Washer Gear Case is an OEM part for Whirlpool washing machines. It is a critical component that houses the gears responsible for the rotation and agitation of the washer drum. This gear case ensures that the washer performs its washing cycles effectively by providing the necessary mechanical movements.

Causes of a bad gear case can include wear and tear from prolonged use, lubrication breakdown leading to increased friction, or damage from overloading the washer. Additionally, exposure to water leaks can lead to corrosion and deterioration of the internal components.

Symptoms of a bad gear case include:

• Unusual grinding or clunking noises during the wash cycle
• The drum not spinning or agitating properly
• Leaks of oil or grease underneath the washer
• The washer failing to complete its cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement 7-2-1 screw secures components in compatible Whirlpool appliances, providing a dependable fastener for panels and assemblies. Use it to restore proper fitment and reduce rattling or loose parts. What it does

• Fastens trim, panels, brackets, or internal assemblies to keep parts secure
• Helps stop vibration-related noise from loose components
• Restores correct mounting where the original screw is missing or damaged
• Matches the form and fit of the OEM fastener for intended attachment points

• One replacement 7-2-1 screw

• Use the correct driver to avoid stripping the screw head
• Hand-start threads before tightening to prevent cross-threading
• Tighten until snug—do not over-tighten to avoid damaging plastic or sheet-metal parts
• Disconnect power to the appliance before accessing internal areas

This drive belt connects the washer's motor to the drive system so the basket agitates and spins as designed. Replacing a worn or broken belt restores reliable power transfer and helps stop slipping, squealing, and no-spin issues.

• Transfers motor power to the drive system for proper agitation and spin
• A stretched, glazed, or broken belt can cause no spin, no agitation, slow or intermittent spin
• Squealing/chirping noises or a hot rubber smell often indicate belt slippage
• Visible cracks, fraying, or glazing are signs the belt should be replaced

• Disconnect power and water; move the washer to access the base safely
• On many models, access is from below—tip the unit back carefully per service instructions
• Walk the old belt off the pulleys; route and seat the new belt by rotating the pulleys; ensure it's centered and untwisted
• Inspect motor and drive pulleys/splutch for wear or misalignment before test-running an empty cycle

The Shifter Actuator is an OEM replacement part for Whirlpool washing machines. It is an electronic component located in the transmission assembly that controls the shifting between wash cycles. The shifter actuator receives signals from the control panel to change the drum rotation speed and direction depending on the selected wash cycle settings.

Symptoms of a bad shifter actuator include:

• The washer fails to change cycles or stay on one speed setting
• Abnormal noises coming from the transmission area
• Delayed or hesitant shifting between cycles

Causes of failure are usually due to normal wear and tear over prolonged use. Not replacing the shifter actuator can result in transmission damage over time.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: This part has been redesigned and may appear different from the one you’re replacing. The small hood may have to be removed for proper installation.

The Capacitor is an OEM part for Whirlpool washers. It is responsible for starting the motor and keeping it running smoothly during the washing cycle. It stores electrical energy and delivers it to the motor when needed, providing the necessary power for the washer to function properly.

A bad washer capacitor can occur due to electrical malfunctions, wear and tear, or damage to the capacitor itself. If you notice symptoms such as the washer not starting or spinning, the motor making unusual noises, or the washer not completing cycles, it may be time to replace the washer capacitor.

Symptoms of a bad washer capacitor include:

• Washer not starting or spinning
• Unusual noises coming from the motor
• Incomplete cycles or erratic behavior

Repair your washer by replacing the faulty or worn-out washer capacitor with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This pulley cover encloses the drive belt and motor pulley at the base of the appliance. It protects moving parts from debris and contact, helping reduce noise and wear when the original cover is cracked, warped, or missing.

• Covers the drive belt and motor pulley to keep out dust and debris
• Helps prevent foreign objects from contacting moving parts
• Restores proper clearance to reduce rubbing or scraping noises
• Common signs it's needed: cracked/missing cover, rattling from the base, visible rub marks on the cover or belt

• Disconnect power and, if applicable, shut off water supply before servicing
• Access the underside per your service manual; support the unit securely if tilting
• Reuse existing mounting screws; do not overtighten to avoid damaging the plastic
• Rotate the belt/pulley by hand after installation to confirm free movement and no contact

This factory screw secures appliance panels and components, keeping them properly aligned and quiet during operation. Replace a stripped, corroded, or missing fastener to restore a snug fit and dependable performance in the original mounting location. What it does:

• Fastens brackets, panels, trim, or internal hardware to the cabinet/frame as specified by the manufacturer
• Helps maintain proper alignment and reduce rattling or vibration when a screw is worn or missing
• Direct replacement for damaged, stripped, or rusted hardware
• Used in various locations per the service diagram; match to the original position

• 1 screw

• Disconnect power (and shut off water or gas, if applicable) before servicing.
• Compare length and thread style to the original; install in the same location.
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten.
• Reinstall any brackets or panels in the correct order.

This replacement cam is a small rotary actuator used in the appliance's mechanical control assemblies to transfer motion and engage linked parts. Replacing a worn cam restores reliable mechanical engagement and smooth operation. What it does:

• Transfers rotational motion between control components so linked parts move when commanded
• Helps engage or time mechanical actions in the control or drive assembly
• Worn or broken cams can cause intermittent operation, failure to engage, or noisy movement
• Prevents slipping or improper timing when replaced before significant wear

• One replacement cam

• Disconnect power (and water if applicable) before starting any repair
• Access may require removing panels or control housing; keep fasteners organized
• Inspect adjoining parts (pins, levers, bushings) and replace if worn to prevent repeat failure
• Test operation after reassembly and restore panels/guards for safe use
