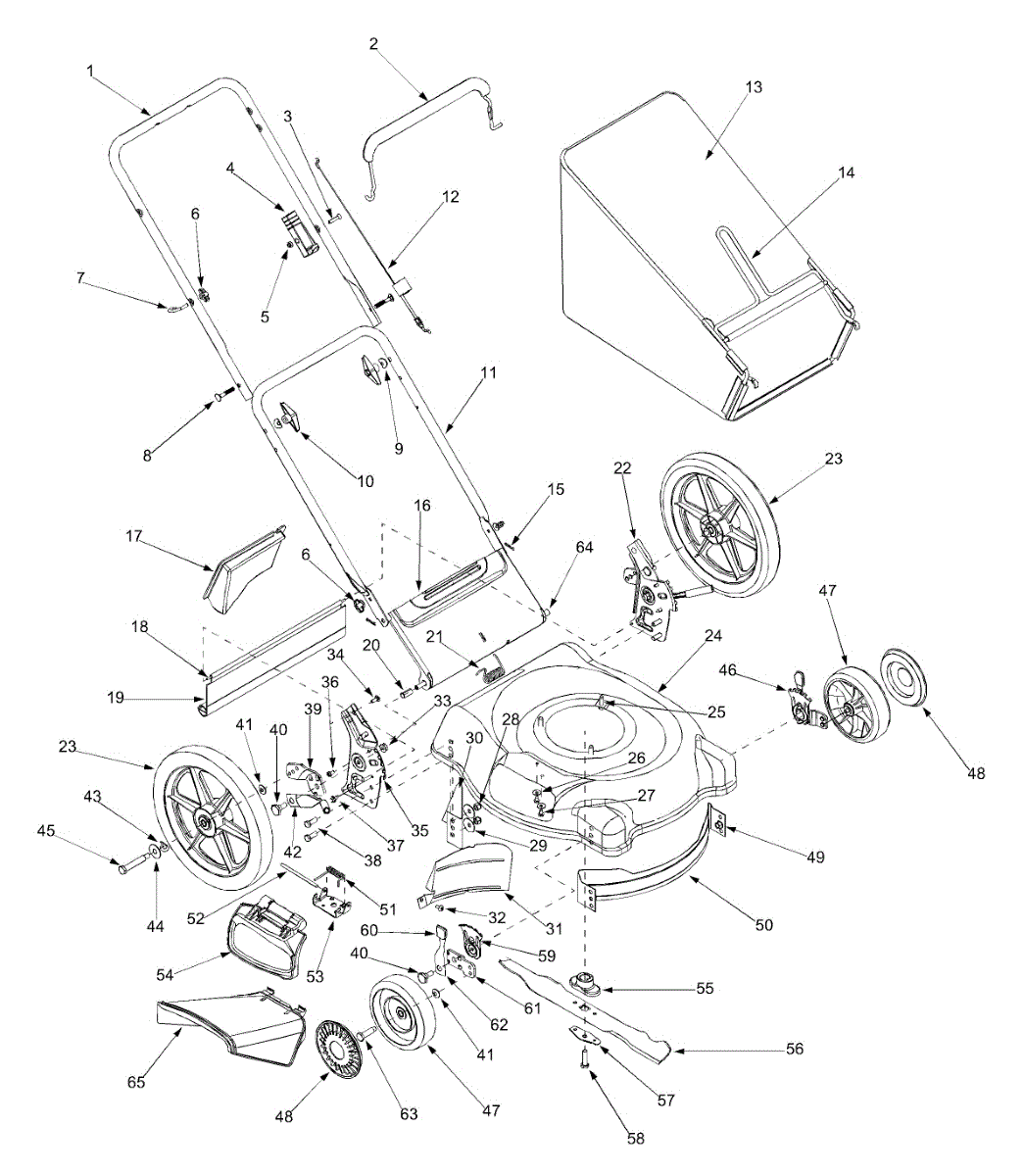

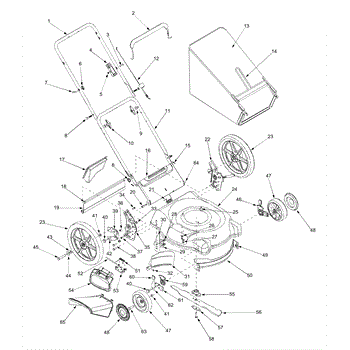

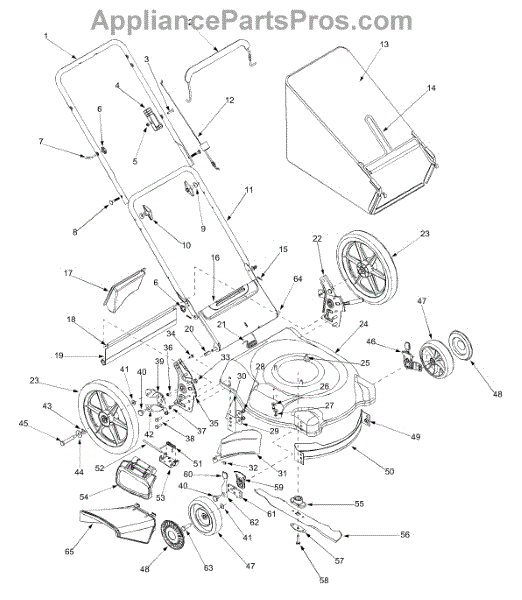

Parts for Bolens 11A-546I763 / 2003: General Assembly (Steel Rear Door) Parts

Upper handle for snowblowers and walk-behind mowers. Replaces broken, cracked, or worn handles. Installs at the top of the handle assembly.

Replacement control handle (bail arm) for walk-behind lawn mowers. Installs on handlebar to engage engine safety. Replace if broken, cracked, or bent.

Fix a mower that won't start or has loose throttle cable control with a new throttle housing. This plastic grip component secures the throttle cable.

Nylon nut for lawn equipment. Secures and connects components throughout the machine. Replace if cracked, stripped, or missing for proper assembly.

Replacement handle adjustment knob for lawn mowers and garden equipment. Secures and allows height adjustments to the upper handle. Order a new one if broken, cracked, or missing.

Rope guide eyebolt for lawn mower recoil starters. Guides the starter rope smoothly during pull starts. Replace if bent, broken, or missing.

Curved head carriage screw secures upper and lower handles on lawn mowers and garden equipment. Replace if damaged, missing, or no longer holding handles.

Lower handle for walk-behind lawn mowers. Replace your cracked, bent, or broken lower handle assembly to restore proper mower operation and control.

Replacement wire that securely attaches the rear skirt trail shield to your lawn mower deck. Replace if broken, detached, or missing for proper skirt fit.

Replace your worn or damaged 14-inch lawn mower wheel assembly. Restores smooth rolling and proper height adjustment when original wheels crack or break.

Secures motor to equipment housing on lawn mowers and small engines. Includes lock washer. 3/8-16 x 1" dimensions. Replace when damaged or stripped.

Replace worn spring bell washers causing loose parts or rattling noises. This conical washer cushions heavy loads in lawn equipment. Simple DIY fix.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

Hex lock nut for lawn mowers and outdoor power equipment. Secures blade assemblies, wheels, and components. Replace if stripped, corroded, or missing.

Self-tapping screw for lawn mowers and outdoor power equipment. Secures panels, covers, and components. Replace if stripped, missing, or corroded.

Carriage bolt for lawn mowers and outdoor power equipment. Fastens components together with a nut. Replace if lost, stripped, or damaged during repair.

Hex washer screw for lawn mowers, tractors, and snow blowers. Replaces stripped, missing, or damaged screws on deck panels and housing assemblies.

Hex bolt secures the steering segment gear on lawn tractors. Replace if stripped, damaged, or missing to restore proper steering assembly attachment.

Flat bell washer for lawn mowers and garden equipment. Replaces worn, missing, or damaged washers. Inner diameter 0.40", outer diameter 0.88".

Metal spring washer designed to absorb vibration between nuts and surfaces on lawn mowers and garden equipment. Replace when worn or flattened.

Replaces cracked or broken blade height adjustment brackets on walk-behind mowers. Secures cutting deck leveling mechanism. Needed when missing or worn.

Hex bolt secures blade adapter and other components on lawn mowers. Replace if bolt is stripped, damaged, or missing to properly fasten parts.

This is a height adjuster knob for walk-behind lawn mowers. It attaches to the height adjuster lever. This component is used to adjust the front wheels on the lawnmower deck. This adjustment allows the user to select the desired cutting height of the grass. This component is made out of a hardened foam material that is easy to grip.If the height adjuster knob falls off of the height adjust lever and will not reattach, it is likely that it will need to be replaced. The height adjuster lever itself is sold separately. The repair person may wish to wear gloves when replacing this part.This component is sourced straight from the manufacturer. It is sold individually and is a genuine OEM part. This height adjuster knob is compatible with walk-behind lawnmowers that are manufactured by the Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, Craftsman, and Husky brands.

Pivot bar bracket for lawn mowers. Mounts to the mower deck to support handle height adjustment mechanism. Replace if bent, cracked, or broken.
