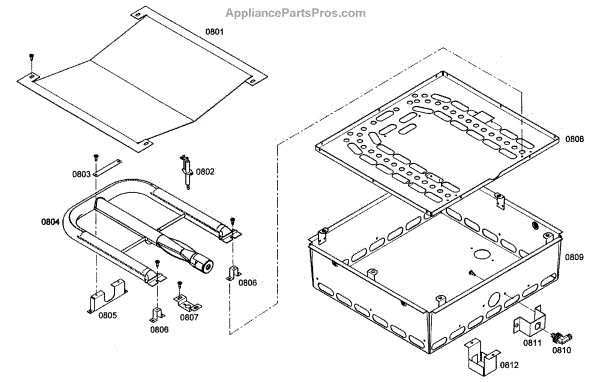

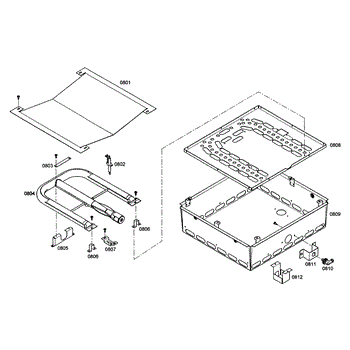

Parts for Thermador PRG364EDG01: Griddle Assy Parts

This spark igniter is the burner electrode that creates the high-voltage spark to light the gas. Replacing a worn igniter restores quick, reliable ignition and helps eliminate repeated clicking or having to light the burner manually.

• Generates a spark at the burner to ignite gas during lighting
• Typical symptoms: burner won't light, no visible spark at that burner, intermittent or delayed ignition, or needing a match to light
• Replaces a cracked, fouled, or heat-damaged electrode that no longer sparks reliably
• Provides the ignition spark only; gas flow is managed by the valve

• Disconnect power and shut off gas before servicing
• Remove grates/caps and access the burner; note wire routing and mounting
• Transfer mounting hardware from the old igniter; handle the ceramic insulator gently and keep the tip clean
• Reassemble, restore power/gas, and verify proper spark and burner ignition

A Trident-style surface burner head that directs gas to the cooktop burner for an even, controlled flame. Replaces a worn or damaged burner head to restore consistent heating and safe operation. What it does:

• Directs and shapes the gas flame for proper cooking heat
• Restores even flame pattern when the original burner is warped or clogged
• Helps eliminate weak or irregular flames caused by damaged ports
• Works with the burner base and cap to maintain stable ignition

• Turn off the appliance and shut off gas/electric power before servicing
• Remove grates and burner cap, then replace the burner head; reassemble in reverse order
• Clean mating surfaces of debris or corrosion before installation for proper fit

This orifice is the small, calibrated gas jet used in the oven burner to control natural gas flow for proper combustion and consistent heat. It replaces a worn or clogged orifice to help restore reliable oven ignition and baking performance. What it does:

• Directs and meters natural gas to the oven burner for correct flame size and stability
• Helps resolve symptoms like weak or uneven burners, weak ignition, or yellow/sooting flames when caused by a restricted orifice
• Used on the oven top/burner assembly where a #38 sized jet is specified
• Fits into the burner orifice holder and works with the existing regulator and valve

• Install only after shutting off the gas supply and following all safety procedures; check for leaks with a soapy water solution or approved leak detector
• Use correct tools and avoid damaging the orifice tip; thread carefully to prevent cross-threading
• Do not modify the orifice; replace with the exact specified size to maintain safe operation
