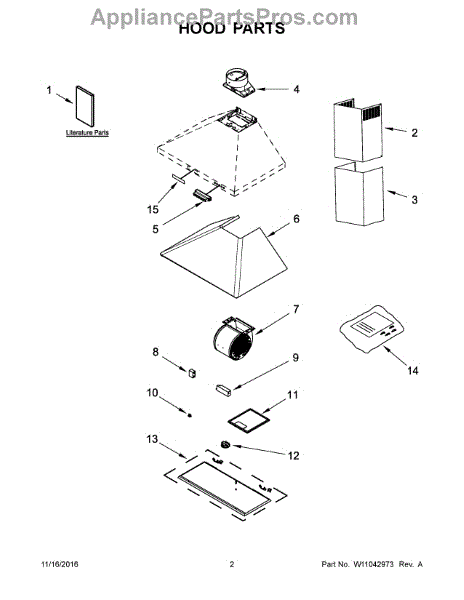

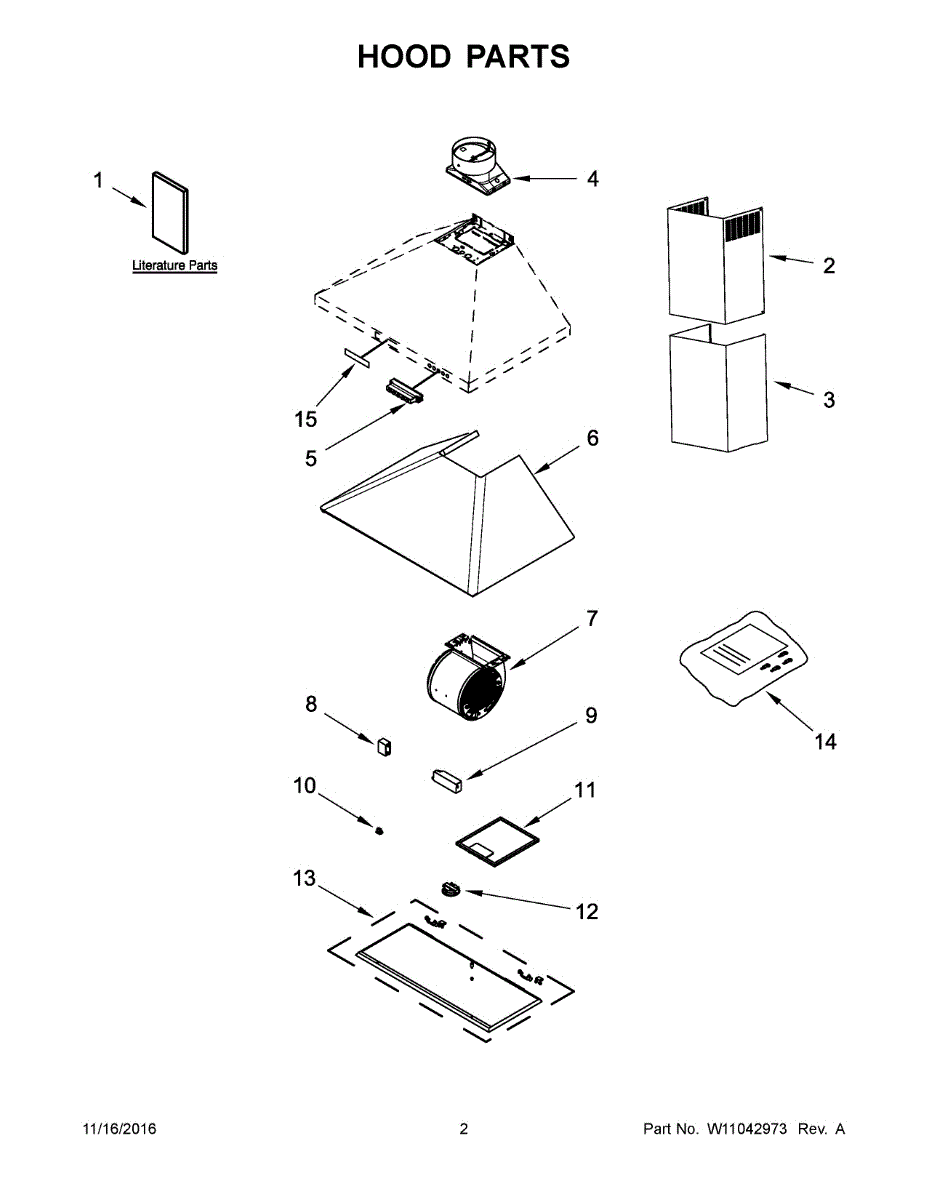

Parts for Kitchenaid KVWB406DSS2: 02 - Hood Parts

The Chimney Duct Assembly is an OEM part for Whirlpool range vent hoods. It is designed to provide a connection between the vent hood and the exterior ventilation system for airflow and removal of cooking odors and smoke.

A bad chimney duct assembly can occur due to regular use, wear and tear, or damage caused by external factors. If you notice poor ventilation, lingering odors, or smoke not being adequately expelled from your kitchen, it may indicate a problem with the chimney duct assembly.

Symptoms of a bad chimney duct assembly include:

• Insufficient airflow or poor ventilation
• Lingering cooking odors or smoke in the kitchen
• Excessive grease buildup in the vent hood or duct system

Replace your faulty chimney duct assembly with this genuine OEM part to restore your appliance.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Chimney Duct Assembly is an OEM part for Whirlpool range vent hoods. It is designed to provide a connection between the vent hood and the exterior ventilation system for airflow and removal of cooking odors and smoke.

A bad chimney duct assembly can occur due to regular use, wear and tear, or damage caused by external factors. If you notice poor ventilation, lingering odors, or smoke not being adequately expelled from your kitchen, it may indicate a problem with the chimney duct assembly.

Symptoms of a bad chimney duct assembly include:

• Insufficient airflow or poor ventilation
• Lingering cooking odors or smoke in the kitchen
• Excessive grease buildup in the vent hood or duct system

Replace your faulty chimney duct assembly with this genuine OEM part to restore your appliance.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This hood damper mounts at the exhaust outlet to let cooking air exit while blocking backdrafts when the fan is off. Replacing a worn damper restores proper airflow and helps eliminate rattling or sticking during vent operation.

• Controls one-way airflow from the hood into the duct; seals when the fan is off
• Helps block outside air and moisture from entering through the vent
• Wear or damage can cause poor venting, rattling noises, or a stuck exterior flap
• Restores vent performance after the original damper is bent, warped, or missing

• Disconnect power at the breaker before servicing
• Access the exhaust outlet and remove the old damper; note airflow orientation
• Install so the flap swings freely and seats closed; avoid overtightening fasteners
• Run the fan to verify smooth damper movement and proper airflow

This is an electronic control that is used on oven range hoods. This part is what is used to control the speed of the fan and the light control. It has a total of five buttons on the unit, each with its own function.If the electronic control no longer responds to the buttons being pushed, it is likely that it will need to be replaced. This component could wear out due to normal wear and tear over time. Make sure to disconnect the oven range hood from the power source prior to attempting to replace the electronic control. Wear gloves to protect the hands during this process.This electronic control is an OEM part that is sourced directly from the manufacturer. It is sold individually. This particular part is compatible with oven range hoods that are manufactured by Whirlpool, Maytag, KitchenAid, Jenn-Air, Admiral, Norge, Roper, Kenmore, and Amana.

This replacement cabinet insulation restores the thermal barrier inside the appliance to help maintain consistent temperatures and reduce frost buildup. Fits the interior cabinet panel to improve energy efficiency and performance. What it does:

• Replaces worn or damaged cabinet insulation that can lead to temperature instability
• Helps reduce frost buildup and uneven cooling in freezer/refrigerator compartments
• Improves energy efficiency by restoring the appliance's thermal seal
• Can reduce vibration noise if original insulation was compressed or missing

• Disconnect power to the appliance before beginning any work.
• Wear gloves and a dust mask; insulation fibers can irritate skin and lungs.
• Remove interior panels or liners to access the insulation cavity.
• Position insulation carefully without compressing; secure with original clips or approved adhesive if required.

The Fan Motor is an OEM part for Whirlpool range vent hoods. It is responsible for extracting smoke, steam, and odors from your kitchen, ensuring a clean environment. It helps to prevent the buildup of grease and unwanted odors.

A bad blower fan motor can occur due to wear and tear, electrical malfunctions, or excessive accumulation of grease. If you notice symptoms such as weak airflow, unusual noises coming from the vent hood, or the fan not operating at all, it may be time to replace the blower fan motor.

Symptoms of a bad blower fan motor include:

• Weak airflow from the vent hood
• Unusual noises coming from the fan
• Fan not operating at all

Repair your vent hood by replacing the faulty or worn-out fan motor with this genuine OEM part.

This Whirlpool OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This run capacitor helps the appliance's motor start and run smoothly by providing a phase-shifted electrical boost. Replacing a worn capacitor restores reliable motor operation and can stop start-up problems and irregular running. What it does:

• Provides the motor with the extra electrical charge needed for starting and stable operation
• Commonly linked to symptoms like hard-starting, a loud humming motor, or motors that won't start
• Stabilizes motor speed and reduces stress on the motor and start components
• Works as a direct replacement for the original capacitor specified for the motor circuit

• Disconnect power to the appliance before servicing to avoid shock hazard
• Discharge the capacitor before touching terminals; capacitors can hold a charge after power is removed
• Use insulated tools and avoid bridging terminals during handling

Replacement transformer that provides low-voltage power to the appliance control system, restoring reliable power to the control board and display. Use when the appliance is unresponsive or shows blank/noisy controls due to a failed transformer. What it does:

• Supplies the low-voltage power required by the control board and user interface.
• Enables control panel functions, displays, and relays that rely on the transformer.
• Common symptom: blank display or no response from touch/pressed controls.
• Also may cause intermittent operation or failure of electrically-driven features when faulty.

• Disconnect power (unplug or shut off breaker) before starting any work.
• Replace with the exact part number; match to the appliance wiring and mounting.
• Observe proper wiring, polarity, and secure connections; do not work on wet surfaces.

The Clip is an OEM part for Whirlpool range hoods. It is a small but important component that helps securely hold portions of the range hood in place.

Symptoms of a bad clip can include wear and tear causing it to break or become loose over time, and failing to properly support attached parts.

Causes of a bad clip include repeated opening and closing of the range hood putting stress on the clip, as well as damage from accidents.

Symptoms of a bad clip include:

• rattling or loose noises coming from the range hood
• attached panels or pieces no longer staying fully secured
• gaps appearing where parts were formerly held tightly together

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This microwave charcoal filter captures cooking odors and smoke in recirculating setups to help keep air moving cleanly through the blower. Replace a saturated or damaged filter to maintain ventilation performance and minimize lingering smells.

• Adsorbs odors and smoke during non-vented operation
• Helps maintain airflow and keep internal surfaces cleaner
• Common signs it's due: persistent odors, reduced airflow, or a visibly dirty/damaged filter
• Intended for over-the-range microwaves that use a charcoal air filter

• Disconnect power to the microwave before servicing
• Remove the upper grille or access panel per your model; release and remove the old filter
• Install the new filter in the same orientation; reinstall grille and restore power

This small replacement hardware fastener secures appliance panels or components to restore proper fit and reduce noise. Use it when a loose or missing fastener is causing rattling, misalignment, or insecure panels. What it does:

• Secures panels, trim, or internal components to prevent shifting and vibration
• Helps restore proper alignment of doors or access panels
• Stops rattling or buzzing caused by loose hardware
• Replaces worn, stripped, or missing fasteners for a snug fit

• One replacement hardware fastener

• Disconnect power and water supply before beginning any repair
• Use the correct screwdriver or socket to avoid stripping the fastener
• Handle edges and panels carefully to avoid cuts or damage

This name plate is the appliance's model and serial identification label—an easy way to restore clear product ID for service, parts ordering, and warranty records. Keeps your appliance information visible and readable. What it does:

• Displays manufacturer model and serial numbers and other factory ID details
• Restores a missing or damaged ID label so technicians can identify the correct parts and specs
• Helps when registering the appliance or filing warranty and service requests
• Prevents delays caused by unreadable or absent identification information

• Clean and dry the mounting surface before applying; remove old adhesive residue
• Align carefully and press firmly; some name plates use adhesive backing or mounting tabs
• Do not cover vents, controls, or safety labels when installing

This genuine OEM replacement part is a fan motor made for refrigerators. The fan motor disperses air to the compressor and condenser parts of the refrigerator to keep them from overheating, ultimately keeping the refrigerator cool. If the refrigerator is no longer maintaining a cold temperature, this might mean that the fan motor needs to be replaced. Thankfully replacing a fan motor is a simple job.To replace the fan motor, begin by unplugging the refrigerator. Then open the freezer door and remove all bins and shelving inside the freezer. Continue by unthreading the screws on the back wall of the freezer to gain access to the motor. Remove any side screws to fully remove the back cover. Pull off the red and white power wires to the motor. Then pull off the green ground wire. With a pair of needle-nose pliers, pry off the fan blade on the top, and set it to the side. The motor is held in place by a spring bracket on the front and back; squeeze and lift up and push the motor downwards to pull it out. Install the new motor into the brackets by tilting it upward and engaging both rear and front brackets. Reinstall the wire harness and ground terminal by snapping them into their appropriate connectors. Reinstall the back cover.This genuine replacement part is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand refrigerators.

This duct cover extension kit raises a range hood's chimney to fit taller ceilings and gives a finished look where the standard chimney is too short. It provides an easy way to extend the visible duct cover for a cleaner installation. What it does:

• Extends the hood chimney/duct cover to reach higher ceilings
• Covers exposed ductwork for a finished appearance
• Helps align the duct cover with cabinetry and ceiling lines
• Useful when replacing or modifying hood installation height

• Turn off power to the hood before beginning any work
• Follow the manufacturer's instructions and use proper fasteners for your wall/ceiling type
• Do not alter structural supports or ventilation openings; consult local codes

This replacement power cord provides the electrical connection that supplies your appliance with mains power. It restores safe, reliable power delivery so your appliance can operate normally. What it does:

• Replaces a damaged or missing power cord to restore electrical connection
• Helps address symptoms like no power, intermittent power, or visible cord damage
• Maintains the appliance's grounded connection when matched to the original cord
• Routes power from the wall outlet to the appliance's inlet or terminal block

• One replacement power cord

• Disconnect power at the breaker or unplug the appliance before starting work
• Route the cord and secure strain relief/fasteners per the appliance's service instructions

This duct kit provides a secure vent transition to route exhaust air and lint safely from the appliance to the house vent, helping restore proper airflow and reduce venting-related performance issues. What it does:

• Creates a sealed connection between the appliance outlet and the home venting system to prevent leaks.
• Channels hot, moist air and lint out of the appliance to help maintain drying performance.
• Addresses common venting symptoms like longer dry times, excess heat in the laundry area, and visible lint buildup.
• Helps reduce moisture buildup and potential odor or mildew issues caused by poor venting.

• Disconnect power (and gas, if applicable) before servicing; follow all manufacturer safety instructions.
• Inspect the existing vent path and clean any lint before installing the kit for best results.
• Use appropriate vent material (rigid or semi-rigid metal ducting where recommended) and avoid crushing or sharp bends that restrict airflow.
• Fasten connections securely and seal joints per the appliance manufacturer's instructions.

This replacement grease filter captures airborne grease and cooking residue in your appliance's venting system, helping protect the blower and ductwork while maintaining effective ventilation and airflow.

• Traps grease and food particles carried by the exhaust airstream
• Helps sustain proper airflow and reduce smoke and lingering odors
• Replace if mesh is torn, warped, missing, or remains clogged after cleaning
• Common symptoms include persistent smoke/odors, visible grease buildup, or a loose/rattling filter

• Disconnect power before servicing and allow the appliance to cool completely
• Open the filter access, release the retaining latch or screws, and remove the old filter
• Slide the new filter into place, matching the original orientation/tabs
• Ensure the filter is fully seated and secured; do not operate the unit without a filter
