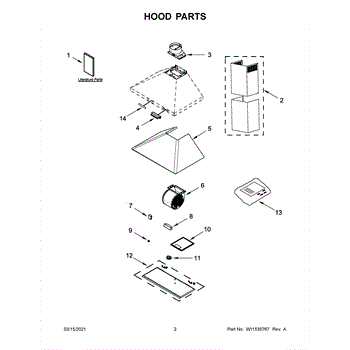

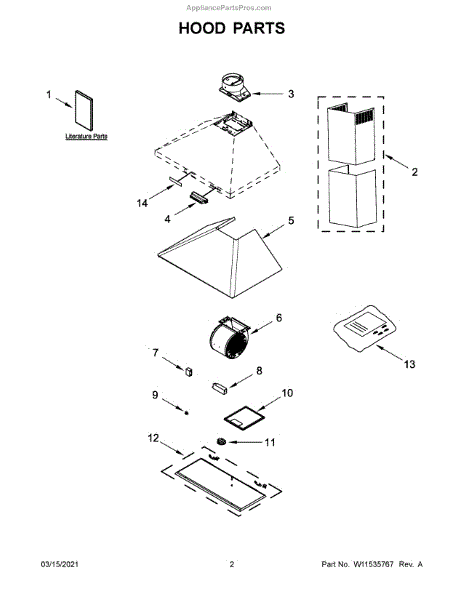

Parts for Kitchenaid KVWB406DSS3: Hood Parts

The Chimney Duct Assembly is an OEM part for Whirlpool range vent hoods. It is designed to provide a connection between the vent hood and the exterior ventilation system for airflow and removal of cooking odors and smoke.

A bad chimney duct assembly can occur due to regular use, wear and tear, or damage caused by external factors. If you notice poor ventilation, lingering odors, or smoke not being adequately expelled from your kitchen, it may indicate a problem with the chimney duct assembly.

Symptoms of a bad chimney duct assembly include:

• Insufficient airflow or poor ventilation
• Lingering cooking odors or smoke in the kitchen
• Excessive grease buildup in the vent hood or duct system

Replace your faulty chimney duct assembly with this genuine OEM part to restore your appliance.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This hood damper mounts at the exhaust outlet to let cooking air exit while blocking backdrafts when the fan is off. Replacing a worn damper restores proper airflow and helps eliminate rattling or sticking during vent operation.

• Controls one-way airflow from the hood into the duct; seals when the fan is off
• Helps block outside air and moisture from entering through the vent
• Wear or damage can cause poor venting, rattling noises, or a stuck exterior flap
• Restores vent performance after the original damper is bent, warped, or missing

• Disconnect power at the breaker before servicing
• Access the exhaust outlet and remove the old damper; note airflow orientation
• Install so the flap swings freely and seats closed; avoid overtightening fasteners
• Run the fan to verify smooth damper movement and proper airflow

This is an electronic control that is used on oven range hoods. This part is what is used to control the speed of the fan and the light control. It has a total of five buttons on the unit, each with its own function.If the electronic control no longer responds to the buttons being pushed, it is likely that it will need to be replaced. This component could wear out due to normal wear and tear over time. Make sure to disconnect the oven range hood from the power source prior to attempting to replace the electronic control. Wear gloves to protect the hands during this process.This electronic control is an OEM part that is sourced directly from the manufacturer. It is sold individually. This particular part is compatible with oven range hoods that are manufactured by Whirlpool, Maytag, KitchenAid, Jenn-Air, Admiral, Norge, Roper, Kenmore, and Amana.

This replacement cabinet insulation restores the thermal barrier inside the appliance to help maintain consistent temperatures and reduce frost buildup. Fits the interior cabinet panel to improve energy efficiency and performance. What it does:

• Replaces worn or damaged cabinet insulation that can lead to temperature instability
• Helps reduce frost buildup and uneven cooling in freezer/refrigerator compartments
• Improves energy efficiency by restoring the appliance's thermal seal
• Can reduce vibration noise if original insulation was compressed or missing

• Disconnect power to the appliance before beginning any work.
• Wear gloves and a dust mask; insulation fibers can irritate skin and lungs.
• Remove interior panels or liners to access the insulation cavity.
• Position insulation carefully without compressing; secure with original clips or approved adhesive if required.

The Fan Motor is an OEM part for Whirlpool range vent hoods. It is responsible for extracting smoke, steam, and odors from your kitchen, ensuring a clean environment. It helps to prevent the buildup of grease and unwanted odors.

A bad blower fan motor can occur due to wear and tear, electrical malfunctions, or excessive accumulation of grease. If you notice symptoms such as weak airflow, unusual noises coming from the vent hood, or the fan not operating at all, it may be time to replace the blower fan motor.

Symptoms of a bad blower fan motor include:

• Weak airflow from the vent hood
• Unusual noises coming from the fan
• Fan not operating at all

Repair your vent hood by replacing the faulty or worn-out fan motor with this genuine OEM part.

This Whirlpool OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This run capacitor helps the appliance's motor start and run smoothly by providing a phase-shifted electrical boost. Replacing a worn capacitor restores reliable motor operation and can stop start-up problems and irregular running. What it does:

• Provides the motor with the extra electrical charge needed for starting and stable operation
• Commonly linked to symptoms like hard-starting, a loud humming motor, or motors that won't start
• Stabilizes motor speed and reduces stress on the motor and start components
• Works as a direct replacement for the original capacitor specified for the motor circuit

• Disconnect power to the appliance before servicing to avoid shock hazard
• Discharge the capacitor before touching terminals; capacitors can hold a charge after power is removed
• Use insulated tools and avoid bridging terminals during handling

Replacement transformer that provides low-voltage power to the appliance control system, restoring reliable power to the control board and display. Use when the appliance is unresponsive or shows blank/noisy controls due to a failed transformer. What it does:

• Supplies the low-voltage power required by the control board and user interface.
• Enables control panel functions, displays, and relays that rely on the transformer.
• Common symptom: blank display or no response from touch/pressed controls.
• Also may cause intermittent operation or failure of electrically-driven features when faulty.

• Disconnect power (unplug or shut off breaker) before starting any work.
• Replace with the exact part number; match to the appliance wiring and mounting.
• Observe proper wiring, polarity, and secure connections; do not work on wet surfaces.

The Clip is an OEM part for Whirlpool range hoods. It is a small but important component that helps securely hold portions of the range hood in place.

Symptoms of a bad clip can include wear and tear causing it to break or become loose over time, and failing to properly support attached parts.

Causes of a bad clip include repeated opening and closing of the range hood putting stress on the clip, as well as damage from accidents.

Symptoms of a bad clip include:

• rattling or loose noises coming from the range hood
• attached panels or pieces no longer staying fully secured
• gaps appearing where parts were formerly held tightly together

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This microwave charcoal filter captures cooking odors and smoke in recirculating setups to help keep air moving cleanly through the blower. Replace a saturated or damaged filter to maintain ventilation performance and minimize lingering smells.

• Adsorbs odors and smoke during non-vented operation
• Helps maintain airflow and keep internal surfaces cleaner
• Common signs it's due: persistent odors, reduced airflow, or a visibly dirty/damaged filter
• Intended for over-the-range microwaves that use a charcoal air filter

• Disconnect power to the microwave before servicing
• Remove the upper grille or access panel per your model; release and remove the old filter
• Install the new filter in the same orientation; reinstall grille and restore power

This small replacement hardware fastener secures appliance panels or components to restore proper fit and reduce noise. Use it when a loose or missing fastener is causing rattling, misalignment, or insecure panels. What it does:

• Secures panels, trim, or internal components to prevent shifting and vibration
• Helps restore proper alignment of doors or access panels
• Stops rattling or buzzing caused by loose hardware
• Replaces worn, stripped, or missing fasteners for a snug fit

• One replacement hardware fastener

• Disconnect power and water supply before beginning any repair
• Use the correct screwdriver or socket to avoid stripping the fastener
• Handle edges and panels carefully to avoid cuts or damage

This name plate is the appliance's model and serial identification label—an easy way to restore clear product ID for service, parts ordering, and warranty records. Keeps your appliance information visible and readable. What it does:

• Displays manufacturer model and serial numbers and other factory ID details
• Restores a missing or damaged ID label so technicians can identify the correct parts and specs
• Helps when registering the appliance or filing warranty and service requests
• Prevents delays caused by unreadable or absent identification information

• Clean and dry the mounting surface before applying; remove old adhesive residue
• Align carefully and press firmly; some name plates use adhesive backing or mounting tabs
• Do not cover vents, controls, or safety labels when installing
