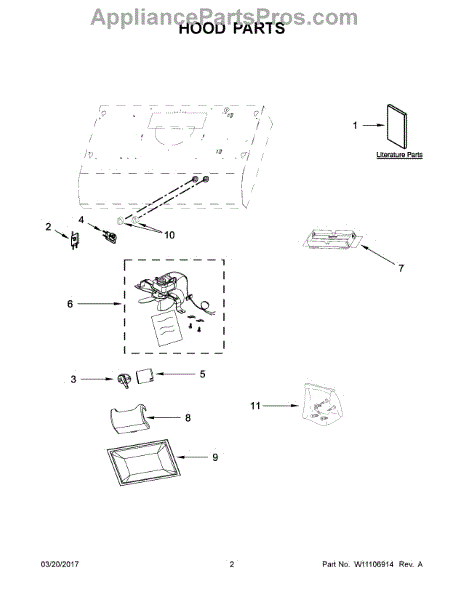

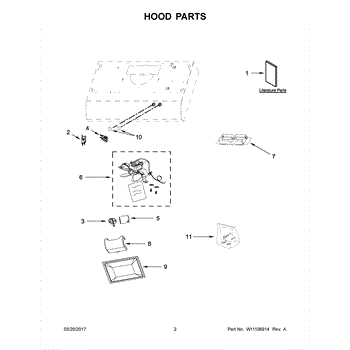

Parts for Whirlpool UXT4236ADB2: 02 - Hood Parts

This rotary switch controls settings by turning the appliance's control knob. Replace it to restore precise on/off and selection when the dial stops responding, only works in one position, or functions intermittently.

• Provides rotary input to select operating settings
• Changes electrical contacts at defined positions to signal the control
• Helps resolve issues like no response, single-setting only, or intermittent operation when turning the knob
• Matches original mounting and terminal layout for proper function

What's included: 1 rotary switch Install notes:

• Disconnect power at the breaker or unplug before servicing
• Remove the control knob and open the control panel to access the switch
• Label or photograph wire positions; transfer wires one at a time to the new switch
• Mount securely without bending terminals, reassemble, and test operation

This is a filter latch that secures the refrigerator water/air filter housing so the filter stays seated and the housing seals correctly. Replaces a worn or broken latch to restore proper filter retention. What it does:

• Holds the filter housing cover or cartridge firmly in place to prevent dislodging
• Helps maintain a proper seal to reduce leaks or bypass around the filter
• Stops the filter from falling out when removing or replacing the cartridge
• Resolves symptoms like a loose or broken latch, filter not staying seated, or water bypass near the filter area

• Disconnect power and shut off water supply before servicing the filter area
• Remove the old latch per your model's service instructions; small hand tools may be needed
• Inspect surrounding housing for damage; replace housing if cracked or warped
• Do not force or overtighten; seat the latch so the filter seals correctly

This rotary switch mounts behind a control knob and routes power to the selected setting. Replacing a worn switch restores a positive knob feel and consistent, dependable operation of the function it controls. What it does

• Provides multi-position contacts as the knob rotates to control the selected function
• Helps resolve issues like: function won't start or won't turn off
• Can fix only one speed/setting working or intermittent operation
• Addresses a loose-feeling knob or a stripped/broken switch shaft

• One rotary switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the control area; note wire locations (photos/labels) before removing the old switch
• Transfer wires to the new switch one-by-one to maintain orientation; reuse the original knob and mounting hardware if applicable
• Test operation through all positions before final reassembly

This is a motor fan assembly manufactured by Whirlpool to replace a broken or faulty fan in range hoods. This motor fan assembly removes odors and grease caused by cooking. A working range hood is important, and without the motor fan assembly, the range will not be able to work properly, if at all. Over time, the motor fan assembly can become worn, corroded, or clogged by grease, causing it to break or start to malfunction. If this occurs, the part should be replaced immediately. To prevent injury, always wear work gloves and disconnect the range hood from power sources. This is a genuine OEM part that has been sourced directly from the manufacturer. This motor fan assembly is sold individually and manufactured from durable materials. It is compatible with range hood models manufactured by various brands, including Whirlpool, Maytag, Kitchenaid, and Magic Chef.

A replacement hood damper assembly that opens and closes the vent opening to help direct exhaust airflow and reduce backdrafts when the range hood or microwave fan is off. Restores proper vent operation and helps control odors and smoke. What it does:

• Opens to allow exhaust air to escape when the hood fan runs
• Closes to block outside air and reduce backdrafts when the fan is off
• Helps improve ventilation performance and reduces kitchen odors and smoke build-up
• Commonly replaced when the damper is stuck, bent, or noisy

• One hood damper assembly

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the hood or microwave bottom panel; support the unit if needed
• Verify damper orientation and secure mounting fasteners; test operation before reassembly

The Light Cover is an OEM part for Whirlpool range hoods. The light cover protects the internal light bulbs while allowing brightness to illuminate the cooktop below. It helps prevent grease, smoke, and kitchen pollutants from damaging electrical components.

Causes of a bad light cover can include damage from heat and grease in the range hood environment over extended use. Material breakdown from cleaning chemicals is also common.

Symptoms of a bad light cover include:

• Dim or uneven hood lighting that does not adequately illuminate the cooking surface
• Discoloration or stains on the light cover material
• Cracks or breaks that expose light bulbs
• Premature bulb burnout from lack of protection

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This charcoal filter is used in recirculating range hoods to reduce cooking odors and smoke. Replacing a saturated filter restores ventilation performance and helps keep kitchen air fresher when venting air back into the room. What it does:

• Adsorbs cooking odors and vapors when the hood is set to recirculate indoors
• Helps maintain proper airflow and capture smoke/steam during cooking
• Replace if saturated, damaged, or shedding carbon
• Common signs: lingering odors, reduced airflow, discoloration, or loose carbon granules

• 1 charcoal filter

• Disconnect power to the hood before servicing
• Remove/open the filter cover or grille; release the old filter from its clips or frame
• Insert the new filter with proper orientation; secure it and reinstall the cover
• Charcoal filters are not washable or reusable; replace periodically as needed

This control knob replaces a worn, cracked, or missing range/stove control knob to restore precise setting selection and safe operation. It provides a simple, direct replacement for a damaged user control interface. What it does:

• Replaces the worn or broken control knob used to set oven/range functions and temperatures
• Restores a secure grip and smooth rotation for accurate adjustments
• Helps eliminate slipping, cracking, or a loose knob that prevents proper control selection
• Improves user safety by providing a stable control surface for heat and function changes

• One control knob

• Disconnect power or unplug the appliance before servicing
• Typically pulls straight off the control shaft; avoid excessive force
• Verify knob orientation and shaft fit before installing
• If control shaft is damaged or settings remain unresponsive, inspect the underlying switch or control

This control knob replaces a worn, broken, or missing range/cooktop control dial to restore a secure grip and reliable setting selection. It gives you a simple parts-level fix so burners and oven controls respond properly. What it does:

• Replaces damaged or missing control knob so you can turn and set burner or oven controls again
• Provides secure engagement with the control shaft to prevent slipping or spinning
• Helps restore precise selection of temperature or cook settings when the original knob is cracked, loose, or missing
• Matches OEM fit and function for direct swap-on installation with the original control shaft

• Always turn controls OFF and ensure the appliance is cool before removing or installing the knob
• Pull the old knob straight off the control shaft (use a cloth or knob puller if it's tight); align the marker and push the new knob fully onto the shaft
• If the new knob does not seat correctly or control operation still fails, the underlying switch or valve may need replacement.

This replacement power cord provides the electrical connection that supplies your appliance with mains power. It restores safe, reliable power delivery so your appliance can operate normally. What it does:

• Replaces a damaged or missing power cord to restore electrical connection
• Helps address symptoms like no power, intermittent power, or visible cord damage
• Maintains the appliance's grounded connection when matched to the original cord
• Routes power from the wall outlet to the appliance's inlet or terminal block

• One replacement power cord

• Disconnect power at the breaker or unplug the appliance before starting work
• Route the cord and secure strain relief/fasteners per the appliance's service instructions

This hood damper is the backdraft flap in the exhaust outlet. It opens when the blower runs to vent air outside and closes when off to help block outside drafts, odors, and pests from entering.

• Controls airflow from the blower to the duct during ventilation
• Closes when off to reduce backdrafts and outside air intrusion
• Helps maintain effective capture of smoke, steam, and odors
• Typical symptoms: drafts through the vent, flapping/rattling noises, poor venting, or a broken/missing flap

• Disconnect power; if vented, support or disconnect ducting as needed
• Access the exhaust outlet and remove the damaged damper
• Install with arrow/hinge oriented for airflow; the flap moves freely without binding
• Reassemble ductwork, restore power, and test the fan on all speeds

A replacement mounting plate that secures internal components and restores proper alignment in compatible Whirlpool appliances. Helps stop rattling and loose parts so the appliance runs more quietly and reliably. What it does:

• Secures and supports internal assemblies to maintain correct positioning
• Prevents vibration and rattling caused by a damaged or bent plate
• Helps maintain proper clearance so moving parts operate without interference
• Restores stable fit when the original plate is cracked, warped, or corroded

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove the appropriate access panel or trim to reach the plate; keep track of fasteners
• Use basic hand tools; avoid over-tightening screws to prevent distortion

Keep your vent hood performing at its best. This 3-pack of recirculation filters refreshes the air in non-ducted installations by capturing fine cooking byproducts, helping the hood clear steam and smoke and reduce lingering kitchen odors.

• Filters air when the hood is set up for non-ducted/recirculating operation
• Helps capture fine particles from cooking to reduce haze and odors
• Replace if saturated, warped, damaged, or excessively discolored
• Common symptoms of a spent filter set: lingering odors after cooking, smoke not clearing as well, visible buildup on filters

• Disconnect power to the hood and allow components to cool before servicing
• Access filter area (location and retention method vary by model); note orientation of existing filters
• Release tabs/latches, remove old filters, and seat the new filters securely in the same orientation
• Refer to your model's use & care guide for specific replacement guidance and intervals
