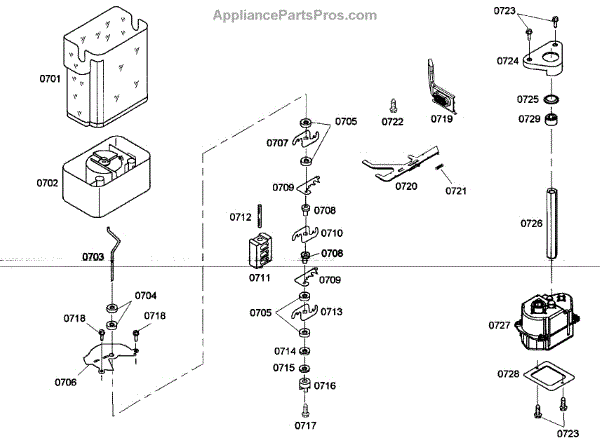

Parts for Thermador KBUDT4875E/01: Ice Maker / Door Assy Parts

This Bosch filter removes contaminants and improves water taste. The filter should be changed every six months for best performance. Simple installation requires no special tools. Measures approximately 13.25" x 2.5" x 2.5".

This coupling connects the dishwasher motor to the pump assembly so the wash pump can turn and circulate water. Replaces a worn or broken drive coupling to restore pump drive and normal wash performance. What it does:

• Transfers rotational force from the motor to the pump impeller so water is circulated during the wash cycle.
• Commonly fails from wear or cracking, which can cause little or no water circulation or noisy operation.
• Helps stop slipping between motor and pump that can lead to poor cleaning or intermittent operation.
• Fits into the pump/motor interface; designed to match OEM fit and function.

• One replacement coupling (1 piece)

• Disconnect power and water before beginning any repair.
• Access typically requires removing the dishwasher lower access panel and separating the pump/motor assembly; follow the manufacturer service manual.
• Inspect surrounding seals and fasteners and replace any damaged components while the unit is disassembled.

This is a push-button replacement used on compatible Bosch appliances to restore proper user-control operation and tactile feedback. Install the button to replace a broken, worn, or missing control button and regain reliable front-panel input. What it does

• Provides a tactile surface for operating a specific front-panel control or selector
• Replaces cracked, stuck, or missing buttons that prevent reliable input
• Restores proper actuation so the underlying switch can be pressed cleanly
• Helps avoid accidental presses from damaged or loose buttons

• One push-button

• Disconnect power to the appliance before attempting any repairs
• Usually snaps into the front panel; remove the control panel or trim if needed to access the button
• Inspect the underlying switch for damage and replace it if the button alone does not restore function

This replacement wire spring restores proper tension in the appliance mechanism to help parts stay aligned and move smoothly. Use it to replace a worn or broken spring and reduce loose or erratic motion. What it does:

• Provides tension to maintain correct alignment of moving parts
• Helps stabilize panels or assemblies that have become loose
• Reduces rattling, binding, or uneven movement caused by a failed spring
• Reinstates normal operation when an old spring is stretched or broken

• One replacement wire spring

• Disconnect power (and water if applicable) before starting any repair
• Handle small parts carefully; keep track of orientation and any retainers
• Some disassembly of panels or brackets may be required; refer to service diagram
• Test the appliance after installation

This drive shaft transfers motor rotation to the dishwasher pump/impeller so the wash system can circulate water. It replaces a worn or broken shaft to restore proper wash action and reduce vibration or noise. What it does:

• Couples the motor output to the wash pump/impeller so water is circulated during the wash cycle
• Restores rotation when a worn, bent, or broken shaft prevents the pump from turning
• Reduces excessive vibration or grinding noises caused by a damaged shaft
• Helps prevent intermittent wash performance related to a slipping or fractured coupling

• Disconnect power (and water if applicable) before starting any disassembly.
• Installation requires removing the lower access panels and disassembling the pump/motor assembly; follow OEM service instructions.
• Inspect the pump housing, impeller, and seals for wear or damage and replace as needed.
• After installation, verify proper rotation and listen for abnormal noise before reassembling the cabinet.

The Auger Motor is an OEM part for Bosch refrigerators.The auger motor rotates the auger shaft to dispense ice through the door.

Causes of a bad auger motor can include normal wear and tear from continuous use, damage due to freezing or thawing cycles, or failure of internal motor components.

Symptoms of a bad auger motor include:

• Loud buzzing or grinding noises
• Inability to dispense ice from the ice bucket

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

A small replacement sleeve used to space, protect or insulate mating components in select appliances. Restores correct alignment and helps prevent metal-to-metal contact for quieter, reliable operation. What it does:

• Acts as a spacer or bushing to keep parts correctly positioned and reduce wear
• Provides electrical or thermal insulation where specified by the manufacturer
• Helps stop rattling or vibration caused by loose or misaligned components
• Protects shafts or fasteners from abrasion and corrosion

• One replacement sleeve

• Disconnect power and water before servicing the appliance
• Access may require removing a panel or disassembling nearby components; keep fasteners organized
• Inspect mating parts for wear and replace if damaged to ensure proper fit
• Use the exact part number to ensure correct fit.
