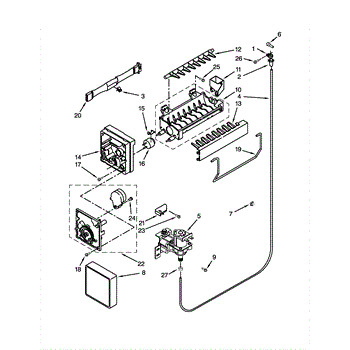

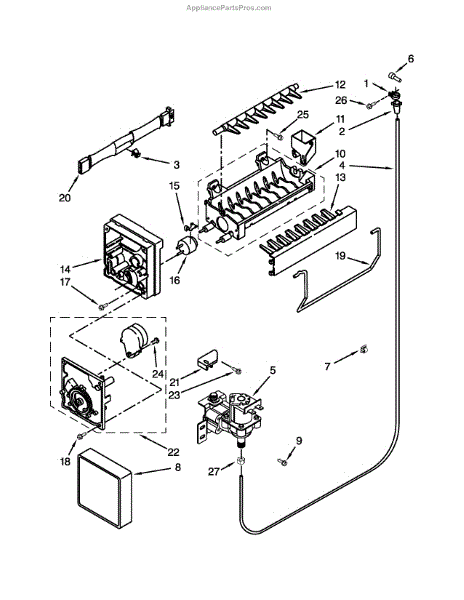

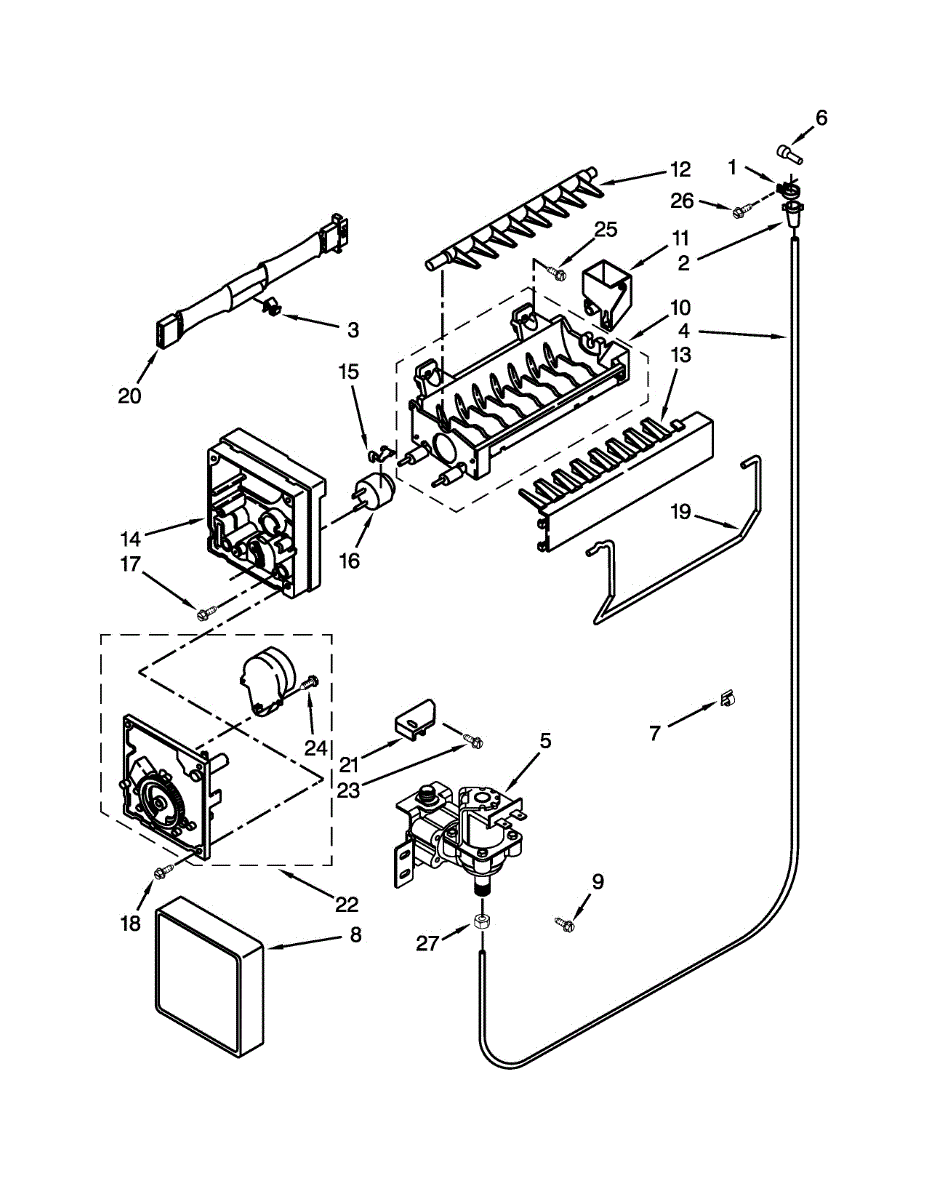

Parts for Ikea IK8RXDGMXS02: Icemaker Parts

These inserts are for 1/4 inch plastic tubing. Package of 4.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Inlet Valve is an OEM replacement part for Whirlpool washing machines. It is a crucial component responsible for controlling the flow of water into the washing machine tub during the fill cycles.

Symptoms of a bad water inlet valve include:

• Washing machine not filling with water or filling slowly
• Leaks or water drips around the valve or water supply connections
• Improper water temperature mixing, resulting in incorrect wash temperatures
• Error codes or warning lights related to water supply or fill issues

Causes of a faulty water inlet valve can include sediment buildup or obstructions within the valve, mechanical wear and tear, electrical malfunctions, or problems with the solenoid that controls the valve's operation.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machines.

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs

Size: 8-18 x 1/2 inch.

This cup fill spout directs the dispenser's water stream cleanly into a cup. If the spout is cracked, clogged, or warped, it can cause splashing or persistent drips—replacing it restores a steady, controlled flow.

• Funnels water from the dispenser outlet for a smooth, targeted stream
• Helps reduce splashing and water running down the door
• Can resolve drips after dispensing, erratic spray, or a damaged/missing spout
• Visible cracks, mineral buildup, or deformation are common failure signs

• Unplug the appliance and turn off the water supply
• Open the dispenser area and release the spout from its locking tabs or clips
• Seat the new spout fully; transfer any seals from the old part if applicable
• Restore water and power, then test for proper flow and leaks

This comb-shaped insert mounts at the front of the modular ice maker. It strips freshly ejected cubes from the rake and directs them into the bin to help prevent jams and cube hang-ups for consistent ice harvests.

• Guides cubes off the ejector fingers and into the bin
• Helps prevent cubes from re-entering the mold, bridging, or jamming
• Replaces a cracked, warped, or missing stripper to restore proper harvest path
• Typical symptoms: cubes stuck on the ejector, repeated jams, ice spilling or clumping

• Disconnect power to the refrigerator and turn off the ice maker before servicing
• Remove the ice maker front cover; release locking tabs or screws to remove the old stripper
• Position the new stripper over the ejector fingers; seat fully without forcing the rake
• Reinstall cover/ice maker, restore power, and allow a full cycle to verify operation

A single replacement screw used to secure appliance panels and components. Restores proper fastening to reduce vibration and keep parts aligned for safe, quiet operation. What it does:

• Fastens panels, brackets or assemblies to the appliance frame
• Helps eliminate rattling or looseness from unsecured parts
• Maintains component alignment for reliable operation
• Matches the OEM fastening point and thread where specified

• Disconnect power and water before beginning work
• Use the correct screwdriver or bit to avoid stripping the head
• Install in the original location and hand-start threads to avoid cross-threading
• Do not overtighten; tighten to snug fit per service literature

This ice maker shut-off arm is the wire lever that detects the ice bin level and stops production when raised. Replace a bent, broken, or missing arm to restore reliable on/off control of your icemaker.

• Monitors bin fullness; in the up position it opens the internal switch to pause ice making
• Lowers as ice is used so the icemaker can resume cycles
• Restores manual shutoff when you lift the arm

• Disconnect refrigerator power and turn off the water supply before servicing
• Remove the ice bin for access; open the icemaker front cover if your model has one
• Pull the old arm straight out of the pivot holes; align and fully seat the new arm so it moves freely
• Restore power and lower the arm to resume ice production; the arm raises and stops production when the bin is full

This wire assembly connects and powers the ice maker so it can cycle and make ice. It replaces a damaged or disconnected ice-maker harness to restore electrical continuity and reliable ice production. What it does

• Provides the electrical connections between the ice maker and the freezer wiring harness
• Restores power to the ice maker when factory wiring is frayed or broken
• Helps stop intermittent or complete ice-maker failure caused by damaged connectors or wiring
• Supports proper communication for fill and harvest cycles when installed correctly

• One wire assembly for the ice maker

• Disconnect power to the refrigerator before starting any repair
• Access may require removing freezer shelves/panels and the ice maker module per OEM instructions
• Match connector shapes and routing; avoid sharp bends or pinched wiring when installing
• After installation, restore power and run an ice-maker test cycle to verify proper operation

The ice maker bracket is an OEM part for Whirlpool refrigerators. This bracket is a structural component that holds and supports the icemaker assembly within the refrigerator. It allows for secure mounting and installation of the icemaker while also maintaining proper alignment.

Causes of a bad bracket can include wear and tear over time, cracks or breaks due to impact or stress, or corrosion issues that compromise the integrity of the mounting structure.

Symptoms of a bad bracket include:

• Loose or unstable icemaker installation
• Improper ice production or dispensing
• Noise or vibrations emanating from the icemaker area
• Moisture leaks or water damage near the bracket mounting points

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 1/4 inch. Nut for plastic water line.

The Icemaker Kit is an OEM replacement part for Whirlpool refrigerators. It is a comprehensive kit that includes all the necessary components to replace or install a new icemaker in your refrigerator.

Causes of needing a new icemaker kit can include the existing icemaker malfunctioning, producing insufficient or irregular ice, or being damaged due to wear and tear.

Symptoms indicating it's time to replace the icemaker include:

• No ice production or irregular ice cube formation
• Water leaks or excessive condensation around the icemaker area
• Strange noises or grinding sounds during operation
• Error codes or warning lights related to the icemaker

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models. Note: This kit no longer comes with the "shut-off" arms. Order by model if needed.
