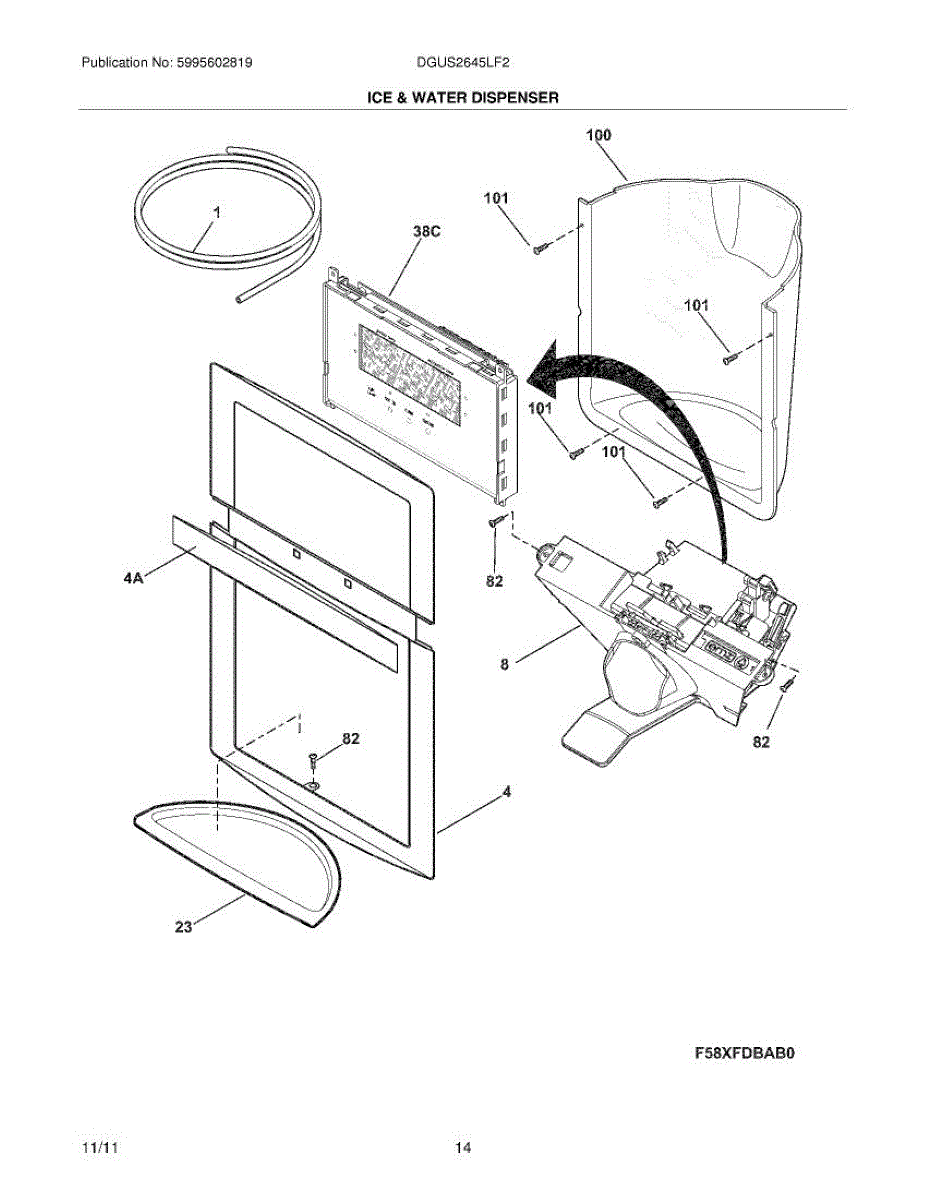

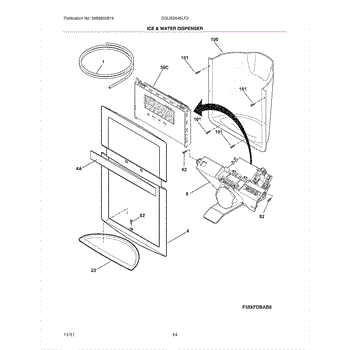

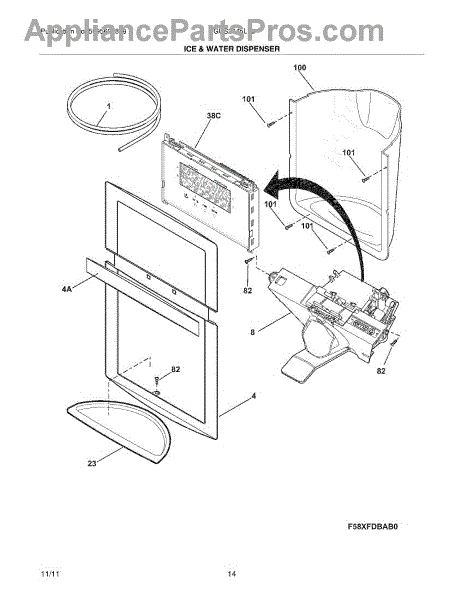

Parts for Frigidaire DGUS2645LF2: 15 - Ice & Water Dispenser Parts

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

The Water Tube is an OEM part for Frigidaire refrigerators. It is responsible for transporting water from the supply line to various components such as the ice maker and water dispenser. Ensuring a steady and reliable flow of water, this tube is essential for the proper functioning of these features.

Causes of a bad water tube can include cracks or splits due to temperature fluctuations, clogging from mineral deposits, or damage from bending and kinking.

Symptoms of a bad water tube include:

• Water leaks inside or outside the refrigerator
• Reduced or no water flow to the ice maker or water dispenser
• Visible cracks or kinks in the tube
• Water tasting off due to contaminants

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dispenser Assembly is an OEM part for Frigidaire refrigerators. It is responsible for dispensing water and ice from the refrigerator door, providing easy access to chilled water and ice cubes.

Causes of a bad dispenser assembly can include electrical issues, wear and tear over time, or physical damage to the dispenser mechanism or housing. Additionally, problems with the water inlet valve or ice maker can impact the dispenser's performance.

Symptoms of a bad dispenser assembly include:

• Water or ice not dispensing
• Leaks or drips from the dispenser area
• Inconsistent or no ice production
• Unresponsive dispenser controls

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This dispenser control board is the electronic module behind the refrigerator's dispenser panel. It interprets button selections and powers the display, enabling proper ice and water dispensing and consistent user feedback when the original board is failing.

• Processes dispenser button inputs and sends commands to the auger motor and water inlet valve
• Controls dispenser indicator lights, lock feature, and user interface feedback
• A failed board may present as a dead/unresponsive dispenser panel or no display
• Can also cause no dispensing, stuck mode selection, intermittent operation, or erratic lights

• Disconnect power before servicing; avoid working on a live circuit
• Remove dispenser trim/panel to access the module; release retaining tabs carefully to prevent damage
• Move wire connectors over one at a time; handle the PCB by its edges and observe ESD precautions

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This is a factory replacement screw fastener used to secure components in your appliance. It restores a tight, rattle-free fit for panels, brackets, and trim when an original screw is missing, stripped, or corroded.

• Secures panels, brackets, and trim to the appliance cabinet or liner
• Replaces a missing, stripped, or rusty screw
• Helps eliminate looseness, vibration, or rattling components
• Maintains proper alignment and a clean, factory fit

• Unplug the appliance before servicing; if near water lines, shut off the supply
• Match to the original and install in the same location/orientation
• Start threads by hand to avoid cross-threading; do not overtighten, especially into plastic
• Keep and reuse any original washers or spacers if present

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This replacement tube routes water inside the refrigerator to the dispenser or ice maker, restoring proper water flow and preventing leaks when the original tubing is cracked or worn. Simple direct-fit replacement when the OEM tubing fails. What it does:

• Carries water between the refrigerator supply and the dispenser or ice maker
• Replaces cracked, split or collapsed tubing that can cause leaks
• Helps restore steady water flow and proper ice-making or dispensing
• Prevents water damage from deteriorated or pinched lines

• Designed for refrigerator models that use this exact OEM tube
• Disconnect power and shut off the water supply before replacing tubing
• Inspect connections and seals; replace any damaged clips or fittings to ensure a watertight seal

This replacement refrigerator water tube routes water or condensate between components and maintains a sealed path. Replacing cracked, kinked, or brittle tubing helps stop leaks and restore proper water movement through the system.

• Provides a sealed path to carry water within the refrigerator assembly
• Maintains proper routing to help prevent kinks and restrictions
• Typical failure signs: water leaking inside or underneath, pooling water, visible cracks/brittleness, restricted flow
• Replacing damaged tubing helps prevent water damage to surrounding parts

• Disconnect power and shut off the water supply before servicing
• Note the original routing and connection points; match the length and path during installation
• Fully seat tube ends into existing fittings; transfer any clips/ferrules from the original as required and avoid sharp bends
• Restore water and power, then run and inspect all connections for leaks

This refrigerator seal restores a tight barrier between internal components. Replacing a worn or damaged seal helps prevent air leaks and moisture intrusion, supporting proper airflow, stable temperatures, and reduced frost or condensation around the joint.

• Creates an air-tight barrier between mating surfaces
• Helps maintain correct airflow and temperature balance between compartments
• Reduces frost, condensation, and warm/cold spots near the sealed area
• Common signs of failure: visible gaps, loose/crumbled seal, rattling panel, moisture or frost at the joint

• Disconnect power before servicing
• Remove the related cover or housing to access the old seal
• Clean contact surfaces; install the new seal in the same orientation without stretching or pinching
• Reassemble and verify an even seal and normal airflow before returning to service

The Ice Maker Fill Tube Assembly is an OEM replacement part for Frigidaire refrigerators. As a component of the automatic icemaker, this fill tube assembly transports water from the water supply line into the ice molding chamber.

Causes of a bad fill tube assembly can include cracks, leaks, or blockages developing over time due to mineral buildup or mold growth inside the plastic tubing. Constant bending during ice production also leads to tubing fatigue.

Symptoms of a bad fill tube assembly include:

• Icemaker not filling with water or producing ice
• Water leaks in the freezer compartment
• Mineral residue or mold observed inside the tubing

This OEM Frigidaire part is compatible with models including Electrolux, Gibson, Kelvinator, and some Kenmore units.
